Organic Ball Pellet Fertilizer Granulator Machine With Large Output

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Package or container Delivery Time : 15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets per day
Place of Origin: Zhengzhou China Brand Name: Tianci
Certification: BV ISO SGS Model Number: YSL2-60/120~YSL2-120/220

Detail Information

Condition: New Weight: 2 Tons
Transport Package: Container Trademark: Tianci
Warranty: 12 Months Certificate: ISO BV SGS
Application: Granular Fertilizer Making Machine Type: Rotary Granulator
Place Of Original: Zhengzhou China Voltage: 380V
High Light:

fertilizer granule machine

,

fertilizer pellet machine

Product Description

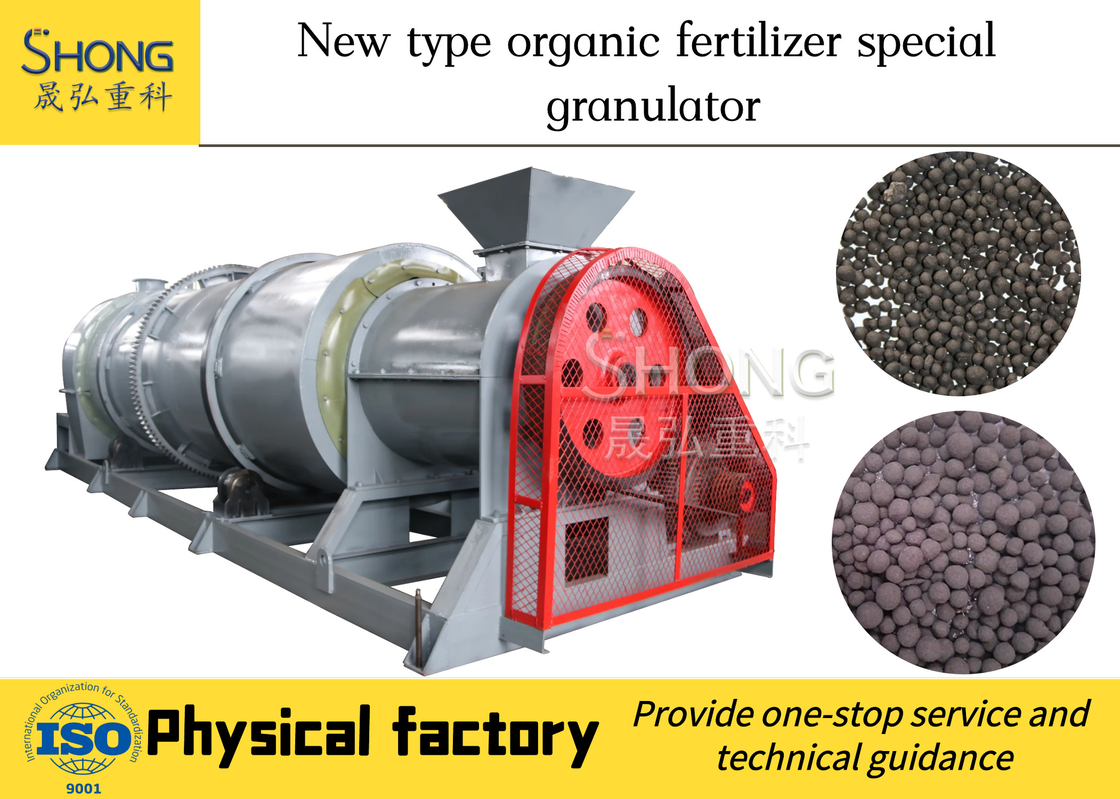

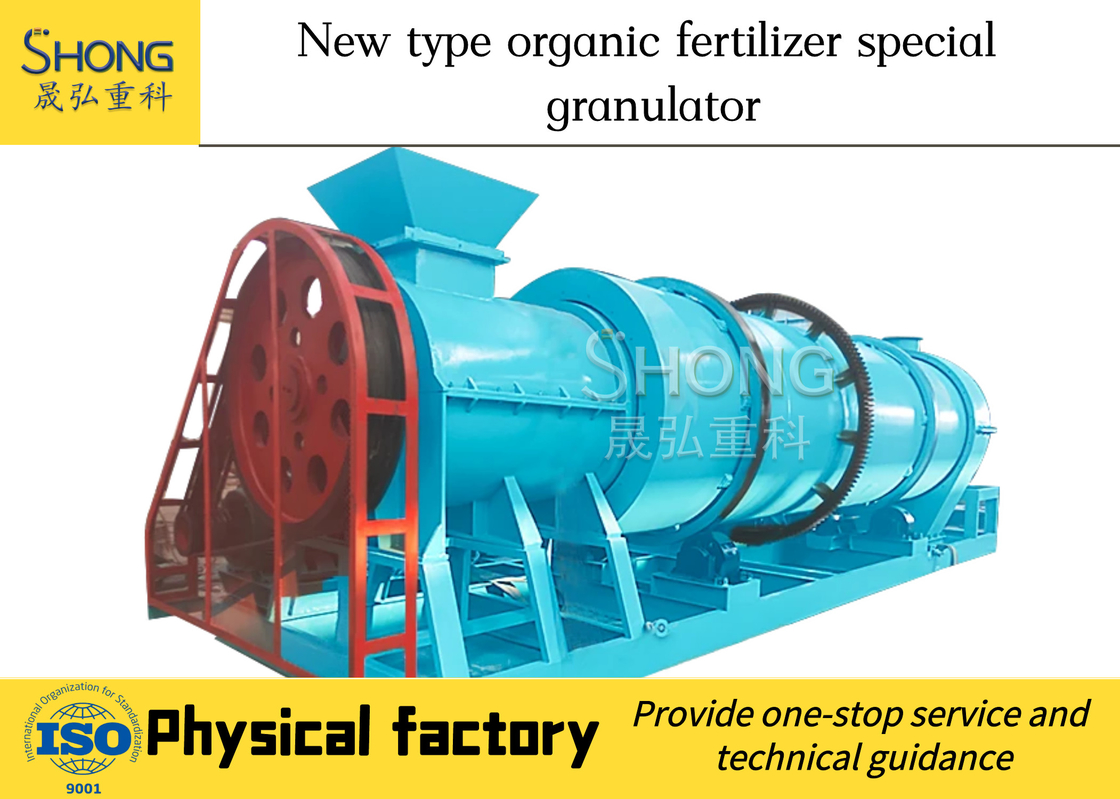

Organic Ball Pellet Fertilizer Granulator Machine With Large Output

Product Information:

As the one of the key equipments in fertilizer industry, rotary drum granulator is applicable to cooling, heating, and guniting and ammoniated granulation and big scale fertilizer production of high, medium and low content.
The Drum body adopts special stainless steel and rubber plate lining structure. It can remove scars and peel burls automatically. It has the advantages of high strength of granule, high production rate, crossion proof, abrasion proof, low energy consumption, long service life, convenient operation and maintenance, etc.
Remark: Prodcution rate, granulatiion rate and the diameter of granule will be effected by different formulation, process and raw materials.





Working principle of granulator machine



Stirring tooth granulator use high speed rotating mechanical stirring force and aerodynamic force caused by this .It makes fine powdery material in the machine reach continuously mixing ,granulating globurizing ,compact process. And reach the purpose of granulation .The shape is ball .with ≥0.7spherical degree .Diameter is about 0.3-3mm. With ≥98% granulating rate . The size of diameter of granule can be adjusted according to material blend and spindle speed .In general ,The lower the blend is ,The higher the revolving speed is,And the smaller the granule .



Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc


Main technical parameters


Model no.

YSL2-60/120

YSL2-80/120

YSL2-80/150

YSL2-100/150

YSL2-100/180

YSL2-120/180

YSL2-120/220

Production(t/h)

2-4

3-5

5-8

6-10

8-12

10-15

12-20

The diameter size

1-5

1-5

1-6

1-8

1-10

1-10

1-10

Power (kw)

42.6

58.2

60.5

72.5

80

93

117







Advantages:

1. Screw thread steel: The whole rotary body is made of screw thread steel, with high strength, good integration and long lasting service life.

2. Lining rubber board: The inner wall of the drum is lined with a rubber plate, to avoid the rotary body is corrosived by acidic raw materials.

3. The high granulating rate and beautiful appearance: the granulating rate of the kind of granulating machine can be 90%. And the granules are much more sphrical and beautiful.

4. Higher output capacity: the machine production capacity can be 1-30t/h, always used in the big capacity organic or compound fertilizer production line.



Organic Ball Pellet Fertilizer Granulator Machine With Large Output 0

Services provided during the sale:



Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.

1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients.



After-sale services:



Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

4) Examining the equipment regularly;

5) Taking the initiatives to eliminate the failure(s) rapidly at site;

6) Distributing the guarantee fittings door-to-door;

7) Providing technical exchanging;

8) Providing maintenance for big item


Organic Ball Pellet Fertilizer Granulator Machine With Large Output 1
