Organic Fertilizer Pellet Machine , Fertilizer Production Equipment Manufacture

Minimum Order Quantity : 1 PC Price : Negotiable
Packaging Details : Package or Container Delivery Time : 15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 pcs per day
Place of Origin: Zhengzhou China Brand Name: Tianci
Certification: BV ISO SGS Model Number: YSL-60 ----YSL-150

Detail Information

Application: Organic Fertilizer Production Line Brand: Tianci
Product: Organic Fertilizer Feed Moisture: 20%-40%
Working Method: Wet Type Granulating Type: Fertilizer Machine
Raw Material: All Kinds Of Organic Material Function: Making Organic Fertilizer
Warranty: 12 Months Color: Custom Requirement
High Light:

fertilizer granule machine

,

fertilizer pellet machine

Product Description

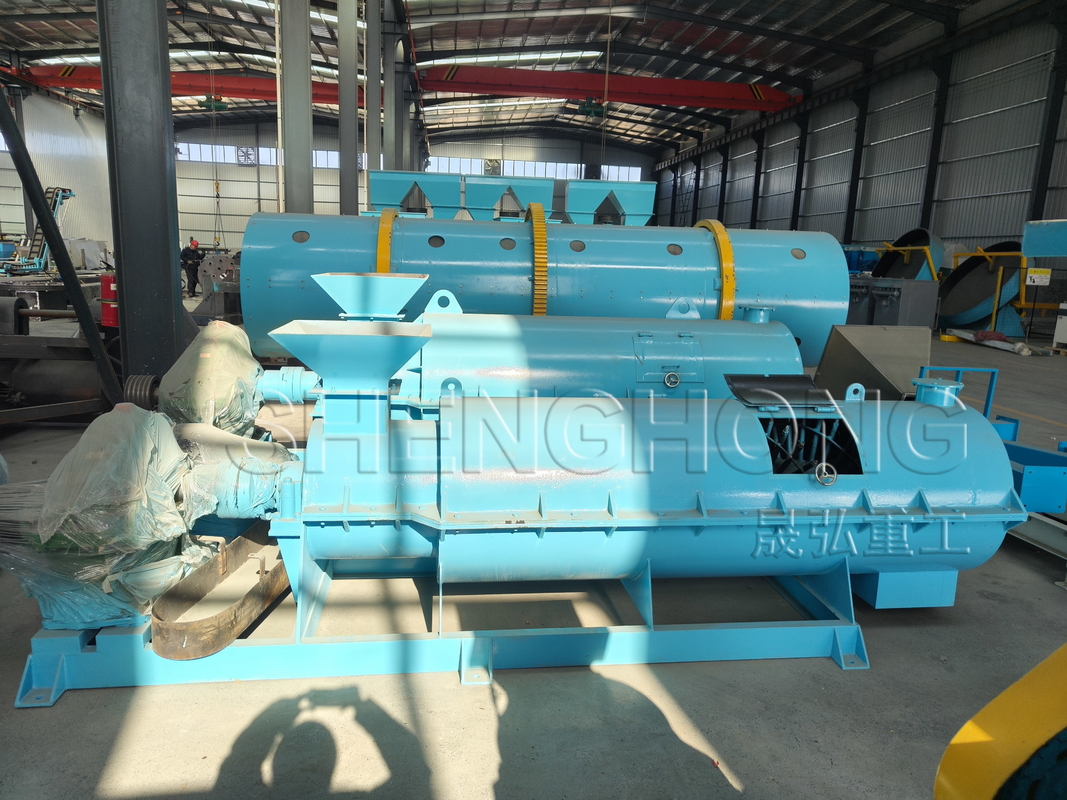

Organic Fertilizer Pellet Machine , Fertilizer Production Equipment Manufacture



Product Introduction

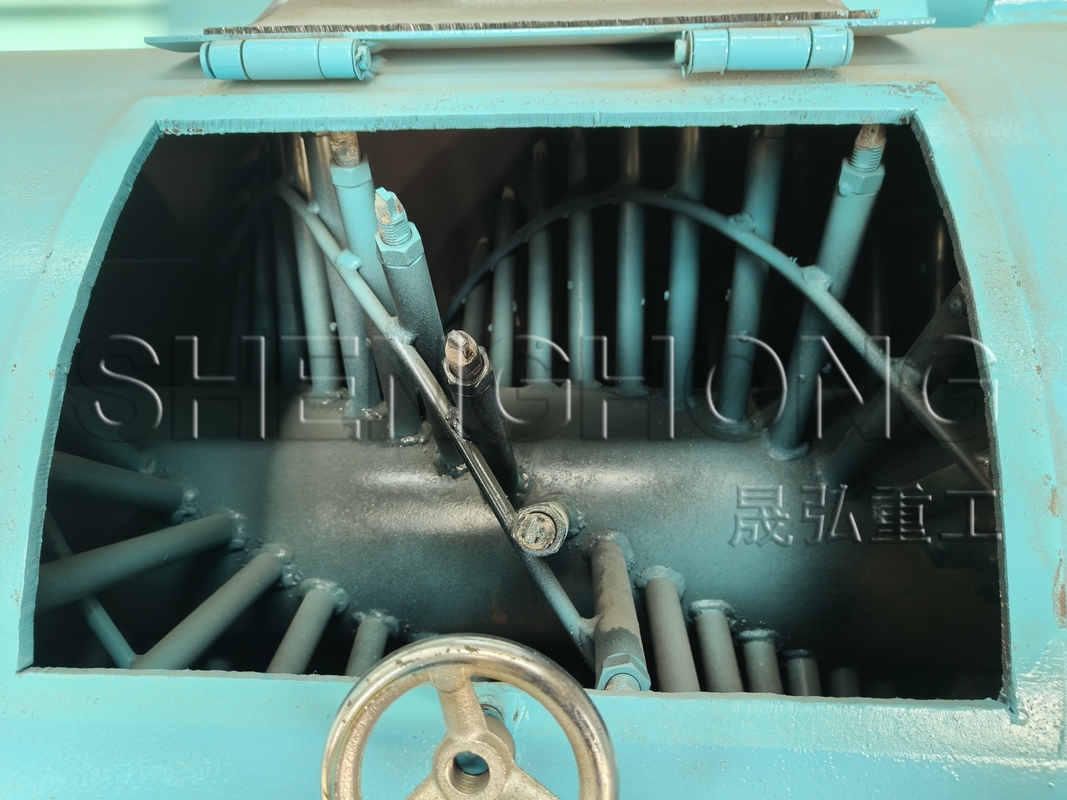

The material enters the machine from the feed inlet at one end of the machine body, and is continuously pushed through the granulation rotor and mechanically moved with the housing to achieve the purpose of granulation. The finished product particles are pushed out of the machine at the other end of the machine body.

The rotor is driven by the motor and reducer of the transmission part. The transmission part and the body part are mostly fixed on the same frame. This structure is not only solid and stable, but also very convenient to install. It is a new era of environmentally friendly fertilizer production equipment.



Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc





Features of Organic Fertilizer Granulator

1. WLZL Organic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing, so the processing cost is low and efficiency is high.
2. The final granule produced by WLZL Organic fertilizer granulator have smooth surface, high uniform size, good fluidity, high density etc.
3. The temperature reach to 60-100 ° C in the granulating cylinder when the WLZL granulator working, which will reducing the drying cost greatly.
4. The formation rate of WLZL granulator >95%, which have been approved by ISO9001 and other authorities.
5. The using cost of WLZL fertilizer granulator is very low compare to other die pelletizing granulator.


Main characteristics


1. WLJOrganic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing,
So the processing cost is low and efficiency is high.
2. The final granule produced by WLJOrganic fertilizer granulator have smooth surface, high uniform size, good fluidity, high density etc.
3. The temperature reach to 60-100 ° C in the granulating cylinder when the WLJgranulator working, which will reducing the drying cost greatly.
4. The formation rate of WLJgranulator >95%, which have been approved by ISO9001 and other authorities.
5. The using cost of WLJfertilizer granulator is very low compare to other die pelletizing granulator.

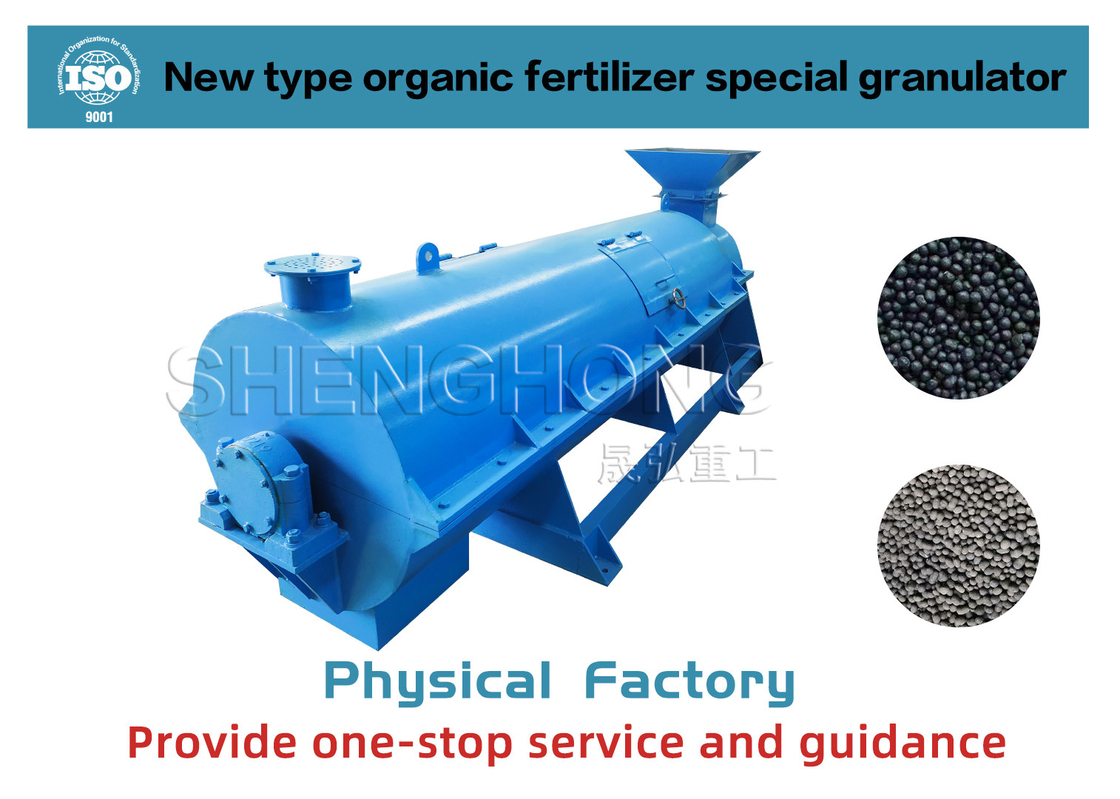

Top sale new type organic fertilizer granulator making machine



Installation Angle

2º-2.5º



2º-2.5º

2º-2.5º

2º-2.5º

2º-2.5º

Capacity



1-1.5T/H

1.5-2.5T/H

2-4T/H

4-6T/H

6-8T/H

Total Power



37KW

55KW

75KW

90KW

110KW

Moisture of feeding material



20%-40%

20%-40%

20%-40%

20%-40%

20%-40%

Size of feeding material

50mesh

50mesh

50mesh

50mesh

50mesh

Dimension

4.1*1.6*1.15m

4.25*1.85*1.3m

4.7*2.35*1.6m

4.9*2.55*1.8m

5.5*2.8*2m



Organic Fertilizer Pellet Machine , Fertilizer Production Equipment Manufacture 0
