Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production

Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production
Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production

Large Image :  Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production

Product Details:

Place of Origin: Zhengzhou China
Brand Name: Tianci
Certification: SGS BV ISO
Model Number: Kp-400~Kp-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Package or container
Delivery Time: 15 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per day
Detailed Product Description
Machine Type: Flat Die Press Granulation Raw Material: Kinds Of Organic Material
Usage: Making Fertilizer Granules Weight: 2 Tons
Machine Capacity: 3-7 Ton Per Hour Condition: New
Warranty: 12 Months Material: Carbon Steel Or Stainless Steel
High Light:

fertilizer granulation equipment

,

fertilizer granule machine

Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production





Specifications of organic fertilizer making machine
1-12mm granules
Microorganism survival rate >90%
CE organic fertilizer making machine

machine for making organic fertilizer granules

organic fertilizer granulating pellet machine

manure pellet machine/granular fertilizer machine/granulating fertilizer machine

SKJ-3 series organic fertilizer pellet machine Taper-shape rollers and flat die pellet mills ,which are specially fit for animal feed ,biomass,organic fertilizer pellets .



Organic fertilizer pellet machine are our national patent products,Germanic advanced technology.

Our taper-shape rollers series flat die organic fertilizer pellet machine have several advantages:

1.flat die organic fertilizer pellet machine rollers adopts "Taper-shape"rollers make theirs ends rounding linear speed consistent with flat die ,so it avoids dislocated friction which maybe created between rollers and die .in this way it can reduce friction and save much energy consumption ,lengthen die and rollers life.

2.enlarging the pressed rollers at will the own advantage of taper rollers animal feed pellet machine

3.organic fertilizer pellet machine rollers can be repaired 2-3times,longer lifetime

4.organic fertilizer pellet machine have varied type compression formation



Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc



Main technical parameters

Model no.

KP-150C

KP-250C

KP-300C

KP-350C

KP-400C

Production(t/h)

0.08-0.1

0.5-0.7

0.8-1.0

1.1-1.8

1.8-2.5

Granulation rate

>95

>95

>95

>95

>95

Granule tempeature rise

<30

<30

<30

<30

<30

Power (kw)

5.5

15

22

30

30

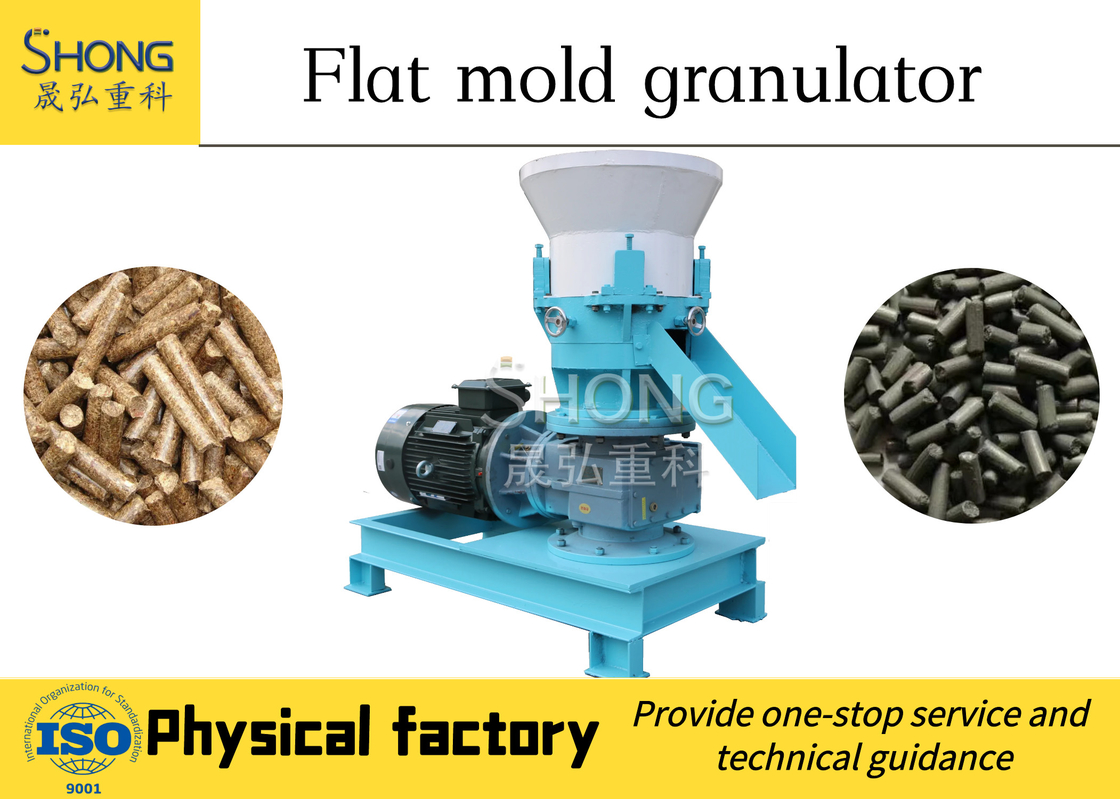

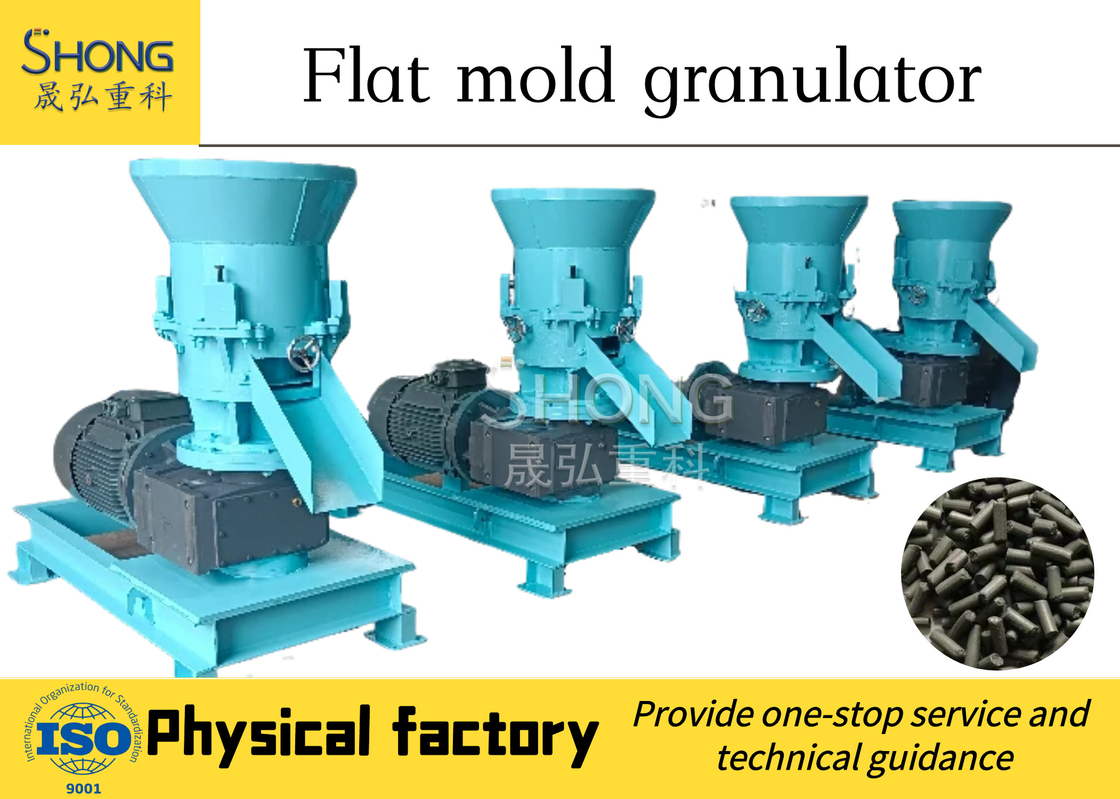

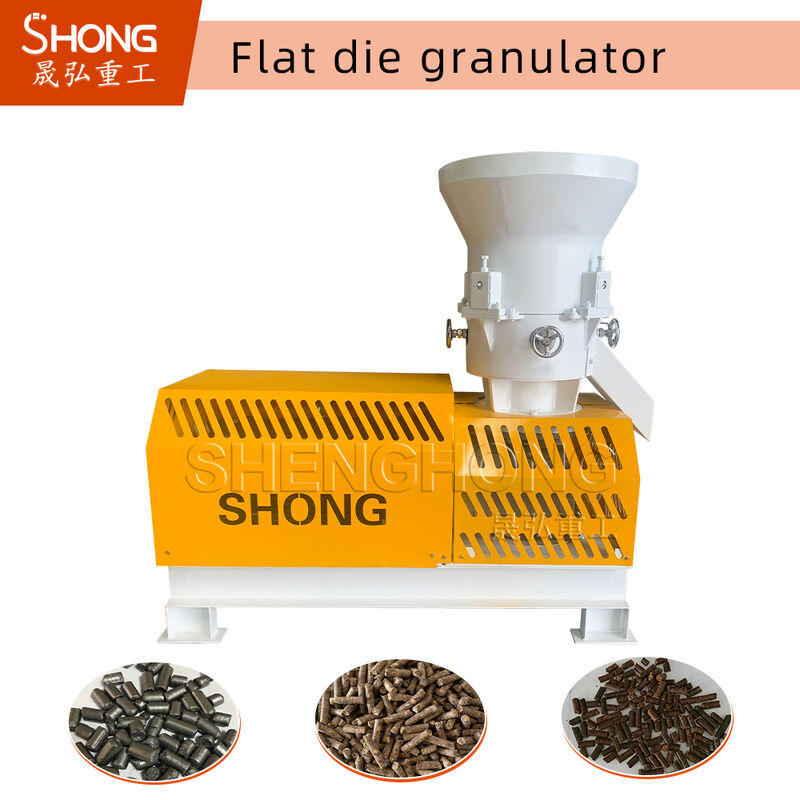

Flat die organic fertilizer granulator


chicken litter fertilizer granulator is agricultural machinery research institute use years compound fertilizer processing equipment design, production experience developed in the latest technology products, has obtained the country practical patent. It is used for granulation to all kinds of organic matter after fermentation, break through the conventional organic prilling before granulation needs not to dry and crush the raw materials. It can direct burdening to work out cylindrical grain, can save a lot of energy.

Features of Flat die organic fertilizer granulator
(2) The organic content can be high to 100%, make pure organic granulate
(3)Using organic matter granule with mutual mosaic growing up under a certain force, it no need to add binder when granulating.
(4) Product granule is massy, it can sieve directly after granulation to reduce the energy consumption of drying
(5) After fermentation organics don't need to dry, moisture of the raw material can be in 20%-40%

Advantage

The finished product granule is cylindrical
The organic content can be high to 100%, make pure organic granulate
Using organic matter granule with mutual mosaic and becoming larger under a certain force, it no need to add binder when granulating.
With durable product granule, it can sieve directly after granulation to reduce the energy consumption of drying
After fermentation organics don't need to dry, moisture of the raw material can be in 20%-40%.

Flat Film Extrusion Fertilizer Granulator Machine For Fertilizer Production 0
