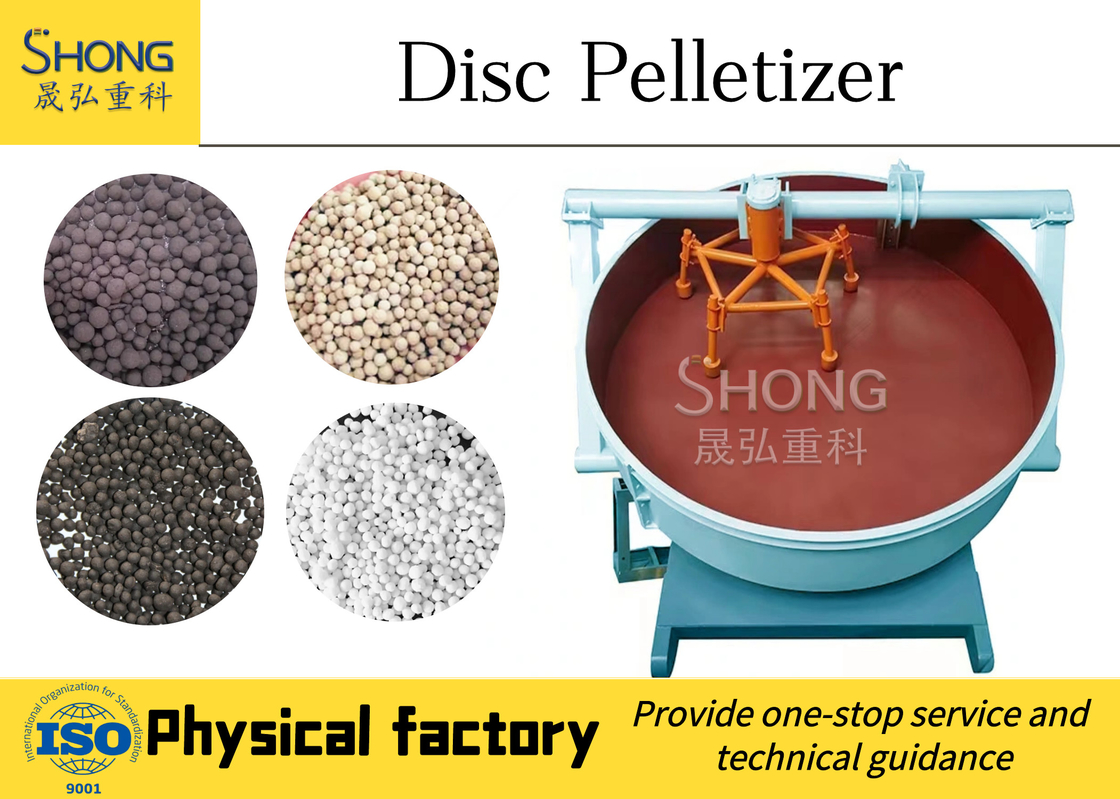

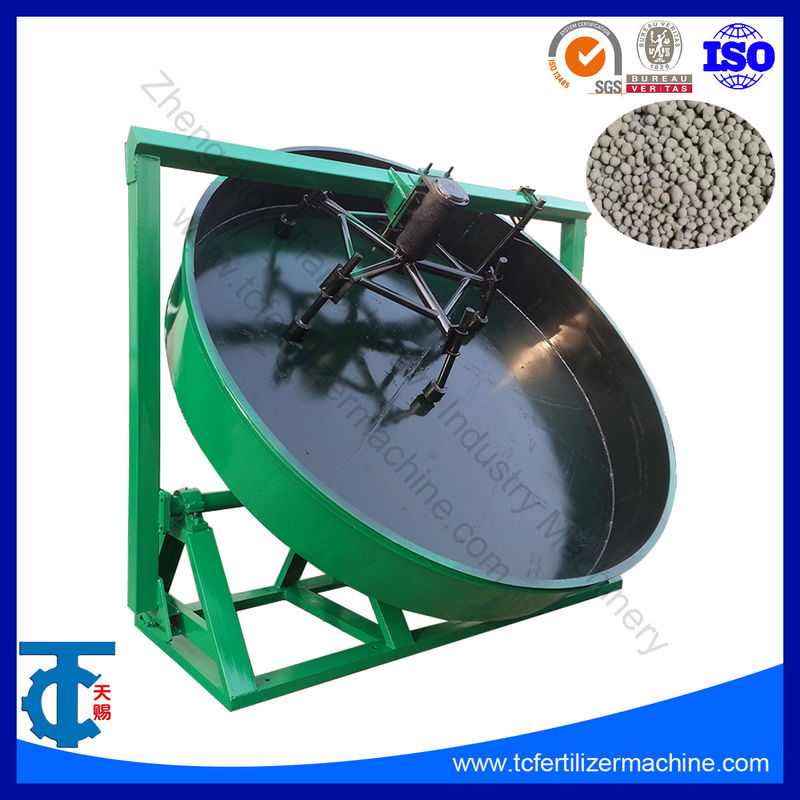

SGS Approved Fertilizer Granulator Machine , Disc Pelletizer Of Organic Fertilizer
Instruction Of Organic Fertilizer Pellets Granulator Machine
Automatic Organic Fertilizer Making Machine is a complete line of machinery used for compost and process organic fertilizer with in vessel method. Poultry manure, cow dung or other animal manure are probably the raw material. The complete production line consists of composting system, grinding and sifting system, batching and mixing system, pelleting system, drying system, cooling and sifting system, bagging system, auxiliary system and plant controls & computer. The plant has the advantage of advanced and reliable technology, compact structure, simple operation, convenient maintenance and high automation. With the complete equipment, formulas can be easily adjusted according to the market demand to meet the different requirements of customers.
The finished products are powdery organizer fertilizer or granule fertilizer.
Disc granulation machine could product
| Raw material classification |
Specific application |
| Inorganic fertilizer |
BB and compound fertilizer powder |
| Biologics |
Western medicine granules etc |
| Coal industry |
Carbon granule etc |
| Others |
Kinds of inorganic powder that you need manufacture granules |
Characteristics
The granulating disc has new novel and reasonable structure, weight losing and height reduced. Flexible process arrangement, suitable for old plant modification.
The market Angle is adjustable. Using Angle gaskets, flexible and convenient adjustment.
The unique combination of unpowered scraper integration make auxiliary power consumption is reduced.
The market consists of a plate body and plate section. Reduce the main motor power. Disc section along the plate body can be adjusted up and down. Side of the flange, plate section ends for a ball when acquired can ensure that the material is not strain and torn apart.
New desilting design, combined by unpowered scraper side end of qing dynasty, the qing horn scraper liquidation, cooperate with the disc body unique processing technology, desilting, into a ball effect is good, there will not be a big mud pie, feeding the ball 90% in 3 to 5 mm in diameter.
Main technical parameters
| Model no. |
ZL10 |
ZL15 |
ZL18 |
ZL20 |
ZL25 |
ZL28 |
ZL30 |
ZL32 |
ZL36 |
ZL45 |
| Production(t/h) |
0.3-0.5 |
0.5-0.8 |
0.6-1.0 |
0.8-1.2 |
1.0-1.5 |
1.0-2.5 |
2.0-3.0 |
2.0-3.5 |
3.0-5.0 |
4.0-6.0 |
| Motor Power (kw) |
2.2 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
22 |
| Innerdiam(mm) |
1000 |
1500 |
1800 |
2000 |
2500 |
2800 |
3000 |
3200 |
3600 |
4500 |
| Side height(mm) |
250 |
300 |
300 |
350 |
350 |
400 |
450 |
500 |
550 |
600 |
| Volume(m³) |
0.4 |
1.1 |
1.4 |
1.8 |
2.5 |
3.3 |
3.9 |
4.3 |
5.5 |
6.5 |
| Rotation speed(r/min) |
2.2 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
22 |
Characteristics
The granulating disc has new novel and reasonable structure, weight losing and height reduced. Flexible process arrangement, suitable for old plant modification.
The market Angle is adjustable. Using Angle gaskets, flexible and convenient adjustment.
The unique combination of unpowered scraper integration make auxiliary power consumption is reduced.
The market consists of a plate body and plate section. Reduce the main motor power. Disc section along the plate body can be adjusted up and down. Side of the flange, plate section ends for a ball when acquired can ensure that the material is not strain and torn apart.
New desilting design, combined by unpowered scraper side end of qing dynasty, the qing horn scraper liquidation, cooperate with the disc body unique processing technology, desilting, into a ball effect is good, there will not be a big mud pie, feeding the ball 90% in 3 to 5 mm in diameter.
