Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Fertilizer Making Machine | Voltage: | 380V |
| Raw Material: | NPK Compound Fertilizer , Organic Fertilizer | Usage: | Producing Fertilizer |
| Color: | Customer's Request | Diameter: | 1.7-4.2m |
| Power: | According To Solution | Product Type: | Granulator Fertilizer |
| High Light: | fertilizer granulation equipment,fertilizer pellet machine |
||

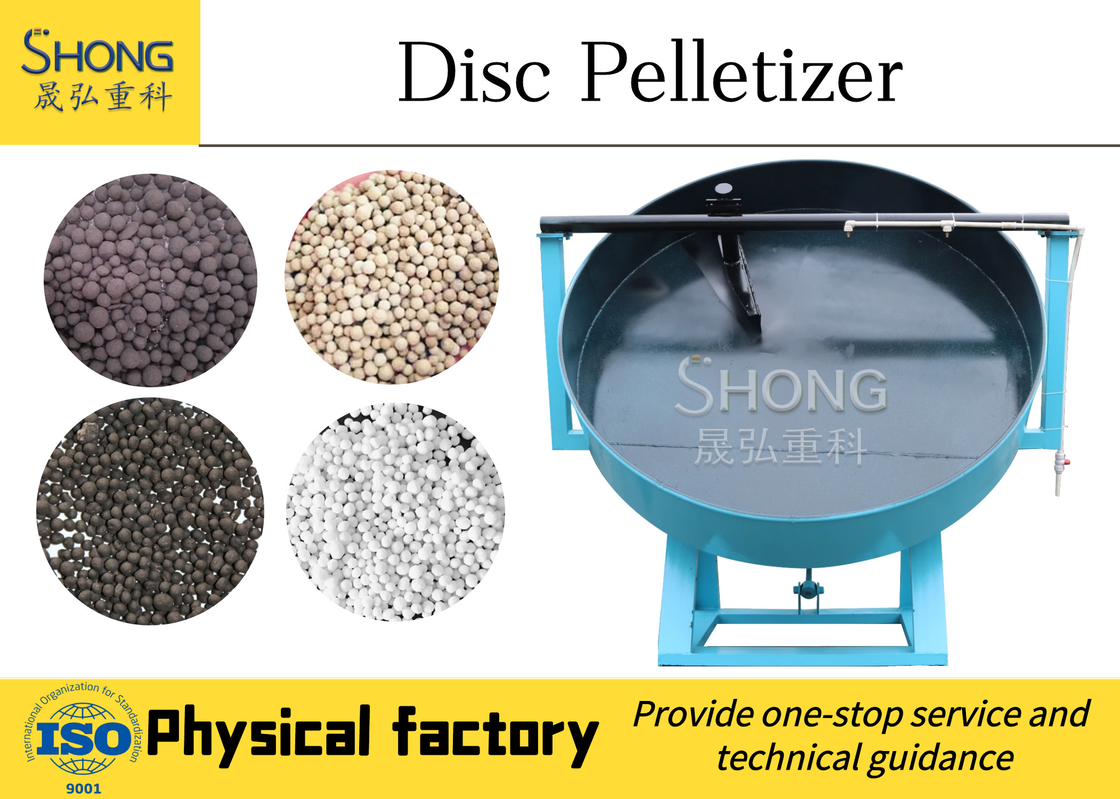

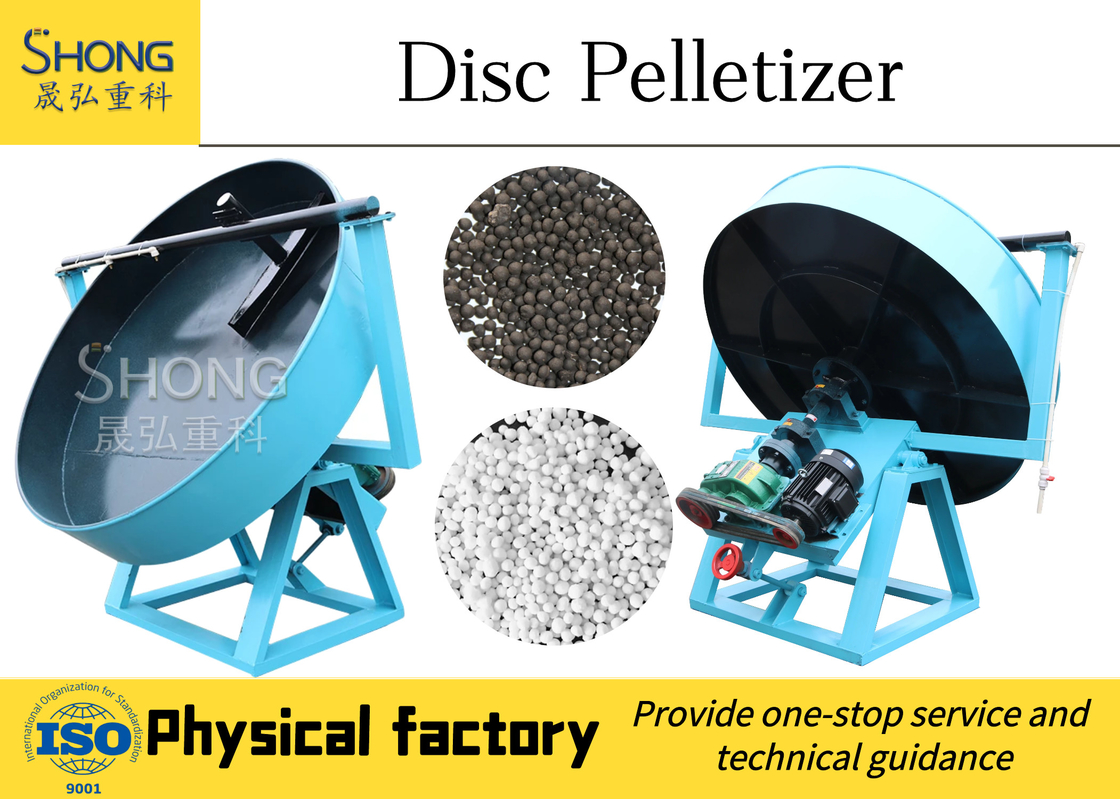

Fertilizer Pan Disc Granulator Machine For Wormcast , Disc Granulator Plant
Instruction Of Organic Fertilizer Pellets Granulator Machine
Disc granulator is one of common equipments in compound fertilizer industry. Generally. The slope degree of its pan can be adjusted from 40° to 55°.
The pan rotates at a certain angle with the horizontal driven by the motor through reducer. The powder will rise along with the rotating pan under the friction between the powder and the pan; on the other hand, the powder will fall down under gravity. At the same time, the powder is pushed to the pan edge because of the centrifugal force. The powder materials roll in a certain trace under these three forces. It gradually becomes the required size, then overflow by the pan edge. It has the advantages of high granulating rate, uniform granule, high strength, easy to operate, convenient to maintain, etc.
Disc granulator is country new core Patents fertilization equipment. Granulation tray's angle use a whole arc structure, rate of granule-becoming up to 93%. Granulating disc have three feed-out mouth, convenient for intermittent production, greatly reduced the labor intensity, improve labor efficiency. Reducer and motor use Flexible belt transmission, have a smooth start-up, slow down impact, improve using life of equipment. Granulation tray's bottom using a number of radiation steel plate to strengthen, sturdiness and durability, never deformation. Thicken, aggravation. Solid base design, not need been fixed by anchor bolt, smooth operation. Disc Pelletizer main gear use high-frequency quenching, life increase to 1 time. Disc Granulator plate lined with high-strength glass fiber, anti-corrosion and durable.
Disc granulation machine could product
| Raw material classification | Specific application |
| Inorganic fertilizer | BB and compound fertilizer powder |
| Biologics | Western medicine granules etc |
| Coal industry | Carbon granule etc |
| Others | Kinds of inorganic powder that you need manufacture granules |
Disc pan granulator machine detail informations:
|
Production name |
Pan Granulator |
|
Brand Name |
Oriental |
|
Place of Origin |
Qingdao,Shandong |
|
Usage |
making organic fertilizer granules |
|
Voltage |
110V/220V/380V/415V/600V |
|
Power(W) |
Customized |
|
Dimension(L*W*H) |
Customized |
|
Material |
Carbon steel |
|
Capacity |
10000-300000T/Y |
|
Warranty |
One Year |
Main technical parameters
| Model no. | ZL10 | ZL15 | ZL18 | ZL20 | ZL25 | ZL28 | ZL30 | ZL32 | ZL36 | ZL45 |
| Production(t/h) | 0.3-0.5 | 0.5-0.8 | 0.6-1.0 | 0.8-1.2 | 1.0-1.5 | 1.0-2.5 | 2.0-3.0 | 2.0-3.5 | 3.0-5.0 | 4.0-6.0 |
| Motor Power (kw) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
| Innerdiam(mm) | 1000 | 1500 | 1800 | 2000 | 2500 | 2800 | 3000 | 3200 | 3600 | 4500 |
| Side height(mm) | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 550 | 600 |
| Volume(m³) | 0.4 | 1.1 | 1.4 | 1.8 | 2.5 | 3.3 | 3.9 | 4.3 | 5.5 | 6.5 |
| Rotation speed(r/min) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
Features of pan granulator machine for making organic fertilizer granules
1. Overall disc structure, granulation rate reaches above 93%.
2. The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.
3. The reduction gears and motor using the flexible belt driving, smooth start, slowing impact, extend equipment service life.
4. The disc bottom adopts multiple steel plates which are firm, durable, not deforming.
5. The design of disc bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.
6. Granulator’s main gears adopt high temperature quenching technology, doubling the service life.
7. The granulator disc lining adopts the high strength glass steel which is antiseptic and durable.
