Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant

Good quality NPK Fertilizer Production Line for sales
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant

China Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant supplier
Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant supplier Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant supplier

Large Image :  Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant

Product Details:

Place of Origin: Zhegzhou, Henan Province China
Brand Name: Tianci or OEM
Certification: BV, SGS, ISO
Model Number: ZG series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets Per Month
Contact Now
Detailed Product Description
Service: Long Term Usage: Making Fertilizer Granules
Raw Material: NPK,Urea, Ammonium Nitrate, Etc. Function: Making NPK Compound Fertilizer
Granules Shapes: Ball Shape Guarantee: 12 Months
Color: Demand Application: NPK Compound Fertilizer Making

NPK Fertilizer Plant , NPK Granulation Plant , Fertilizer Production Plant
Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant

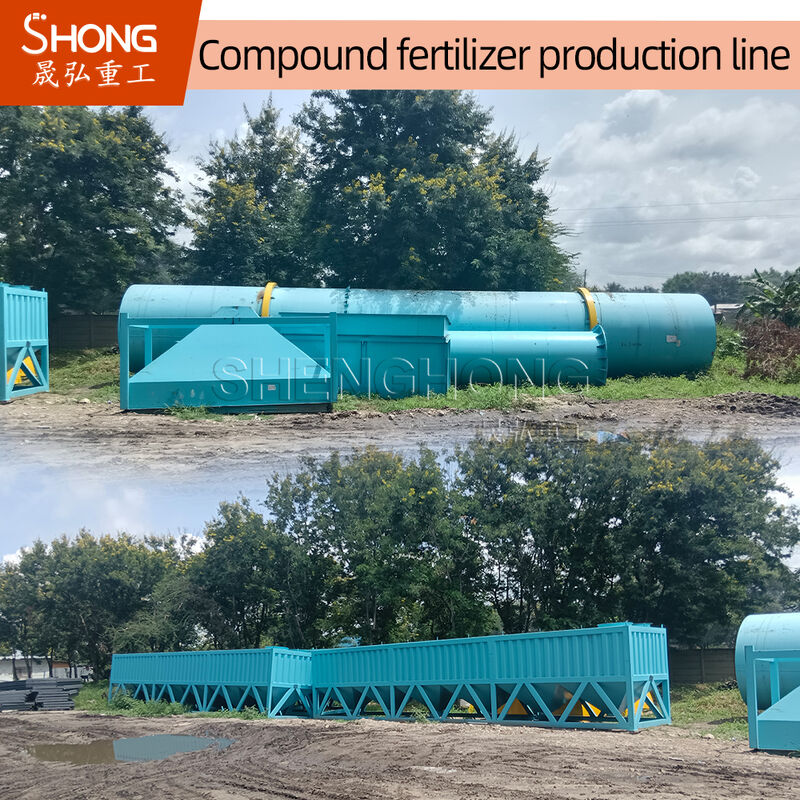

Introduction For Compound Fertilizer Production Line

Compound Organic Fertilizer Making Machine is the key equipment in compound fertilizer industry.
It is suitable for hot and cold granulation and high, medium and low concentrations of mass production of compound fertilizer.

Description For Compound Fertilizer Production Line

1, We provide single machine, such as material crusher,material mixer,fertilizer dryer, fertilizer cooling machine and so on. We can also provide the whole line of compound fertilizer pellets production line.
2, Chemical compound fertilizer material is many kinds of chemical single fertilizer.
3, Chemical compound fertilizer pellets produciton line includes the organic raw material crushing, mixing, granulating,drying,cooling,packing.

Raw Material For Compound Fertilizer Production Line

Compound fertilizer is the fertilizer containing two or all three of the three basic plant nutrients—Nitrogen, Phosphorus, and Potassium, as well as microelements, such as B, Mn, Cu, Zn, and Mo. The raw material can be powder or bulk, mostly are as below:

1. Urea,ammonium sulfate,ammonium chloride,producyion

2. Monoammonium phosphate,diammonium phosphate,calcium superphosphate,calcium-magnesia phosphate fertilizer

3. Potassium chloride,potassium sulphate,potassium sulphate magnesium

Flow Chart For Compound Fertilizer Production Line

Compound fertilizer production line usually includes 9 processes, batching, grinding, mixing, granulating, drying, cooling, screening, coating and packaging. Batching, mixing, granulating, drying, and screening processes are necessary. Other processes are optional based on different capacity.

Main Equipments For Compound Fertilizer Production Line

1. Crushing machine: vertical grinder and horizontal grinder

2. Mixing machine: vertical mixer and horizontal mixer

3. Granulation machine:disc granulator roller granulator and drum granulator

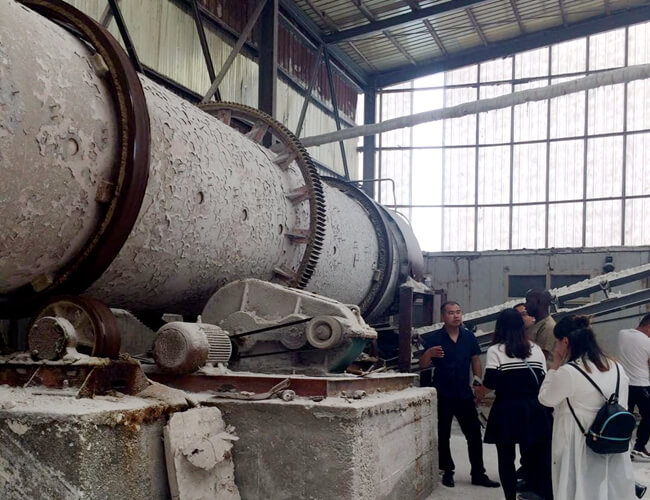

4. Rotary dryer:Drying fertilizer granule after granulating to low down moisture

5. Rotary cooler:Cooling fertilizer granule to make it stable.

6. Coating machine:Coating machine to produce different colors fertilzier granule

7. Screening machine:Grading non-standard fertilizer granules from standard fertilizer granules.

8. Packing machine:Pack fertilizer granule into 10/20/50kg bags.


No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags


Features For Compound Fertilizer Production Line

1. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.
2. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.
1. The ball granulator uses the new processes of extrusion granulation, polishing and shaping ball
2. The ball shaping machine takes the template hole diameter to control the granule size, change the template according to the granule size.
3. The granule is even, smooth, round with high strength and good liquidity.
4. The forming rate of the organic fertilizer is above 95%.
5. The ball shaping machine takes the unique 3-in-1 machine to finish the whole process of drying with low temperature, cooling and screening in one time.
6. The equipment is with the low investment and operating cost. The survival rate of the microbial flora is larger than 90%.
7. The shell of the machine uses special rubber slab lining or acidresistant stainless lining board
which realizes auto scar removal and de-tumor instead of traditional drawknife equipment


Ball Shape NPK Fertilizer Plant , One Year Guaranteed NPK Granulation Plant
