Pellets Production Line Fertilizer Packaging Machine, Gray Color Fertilizer Bagger

Pellets Production Line Fertilizer Packaging Machine,  Gray Color Fertilizer Bagger
Pellets Production Line Fertilizer Packaging Machine,  Gray Color Fertilizer Bagger
video play

Large Image :  Pellets Production Line Fertilizer Packaging Machine, Gray Color Fertilizer Bagger

Product Details:
Place of Origin: Zhengzhou city, China
Brand Name: Shenghong
Certification: BV, ISO, SGS
Model Number: DCS-25F-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Can be negotiated
Packaging Details: Wooden packaging or container: 4500*2500*350000mm
Delivery Time: 8-10 days
Payment Terms: L/C, T/T, Western Union,, D/A, D/P
Supply Ability: 30 sets per month
Detailed Product Description
Power: 2.2kw Color: Gray
Weighting Range: 10 -50kg/bag Dimention: 4300*1300*2500mm
Distance Of Conveyor Transmission: 2m Speed Of Packing: 500-600 Bag/h
Condition: New Warranty: 1 Year
High Light:

fertilizer bagging machine

,

fertilizer bagging equipment

Organic Granules Fertilizer Machine For Pellets Production Line

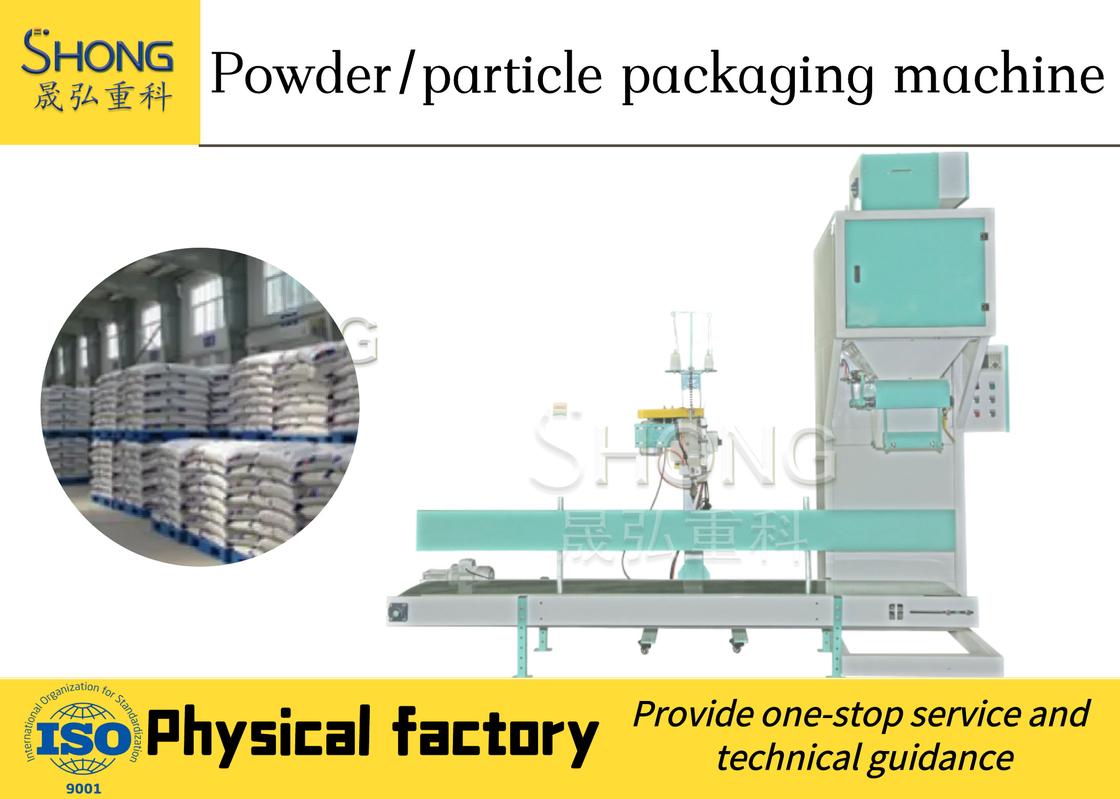

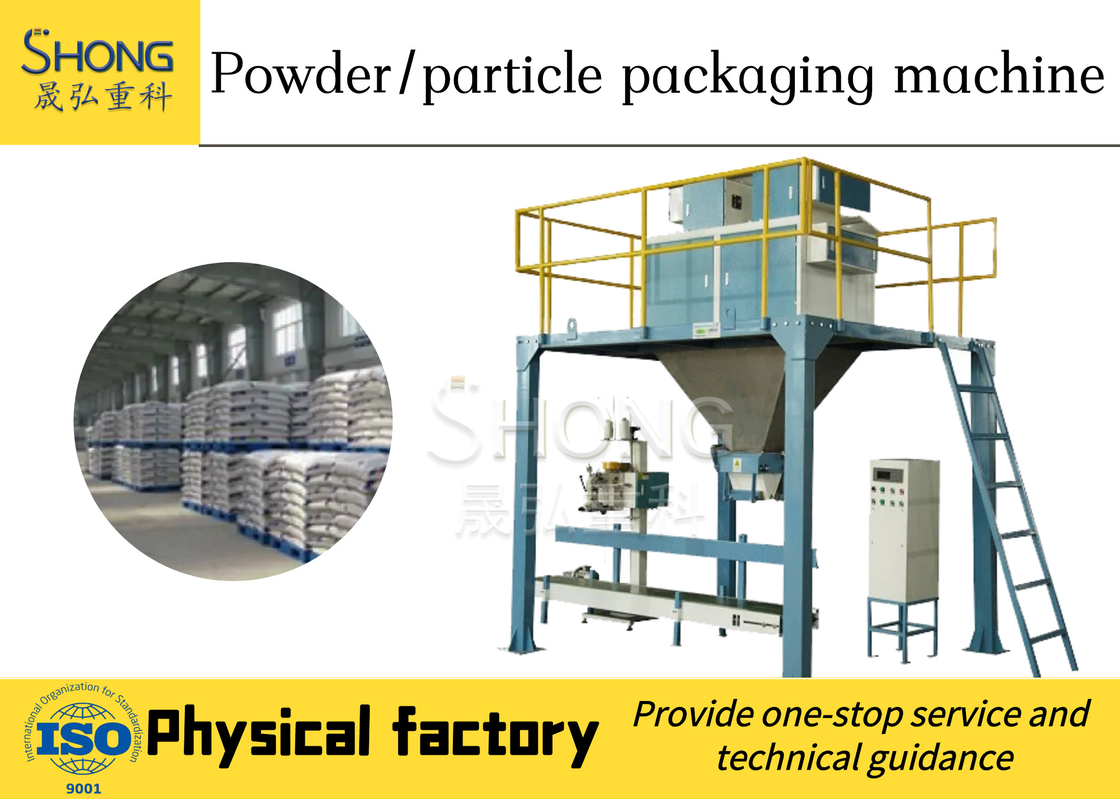

Introduction Of Fertilizer Packaging Machine



The system is applied to quantitative automatic weighing ,filling , kneading , accumulating weigh and time, stitching and conveying with manual assistant for powder material in the flour factory and other industry.



Feature Of Fertilizer Packaging Machine



1. Take three speeds feeding to guarantee the precision at min weight and the speed at max weight.

2. The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall. And at the same time, the system is applied to sealing and convey with max and min bags.

3. There is shock-absorbing device in weighing system ; it could avoid the shock of other devices through floor and tube to affect the weighing system.

4. There is good seal in system, and it has dust catcher and aspirator.

5. The is guide groves in conveyor roller and guide bars in conveyor belts to avoid exclusion and cracks.



Raw Material Of Fertilizer Packaging Machine



No. Category Raw materials list
1 Agricultural waste straw, dregs of beans, cotton dregs, rice bran, biogas waste, mushroom waste, etc.
2 Animal waste slaughterhouse waste, fish market waste, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc.
3 Industrial waste wine lees waste, vinegar waste, manioc waste, sugar waste, etc.



Technical Parameters of Fertilizer Packgaing Machine



Model D-50W
Weigh scope 25-50kg
Accuracy ±0.2%
Drive method electricity, gas
Packing bag paper bag woven bagPE bag
Pack speed 1-3bags/m
Power 6Kw/10A
Voltage 50Hz/380V
(voltage can choose as your requirement)
Air supply 0.4-0.6Mpa/0.4m3/min
Power supply three phase ,five wires
Operation system Canada Germain weighing system
Weight 800kg
Material The parts of weigher contact material usestainless steel,other parts use carbon stee



Application Of Fertilizer Pacaging Machine



1. There is detecting device in system.

2. Processes function of automatic modifying drop height.

3. Processes function of self-test, error pilot and fault code indication.

4. With the serial interfere to communicate the computer.

5. Pre-set filling number in system.

6. With the Roller and PVC conveying belt (the skeleton is made of stainless steel) to deliver the products. Double screw feeder .The roller can be taken down to clean, easy to clean, cleaning with no dead angle.

7. With calibration procedure: equipped with weights and calibration hooks, calibration at any time, especially can calibrate the weight for the machine long time no use.



Pellets Production Line Fertilizer Packaging Machine,  Gray Color Fertilizer Bagger 0Pellets Production Line Fertilizer Packaging Machine,  Gray Color Fertilizer Bagger 1
