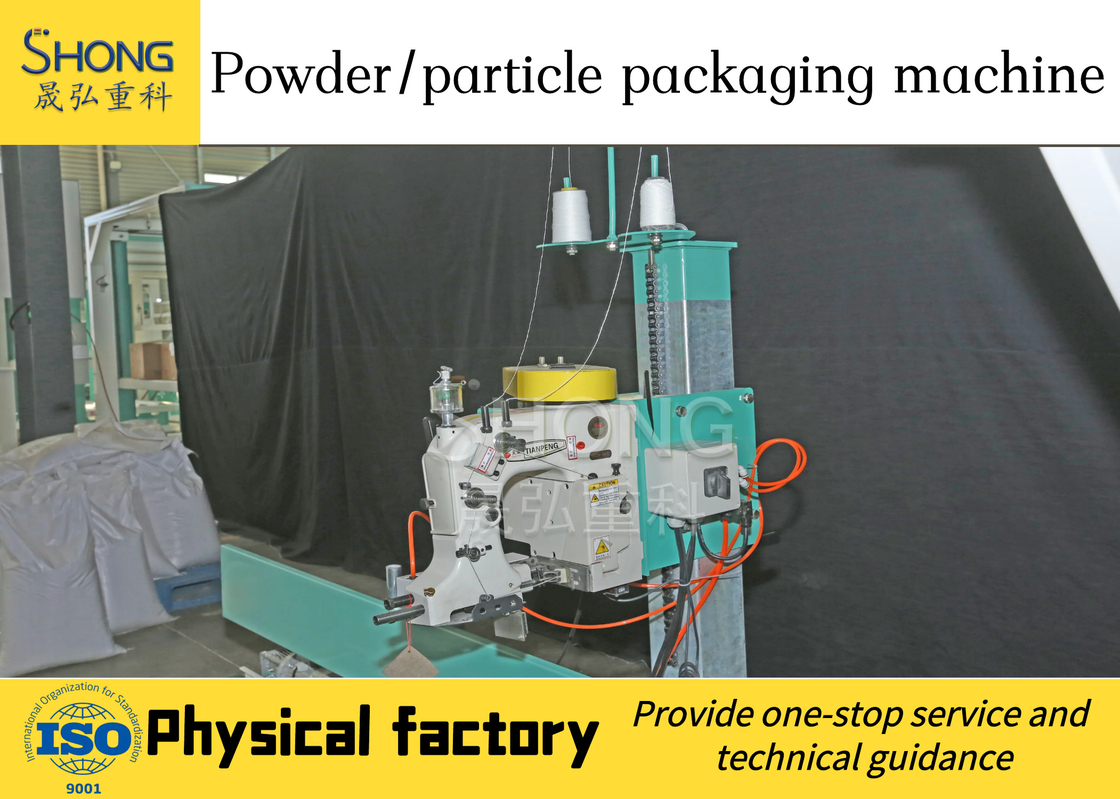

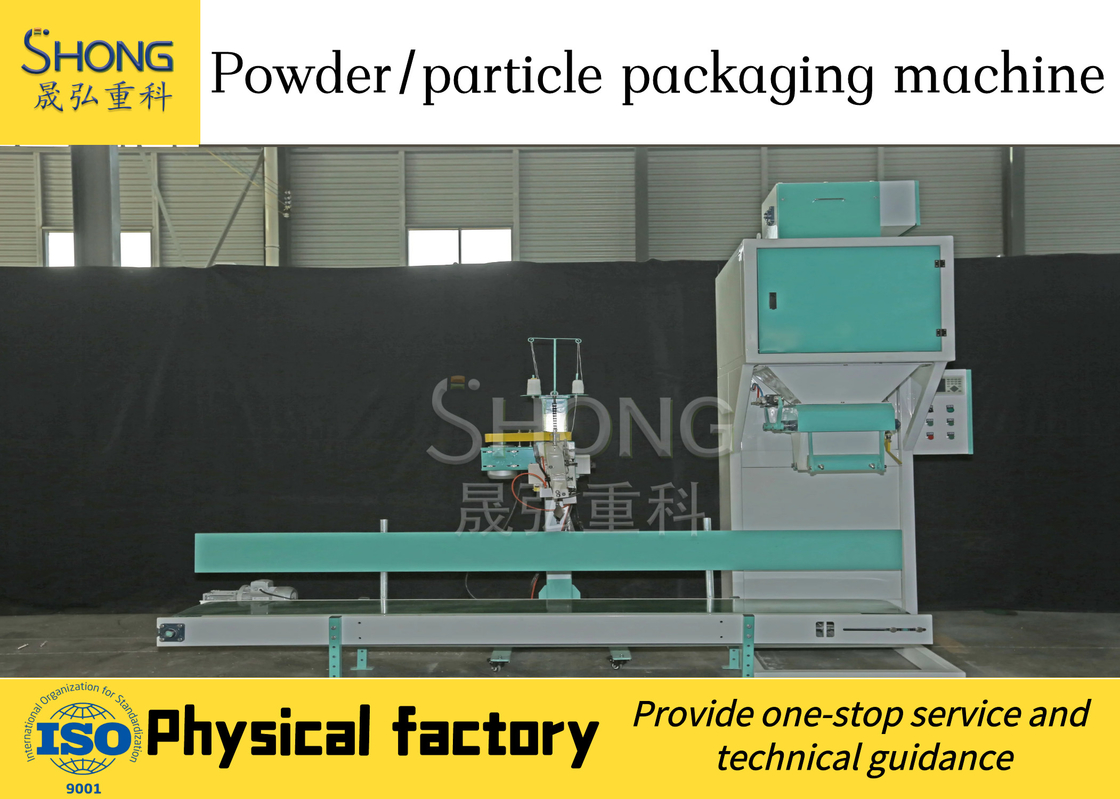

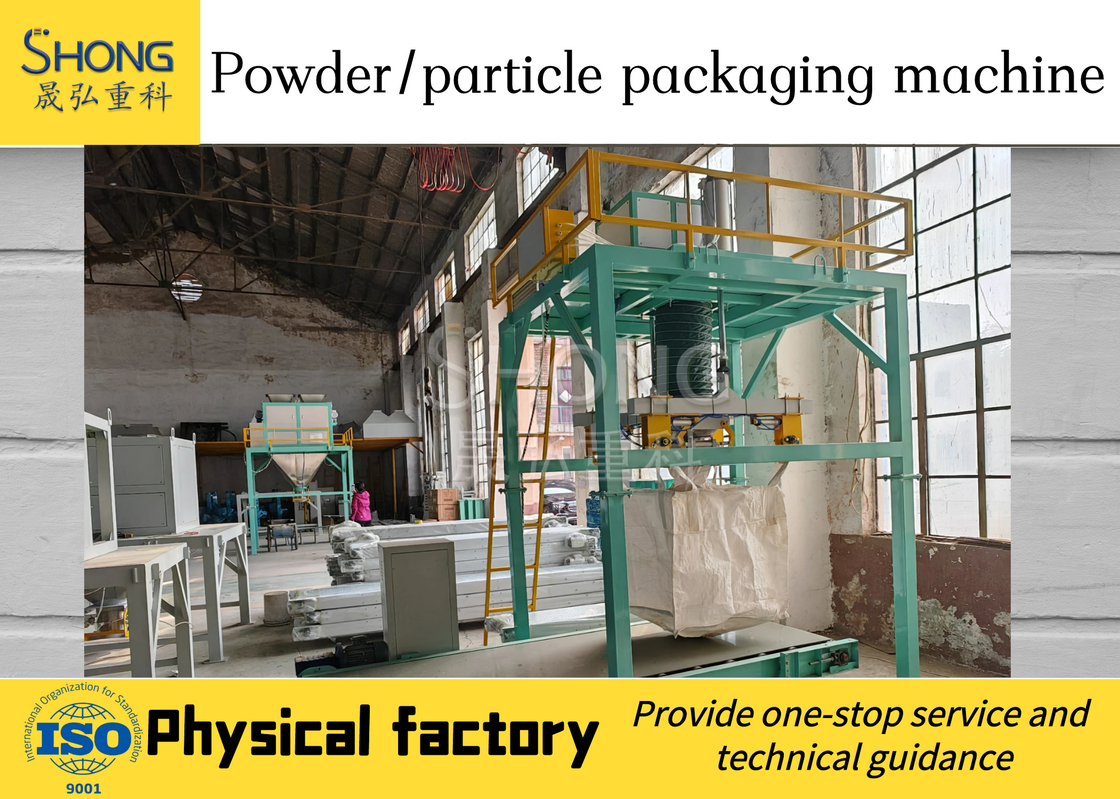

Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type

China Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type supplier

Large Image :  Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type

Product Details:

Place of Origin: Zhengzhou city, China
Brand Name: Tianci
Certification: BV, ISO, SGS
Model Number: DCS-25F-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Can be negotiated
Packaging Details: Wooden packaging or container: 4500*2500*350000mm
Delivery Time: 8-10 days
Payment Terms: L/C, T/T, Western Union,, D/A, D/P
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Raw Material: Carbon Steel Color: Gray
Condition: New Weighing Speed: 200-3000 Bag/h
Weighting Range: 10-25 Kg/bag Warranty: 1 Year
Machine Net Weight: 650kg Distance Of Conveyor Transmission: 2m

Organic Fertilizer Machine Packaging Machine , 6000-10000 Bag Per Day


Feature Of Fertilizer Packaging Machine


1. Sensor can make direct measurement and packing quantity is more accurate.

2:  Microcomputer control LCD (or touch screen) display, simple operation, more reliable usage.

3: Double vibration feeding, high efficiency higher precision.

4: All stainless steel structure in line with the GMP certification.

5: Light induction feeding, heat sealing (or sewing sealing).

6. Designed according to the national standard GMP, up to hygiene standard of foodstuff.

7. The parts which contact with the filling are made of 304 stainless steel, suit for Anti-corrosion chemical products packing.

8. Adopts PLC-touch screen control system, with error correction, deviation alarm and other functions

9. Adopt the new type weighing system in packing, with high speed and high precision measurement instrument, strong function


Raw Material Of Fertilizer Packaging Machine


Animal waste slaughterhouse waste, fish market waste, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc.
Industrial waste wine lees waste, vinegar waste, manioc waste, sugar waste, etc.
Home waste food waste, bones, the roots and leaves of vegetables, etc.
Mineral humic acid, bentonite, dolomite, etc.


Introduction Of Fertilizer Packaging Machine


1. Imported PLC and color touch screen,,it can complete the whole procedure of metering,filling,bagging,exhausting,counting automatically.

2. Separate pneumatic control and power control,noise is low,and the circuit is more stable.

3. English and Chinese screen display,it is simple to operate.

4. The function of PLC computer system is more stable, and it’s more easy to adjust any parameters.

5. It can stock ten datas, and it’s simple to change the parameters.

6. Quiet work circumstance, low noise

7. Electronic scale direct measurement, loading is more accurate.
8. Microcomputer control. Using more reliable.

Technical Parameters of Fertilizer Packgaing Machine


Scale range 10-50KG
Out Dimension 2300*900*30000 mm
Precision 0.20%
Weight 400kg
Packing speed 500-600 pag/h
Hopper’s Dimension (Diameter *Height ) 700*1000mm
Electrical Source : 220-380v,50hz
Motor 0.37+0.37+0.37


Single weighing hopper Packing specification 100-5000g
Packing speed 200-600 bags
Machine power 200w
Double weighing hopper Packing specification 100-5000g
Packing speed 400-1200 bags
Machine power 400w


Application Of Fertilizer Pacaging Machine


1. Seeds, rice, fertilizer, fodder, additives, detergent powder, salt, chicken essence, sugar and so on.

2. Feeding type: screw type, rotating type

3. Quantitative packing for Chinese herbal medicine pieces, coarse cereals, nuts.
