Product Details:
Payment & Shipping Terms:
|
| Model: | YSL60-YSL100 | Voltage: | 380v |
|---|---|---|---|
| Material Of Machines: | Carbon Steel | Raw Material Of Fertilizer: | Organic Material |
| Shape Of Fertilizer: | Ball Shape | Color Of Fertilizer: | Brown Or Black |
| Moisture Of Raw Material: | 20-40% | Drying After Granulator: | Need |
| High Light: | fertilizer granulation equipment,fertilizer pellet machine |
||

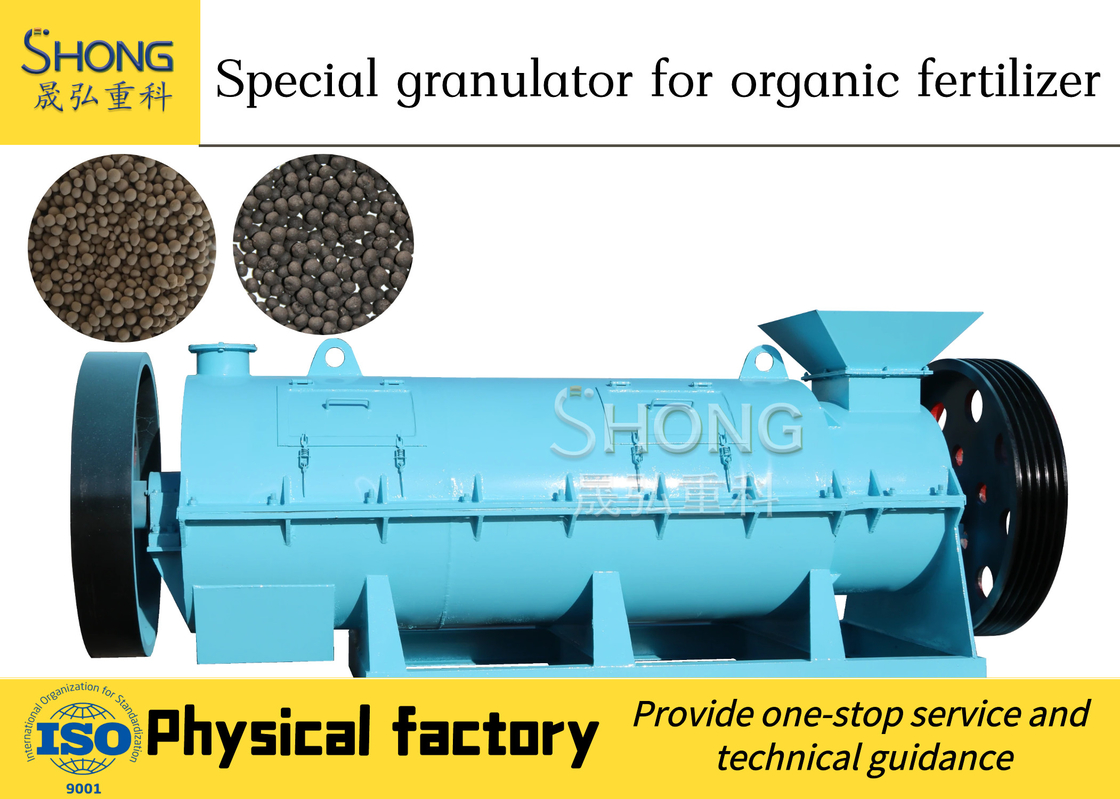

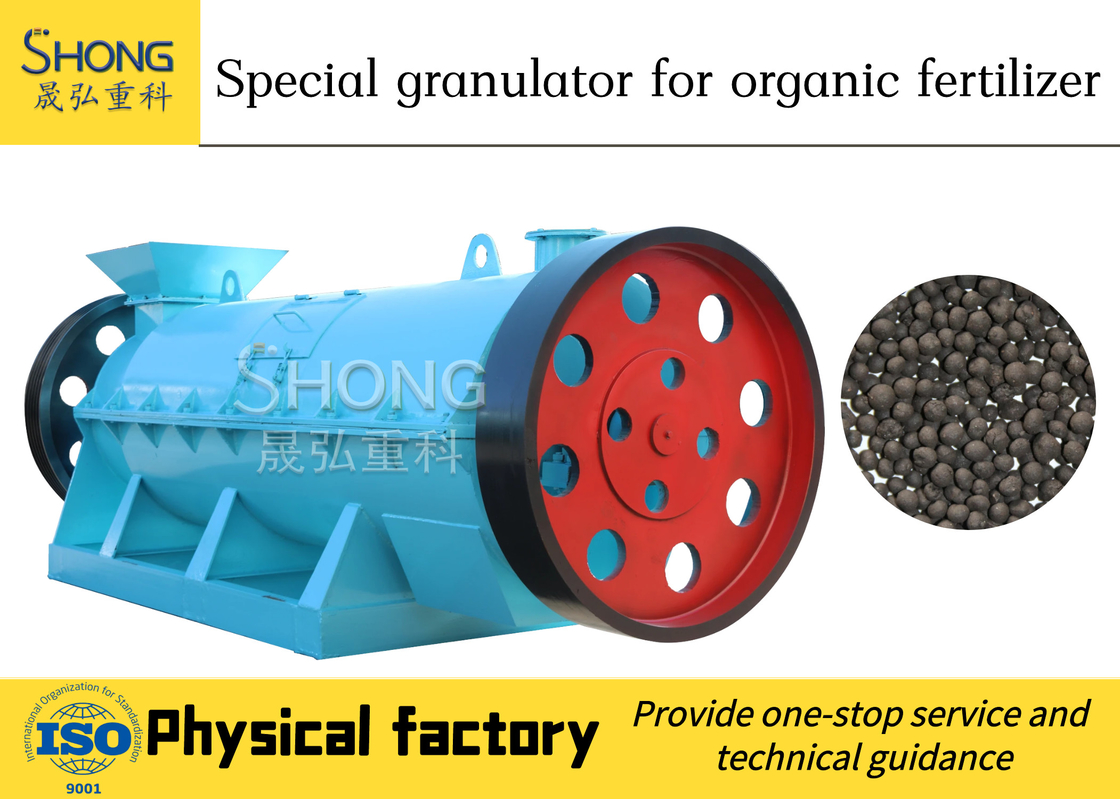

Reviwe of New Type Organic Fertilizer Granulator
Organic fertilizer granulator uses wet continuous push rod granulation of new technology design and manufacturing. This machine can not only granulate a variety of organic matter, especially for the use of conventional equipment is difficult to granulate the coarse fiber materials, such as crop stalks, wine residue, mushroom residue, dregs, animal feces, etc., after fermentation can be granulated , but also for humic acid and municipal sludge and other raw materials, granulation effect also achieved good results.
Feature of New Type Organic Fertilizer Granulator
1.Raw materials only are organic materials
2.Requirement of raw materials is 40%, no need to dry or add water before granulator.
3.The size of granules are ball shape, adapt large-scale mechanical sowing.
4.Ball rate is 90%.
| Specifications Model | Production capacity t/h | Material size mm | Power kw |
| YSL40 | 1-1.5 | 1-5 | 30 |
| YSL60 | 1.5-2.5 | 1-6 | 45 |
| YSL80 | 2-4 | 1-7 | 55 |
| YSL100 | 4-6 | 2-8 | 75 |
| YSL120 | 6-8 | 2-8 | 90 |
| YSL150 | 8-10 | 2-8 | 110 |
Structure of new type organic fertilizer granulator
The machine consists of the body section, granulation rotor section and transmission section.
The working principle is the material from the end of the body into the machine into the machine, through the granulation rotor for a continuous push rod and mechanical movement with the chassis to achieve the purpose of granulation, finished particles at the other end of the body was pushed outside the machine.
The rotor is driven by means of the drive part motor, reducer, transmission parts, with most of the body fixed on the same chassis, so that only strong structure, stable operation and very easy to install, is a new era of environmental fertilizer production equipment.
Technology Innovation and Design
1.Process and flowchart Design
2.Material Test
3.Formula
Our Pre-sale Service:
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
Services:
Installation, start-up, training, emergency assistance, field support, spare parts, routine and preventative maintenance
