Product Details:
Payment & Shipping Terms:
|
| Dryer After Granulator: | Need | Raw Material Of Machines: | Carbon Steel |
|---|---|---|---|
| Mode: | ZG Series | Moisture Of Material After Granulator: | 30%-40% |
| Size Of Input Materials/Feeding Size: | Ball Shape | Warranty: | 12 Months |
| Raw Material: | Chemical Powder, DAP, MAP,UREA | Usage: | Making Fertilizer Granules |
| High Light: | fertilizer granulation equipment,fertilizer pellet machine |
||

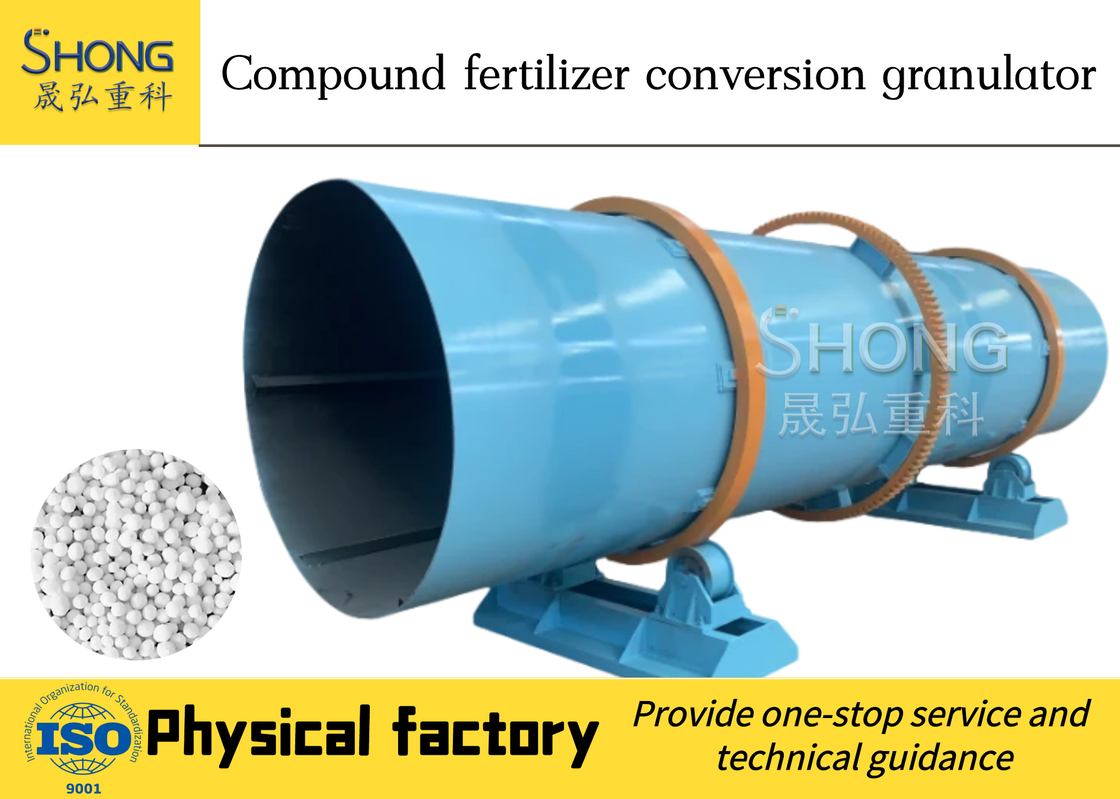

NPK Organic Drum Fertilizer Granulator Machine For Mineral Organic Fertilizer
Application of Fertilizer Granulator Machine
Typical applications of a rotary drum granulator include, but are not limited to the following:
Agglomeration involving chemical reactions where the feed component(s) consist of reactive liquids or gases
The liquid and/or gas can be added into the bed of material to get a complete reaction and contain or reduce any emissions that may be generated
Many inorganic fertilizers are produced in this manner conversion of fine mineral ores into easy to handle agglomerates or balls for further processing. Iron ore, copper ore, and gold ore are a few examples.
Granulation where the only feed or the majority of the feed is a liquid or melt such as urea granulation
Coating of finished products by spraying a liquid onto the bed of material
Mixing drums that can mix multiple solids and/or liquids.
Specialty applications like a combination granulation-cooling drum.
Introduction of Fertilizer Granulator Machine
The series of drum granulator its working principle is: the main motor drive belt and pulley, through the reducer drive to the drive shaft, through the installation of the open shaft on the gear and fixed on the body of the large gear teeth And work together. The material is fed from the feed end through the inside of the cylinder. Through the role of the internal structure of the cylinder, made of particles, and finally out through the outlet. As the material continues to enter, granulator of the continuous rotation, in order to achieve mass production.
Feature of Fertilizer Granulator Machine
1. The granulate rate is 70%, there is a small amount of returns, return product particle size small, can be granulated again.
2. Put into the steam heating, improve the material temperature, the material into the ball after the water is low, improve drying efficiency;
3. with rubber engineering plastics for lining, raw materials is not easy to stick, and play a role in anti-corrosion insulation;
4. Large output, low power consumption, low maintenance cost.
Raw Materials of Fertilizer Granulator Machine
|
Raw material classification |
Specific application |
|
Inorganic fertilizer |
BB and compound fertilizer powder |
|
Biologics |
Western medicine granules etc |
|
Coal industry |
Carbon granule etc |
|
Others |
Kinds of inorganic powder that you need manufacture granules |
Technical Parameters for Fertilizer Granulator Machine
|
Model |
Barrel |
Power |
Prod Capacity |
Overall dimensions L× W ×H |
weight |
|||
|
Inclination |
Internal diameter |
length |
Rotation speed |
|||||
|
0 |
m |
m |
r/min |
kw |
t/h |
m |
t |
|
|
ZG1.2×4 |
2-2.5 |
1.2 |
4 |
17 |
5.5 |
1-3 |
4.6×2.2×2.0 |
2.7 |
|
ZG1.4×5 |
2-2.5 |
1.4 |
5 |
14 |
7.5 |
3-5 |
4.8×2.8×2.3 |
8.5 |
|
ZG1.6×6 |
2-2.5 |
1.6 |
6 |
11.5 |
11 |
5-8 |
7.0×3.2×3.1 |
12.0 |
|
ZG1.8×7 |
2-2.5 |
1.8 |
7 |
11.5 |
15 |
8-10 |
8.3×3.5×3.3 |
18.5 |
|
ZG2.0×8 |
2-2.5 |
2.0 |
8 |
11 |
18.5 |
10-15 |
9.1×3.6×3.5 |
22.0 |
|
ZG2.2×8 |
2-2.5 |
2.2 |
8 |
10.5 |
22 |
15-20 |
9.5×4.4×3.9 |
28.0 |
