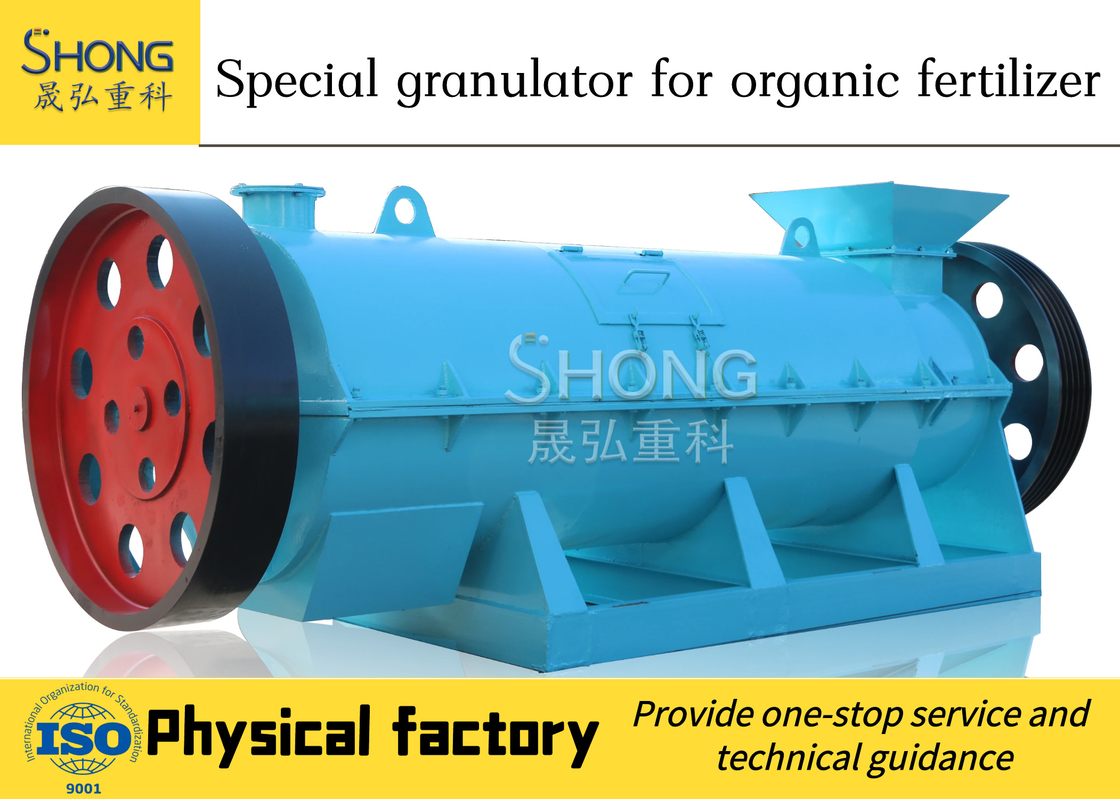

37kw Fertilizer Granulator Machine For Light Powder Material Granulation

37kw Fertilizer Granulator Machine For Light Powder Material Granulation
37kw Fertilizer Granulator Machine For Light Powder Material Granulation
video play

Large Image :  37kw Fertilizer Granulator Machine For Light Powder Material Granulation

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: BV ISO SGS
Model Number: YSL-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Package or Container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs per day
Detailed Product Description
Function: Making Organic/eco/bio Fertilizer Type: Wet Type Granulating
Power: 37kw Working Method: Wet Type Granulating
Main Market: AFRICA,Southeast Asia Etc Organic Fertilizer Granulator Raw Material:: All Kinds Of Organic Materials
Voltage:: Demand Output Capacity: 5-8t/h
Usage: Producing NPK Compound Fertilizer Granules Granule Size: 0.3-3.0 Mm Can Ba Adjustable
Machine Type: Granulator
High Light:

fertilizer granulation equipment

,

fertilizer pellet machine

Fertilizer granule machine; organic fertilizer pellet machine​



Product introduction of organic fertilizer granulation machine



New type organic granulator is agricultural machinery research institute use years compound fertilizer processing equipment design, production experience developed in the latest technology products, has obtained the country practical patent. It used to all kinds of organic matter after fermentation for granulation, break through the conventional organic prilling, before granulation need not to dry and crush the raw materials



Working principle of organic fertilizer granulation machine



Using high speed rotating mechanical shearing force and the resulting air power, making continuous implementation of the fine powder material in the machine mixing, granulating, density and other processes, which achieves the goal of the granulation. The shape of particles is spherical; the spherical degree is 0.7 or higher; the particle size is generally between 0.3 and 3 mm; granulating rate is 90% or higher; the size of particle diameter can be adjusted according to the mixture quantity and spindle speed; generally, the lower the mixing volume, the higher the rotational speed, the smaller the particle.



Diamater of organic fertilizer granulator making machine





Installation Angle 2º-2.5º

2º-2.5º 2º-2.5º 2º-2.5º 2º-2.5º
Capacity
1-1.5T/H
1.5-2.5T/H 2-4T/H 4-6T/H 6-8T/H
Total Power
37KW
55KW 75KW 90KW 110KW
Moisture of feeding material
20%-40%
20%-40% 20%-40% 20%-40% 20%-40%
Size of feeding material 50mesh 50mesh 50mesh 50mesh 50mesh
Dimension 4.1*1.6*1.15m 4.25*1.85*1.3m 4.7*2.35*1.6m 4.9*2.55*1.8m

5.5*2.8*2m



37kw Fertilizer Granulator Machine For Light Powder Material Granulation 0
Features of Organic Fertilizer Granulator


1) this machine is especially suitable for light powder material granulation. Fine powder material basic particles

more fine particle spherical degree is higher, the better quality into the ball.

2.) General requirements material before granulation particle size should be less than 200 mesh advisable,

typical application material: chicken manure, pig manure, cow dung, carbon, clay, kaolin, etc.

3.With the raw material of organic livestock feces of feces class, pile of retting fertilizer class, class, and the sea of green manure fertilizer class, cake fertilizer class, turf class, soil manure, three wastes, such as microbial fermentation of urban living garbage organic fertilizer granulation specificity, particle for irregular spherulites.



Package



1.Machines will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.

2.Packaging details standard export wooden case or in container.



Shipping



1,we will serve your shipping method about ocean transport ,air lift ,freighty and so on.

2,The delivery time is usually 7-15 working days upon receipt of your payment.



37kw Fertilizer Granulator Machine For Light Powder Material Granulation 1
