Rotary Drum Compound Fertilizer Production Line 200000TPY

Rotary Drum Compound Fertilizer Production Line 200000TPY
Rotary Drum Compound Fertilizer Production Line 200000TPY
video play

Large Image :  Rotary Drum Compound Fertilizer Production Line 200000TPY

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: ZG series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets Per Month
Detailed Product Description
Raw Material: Powder Function: Making Granular
Guarantee: 1 Year Application: NPK Compound Fertilizer Making
Capacity: 10000-200000TPY After-sales Service: Engineers Available Overseas
Material: Carbon Steel Power(W): Customized
Product Name: Compound Fertilizer Production Line
High Light:

Rotary Drum Compound Fertilizer Production Line

,

Fertilizer Production Line 200000TPY

,

Carbon Steel Fertilizer Production Line

Rotary Drum Compound Fertilizer Production Line With High Capacity

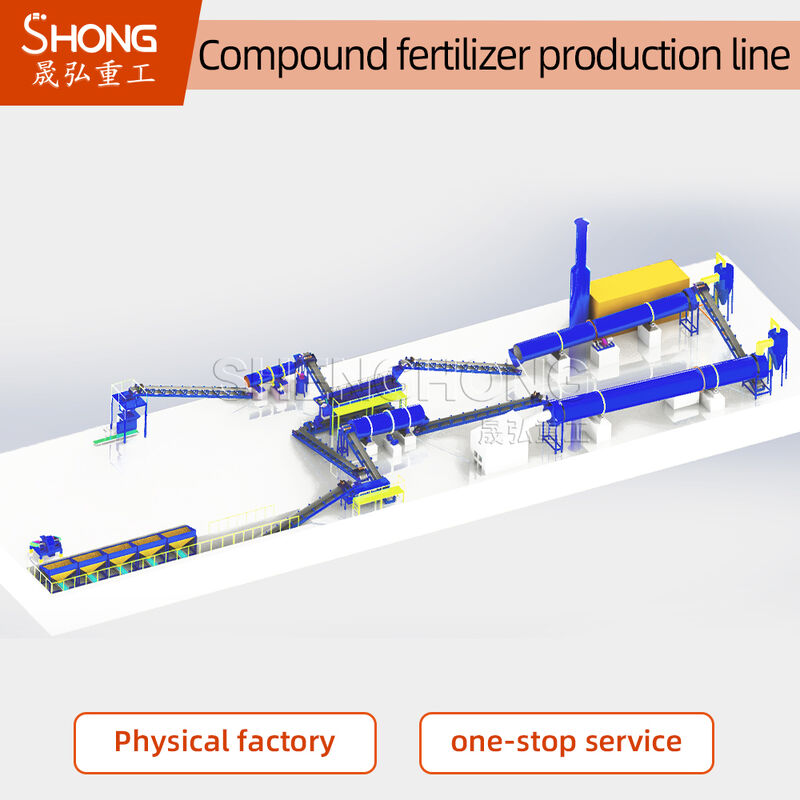

Annual output of 100,000 tons of fertilizer production line. The production line drum granulator, granulated large capacity, can be used for the production of high, medium and low fat concentration. Another mechanical fertilizer production line includes batching, disk mixers, conveyor belts, rotary dryer, rotary coolers, rotary screen, rotary drum coater, the product storage and automatic packaging machines chain crusher. We offer a full set of compound fertilizer production equipment and solutions!


Description of Compound Fertilizer Production Line



The production line for the production of 100,000 tons of fertilizer. The production line using a drum granulator, granulated large capacity, it can be used for the production of high, medium and low concentrated fertilizer. The other machine fertilizer production line includes batching machine, disk mixers, belt conveyors, rotary dryer, rotary coolers, rotary screen, rotary drum coating machine, product storage, and automatic packaging machines chain crusher. We offer a full set of compound fertilizer production equipment and solutions!


Raw Material For Compound Fertilizer Production Line

1. Urea,ammonium sulfate,ammonium chloride,producyion.

2. Monoammonium phosphate,diammonium phosphate,calcium superphosphate,calcium-magnesia phosphate fertilizer
3. Potassium chloride,potassium sulphate,potassium sulphate magnesium


Main Equipments For Compound Fertilizer Production Line


1. Materials crushing

Crushing materials into small pieces.

2. Mixing

The mixed material should be mixed completely,then get into granulator.

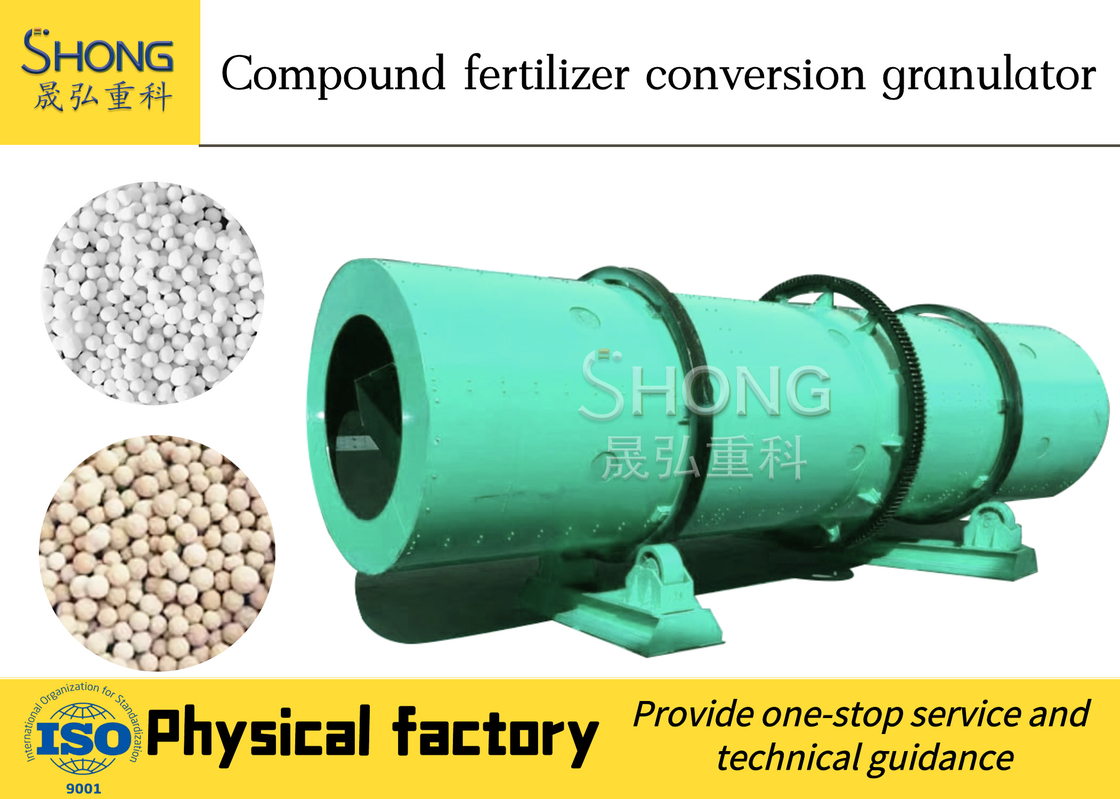

3. Granulation

The drum granulator can make the materials into granules.

4. Drying

After granulating,the moisture of fertilizer is bit high,it is not suitable for long-term storage so we need send make drying process.

5. Cooling

The cooling machine is used to cool the hot fertilizer.

6. Screening

There are some non-uniform particles,after sieved screening machine,the small particle diameter may be screened down for twice processing.

7. Coating

Under the particle surface is not uniform,sleek case,we need to be coat the surface of fertilizer granules.

8. Packaging

After package,the fertilizer can be sold.



No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags

 Rotary Drum Compound Fertilizer Production Line 200000TPY 0
Features For Compound Fertilizer Production Line


1, Fertilizer production technology is mature, stable equipment operation and high efficiency.

2, Compound fertilizer production line, mainly for the production of spherical particles of diameter 1-3mm.

3, Wide raw material production formula is simple, suitable for the production of high, medium and low-grade fertilizer.



Application For Compound Fertilizer Production Line



1. The production line drum granulator urea, ammonium nitrate, ammonium chloride, ammonium sulfate, monoammonium phosphate (MAP), diammonium phosphate (the DAP), superphosphate (the SSP), potassium chloride, potash. You can choose according to market demand and soil test results.

2, Drum granulator fertilizer production line can produce nitrogen, phosphorus and potassium content between 20-48% organic fertilizer and organic fertilizer.

Rotary Drum Compound Fertilizer Production Line 200000TPY 1
