Product Details:
Payment & Shipping Terms:
|
| Product Name: | NPK Compound Fertilizer Rotary Drum Fertilizer Granulator Machine | Material: | Carbon Steel/ Stainless Steel |
|---|---|---|---|
| Raw Material: | Powder | Power: | 5-8t/h |
| Voltage: | 380V/415V | Speed: | 11.5r/min |
| High Light: | Compound Fertilizer Rotary Drum Granulator,Organic Fertilizer Rotary Drum Granulator,Rotary Drum Granulator 8t/H |
||

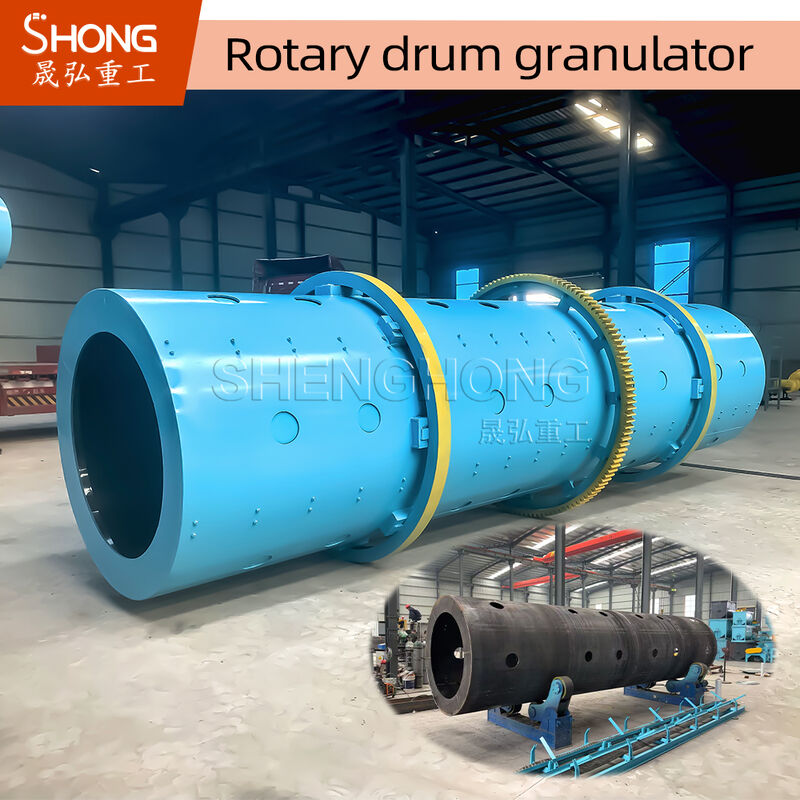

Organic fertilizer compound fertilizer rotary drum granulator factory direct supply
Introduce:
The drum granulator is one of the key equipment in the organic fertilizer compound fertilizer industry, which is suitable for cold and hot granulation and large-scale production of high, medium and low concentration compound fertilizers. The main working method is wet granulation of agglomerates. Through a certain amount of water or steam, the basic fertilizer is fully chemically reacted in the cylinder after the humidity is adjusted. Under a certain liquid phase condition, the rotation of the cylinder is used to produce between the material particles. The squeezing force reunites into a ball. The cylinder of the machine adopts a special rubber plate lining or acid-resistant stainless steel lining plate, which realizes automatic scar removal and tumor removal, eliminating the traditional scraper device. The machine has the characteristics of high ball strength, good appearance quality, corrosion resistance, abrasion resistance, low energy consumption, long service life, convenient operation and maintenance, etc.
Features
1, The balling rate is more than 90%, with small amount of return material, small size of feed back and can be re-granulation;
2, By steam heating, it can improve the temperature of material, so that the water is low after ball forming, thus improve the drying efficiency;
3, With rubber engineering plastics for lining, raw materials is not easy to stick, and play a role in anti-corrosion and insulation;
4,Large capacity, low power consumption and maintenance costs.
Application
Livestock and poultry manure and urine, compost fertilizer, green manure, sea fertilizer, cake fertilizer, grass charcoal, soil and miscellaneous fertilizer, three wastes, microorganisms
| Model | Dip angle | Inner dia | Length | Speed | Power | Capacity | Dimension |
| ZG1.2*4 | 2-2.5 | 1.2m | 4m | 17r/min | 5.5kw | 1-3t/h | 4.6*2.2*2m |
| ZG1.4*5 | 2-2.5 | 1.4m | 5m | 14r/min | 7.5kw | 3-5t/h | 4.8*2.8*2.3m |
| ZG1.6*6 | 2-2.5 | 1.6m | 6m | 11.5r/min | 11kw | 5-8t/h | 7.0*3.2*3.1m |
| ZG1.8*7 | 2-2.5 | 1.8m | 7m | 11.5r/min | 15kw | 8-10t/h | 8.3*3.5*3.3m |
| ZG2.0*8 | 2-2.5 | 2.0m | 8m | 11r/min | 18.5kw | 10-15t/h | 9.1*3.6*3.5m |
| ZG2.2*8 | 2-2.5 | 2.2m | 8m | 10.5r/min | 22kw | 15-20t/h | 9.5*4.4*3.9m |
Advantages and characteristics:
1. The ball formation rate is high, there is a small amount of returned material, the particle size of the returned material is small, and it can be re-granulated
2. Steam heating to increase the temperature of the material, so that the moisture of the material is low after the ball is formed, and the drying efficiency is improved
3.Using rubber engineering plastics as the inner lining, the raw materials are not easy to stick to the cylinder, and have the effect of anti-corrosion and heat preservation
4. Large output, low power consumption and low maintenance cost
