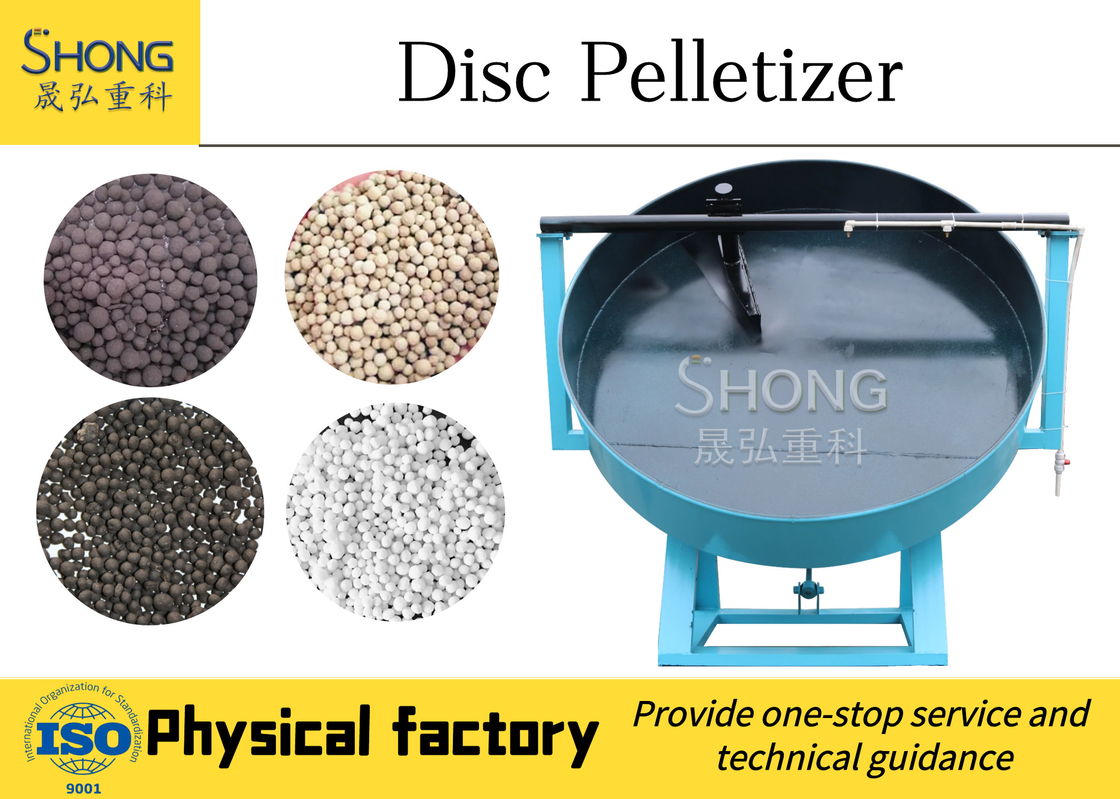

6t/H Fertilizer Disc Granulator Ball Shape Fertilizer Production Equipment

6t/H Fertilizer Disc Granulator Ball Shape Fertilizer Production Equipment
6t/H Fertilizer Disc Granulator Ball Shape Fertilizer Production Equipment
video play

Large Image :  6t/H Fertilizer Disc Granulator Ball Shape Fertilizer Production Equipment

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: SGS BV ISO
Model Number: ZL10~ZL45
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Package or container
Delivery Time: 15 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per day
Detailed Product Description
Granules Shapes: Ball Shape Machine Type: Disc Fertilizer Granulator Machine
Machine Capacity: 0.3-6 Ton/hour Condition: New
Weight: 2 Tons Warranty: 1 Year
Raw Material: Powder Service: Engineers Guide
High Light:

6t/H Fertilizer Disc Granulator

,

Ball Shape Fertilizer Production Equipment

,

Integral Arc Fertilizer Production Equipment

Fertilizer production equipment disc granulator

Introduce:

In this series of disc granulator, the angle of the granulating disc adopts an integral arc structure, and the granulation rate can reach more than 93%. Improve labor efficiency. The reducer and the motor are driven by a flexible belt, which is stable in starting, durable and not deformed. The thickened, heavier and sturdy base design does not require anchor bolts to fix it, and it rotates smoothly. The main gear of the granulator adopts high-frequency quenching, which extends the use time. This surface has uniform materials and high granulation rate. Smooth operation, sturdy and durable equipment, long use time, etc., are well received by users and are ideal products for users to choose.



Working principle:

The working principle of this series of products is: the main motor drives the pulley and belt, and the pinion gear is driven by the reducer. The small gear and the large gear fixed on the bottom of the disk are in split type, they are mutually toothed and work towards each other. The big gear is installed on the granulation plate fixed on the frame adjustment plate through a professionally designed cone hole. After the granulation plate is continuously rotated, coupled with a spray device, the materials are evenly bonded together, resulting in a spherical shape. In addition, an automatic feeding system is designed in the upper part of the granulation tray to prevent materials from sticking to the wall, thereby greatly improving the use time of the machine. With the continuous rotation of the motor, the continuous entry of materials can achieve mass production to meet the needs of users.



Structure overview:

1. Frame part: Since the rotating part and the rotating part of the whole body are supported by the frame, the force is relatively large. Therefore, the frame part of the machine is welded with thickened channel steel, and has passed strict quality certification and specific process requirements to achieve the purpose of the machine.

2. Adjusting parts of transmission frame and pelletizing plate: The important part of the whole machine is the pelletizing plate, and the entire center of gravity of the pelletizing plate is installed on the adjusting part. Therefore, our company specially adopts the welding of medium carbon steel plate and channel steel. become. And through strict quality control and specific process requirements, in order to achieve the purpose of this machine.

3. Transmission part: the whole machine, the transmission part is excellent and important, and the work of the whole machine is carried out from this. The main motor and reducer installed on the transmission adjustment frame are of reliable quality. The motor drives the belt pulley, V-belt, reducer, and pinion. The pinion rotates the large gear on the pelletizing disk to make the pelletizing disk work. In addition, the large and small The gears are all high-frequency hardened, and the use time is prolonged. The whole pelletizing disc is fixed on a material main shaft installed on the adjusting disc. The connecting part of the shaft head adopts taper fitting, which makes the design more reasonable.

4. Granulation disc: The angle of the granulation disc of this machine adopts the arc structure of the whole machine, and the granulation rate can reach 93 or more. The granulation disc is equipped with three discharge ports, which is convenient for intermittent production operations and greatly reduces labor intensity. , Improve labor efficiency. The bottom of the pelletizing disc is reinforced by multiple radiating steel plates, which is strong and durable without deformation.

5. Automatic material cleaning device: This part is installed above the pelletizing disc into a lower frame shape, with an automatic material cleaning board mounted on it, so that the material sticking to the wall during the production process greatly improves the use time of the machine and also Save labor.

6t/H Fertilizer Disc Granulator Ball Shape Fertilizer Production Equipment 0
