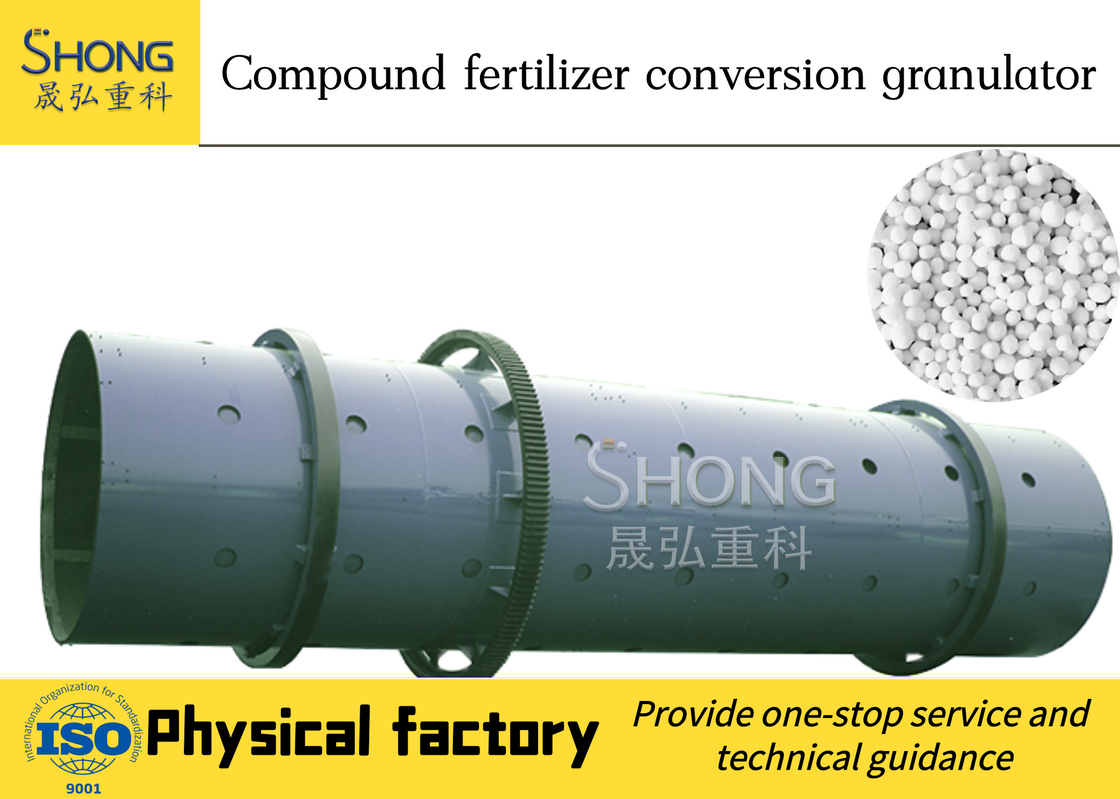

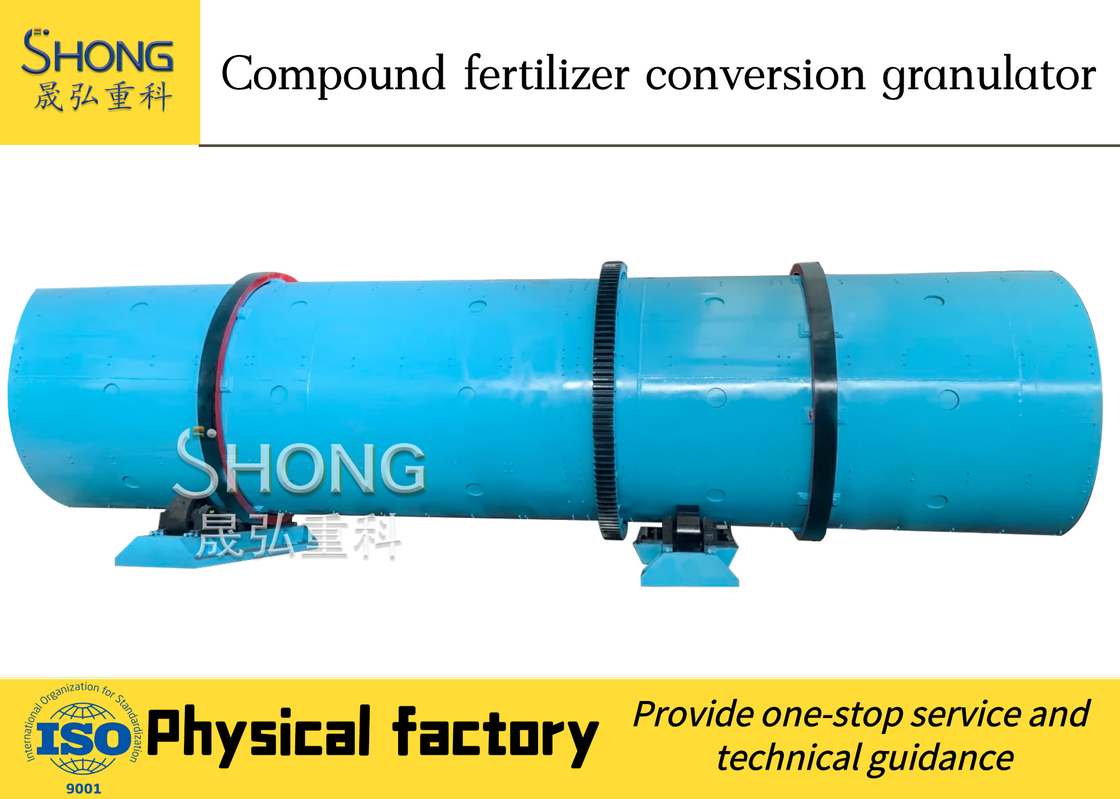

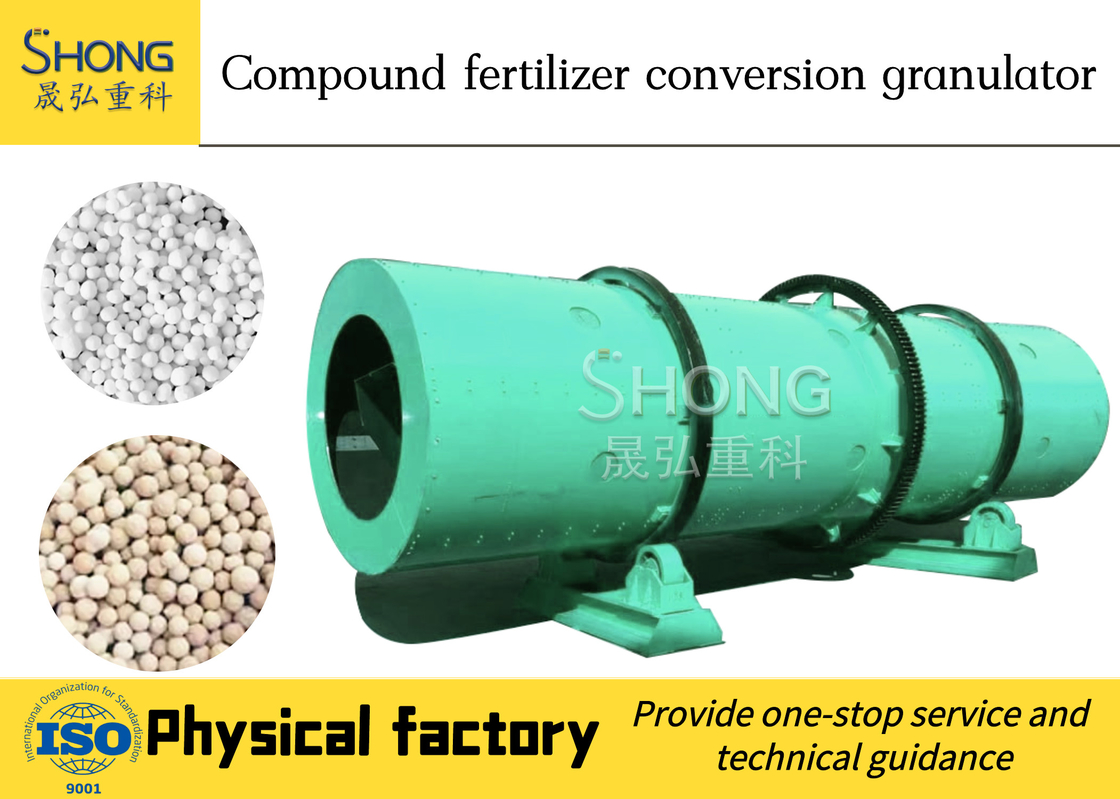

Drum Type Compound Fertilizer Granulating Machine 12T/H

Drum Type Compound Fertilizer Granulating Machine 12T/H
Drum Type Compound Fertilizer Granulating Machine 12T/H
video play

Large Image :  Drum Type Compound Fertilizer Granulating Machine 12T/H

Product Details:
Place of Origin: Zhegzhou, Henan Province China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: ZG series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets Per Month
Detailed Product Description
Capacity: 12-15 Tons Per Hour Service: Long Term
Usage: Making Fertilizer Granules Raw Material: NPK,Urea, Ammonium Nitrate, Etc.
Installation: Engineer Guided Function: Making NPK Compound Fertilizer
Granules Shapes: Ball Shape Guarantee: 12 Months
High Light:

Compound Fertilizer Granulating Machine

,

Drum Compound Fertilizer Granulating Machine

,

Fertilizer Granulating Machine 12T/H

Drum granulator for compound NPK fertilizer

Drum granulator is one of the key pieces of equipment in the compound fertilizer equipment industry, which is suitable for cold and hot granulation and large-scale production of the high, medium, and low concentration compound fertilizer.



Drum granulator for compound NPK fertilizer production process

The belt and pulley of large compound NPK fertilizer rotary drum granulator are driven by the main motor. It is transmitted to the driving shaft through the reducer, and the split gear installed on the driving shaft is engaged with the large gear ring fixed on the body to work in opposite direction. The material is added from the feed end to the inside of the cylinder. Through the function of the special structure inside the cylinder, it is made into particles and flows out through the outlet. Due to the continuous entry of materials and continuous rotation of granulator machines for fertilizer, mass production can be realized.


Drum granulator for compound NPK fertilizer structure application:

The drum granulator adopts special rubber plate lining or acid-resistant stainless steel lining plate to realize automatic scar removal and tumor removal, eliminating the traditional scraper device. The drum granulator has the characteristics of reasonable structure, high ball forming strength, good appearance quality, low pulverization rate, corrosion resistance, wear resistance, low energy consumption, long service life, and convenient operation and maintenance. The fertilizer granulator machine is also suitable for the fermentation and granulation of organic wastes such as livestock manure, sludge garbage, sugar factory filter mud, dregs cake, and straw sawdust.
My company produces fertilizer granulation machine has a disc granulator, npk fertilizer granulator, double roller granulator, organic fertilizer granulator machine, drum granulator, flat die pelleting machine, and ring dies pelleting machine.

Drum Type Compound Fertilizer Granulating Machine 12T/H 0

Drum granulator for compound NPK fertilizer use precautions

1. Before use, check whether the outside and frame of the fertilizer granulator machine are clean and whether the screws are loose and intact. When they are in good condition, the material pipe should be pulled out, washed with hot water, and placed aside for use. During the rotation inspection, inching can be carried out to observe whether the operation of the inner and outer rings is normal and matched. If there is no abnormal sound or abnormality, the next process will be carried out.

2. The drum granulator shall be heated and reheated after it is checked and cleaned. When using steam, the cold water in the storage should be discharged first. When draining water, the fertilizer granulator machine should gradually increase from small to large, and can not be opened at once. When using steam, it should also be increased slowly to prevent scalding and bumping of steam pipe.
3. Drum granulator in the fountain sprinkle uneven, abnormal noise, use time of an hour to clean. When the drum granulator is full of materials, it is not allowed to insert steam into the granulator. Instead, the material pipe should be pulled out first and folded off. When folding the spray, use a tool to support it and slowly fall down to prevent the slurry from scalding. After the spray is folded off, rinse it with hot water. When flushing, do not flush on the motor and granulator screw, rotating parts, etc., it is best to use tools to clean.
