Ball Shape Granules Humic Acid Fertilizer Granulator Machine In Production Line

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Customer demand, usually in container Delivery Time : 5-7 working days
Payment Terms : L/C, T/T, D/A, Western Union Supply Ability : 60 sets per month
Place of Origin: Zhengzhou, China Brand Name: Tianci
Certification: BV, SGS, ISO Model Number: PYJ1200-2

Detail Information

Granules Shape: Ball Shape Disc Dimension: 1000mm
Voltage: 220v/380v Pellet Rate: More Than 98%
Installation: Guidance Of Engineer Operating Type: Continuous Operationg
Granules Size: 0.8-5mm Moisture Content: 30-35%
High Light:

fertilizer granulation equipment

,

fertilizer pellet machine

Product Description

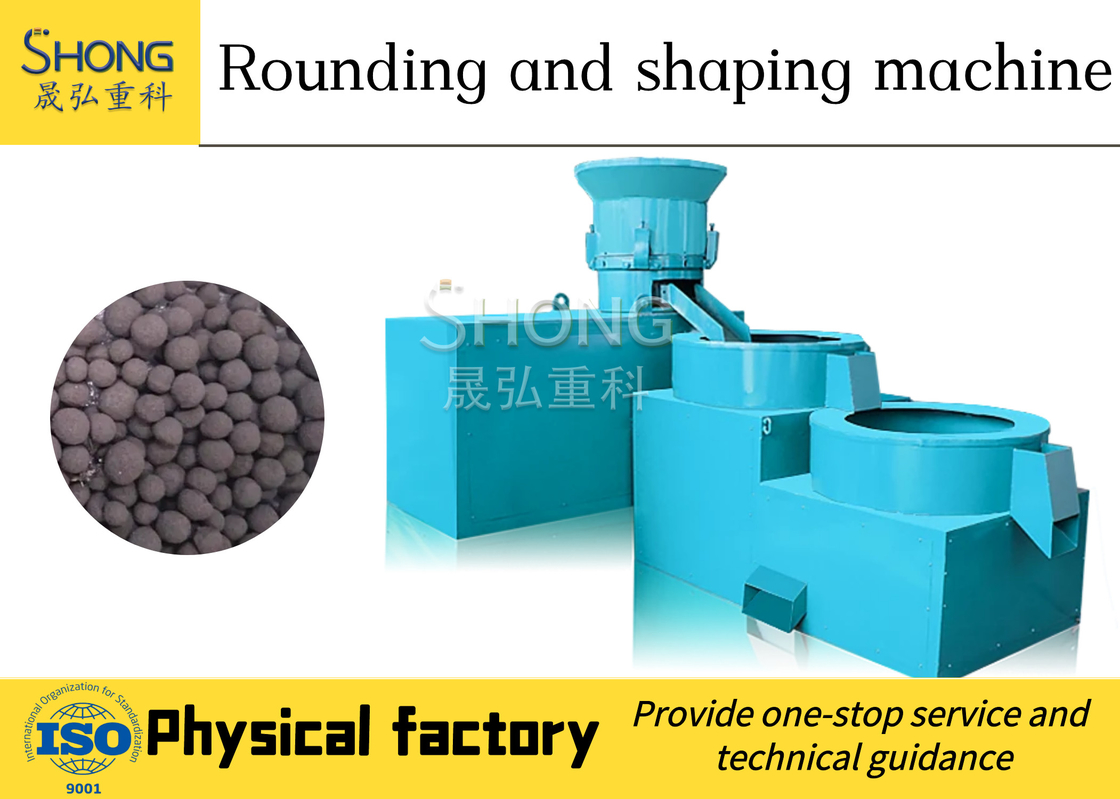

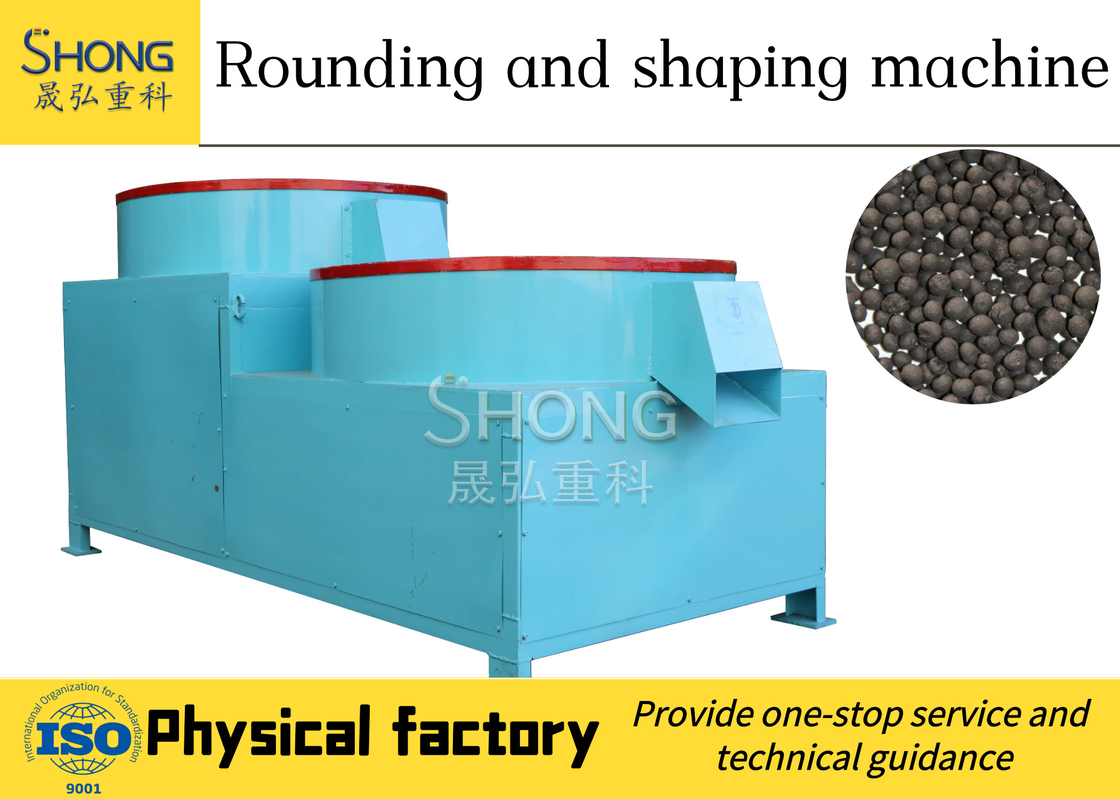

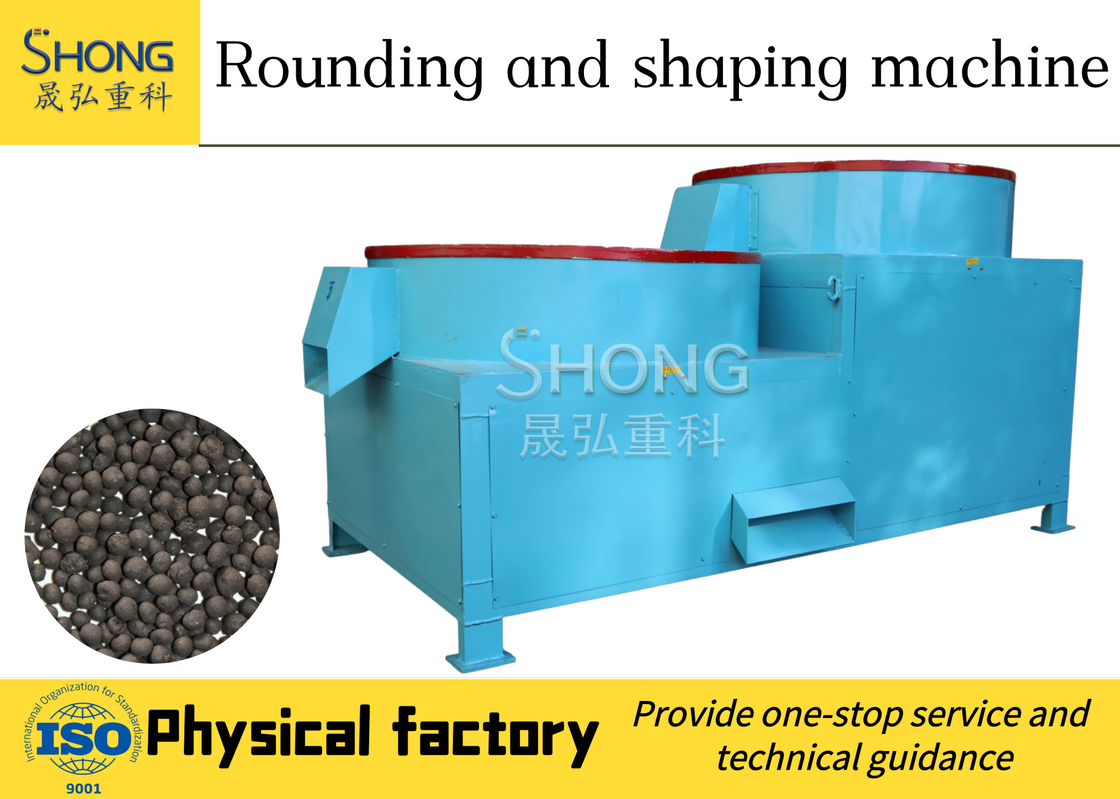

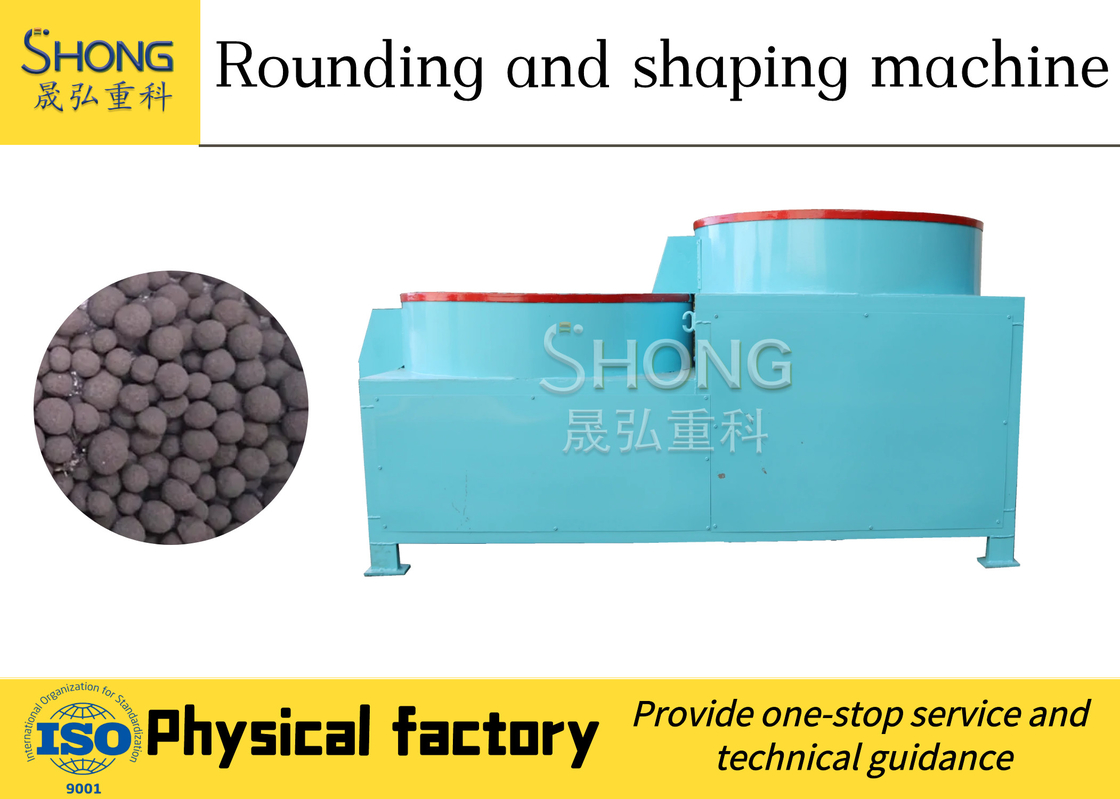

Ball Shape Granules Humic Acid Fertilizer Granulator Machine In Production Line



Introduction Of Fertilizer Granulator Machine



It is a polishing device which based on the KP - 400 type flat die extrusion granulator. This machine makes cylindrical particle roll into a ball at one time, no returning materials, high granulation rate, and strength, beautiful and practical. It is the ideal organic fertilizer ballgranule device at nowadays.



Raw Material Of Fertilizer Granulator Machine



No. Category Raw materials list
1 Agricultural waste straw, dregs of beans, cotton dregs, rice bran, biogas waste, mushroom waste, etc.
3 Home waste food waste, bones, the roots and leaves of vegetables, etc.
4 Mineral humic acid, bentonite, dolomite, etc.
5 Sludge river sludge, pond sludge, sewage sludge, city sludge, etc.


Feature Of Fertilizer Granulator Machine



The machine can makes all the granular fertilizer with good appearance, the grain fertilizer , produced by squeezing granulation or disc granulation, through polishing granules in circle makes the fertilizer with uniform size, accurate roundness, bright & smooth surface, high granule strength, the rate of the fertilizer formation is as high as 98%, and the rate of the ball return is low, which greatly raised the grain fertilizer’s quality grade and product image, was welcomed by all customers



Technical Parameters Of Fertilizer Granulator Machine



Model QXP-350A QXP-350B QXP-350C
Out put 0.8-1.1 t/h 1.0-1.3 t/h 2°-2.5°
Pelleting rate >95% >95% >95%
Temperature rise of pellet <30℃ <30℃ <30℃
Pellet diameter 3.5-5.5mm 3.5-5.5mm 3.5-5.5mm
Installed Power 26 Kw 29.5 Kw 33 Kw
Total Weight 700kg 850kg 1200kg
Overall dimension 2400*640*1540mm 2820*1060*1540mm 2100*2150*1700mm
Practicability Fertilizer, Fodder Fertilizer, Fodder Fertilizer, Fodder



Application Of Fertilizer Granulator Machine



The round granule polishing machine has three specification : single process granule polishing machine, double process granule polishing machine, and three process granule polishing machine.



Ball Shape Granules Humic Acid Fertilizer Granulator Machine In Production Line 0
