Bulk Blending Fertilizer Mixing Equipment BB Fertilizer Production Line

Minimum Order Quantity : 1 piece Price : can be negotiated
Packaging Details : Container or Plywood Box Delivery Time : 10-15 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 200 Sets Per Month
Place of Origin: Zhegzhou, Henan Province China Brand Name: Tianci or OEM
Certification: ISO,BV, SGS, Model Number: BB series

Detail Information

Granules Shapes: Oval Shape Or Irregular Shape Or Ball Shape Capacity: 3-4 T/H
Service: Engineer Available Service Overseas Application: BB Fertilizer Production Line
Dimension(L*W*H): Customized Or Demand Weight: According To The Capacity
Voltage: 380v Speed: 13 R/min
High Light:

fertilizer manufacturing plant

,

compound fertilizer production line

Product Description

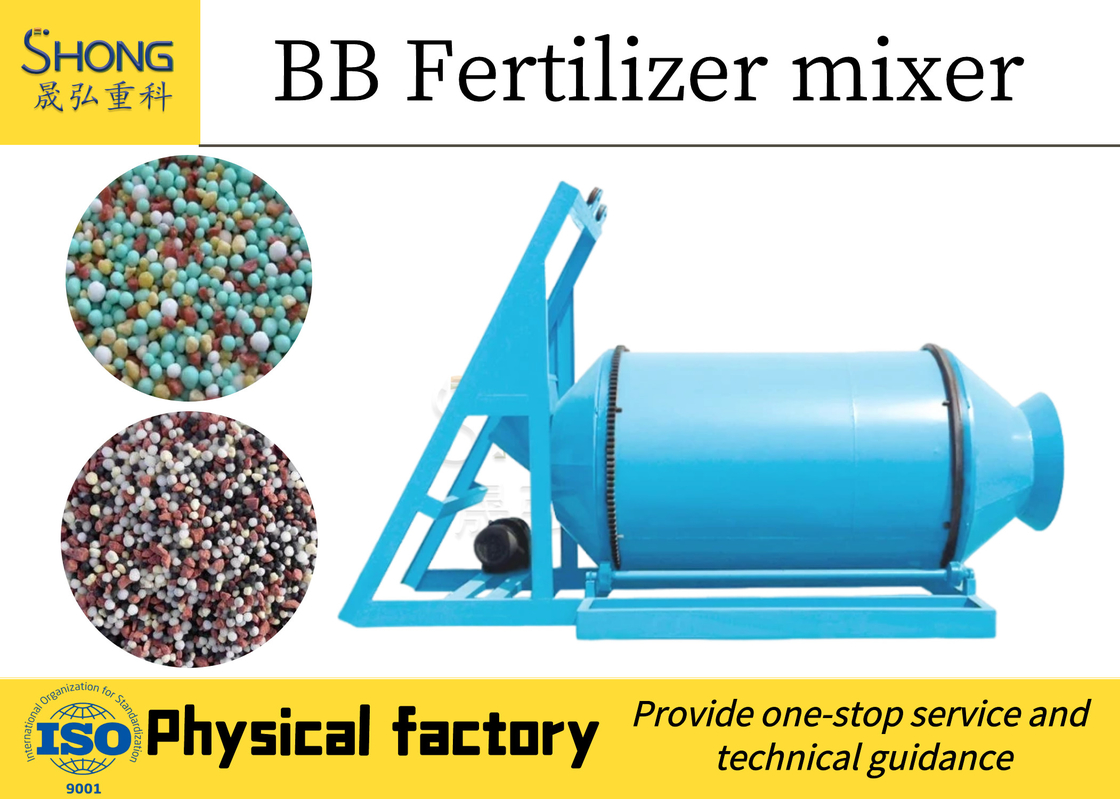

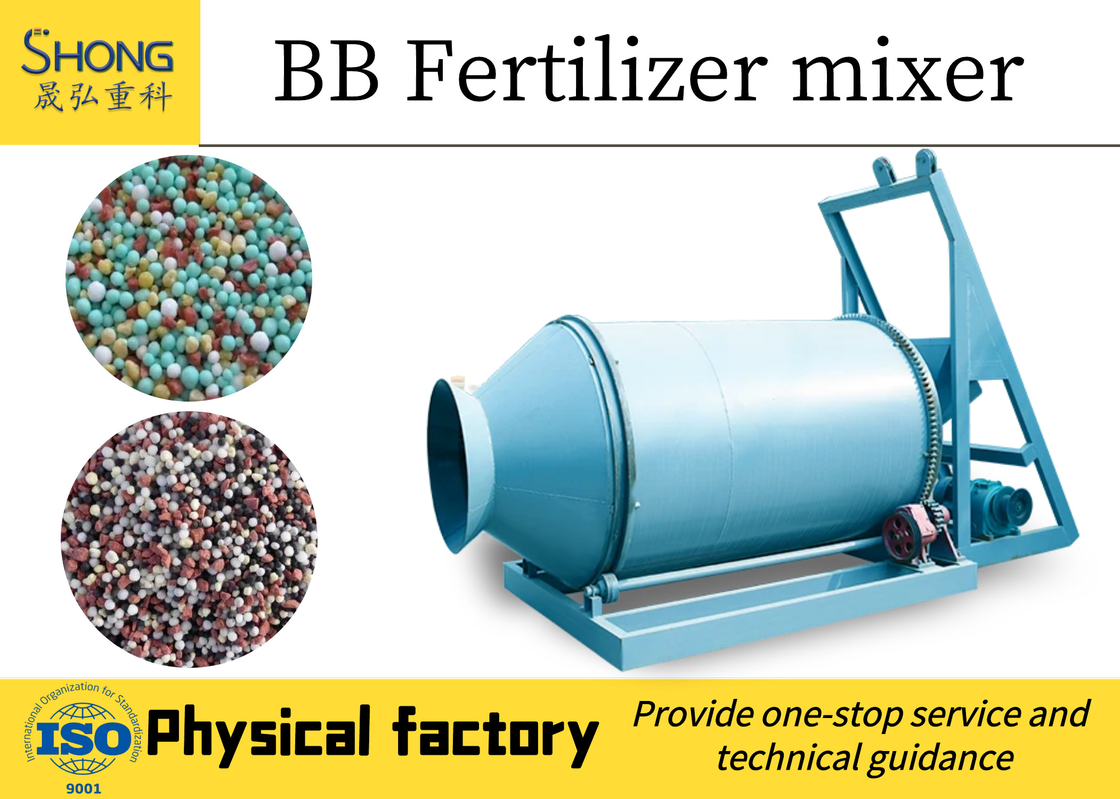

Bulk Blending Fertilizer Mixing Equipment BB Fertilizer Production Line



Introduction of BB Fertilizer Production Line



The mixing system and material discharging system of our BB fertilizer equipment are designed with a unique interior screw mechanism and special three-dimensional structure, which offers a uniform material mixing and smooth material unload. Additionally, our BB fertilizer equipment also features low cost, low land occupation, and high output.



Blending fertilizer equipment combinated automatic matching, mixing and blending, and automatic packaging in one to reduce elevating repeatly for the mixing of raw materials , the design is reasonable and easy to operate, reduce equipment investment. Advanced technology, high automation, low energy consumption (0.3 kiloton electricity consumption), can be a good reduction in labor.
The use of stainless steel materials and imported electrical equipment to ensure the equipment's service life and operating stability.


Product Process of BB Fertilizer Production Line

PLC control system of computer --> Automatic proportional batching raw materials --> Lifting by slope scraper --> Mixing by roller --> Mixed materials disposed into storage silos of weighing machine --> Quantitative packaging (10-50kg/bag) --> Conveying and sewing --> Finished product pelletizing storage



Main equipments for BB Fertilizer Production Line



No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Mixing process Mixer Mix evenly
3 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer into bags



Application Range of BB Fertilizer Production Line

This batch type mixing packaging production line is mainly for BB fertilizer, Compound Fertilizer, Formulated Fertilizer by soil testing, drip irrigation fertilizer, chemical product, feed and other industries.



The Advantages of BB Fertilizer Production Line


1, BB fertilizer can reach more than 50% through reasonable matching of nutrient concentration. At the same time, BB fertilizer can add trace elements, pesticides, herbicides, etc., can achieve the same application of medicine and fertilizer to achieve the effect of saving time and labor.
2, BB fertilizer can be used as base fertilizer and top dressing for crops by adjusting formulas and raw materials. It is no longer dedicated fertilizer.
3, BB fertilizer has no chemical reaction in the production process, and it also reduces the production cost of fertilizer while meeting energy conservation and environmental protection.


Why Choose Our BB Fertilizer Production Line?

1. Uses Germany Siemens PLC centralized control system, the whole production process is fully automatic.
2. Big capacity, 10 tons-30 tons per hour, more suitable for big capacity production lines.
3. Can be customized according to different requirements of customers.

4. A full set of design and construction, low cost, high efficiency, easy maintenance, complete accessories, world-leading team of engineers.



Bulk Blending Fertilizer Mixing Equipment BB Fertilizer Production Line 0
