Chemical Fertilizer Granule Making Machine / Fertilizer Granule Machine Without Drying

Minimum Order Quantity : 1PC Price : Negotiable
Packaging Details : Wooden Package or Container Delivery Time : 10-12 Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 200 pcs per month
Place of Origin: Zhengzhou China Brand Name: Tianci
Certification: SGS BV ISO Model Number: DZJ-II-1.0

Detail Information

Model: DZJ Series Raw Material Of Machines: Carbon Steel
Feeding Size: Under 0.5mm Granulaton Type: Dry Type
Zào Lì Yuánzé; Jǐ Yā Zào Lì 9/5000 Granulation Principle: Extrusion Granulation Feeding Size: <0.5mm
Moisture Before And After Granulator: 3-8% Warranty: 12 Month
High Light:

fertilizer granulation equipment

,

fertilizer pellet machine

Product Description

Fertilizer Granule Making Machine for Chemical Fertilizer without Drying

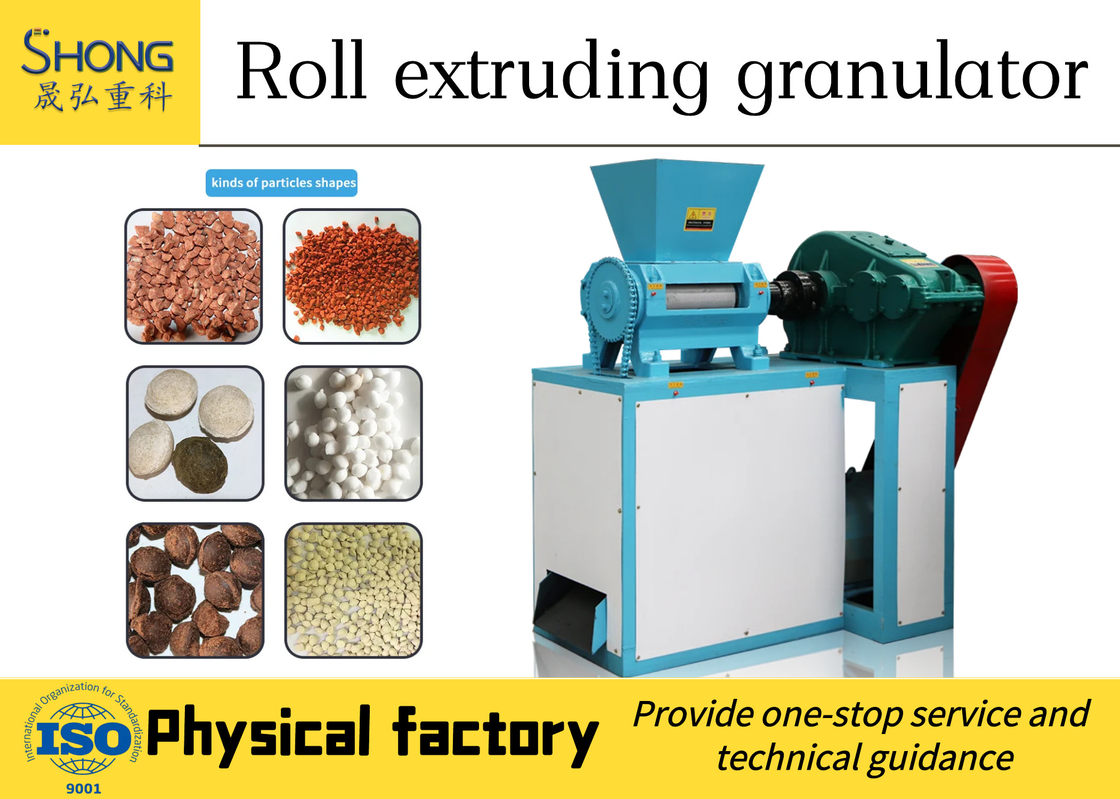

Chemical Fertilizer Granule Making Machine / Fertilizer Granule Machine Without Drying 0

The feature of the Fertilizer Granulator Machine


This machine adopts no drying process production, normal temperature granulation, molding. With less investment, quick effect, good economic benefits and other characteristics. This machine adopts granulation, molding and screening as a whole, which has the advantages of beautiful appearance, simple operation, low energy consumption. The The main parts, such as the roller body with anti-corrosion, wear-resistant, anti shock characteristics of a new type of metal refining. Which dzj II double input shaft pelletizing machine not only has the above characteristics, our company on the frame were also upgraded, the bearing frame selection of high- quality corrosion casting parts of the whole, which has the characteristics of better stability and can greatly improve the rolling bearing and shaft of the service life. The transmission part adopts the double input transmission mode, which not only improves the input power ratio, but also ensures the lubrication and sealing performance of the transmission gear. The machine has the advantages of compact structure, good stability, good sealing performance, low noise, convenient operation and maintenance.



Specifications of the Fertilizer Granulator Machine



Model DZJ~I 1.0 DZJ~I 2.0 DZJ~I 3.0 DZJ~I 4.0 DZJ~II 1.0 DZJ~II 2.0
Product capacity(t/h) 1~1.5 1.5~2.5 2.5~3.5 3.5~4.5 1~2 1.5~2.5
Power 15KW 18.5KW 30KW 45KW 15KW 18.5KW
Pressure roller Spececification Φ150×22O Φ150×30O Φ186×30O Φ300×30O Φ150×22O Φ150×30O
Feed size ≤0.5mm ≤0.5m ≤ 0.5mm ≤ 0.5mm ≤0.5mm ≤0.5mm
Finished product Spec Φ2.5~Φ10 Φ2.5~Φ10 Φ2.5~Φ20 Φ2.5~Φ30 Φ2.5~Φ10 Φ2.5~Φ20
Speed reducer Model ZQH350 ZQH400 ZQH400 ZQH500 dedicated dedicated
Material moisture content 2%~5% 2%~5% 2%~5% 2%~5% 2%~5%

2%~5%





The advantage of the Fertilizer Granulator Machine



1.The Power Transmission part adopts dual-input transfer mode, not only to improve the power input ratio, and also to ensure the transmission gear lubrication and sealing performance.
2.The machine has compact structure, good stability, good sealing, low noise, easy operation and maintenance, etc. The new machine has won the users praise after coming into the market.
3.Wide adaptability for raw materials, such as fertilizer, feed, chemical industry, and especially good adaptability for rare earth, metallurgy, coal, biologics environmental protection. To some extent, it fills the gap and leading the domestic advanced level. On the other hand, it is also the promotion of environmental projects.



The instruction of the Fertilizer Granulator Machine


1.No drying technology, normal temperature granulating, once forming.
2.Low investment, quick profit, good economic returns, etc.
3.Combine granulating, forming, screening into one machine, making beautiful appearance granules, easy operation and low energy consumption, etc.
4.The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.

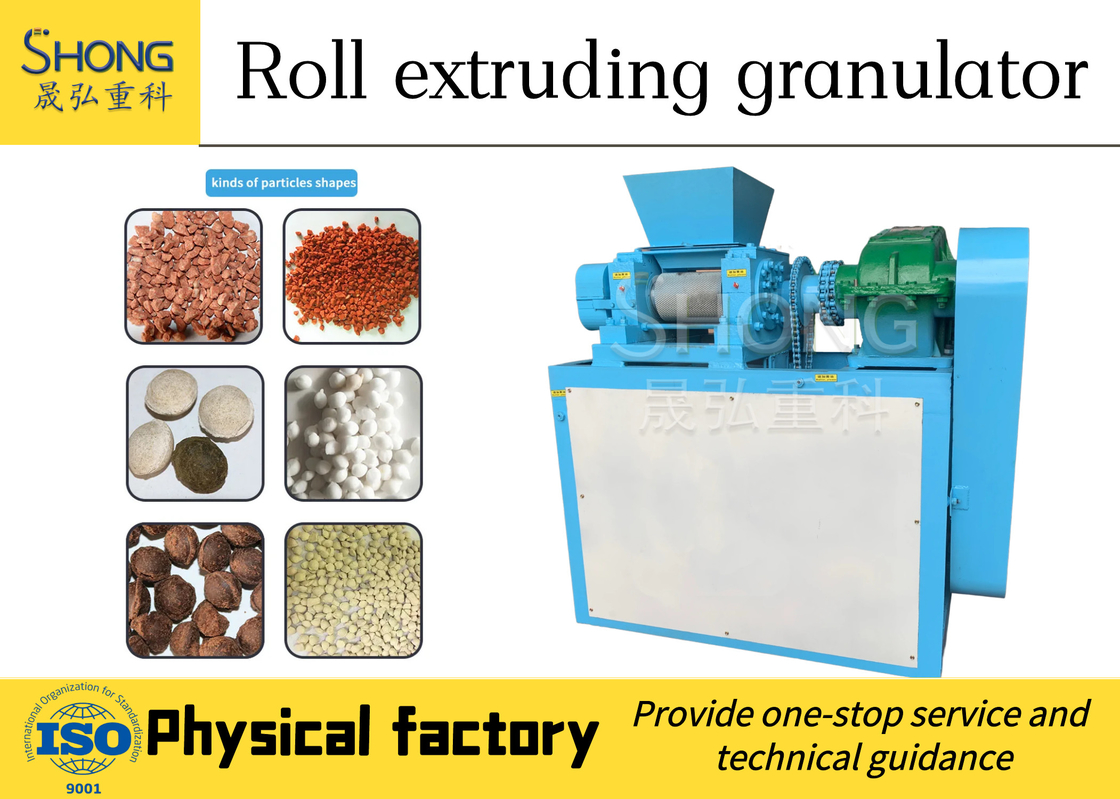

Chemical Fertilizer Granule Making Machine / Fertilizer Granule Machine Without Drying 1Chemical Fertilizer Granule Making Machine / Fertilizer Granule Machine Without Drying 2



Other fertilizer granulator

Organic fertilizer granulator

Rotary drum fertilizer granulator

Disc pan fertilizer granulator
