Chicken Manure Cow Dung Organic Fertilizer Granulator

Minimum Order Quantity : 1 piece Packaging Details : Plywood packing, 20GP, 40GP, 40HQ
Delivery Time : within 5 days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 30 Pieces Per Month
Place of Origin: Henan, China Brand Name: TIANCI
Certification: BV, SGS, ISO,CE Model Number: YSL-100

Detail Information

Product Name: Vermi Compost Animal Chicken Manure Cow Dung Organic Fertilizer Granulator Material: Animal Manure
Organic Content: 100% Voltage: 380V/415V/600V
Power: 55kw Capacity: 3-6t/h
High Light:

Cow Dung Organic Fertilizer Granulator

,

Chicken Manure Organic Fertilizer Granulator

,

6t/h Organic Fertilizer Granulator

Product Description

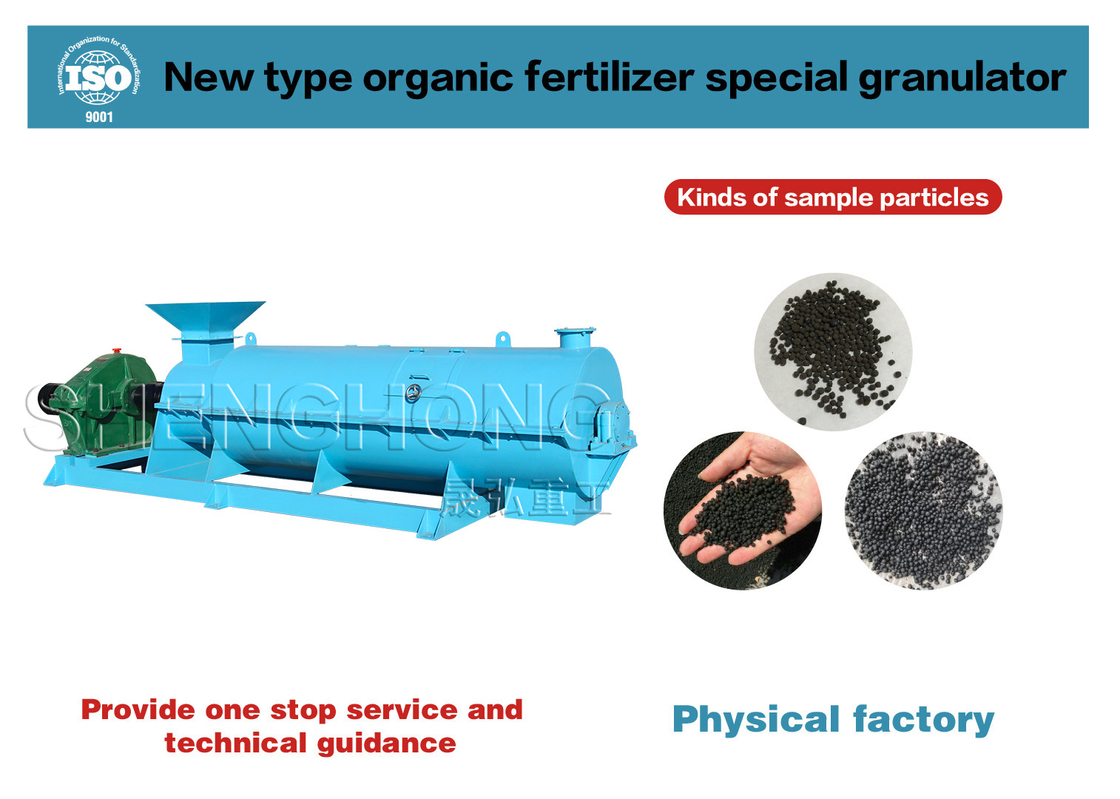

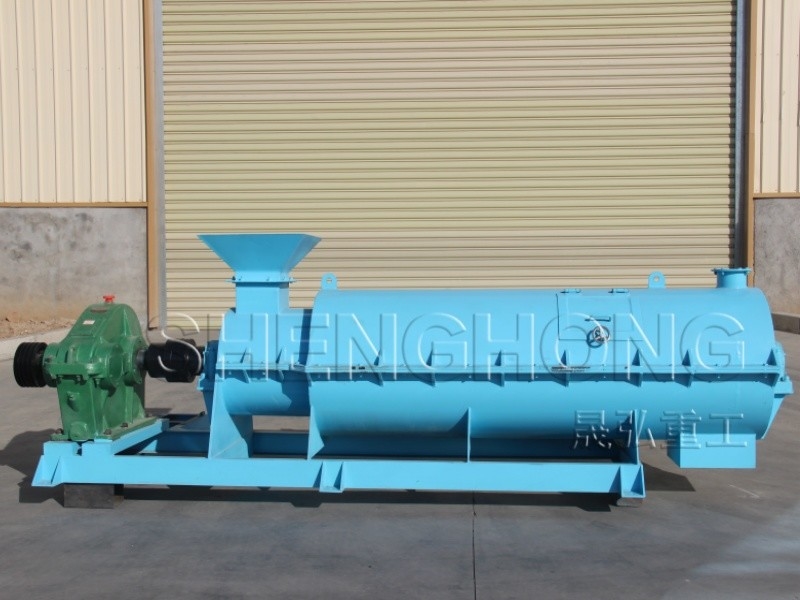

Vermi Compost Animal Chicken Manure Cow Dung Organic Fertilizer Granulator



Product Description

The organic fertilizer granulator is a patented product research and developed by our company and the Agricultural Machinery Research Institute. Organic fertilizer granulator is designed and manufactured by using new technology of wet continuous push rod granulation.
Organic fertilizer granulator machine can not only granulate a variety of organic matter, but also is especially able to granulate the coarse fiber material that difficult to be granulated by conventional equipment, such as crop straw, wine dregs, mushroom residue, drug residue, animal manure and so on.
All these materials can be granulated after fermentation. In addition, it also has a good granulation effect on the humic acid and municipal sludge and other similar raw materials.



Working Principle

New type organic fertilizer granulator makes use of high speed rotary mechanical agitation force and the resulting aerodynamic force to make fine powder materials continuously achieve the process of mixing, granulating, balling and densification in the machine, so as to achieve the purpose of granulation. This granulation method has high granulating rate, the granule is more beautiful, and the energy is saved.





Features

New organic fertilizer granulator is horizontal type with sealing cylinder, its inner structure is a lot of twisting teeth on the high speak strong shaft, which can drip the powder fertilizer into different direction to the cylinder continuously and rotating into small fine round granules

Organic fertilizer granulator is wet continuous push rod granulation. It is used for granulation for kinds of powder meal matter, like mineral powder, for example, bentonite, clay, bauxite, coal powder, and other powder like sludge, fly ash, burning ash, etc.

Organic fertilizer granulator can be used for organic fertilizer granulation. Especially for the middle and large scale productivity, the small capacity begins 8t/h, normally it can reach 15-20t/h on site.

Small round beautiful granules or particles, diameter 0.3-5mm, the size of granules can be adjustable, similar with the drum granulation and wet granulation.

Easy operation and long service life, just daily lubrication maintenance. Zero residues in the drum and clean working compared to the drum granulation machine.

Input moisture is controlled within 20%-40%, output moisture is keep like so, can be equipped with the drying machine for further process or just let it be in hot area.



Parameter

Model Capacity Finished product Power Dimension
YSL40 1-1.5t/h 1-5mm 30kw 3650*1260*1200mm
YSL60 1.5-2.5t/h 1-6mm 45kw 4180*1760*1080mm
YSL80 2-4t/h 1-7mm 55kw 5050*1500*1360mm
YSL100 4-6t/h 2-8mm 75kw 6470*1450*1560mm
YSL120 6-8t/h 2-8mm 90kw 6650*1800*1090mm
YSL150 8-10t/h 2-8mm 110kw 6840*2120*2200mm




Chicken Manure Cow Dung Organic Fertilizer Granulator 0Chicken Manure Cow Dung Organic Fertilizer Granulator 1
