Rotary Drum Fertilizer Granulator Custom Capacity High Efficiency for organic fertilizer
Contact Person : Carter
Phone Number : 0086 15238391768
|Minimum Order Quantity :||1PC||Price :||Negotiable|
|Packaging Details :||Package or Container||Delivery Time :||15 Days|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||20 pcs per day|
|Place of Origin:||Zhengzhou China||Brand Name:||Tianci|
|Certification:||SGS BV ISO||Model Number:||DZJ-II-1.0|
|Suit For:||NPK Compound Fertilizer||Warranty:||12 Months|
|Pellet Diameter:||2-10mm||Brand Name:||Tianci|
|Voltage:||380V||Usage:||Making Fertilizer Granules|
fertilizer granulation equipment,
fertilizer pellet machine

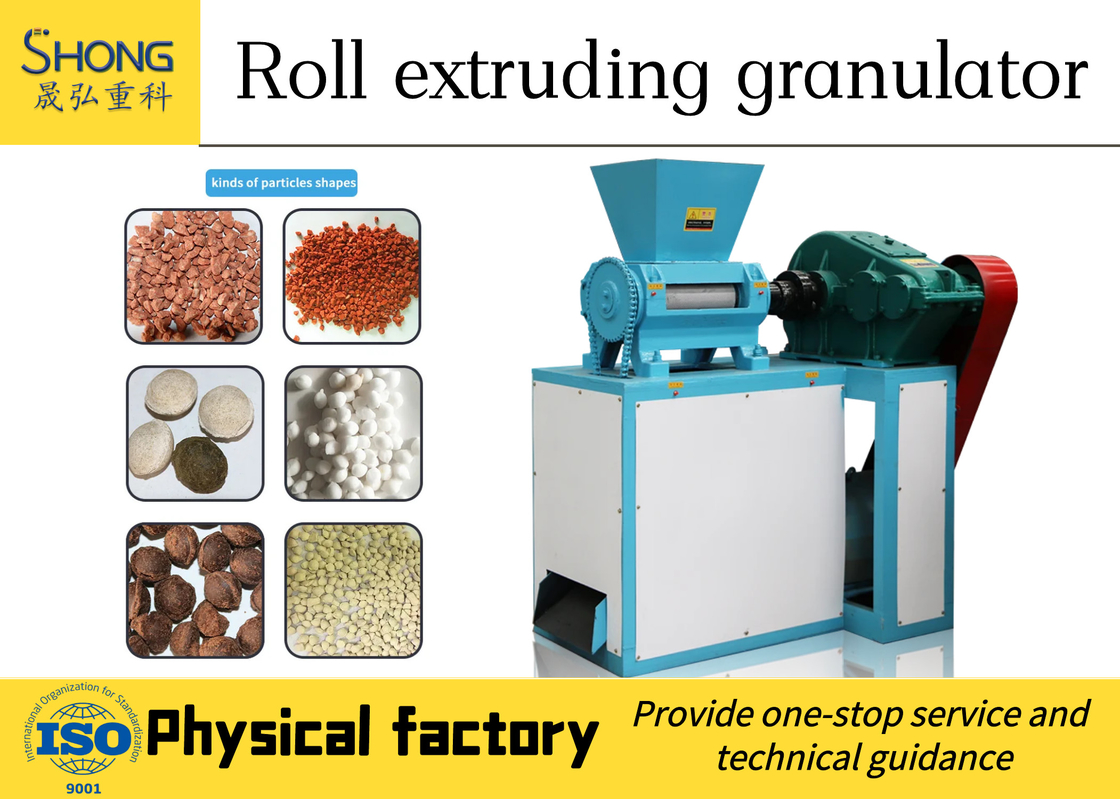

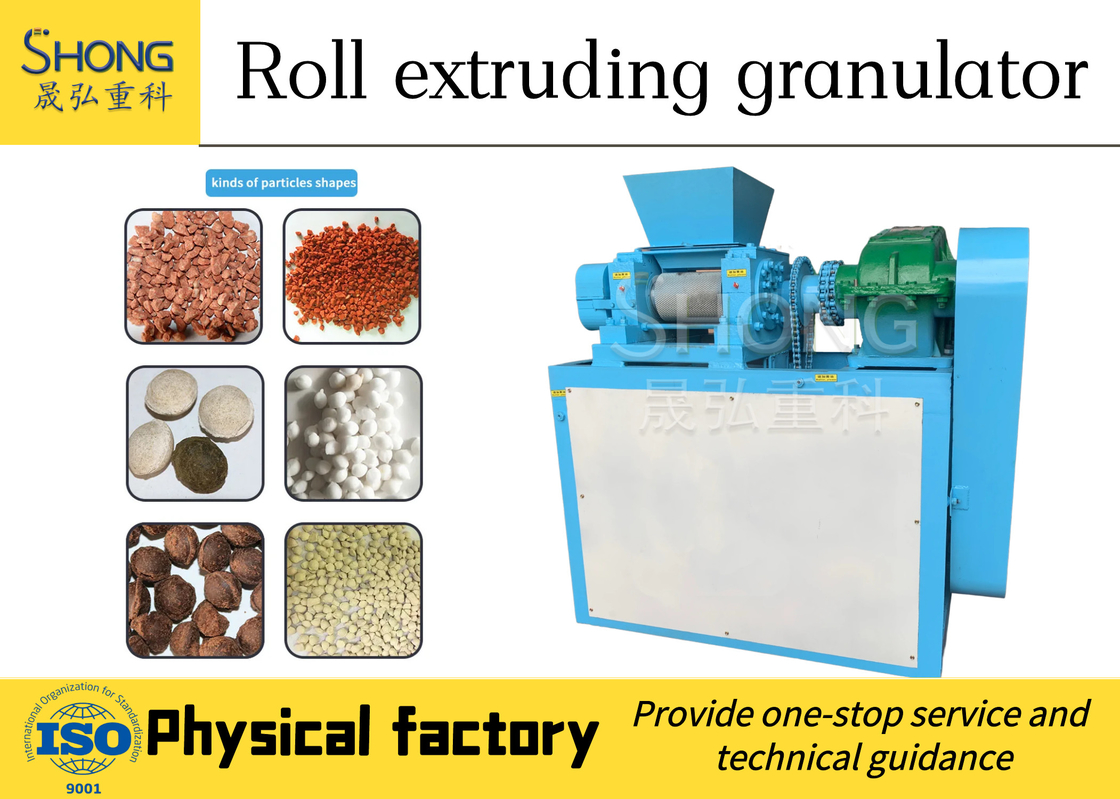

Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine
The electric motor drives the pulley, and the transmission belt is transmitted through the speed reducer to a pair of two high-pressure roller bodies with a sliding mold shell to perform relative work.
The DZJ-I extruder has two rollers interacting with each other by the work of a pair of split gears.
The two rollers of the DZJ-II extruder are driven directly by two output shafts on a dedicated reducer to achieve the purpose of extrusion.
During the production, raw materials enter the hopper and are pressed and formed by the high-pressure roller body. After the mold is released, it flows to the crushing and forming part in the lower part of the roller body.
The power of crushing and forming is the relative movement of a pair of crusher rollers driven by the sprocket of the active press roller shaft via a chain drive.
After crushing and screening in the working chamber, the finished particles pass through the screen to the discharge then come out of the machine.
Description of Granulator
It has the advantages of beautiful appearance, simple operation, low energy consumption, long service life and high granulation rate. It is the most advanced compound fertilizer granulation equipment in China, and it is a kind of advanced compound fertilizer granulation equipment, Products throughout the country. The series of granulator for a wide range, with the following characteristics:
1. No drying process, room temperature granulation, a molding, less investment, quick, good economic returns.
2. Powerful operation is reliable, no waste discharge, stable operation, easy maintenance, process layout is reasonable, advanced technology, low production costs.
3. Raw materials are widely used for granulation of various raw materials such as compound fertilizer, medicine, chemical industry, feed, coal, metallurgy and so on, and can produce various kinds of concentrations, including organic fertilizer, inorganic fertilizer, biological Fertilizer, magnetic fertilizer, etc.) compound fertilizer.
4. In particular, rare earth, ammonium bicarbonate, ammonium sulfate compound fertilizer granulation, to fill the gaps, ranking the leading domestic level, is the national environmental protection technology for the promotion of the project.
|Model||DZJ-I 1.0||DZJ-I 2.0||DZJ-I3.0||DZJ-I 4.0||DZJ-II 1.0||DZJ-II 2.0|
Granule Strength and Apperance Type:
Shape of finished products
oval, irregular, wheat shaped, etc., can also be customized according to customer requirements.
Material moisture requirement
not more than 10%
The rate of ball formation
1-4t/h ( can combine multiple granulators work together to increase output, see below
technical process chart).
3-8mm (popular market granule diameter: 2.8-4mm)
The series of roller granulation is extrusion sliding model, its working principle is driven by the motor belt and pulley, through the reducer to the drive shaft, and through the open gear and passive shaft synchronization, the opposite work. The material is fed from the hopper, extruded through the roll, stripped and pelletized, and passed through a chain, transferred to the crushing sieve studio, sieved and separated from the finished product pellets, and then the feed is mixed with the new material Granulation. With the continuous rotation of the motor, the material continues to enter, in order to achieve mass production.
