Rotary Drum Fertilizer Granulator Custom Capacity High Efficiency for organic fertilizer
Contact Person : Carter
Phone Number : 0086 15238391768
|Minimum Order Quantity :||1PC||Price :||Negotiable|
|Packaging Details :||Package or Container||Delivery Time :||15 Days|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||20 pcs per day|
|Place of Origin:||Zhengzhou China||Brand Name:||Tianci|
|Certification:||SGS BV ISO||Model Number:||DZJ-II-1.0|
|Application:||Fertilizer Granulator Machine||Material Moisture:||2%-5%|
|Capacity:||1-4 T/h||Suit For:||NPK Compound Fertilizer|
|Warranty:||12 Months||Pellet Diameter:||2-10mm|
Dry Compound Fertilizer Granulator Machine,
5T/H Fertilizer Granulator Machine,
10mm Pellet Fertilizer Granulator Machine
Extrusion Fertilizer Granulator Machine , Double Roller Granulator

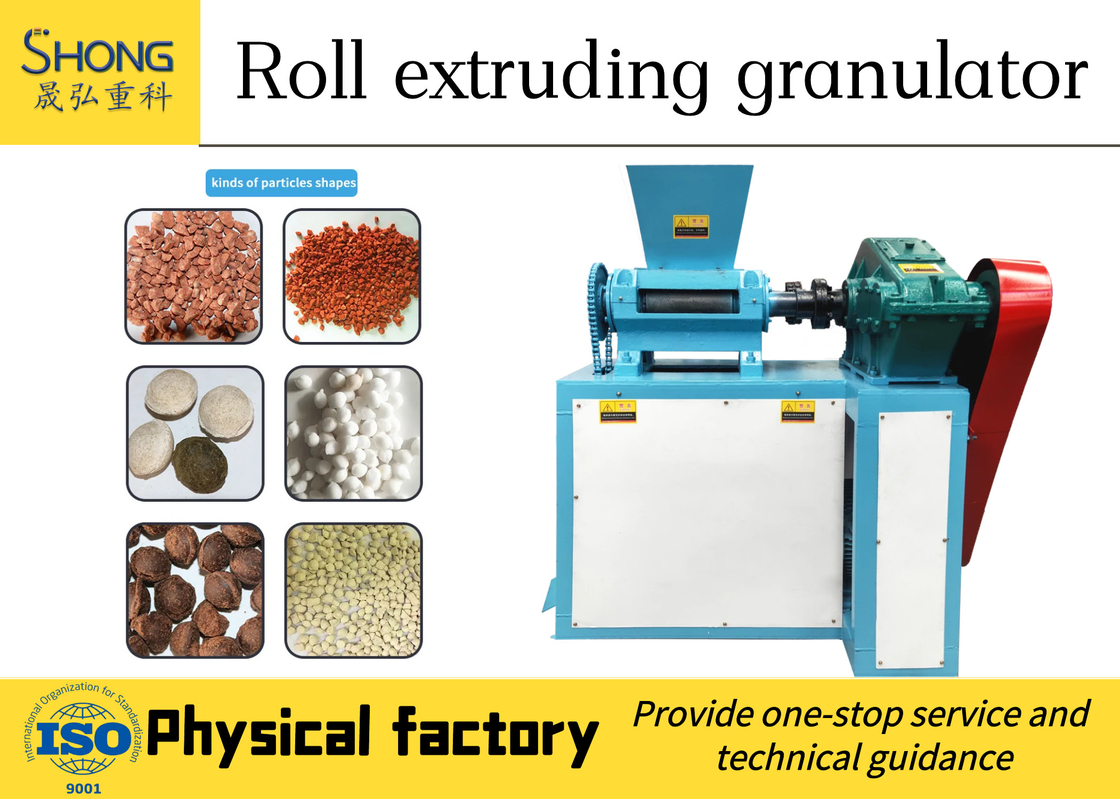

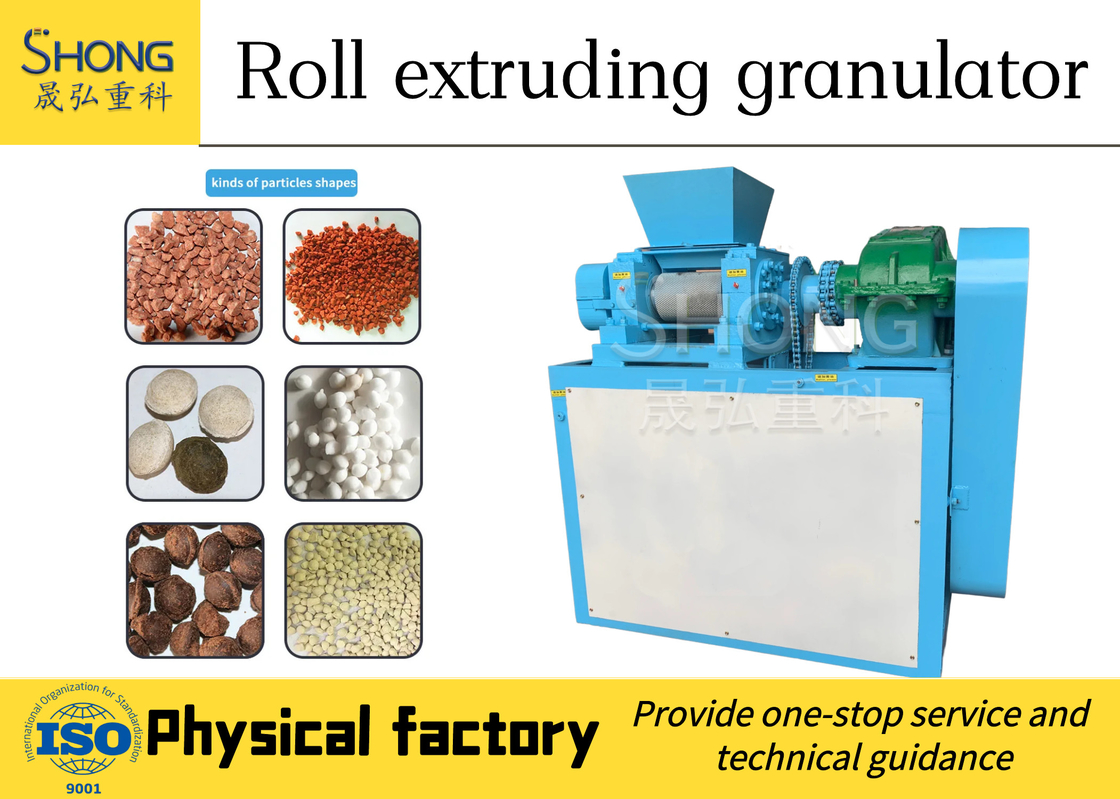

The Introduction Of Double Roller Press Granulator
Working principle: adopts the design solution of extrusion sliding model,the raw materials pass through double roller,after that,enter into scattering room, come out as granulation, a sieving was mounted at the bottom of the machine, which is customized according to client’s requirement, last, sieve out the granules which is qualified, the rest of materials return to mixer and be re-granulated.
1.Double shaft power output, each shaft through coupling to drive its roller to do synchronous work in opposite direction, granule forming is better and the strength is higher.
2.The design of contraposition adjustment of ball socket is simple and convenient for the client to adjust by themselves. Provide the drawing of roller adjustment and operation steps
3. All machines before leave the factory, had carried out the test and trial production by professional workers.
|Model||DZJ-I 1.0||DZJ-I 2.0||DZJ-I3.0||DZJ-I 4.0||DZJ-II 1.0||DZJ-II 2.0|
Granule Strength and Apperance Type:
Shape of finished products
oval, irregular, wheat shaped, etc., can also be customized according to customer requirements.
Material moisture requirement
not more than 10%
The rate of ball formation
1-4t/h ( can combine multiple granulators work together to increase output, see below
technical process chart).
3-8mm (popular market granule diameter: 2.8-4mm)
The electric motor drives the pulley, and the transmission belt is transmitted through the speed reducer to a pair of two high-pressure roller bodies with a sliding mold shell to perform relative work.
The DZJ-I extruder has two rollers interacting with each other by the work of a pair of split gears.
The two rollers of the DZJ-II extruder are driven directly by two output shafts on a dedicated reducer to achieve the purpose of extrusion.
During the production, raw materials enter the hopper and are pressed and formed by the high-pressure roller body. After the mold is released, it flows to the crushing and forming part in the lower part of the roller body.
The power of crushing and forming is the relative movement of a pair of crusher rollers driven by the sprocket of the active press roller shaft via a chain drive.
After crushing and screening in the working chamber, the finished particles pass through the screen to the discharge then come out of the machine.
The roller was first forged and processed from special materials into roughcast, and then machined by numerical lathe and milling machine to be finished product. The roller with the features of rusty resistance, acid and alkali resistance, long service life, not easy to crack .
input ( If blocked, use chain crusher to deal with ) ---- granulation - screening (select the right sieving hole diameter)----finished granules---- the next process (optional equipment: 1, screening machine: the size of the granules will be more accurate. 2, coating machine: make the appearance of the granules more good. 3, weighing and package: facilitate the sale and transportation of products.
