Pan Type Compound Fertilizer Granulator With Round Ball Shape

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Customer demand, usually in container Delivery Time : 10-12 working days
Payment Terms : L/C, T/T, D/A, Western Union Supply Ability : 80 sets per month
Place of Origin: Zhengzhou, China Brand Name: Tianci
Certification: BV, SGS, ISO Model Number: ZL10

Detail Information

Raw Material Of Machine: Carbon Steel Additional Capability: Compound Fertilizer Granulator
Max. Loading Capacity: 0.5 T/h Power: 2.2KW
Condition: New Installation: Guidance Of Engineer
Color: Customized After-sale Service: Oversea Service Available
High Light:

fertilizer blending equipment

,

fertilizer blending machine

Product Description

Pan Type Compound Fertilizer Granulator With Round Ball Shape



Introduction of compound fertilizer granulator

Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.



Working Principle of compound fertilizer granulator
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.



Characteristics of compound fertilizer granulator
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life.



Features of compound fertilizer granulator

1.The flat pan adopts circular arc structure, promising 93% compound fertilizer yield.

2.The disk uses strong iron material, sturdy and durable. Due to strong,stable and lasting base design, there is no need fixing the base with Anchor Bolt.

3.The inside lining of the pan adopts high strength and strong corrosion-resistance plastics glass, with simply structure, high fertilizer granulesyield, and easier to maintenance.

4.This fertilizer granulator machine is stable and reliable in operation, low noise.

5.lt is used in our compound fertilizer production line, such as our tailor-made 50,000 tons/year compound fertlizerproduction line.



Parameter of compound fertilizer granulator

Model Inner dia Height Volume Speed Power Capacity
ZL10 1000mm 250mm 0.4m3 24r/min 2.2kw 0.3-0.5t/h
ZL15 1500mm 300mm 1.1m3 22r/min 5.5kw 0.5-0.8t/h
ZL18 1800mm 300mm 1.4m3 18r/min 5.5kw 0.6-1.0t/h
ZL20 2000mm 350mm 1.8m3 18r/min 7.5kw 0.8-1.2t/h
ZL25 2500mm 350mm 2.5m3 18r/min 7.5kw 1.0-1.5t/h
ZL28 2800mm 400mm 3.3m3 18r/min 11kw 1.0-2.5t/h
ZL30 3000mm 450mm 3.9m3 16r/min 11kw 2.0-3.0t/h
ZL32 3200mm 500mm 4.3m3 13.6r/min 15kw 2.0-3.5t/h
ZL36 3600mm 550mm 5.5m3 11.3r/min 18.5kw 3.0-5.0t/h
ZL45 4500mm 600mm 6.5m3 8r/min 22kw 4.0-6.0t/h

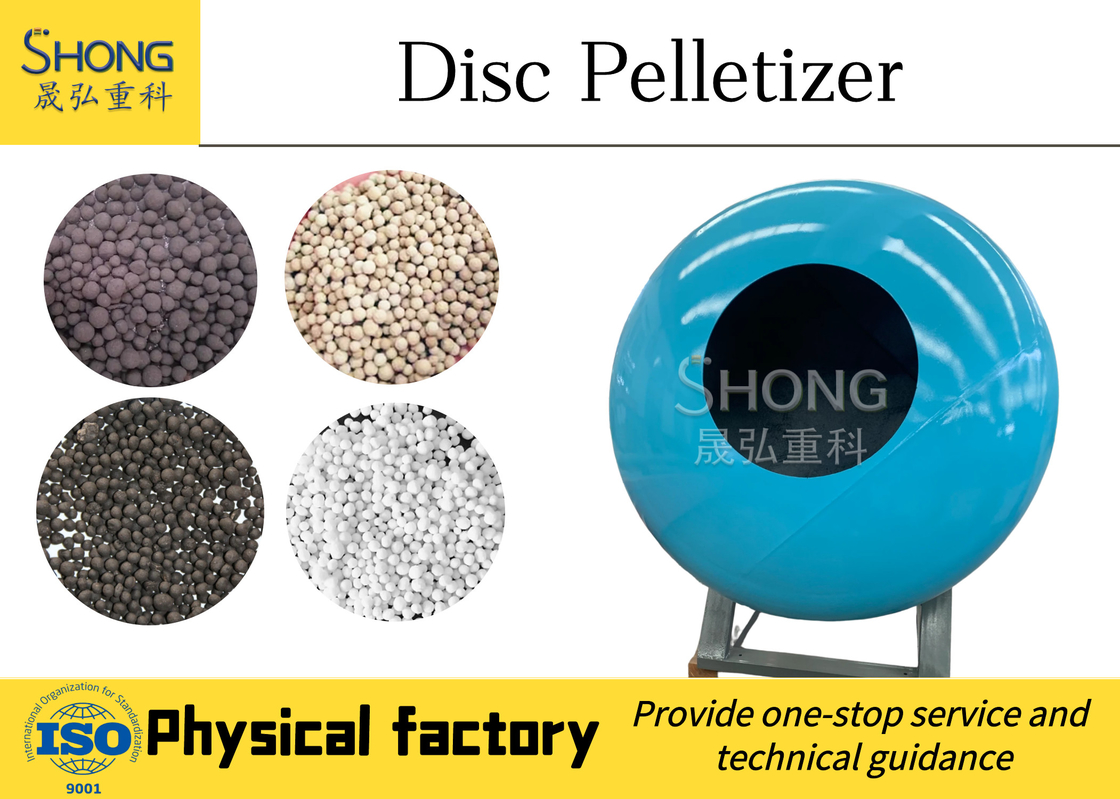

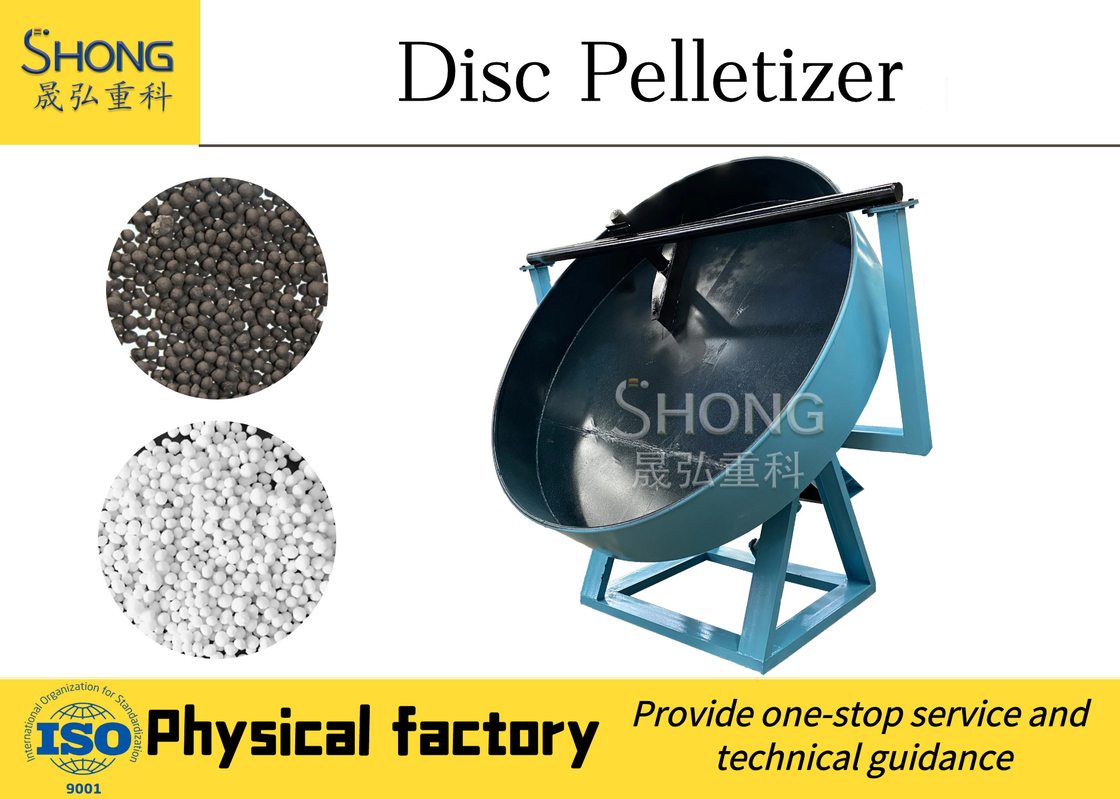

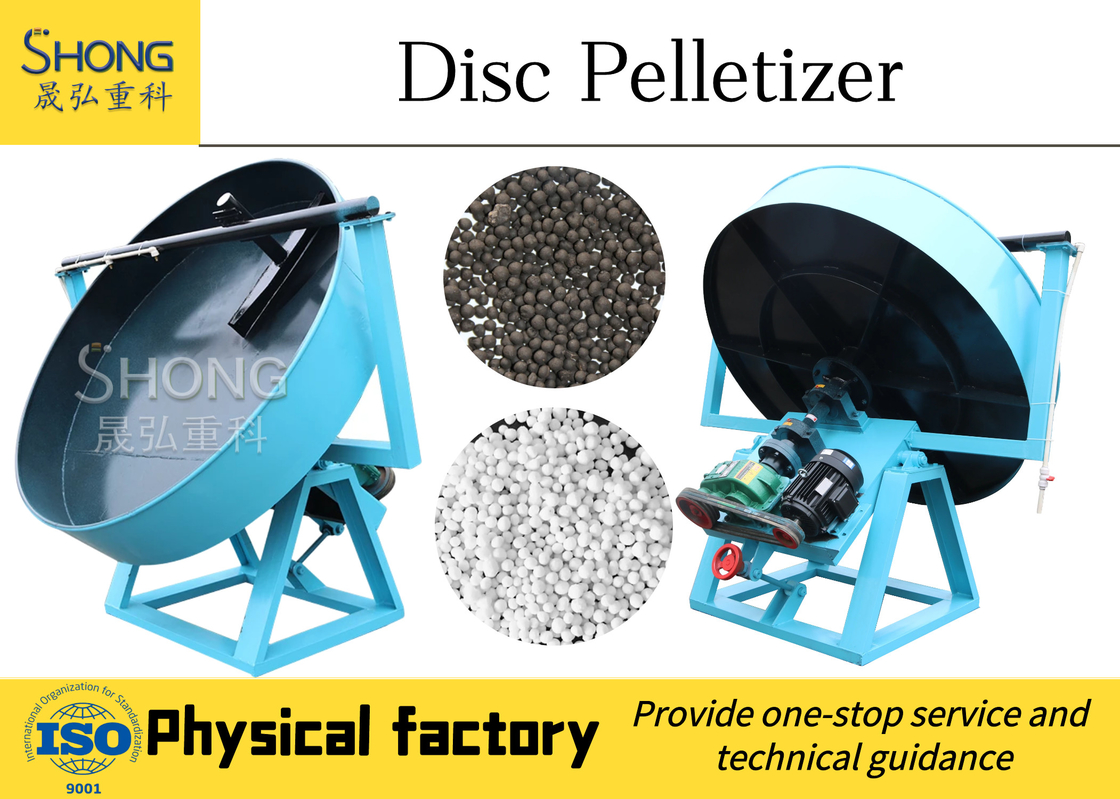

Picture of compound fertilizer granulator

Pan Type Compound Fertilizer Granulator With Round Ball Shape 0

Pan Type Compound Fertilizer Granulator With Round Ball Shape 1
