Rotary Drum Granulator Organic Fertilizer Granules Making Machine For Production Line

Rotary Drum Granulator Organic Fertilizer Granules Making Machine For Production Line

compost screening machine

vibrating screen equipment

Place of Origin:

Zhengzhou, China

Brand Name:

Shenghong

Certification:

BV, SGS, ISO

Model Number:

ZG2.2*8, ZG1.2*4

Contact Us
Request A Quote
Product Details
After-sales Service:
Engineer Available To Oversea
Machine:
Automatic
Installation:
Guidance Of Engineer
Warranty:
12 Month
Raw Material:
Carbon Steel
Outline:
4.6*22*2.0
Capacity:
1-3ton/hour
Amplitude:
4-6mm
Highlight:

compost screening machine

,

vibrating screen equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Customer demand, usually in container
Delivery Time
10-12 working days
Payment Terms
L/C, T/T, D/A, Western Union
Supply Ability
80 sets per month
Product Description

Rotary Drum Granulator Organic Fertilizer Granules Making Machine For Production Line



Introduction of rotary drum granulator

Rotary drum fertilizer granulator is one of the critical machines in compound fertilizer production line. It is applied to cold,hot granulation and quantity production of high,medium or low consentration compound blending fertilizer. The granulating method is rolling round fertilizer particles in wet granulation. With water or vapour added, the original fertilizer in rotary drum are blended uniformly and become humid, during this process, the fertilizer reacts and by way of the liquid environment and rotation in drum, the fertilizer particles squeeze each other and roll into fertilizer particles.The formed fertilizer particles are of 3-4mm.



Advantage of rotary drum granulator

(1)High fertilizer particles rolling rate about 70%, less returning fertilizer created,but can be regranulated.
(2)Vapour or water adding improves fertilizer temperature and creates high quality fertilizer particles.
(3)Engineering plastics are used for inner lining, no stick to liners,Anti-corrosion and thermal insulation.
(4)Large granulating capacity,low enrgy consumption and low maintenance cost.
(5)Flexible fertilizer particles diameter according to different formulation, processing procedure and raw materials.
(6)Super quality steel materials,strict quality requirements and control.
(7)Low noise,stable performance;rational structure like shoveling plates to clean drums.





Working Principle of drum granulator
The belt and pulley are driven by the main motor, and the driving shaft is driven by the reducer. The pair of open-gears installed on the driving shaft and the big gear ring fixed on the machine body are combined and work in opposite direction. The materials are fed from the inlet and are made into particles with the drum rotating under certain conditions, the particles finally flow out through the outlet. With the continuous materials feeding and continuous rotating to achieve the mass production.



Parameter of drum granulator


Model ZG1.2*4 ZG2.2*8
Inner Dia 1.2m 2.2m
Length 4m 8m
Power 5.5kw 22kw
Dimension 4.6*2.2*2.0m 9.5*4.4*3.9m

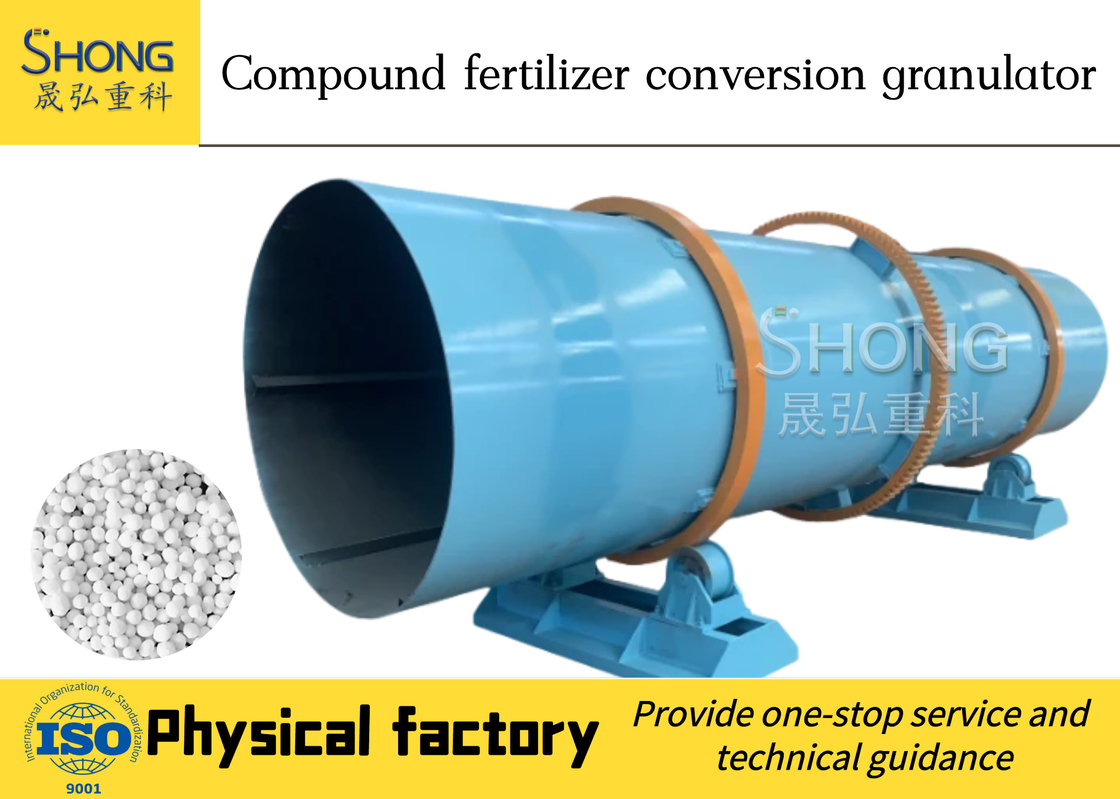

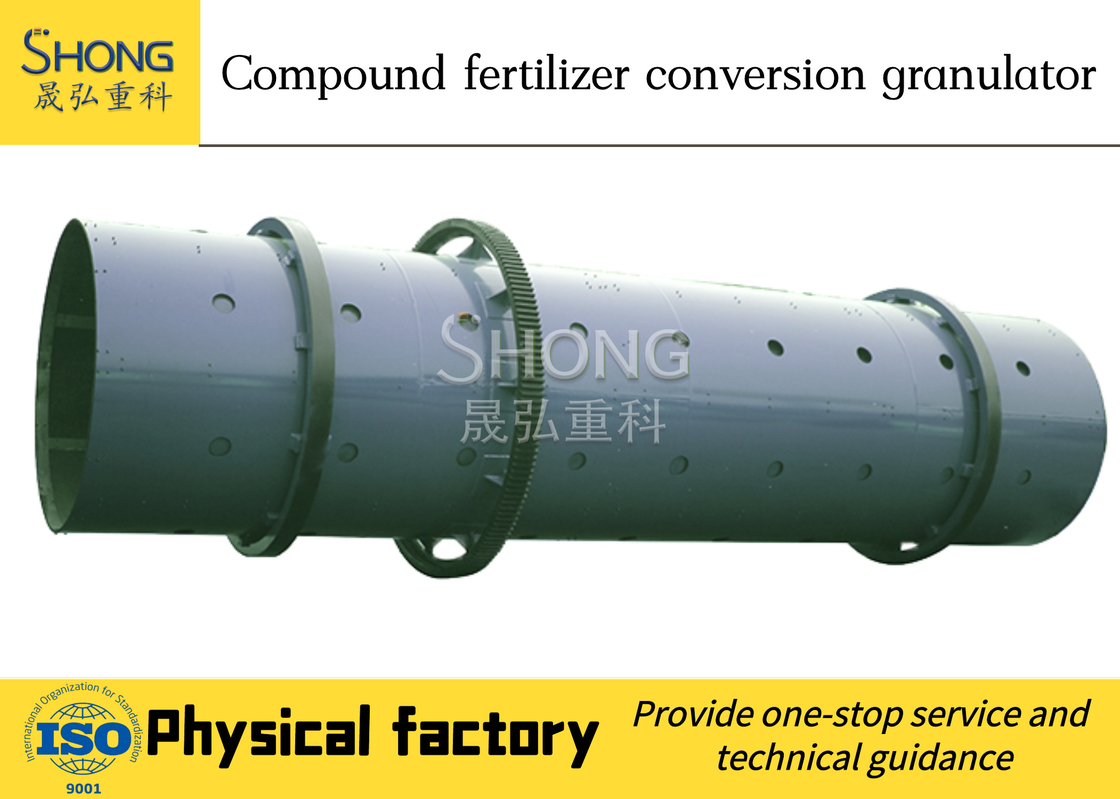

Picture of drum granulator

Rotary Drum Granulator Organic Fertilizer Granules Making Machine For Production Line 0
