Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine

China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine

Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine
Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine
video play

Large Image :  Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: BV ISO SGS
Model Number: YSL2-60/120~YSL2-120/220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Package or container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per day
Detailed Product Description
Application: New Type Organic Fertilizer And Compound Fertilizer Combination Granulation Machine Type: New Type Organic Fertilizer And Compound Fertilizer Combination Granulation Machine
Raw Material: Kinds Of Organic Material Usage: Making Fertilizer Granules
Granules Shapes: Ball Or Cylinder Shape Machine Capacity: <5 Tons Per Hour
Condition: New Weight: 2 Tons
Voltage: 380V Or Customized Power: 42.6-117KW
Material: Carbon Steel Or Stainless Steel
High Light:

fertilizer granule machine

,

fertilizer pellet machine

Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine

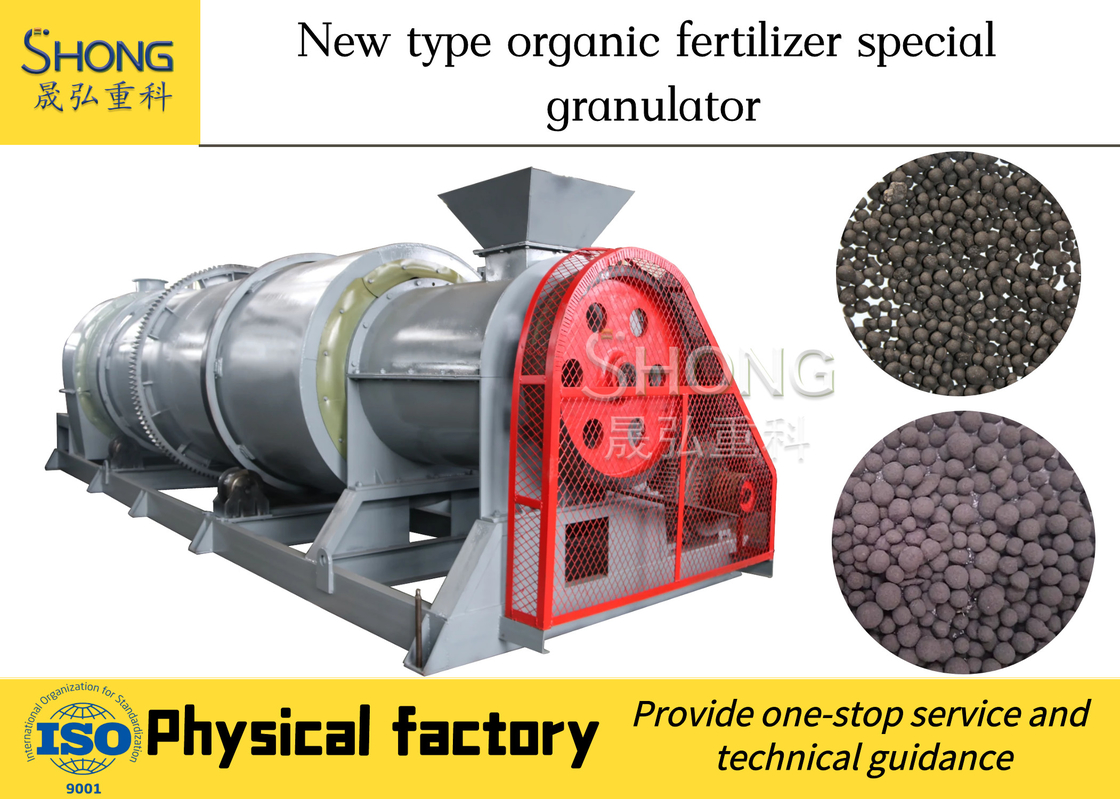

Introduction of rotary drum granulator

Drum granulator is a kind of fertilizer granulator machine can make the material into a specific shape. Drum granulator is one of the key equipment of the compound fertilizer industry. It is suitable for large-scale production of cold &hot fertilizer granulation line and high and low concentration compound fertilizer line.



Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc
























Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine 0





Main technical parameters



Model no.

YSL2-60/120

YSL2-80/120

YSL2-80/150

YSL2-100/150

YSL2-100/180

YSL2-120/180

YSL2-120/220

Production(t/h)

2-4

3-5

5-8

6-10

8-12

10-15

12-20

The diameter size

1-5

1-5

1-6

1-8

1-10

1-10

1-10

Power (kw)

42.6

58.2

60.5

72.5

80

93

117

Our advantages:

1.Main products: compound and organic fertilizer granulator, mixer, belt conveyor, dryer, screening machine, dewatering machine, crusher, weighing packaging machine, etc.
2.Designated production enterprise by Agriculture Department
3.We account for 80% market shares in compound and bio-organic fertilizer manufacturing filed in China.
4.Processional Research and Development team
5.Strict quality control system
6.We provide competitive prices, reliable quality products and swift delivery time.
7.Exported to more than 30 countries in Africa, South America, Mid East, Central America and other area, such as, India, Korea, Australia, etc.

Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine 1

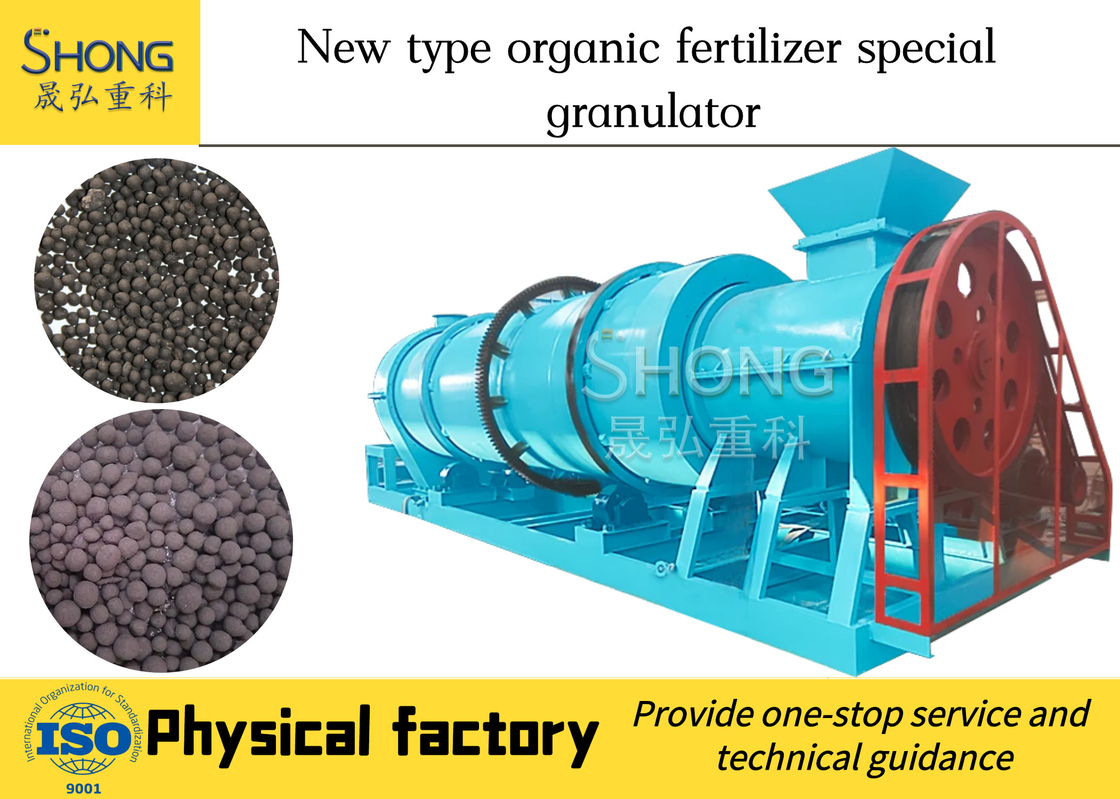

Feature of rotary drum granulator



Drum granulator is one of the key equipment in compound fertilizer industry.

It is suitable for hot and cold granulation and high, medium and low concentrations of mass production of compound fertilizer.

The shell of the machine uses special rubber slab lining or acid-resistant stainless lining board which realizes auto scar removal and de-tumor instead of traditional drawknife equipment

High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance, etc.



FAQ:

1.Are you manufacturer or trade company?

We are a professional manufacturer for producing fertilizer process machines and related machine(granulator, crusher, mixer, packing, feeding machines and conveyor belt) etc.

2.How about the delivery time?

It can be shipped immediately for the machine in stock,and 5-7days for the machine out of stock

3.How long is the guarantee?

Warranty for 12 months without artificial and deliberate damage.

4.How should to do if I meet some trouble while using?

The English manual book and video will be provide for showing how to resolve the problems, if necessary, we will dispatch our engineer to your factory.

5. Do you provide the installation service after ordering your machines?

As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing, and arrange the engineer guide the user install the machines.Help the user train the skilled workers.

6.Can we visit your factory for machine testing operations?

We warmly welcome the clients to visiting our factory for trying machine.

7.Can we see some fertilizer plant with your machine?

We can take the customer to visit fertilizer plants with our equipment.

Organic Fertilizer Granulator Machine With Large Output In Fertilizer Production Iine 2
