|Granules Shapes:||Ball Shape||Method:||Continuous|
|Warranty:||12 Months||Material:||Carbon Steel|
|Condition:||New||Service:||Engineers Available To Service Machinery Overseas|
Agricultural Grain Dryer Machine,
Wheat Seed Corn Grain Dryer Machine,
Paddy Maize Grain Dryer Machine

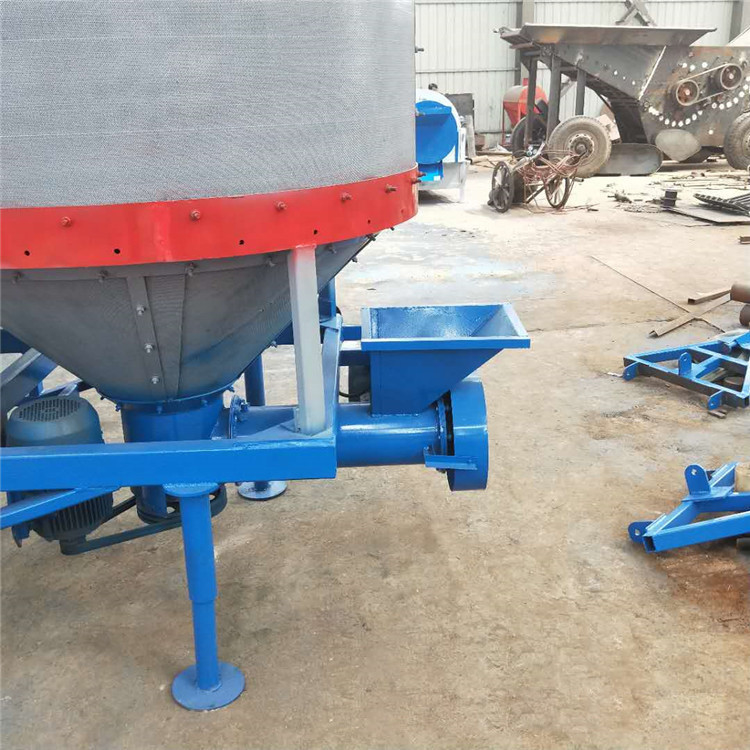

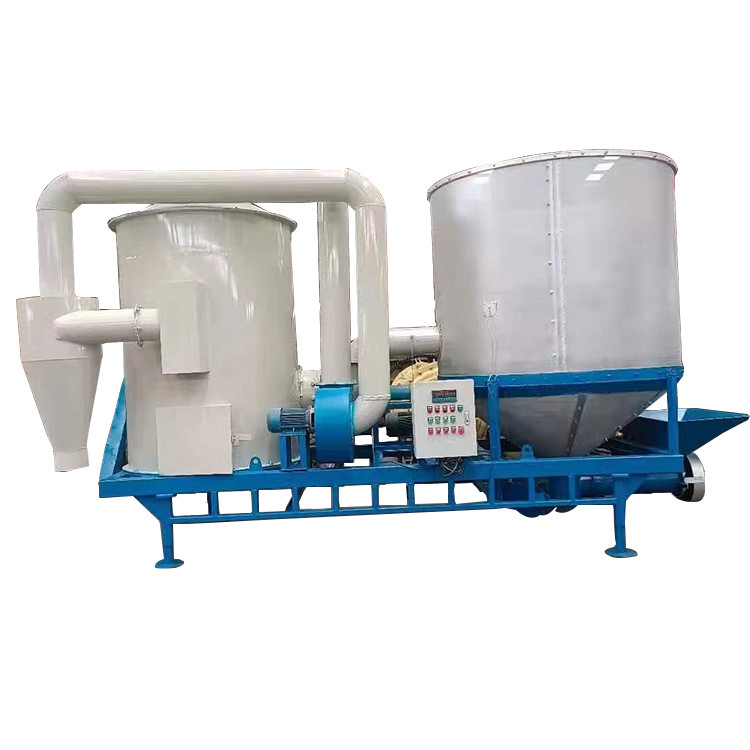

Agricultural Machine Farm Wheat Seed Corn Paddy Maize Rice Grain Dryer In Philippines
When the small rice paddy dryer to dry grain,cereal,corn,quinoa,rice, because the raw material is still, the hot-blast air can’t penetrate completely, just heat some parts, so the raw material is easy to condense into pieces and to be jammed, So the ordinary can’t reach the Comprehensive drying effect.
Our Corn Paddy Drying Machine’s design is of two level spiral quick delivery, The first level deliver the materials quickly into the barrel, and the second level continuously rapid lift the raw material to the upper of the barrel and then throw the raw material with deliquescence scattered, while the hot air from the center of the barrel bottom blown out all around. Smoothly move the raw material from bottom to top to conduct a comprehensive heat transfer and dynamic drying process.
Because the raw materials inside the barrel are keep rolling, hot air continuously from the center so as to achieve mixing and drying simultaneously and can save time and energy.
The material of barrel, screw blade, shaft, tank, holder which contact part of the raw material all use stainless steel.
|Dry type||Low temperature hot air cycle dry|
|Air temperature range||Paddy:45-60℃;Corn:100-130℃;Wheat:90-110℃|
|Coal and wood Oven||
Clean oven,Ignition by manual
(If use other fuel,need different design)
|Fuel consumption||Coal||(Standard conditions)18kg/t|
|Diesel oil||(Standard conditions)7.5L/t|
|Note:Each batch need 2-3h|
|Precipitation rate (%/h)||Paddy:1.7-2.5℃;Corn:3.8-6;Wheat:2.8-4.5℃|
|Safety Devices||Thermal relay,Error alarm, Times Switch, Overheat alam|
|Daily production is calculated by the condition from25% to 14% moisture.|
This machine is portable,mini type. It's suitable for drying a lot of kinds of grains. Such as corns, rice, beans, wheat,etc. It's easy to operate. High efficient.Dry the species with a hot wind of no more than 60 degrees.The whole process is under automatic control, no manual management is needed, the flow cycle is dry, the mixed seeds are dry and the humidity is consistent, and the seeds are not burned or polluted.
1.It is applicable for drying various grain and plastic particle
2.RFC Series Heated-Air Dryer can thoroughly dry the raw materials and can save labor,improve quality and drop the cost,and assure 100% qualification for plastic products.
3.Adopt fully stainless steel with complete materials cleaning,design with bended hot air pipe for avoiding burn caused by powder in hot air pipe.
4.The new hot air chamber features high efficiency with energy saving reaching 30%,and features precise temperature adjustment and control,the quality electric parts boast stable performance,and the program ON/OFF function provides safe and reliable performance.
New typedrying machine has obvious characters with high performance, high efficiency, and high yield, which is the ideal equipment for the drying of some more wet materials. It is the ideal choice for a large scale production in carbon industries.
