Product Details:
Payment & Shipping Terms:
|
Application: | Animal Compost Turner | Using: | Fertilizer Production Line |
---|---|---|---|
Raw Material: | Fertilizer | Color: | Green/Customized |
Warranty: | 12 Months | Name: | Agriculture Organic Windrow Compost Turner |
Power: | 3KW | Output: | 2-50 T/H |
Highlight: | Organic Windrow Compost Turner,Agriculture Windrow Compost Turner,Windrow Compost Turner 50 T/H |

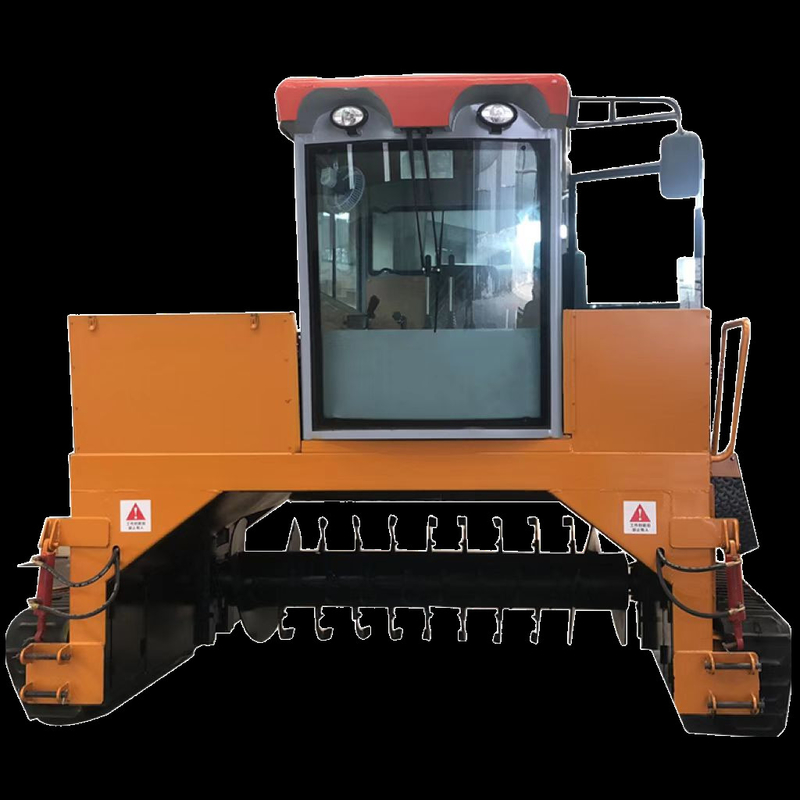

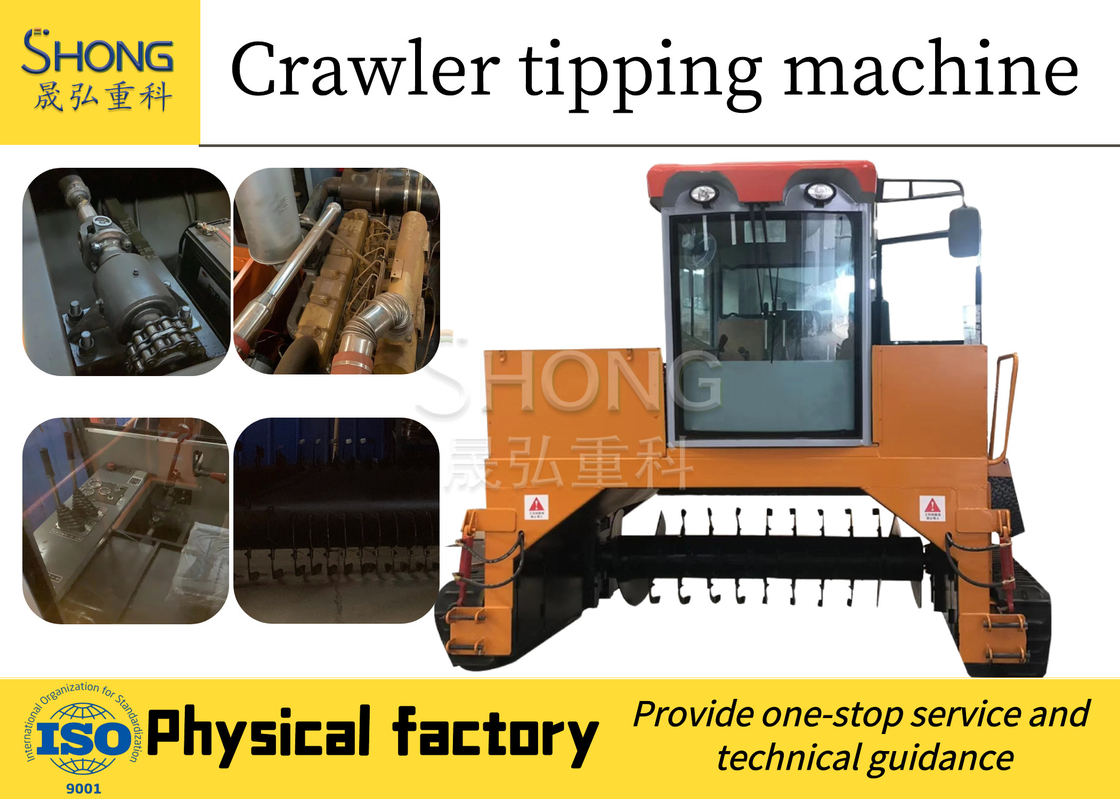

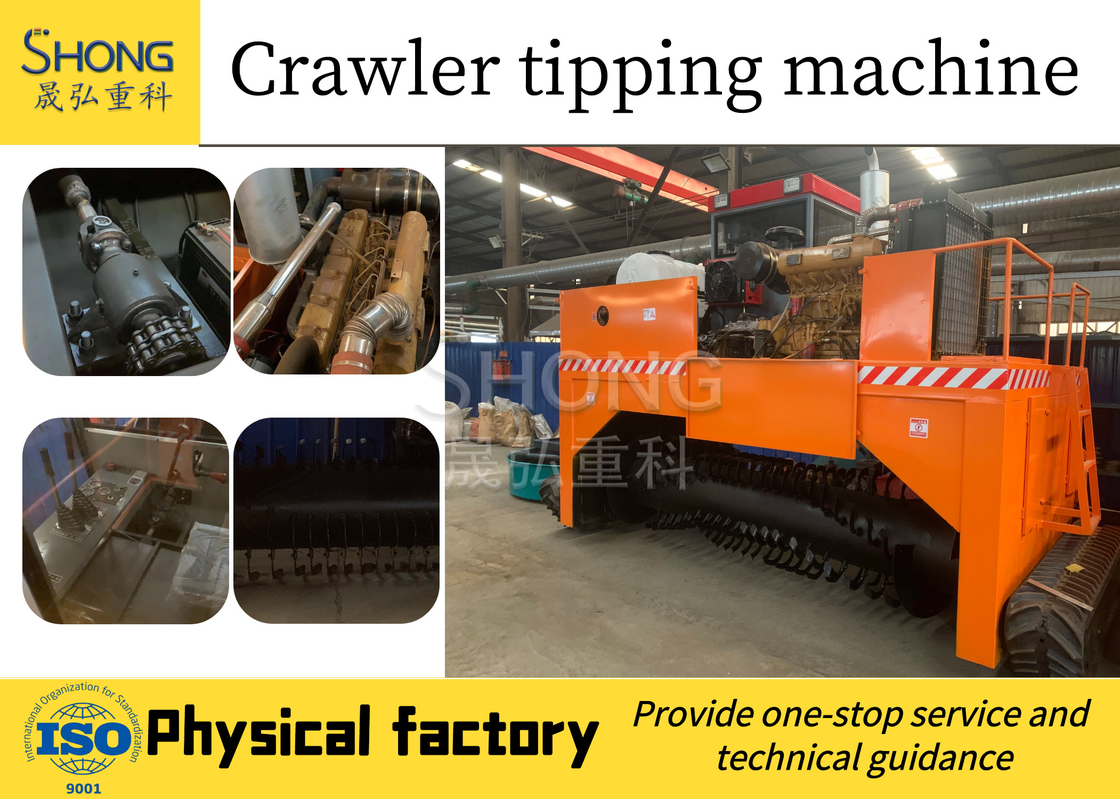

Agriculture Organic Windrow Compost Turner New Compost Mixing Machine
Introduction:
The turner machine is a fully hydraulic,under all weather and all working condition material , designed based on the advantages of many models.Compact design,simple operation and saving work space.The turner machine can be conveniently used for various raw material and various venues.Our turner machines are used in many countries:Kazakhstan,Russia,Malaysia,Singapore,Mexico and so on.
Our company chooses not to provide conventional models for the convenience of customers,the mechanical structure and hardware design can only be carried out after the customer provides the construction requirements of the factory.If you need to purchase,please try to make an appointment in advance,and we can provide you with the best machine.
The hydraulic compost turner is the professional machine for horse manure compost and other organic materials fermentation. It adopts advanced hydraulic operating system, pull rod power steering operation and crawler-type running mechanism.
Parameter:
Model | FDJ-2400 | FDJ-2600 | FDJ-2800 | FDJ-3000 |
Turning Width(mm) | 2400 | 2600 |
2800
|
3000 |
Turning Depth(mm) | 600-1000 | 800-1000 | 800-1000 | 800-1000 |
Window Spacing(mm) | 250 | 250 | 250 | 250 |
Maximum Diameter of Material Particles(mm) | 85 | 116 | 123 | 156 |
Power(HP) | 400 | 500 | 500 | 500 |
Working speed (m/min) | 6-10 | 6-10 | 6-10 | 6-10 |
Capacity | 500-700 | 1000-1200 | 1100-1300 | 1500 |
Feature:
1.Economical and multifunctional. A compost turner can be used to process different bio-organic fertilizers from wide ranges of
materials such as viscous materials, loose materials and wrapping materials, etc.
2.Balanced structure and stable performance,low energy consumption, customized turning capacity.
3.Affordable price for both fertilizer production plants and farms.
4.Turning various waste into bio-organic fertilizer, makes great contribution to environment protection.
5.Freely add or remove auxiliary devices like liquid microbial agent spreading device, conditioner and so on.
Working Principle
When windrow compost turner for organic fertilizer starts to work, it straddles the strip-type compost heap and the rotary cutter shafts under the rack stir and mix the material.The operation can be completed not only in the open area but also in the workshop and greenhouse. One of the compost fertilizer turner machine ’s technical breakthroughs is to integrate the crushing function at the later stage of the material fermentation.
With the continuous dehydration of the material, the cutter shafts can effectively crush the caking formed during the fertilizer fermentation.Thus the production does not need to equip an additional crusher, the crushing efficiency is greatly improved and the cost is largely reduced.
