Place of Origin:
Zhengzhou China
Brand Name:
Shenghong
Certification:
SGS BV ISO
Model Number:
DZJ-II-1.0
Ammonium Sulphate Compound Fertilizer Granulator , Compound Fertilizer Production

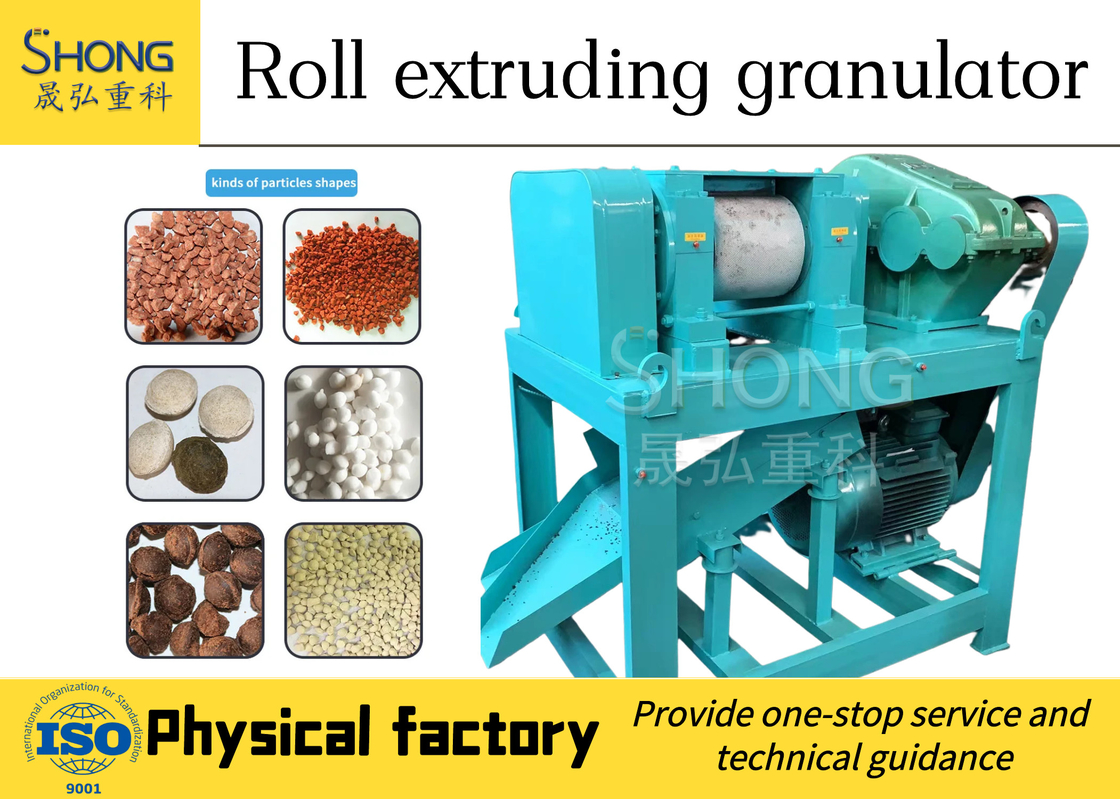

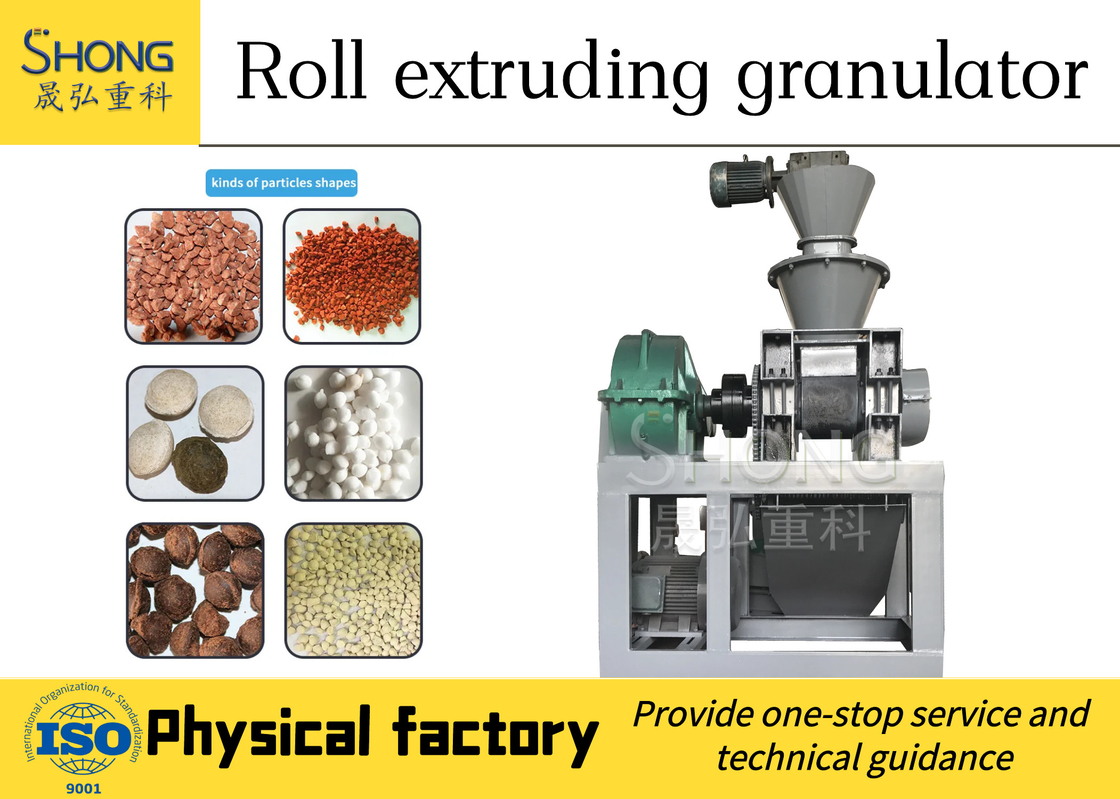

Introduction of ammonium sulphate compound fertilizer granulator
Ammonium sulphate compound fertilizer granulator is mainly composed of the base support, granulating roller and crushing room and motor transmission parts; Working under the two shafts, the materials enters into the hopper, granulated into ball particles by the strong press of rollers and flow down the crushing room to be separated into single particles by the required sieve; the powder size will be returned to the hopper to re-granulate again; the whole process adopts dry granulation production, especially used to produce the powder materials with moisture less than 20%;
The final particle size is up to the diameter of the zone on the rollers, it is customized, can be made into oval shape, bar shape, charcoal shape, tablet shape, cylinder shape, etc;
Application of ammonium sulphate compound fertilizer granulator
Double roller granulator can be used to produce the potassium chloride fertilizer, bulk blend NPK chemical fertilizer (diameter 1-4mm), ammonium sulfate fertilizer, ammonium chloride fertilizer, ammonium carbonate fertilizer, urea fertilizer, etc., you can tell us your raw materials, our technicians will suggest you the best granulator accordingly.
Application of double roller granulator:
The roller extrusion granulator has Wide adaptability of raw materials is DAP,SSP,GYPSUM,SHEEP MANURE, COW MANURE , chicken manure, pig manure,bentonite and other animal poultry manure waste and so on.the roller press granulator Production rate is high. It can produce all kinds of high concentration with a various fertilizers including organic fertilizer, Inorganic fertilizer,compound fertilizer,etc.especially rare earth fertilizer,potash fertilizer,ammonium bicarbonate series for this fertilizer granulator.the fertilizer press machine makes up the gap leading the position in domestic.when using this granulator as a whole fertilizer production line,it does not need a rotary dryer.
Technical Parameters
Model | DZJ-I 1.0 | DZJ-I 2.0 | DZJ-I3.0 | DZJ-I 4.0 | DZJ-II 1.0 | DZJ-II 2.0 |
Capacity | 1-1.5 | 1.5-2.5 | 2.5-3.5 | 3.5-4.5 | 1-2 | 1.5-2.5 |
Power | 15Kw | 18.5Kw | 30Kw | 45Kw | 15Kw | 18.5Kw |
Press Roller | Φ150×22O | Φ150×30O | Φ186×30O | Φ300×30O | Φ150×22O | Φ150×30O |
Feed Size | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
Product Size | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ20 | Φ2.5~Φ10 | Φ2.5~Φ10 |
Speed Reducer | ZQH350 | ZQH400 | ZQH400 | ZQH500 | ||
Material Mositure | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% |
Features of Fertilizer Granulator Machine
1.Simple machine structure
2.Easy operation and maintenance
3.Low power consumption
4.Once forming , no drying process , normal temperature granulating
5.Long service life
