Place of Origin:
Zhengzhou China
Brand Name:
Shenghong
Certification:
BV ISO SGS
Model Number:
YSL2-60/120~YSL2-120/220
Video
Stirring Tooth Fertilizer Granulator Machine In Manufacture Production Line
Product Information:

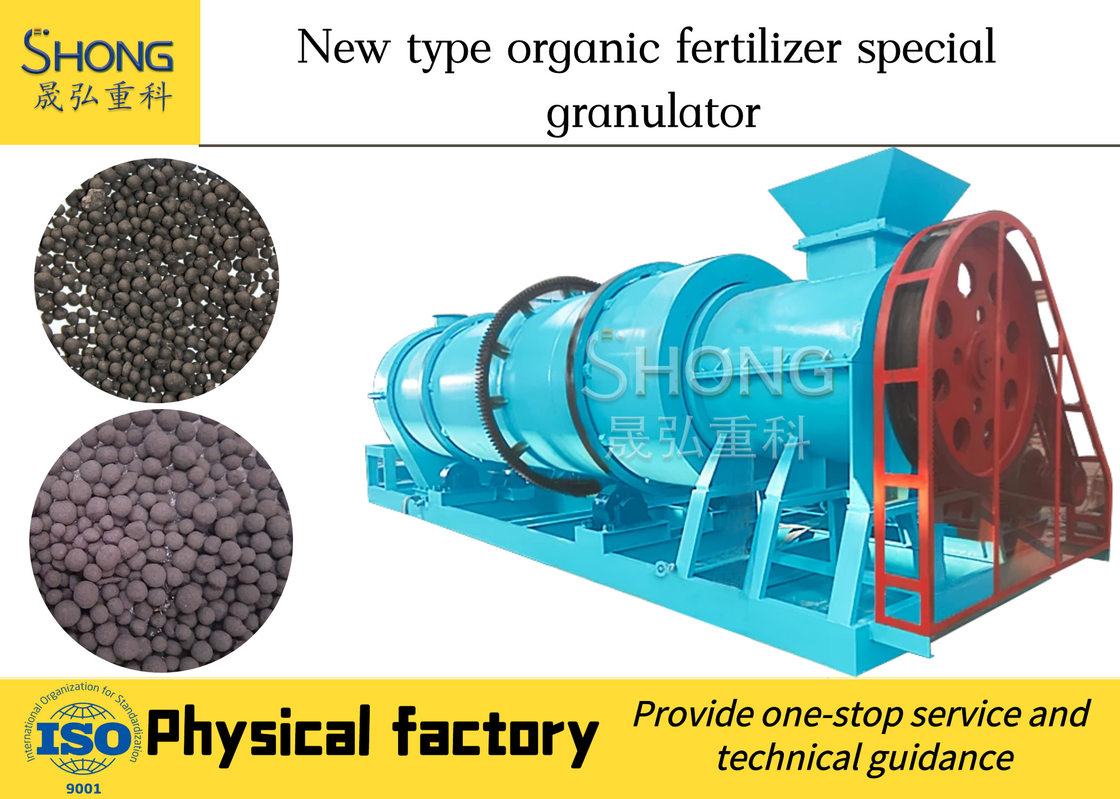

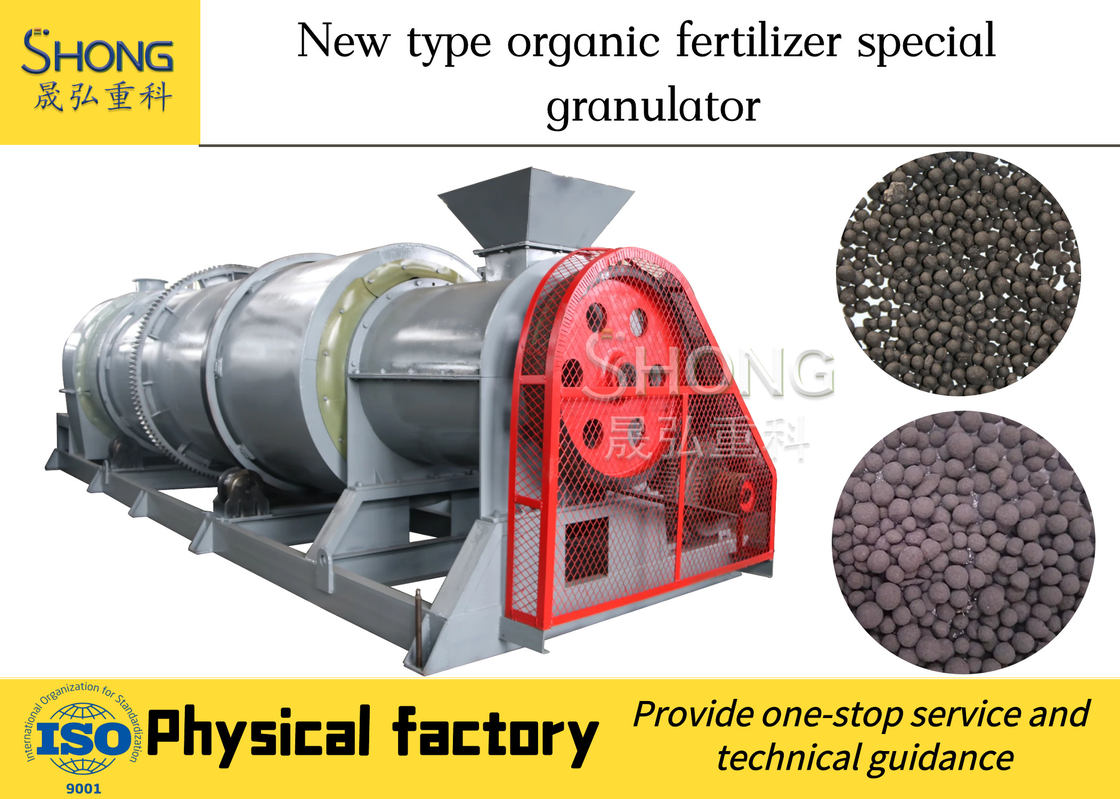

As the one of the key equipments in fertilizer industry, rotary drum granulator is applicable to cooling, heating, and guniting and ammoniated granulation and big scale fertilizer production of high, medium and low content.
The Drum body adopts special stainless steel and rubber plate lining structure. It can remove scars and peel burls automatically. It has the advantages of high strength of granule, high production rate, crossion proof, abrasion proof, low energy consumption, long service life, convenient operation and maintenance, etc.
Remark: Prodcution rate, granulatiion rate and the diameter of granule will be effected by different formulation, process and raw materials.
|
Raw material classification |
Specific application |
|
Livestock manure |
Chicken, duck, rabbit, pig, cow etc |
|
Pond sludge |
Fish pond, shrimp pond, Loach pond etc |
|
Food processing remaining waste |
Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc. |
|
Others |
Gardening waste, mud scum,straw etc |
Main technical parameters
|
Model no. |
YSL2-60/120 |
YSL2-80/120 |
YSL2-80/150 |
YSL2-100/150 |
YSL2-100/180 |
YSL2-120/180 |
YSL2-120/220 |
|
Production(t/h) |
2-4 |
3-5 |
5-8 |
6-10 |
8-12 |
10-15 |
12-20 |
|
The diameter size |
1-5 |
1-5 |
1-6 |
1-8 |
1-10 |
1-10 |
1-10 |
|
Power (kw) |
42.6 |
58.2 |
60.5 |
72.5 |
80 |
93 |
117 |
Characteristics of rotary drum granulator
1) It is used for producing high,medium,low concentration of compound fertilizers,application scope is wide ,the investment cost is low.
2)The shell of the granulator uses a special rubber-lined,anti-corrosion,long service time.
3)The intensity of being ball is high,quality of the appearance is perfect,operation and maintenance are convenient.
