Cow Manure Fertilizer Granulator Machine In Organic Fertilizer Manufacture Line
Product Information:

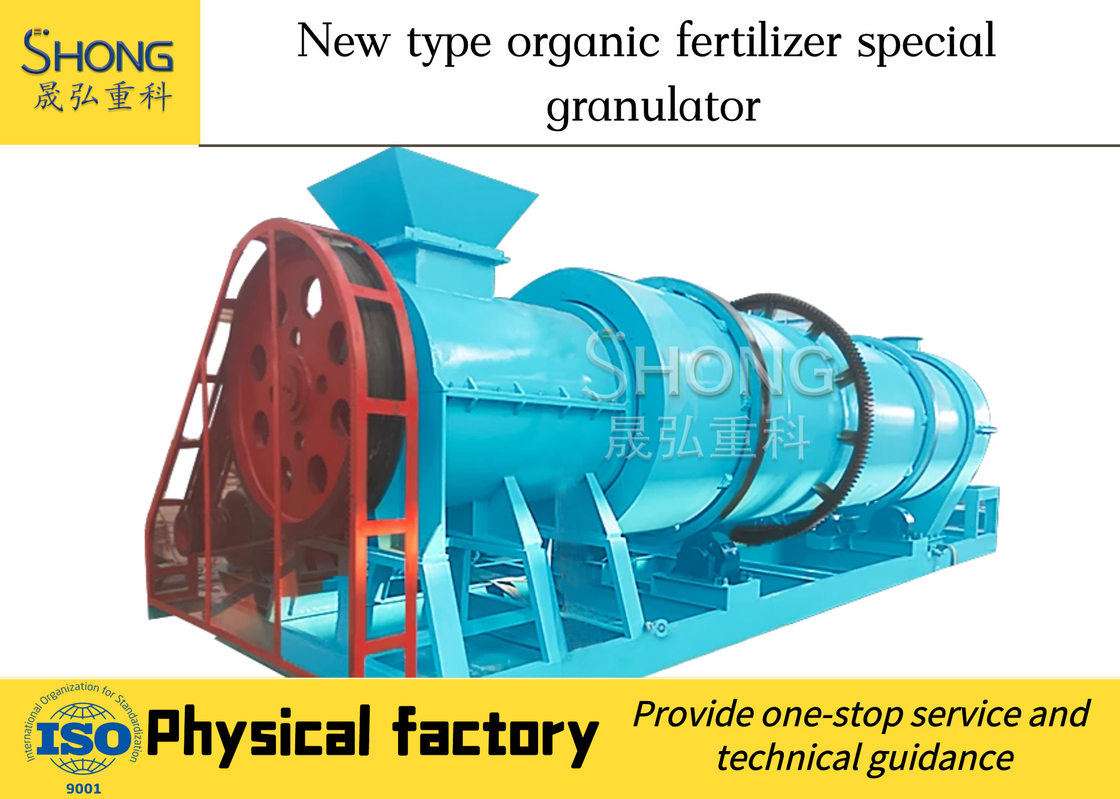

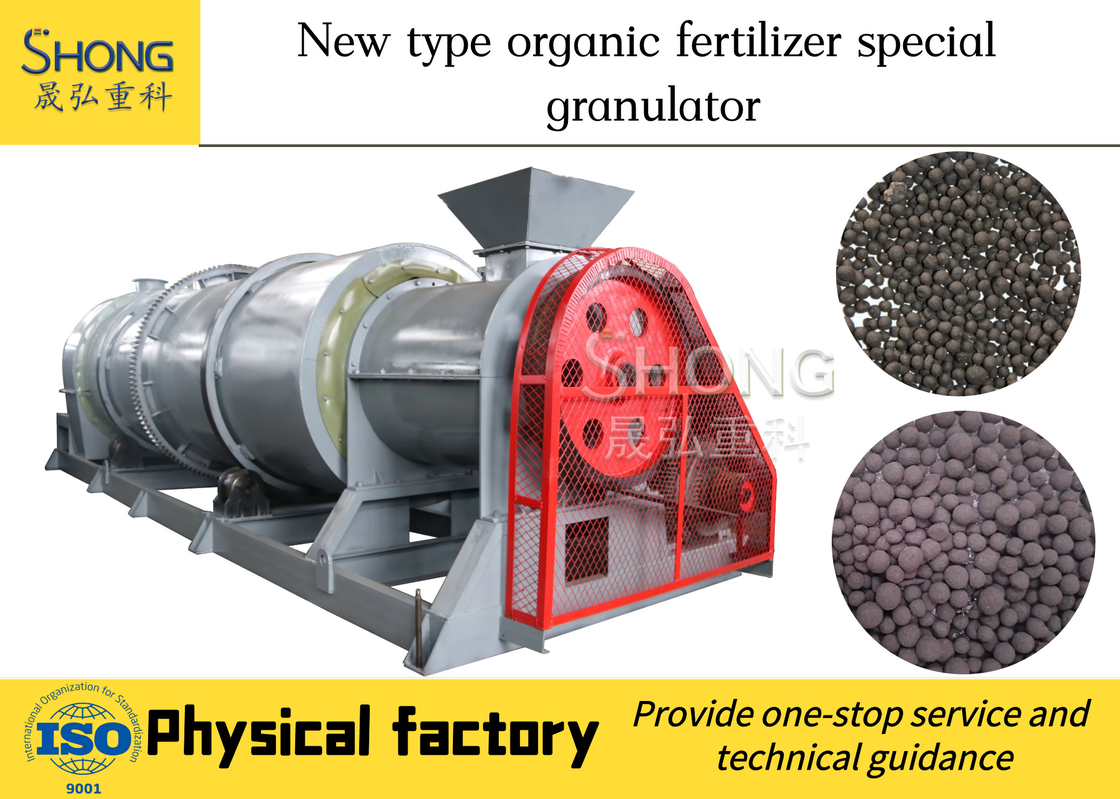

As the one of the key equipments in fertilizer industry, rotary drum granulator is applicable to cooling, heating, and guniting and ammoniated granulation and big scale fertilizer production of high, medium and low content.
The Drum body adopts special stainless steel and rubber plate lining structure. It can remove scars and peel burls automatically. It has the advantages of high strength of granule, high production rate, crossion proof, abrasion proof, low energy consumption, long service life, convenient operation and maintenance, etc.
Remark: Prodcution rate, granulatiion rate and the diameter of granule will be effected by different formulation, process and raw materials.
Working Principle:
The main operation way is wet type granulation: Through a certain amount of water or steam, the base fertilizer is fully reacted in chemical way after being wet in the cylinder body; then under certain liquid conditions, the rotating motion of the cylinder is used to make the material particles get squeezed together into balls.
|
Raw material classification |
Specific application |
|
Livestock manure |
Chicken, duck, rabbit, pig, cow etc |
|
Pond sludge |
Fish pond, shrimp pond, Loach pond etc |
|
Food processing remaining waste |
Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc. |
|
Others |
Gardening waste, mud scum,straw etc |
Main technical parameters
|
Model no. |
YSL2-60/120 |
YSL2-80/120 |
YSL2-80/150 |
YSL2-100/150 |
YSL2-100/180 |
YSL2-120/180 |
YSL2-120/220 |
|
Production(t/h) |
2-4 |
3-5 |
5-8 |
6-10 |
8-12 |
10-15 |
12-20 |
|
The diameter size |
1-5 |
1-5 |
1-6 |
1-8 |
1-10 |
1-10 |
1-10 |
|
Power (kw) |
42.6 |
58.2 |
60.5 |
72.5 |
80 |
93 |
117 |
Advantages:
1. Screw thread steel: The whole rotary body is made of screw thread steel, with high strength, good integration and long lasting service life.
2. Lining rubber board: The inner wall of the drum is lined with a rubber plate, to avoid the rotary body is corrosived by acidic raw materials.
3. The high granulating rate and beautiful appearance: the granulating rate of the kind of granulating machine can be 90%. And the granules are much more sphrical and beautiful.
4. Higher output capacity: the machine production capacity can be 1-30t/h, always used in the big capacity organic or compound fertilizer production line.
Characteristics of rotary drum granulator
1) It is used for producing high,medium,low concentration of compound fertilizers,application scope is wide ,the investment cost is low.
2)The shell of the granulator uses a special rubber-lined,anti-corrosion,long service time.
3)The intensity of being ball is high,quality of the appearance is perfect,operation and maintenance are convenient.
