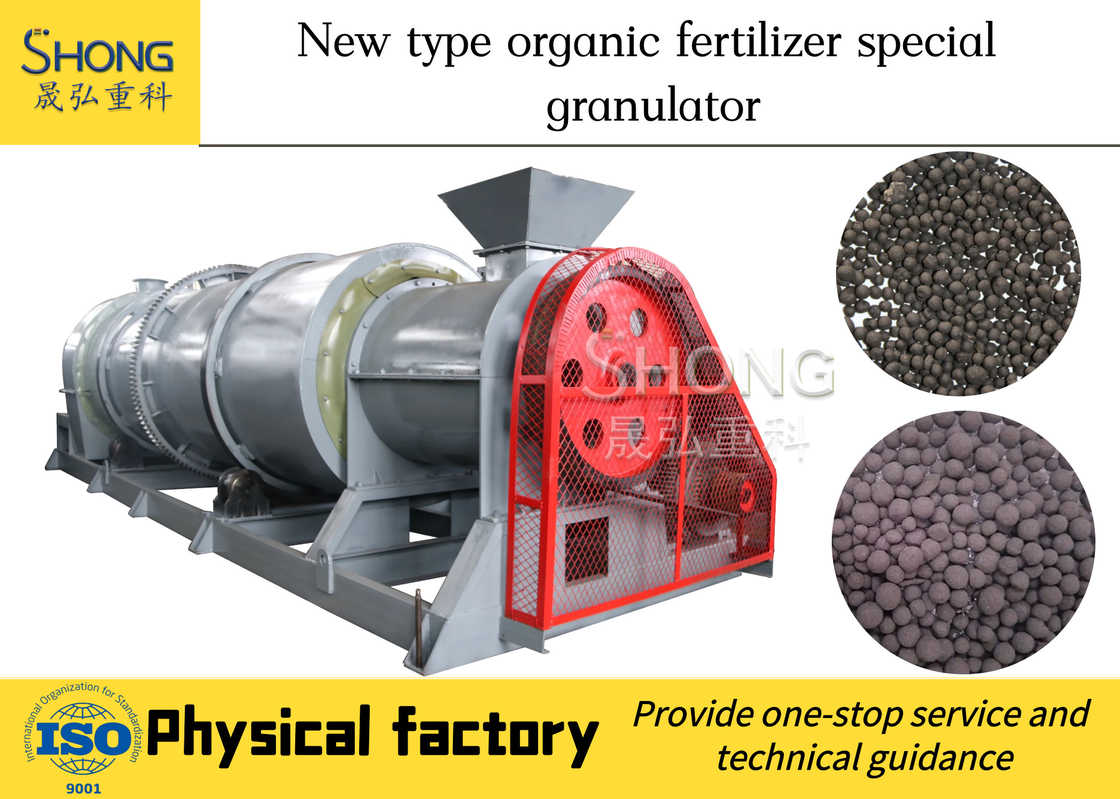

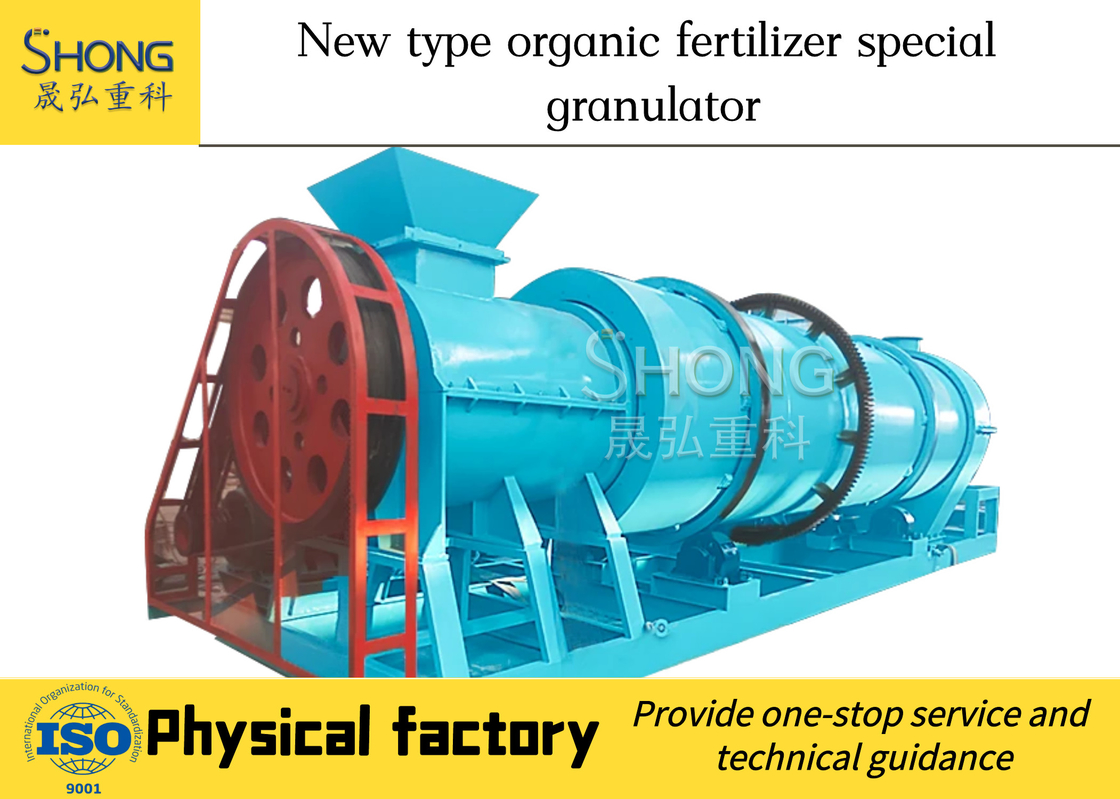

New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum

New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum
New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum

Large Image :  New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: BV ISO SGS
Model Number: YSL2-60/120~YSL2-120/220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Package or container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per day
Detailed Product Description
Trademark: Shenghong Warranty: 12 Months
Certificate: ISO BV SGS Application: Granular Fertilizer Making Machine
Type: Rotary Granulator Place Of Original: Zhengzhou China
Voltage: 380V Machine Type: Granulator
Product Name: Fertilizer Brand Name: Tianci
Highlight:

fertilizer granulation equipment

,

fertilizer granule machine

New Type Organic Fertilizer Combination Granulation Machine With Rotary Drum



Introduction of New Type Stirring Tooth-Drum Granulator



New Type of Drum-Stirring Granulator Machine is a new type of granulator, is a combined type granulator machine developed by our company. It is designed and manufactured with a new technology of wet continuous push rod granulation, using the mechanical stirring force of high speed rotary and the resulting friction force, to make the powdery material continuous mixing, granulating, balling, compacting and polishing inside the machine, to achieve the purpose of material granulation. It has the advantages and characteristics of Drum Granulator Machine, can granulate a variety of organic materials, compound-organic fertilizer, and coarse fiber materials, which is difficult to granulate with traditional equipment, such as crop straw, distiller's grains, furfural dregs, fungus residue, drug residue, animal feces etc, can be granulate after fermentation, and can achieve good granulation effects on humic acid and municipal sludge.



characteristics

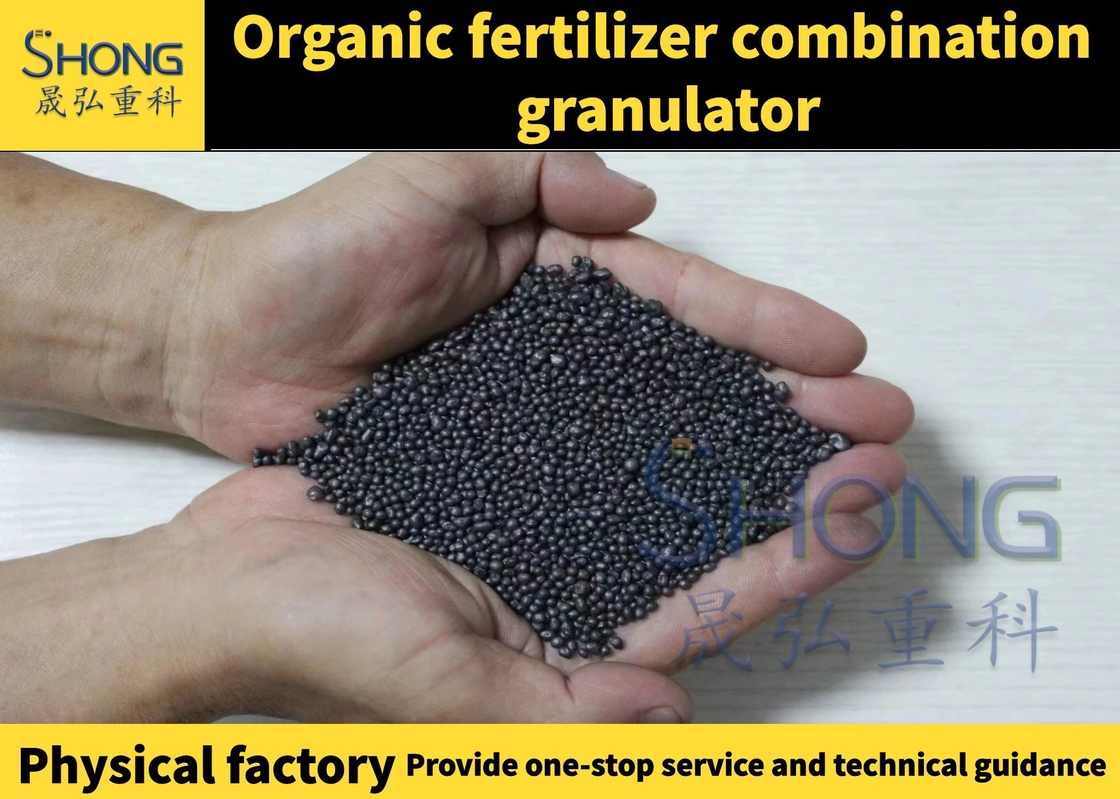

(1)The product granule is round ball.

(2) The organic content can be high to 100%, make pure organic granulate

(3) Organic material particles can grow up under a certain force, no need to add binder when granulating.

(4) Product granule is massy, it can sieve directly after granulation to reduce the energy consumption of drying

(5) After fermentation organics don't need to dry, moisture of the raw material can be in 20%-40%



Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc


Main technical parameters


Model no.

YSL2-60/120

YSL2-80/120

YSL2-80/150

YSL2-100/150

YSL2-100/180

YSL2-120/180

YSL2-120/220

Production(t/h)

2-4

3-5

5-8

6-10

8-12

10-15

12-20

The diameter size

1-5

1-5

1-6

1-8

1-10

1-10

1-10

Power (kw)

42.6

58.2

60.5

72.5

80

93

117







Advantages:

1. Screw thread steel: The whole rotary body is made of screw thread steel, with high strength, good integration and long lasting service life.

2. Lining rubber board: The inner wall of the drum is lined with a rubber plate, to avoid the rotary body is corrosived by acidic raw materials.

3. The high granulating rate and beautiful appearance: the granulating rate of the kind of granulating machine can be 90%. And the granules are much more sphrical and beautiful.

4. Higher output capacity: the machine production capacity can be 1-30t/h, always used in the big capacity organic or compound fertilizer production line.



After-sale services:



Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

4) Examining the equipment regularly;

5) Taking the initiatives to eliminate the failure(s) rapidly at site;

6) Distributing the guarantee fittings door-to-door;

7) Providing technical exchanging;

8) Providing maintenance for big item
