5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine

The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine

5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine
5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine
video play

Large Image :  5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: BV ISO SGS
Model Number: YSL-60 ----YSL-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Package or Container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs per day
Detailed Product Description
Product Type: New Type Application: Organic Fertilizer Production Line
Raw Material: Chicken Manure, Pig Manure, Cow Dung Material: Carbon Steel
Thoughput: 2-20 T/H Specification: 1400*750*1170
Using: Fertilizer Production Line Pellets Forming Rare: 95%
Transport Package: Container Pellet Size: 2-8mm
High Light:

fertilizer granulation equipment


fertilizer pellet machine

5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine


Organic fertilizer Advantage

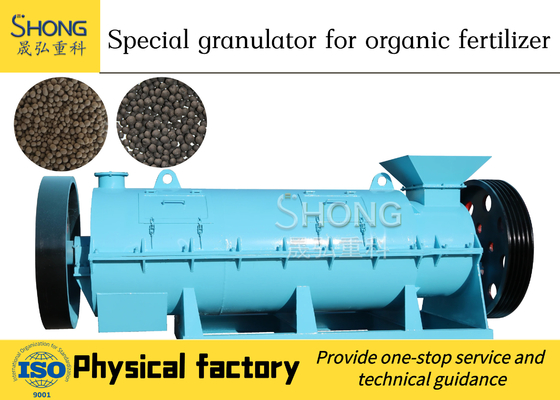

The inner rotor of WLJseries organic fertilizer granulator rotate centrifugally with high speed, when it working.
At the same time the powder material is fed into the inner rotor by the frequency screw automatically.
Under the action of centrifugal force, the powder material rotate centrifugally with high speed in the cylinder
Creating enormous friction and high temperature, in which condition
The organic powder material will have adhesiveness and be formed to ball shape.


Brief Introdcution of fertilizer granulator machine


Organic fertilizer special granulator is agricultural machinery research institute use years compound fertilizer processing equipment design, production experience developed in the latest technology products, has obtained the country practical patent. It used to all kinds of organic matter after fermentation for granulation, break through the conventional organic prilling, before granulation need not to dry and crush the raw materials, it can direct burdening to work out cylindrical grain, can save a lot of energy.


Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.


Gardening waste, mud scum,straw etc


Features of fertilizer granulator machine


1) Fertilizer granules produced are all spherical shaped, nice appearance and easy to apply.
2) Fertilizer granules produced have rich organic matter content, which can reach 100%, realizing pure organic matter granulation.
3) No binder need to be added during granulation, for the organic matter particles can grow inlaid with each other under certain force.
4) Fermented materials need not to be dried, the moisture content can be 20%-40%.
5) Fertilizer granules produced are solid so that not easy to be moistened, and can be screened directly without drying, reducing energy consumption.
6) The shell of fertilizer granulator adopts heavy seamless steel pipe, sturdy and durable, never deform. The stable base design ensures a more stable running.
7) High granulation rate which can reach 80%-90%, suitable for various formulations. The compressive strength of granular fertilizer produced is higher than that of disc fertilizer granulator and rotary drum granulator.


Main characteristics

1. WLJOrganic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing,
So the processing cost is low and efficiency is high.
2. The final granule produced by WLJOrganic fertilizer granulator have smooth surface, high uniform size, good fluidity, high density etc.
3. The temperature reach to 60-100 ° C in the granulating cylinder when the WLJgranulator working, which will reducing the drying cost greatly.
4. The formation rate of WLJgranulator >95%, which have been approved by ISO9001 and other authorities.
5. The using cost of WLJfertilizer granulator is very low compare to other die pelletizing granulator.


Model Power(kw) External Diameter(mm) Length(mm) Capacity(t/h)
WLJ600 45 630 4400 1 -1.5
WLJ800 75 820 4500 1.5-3
WLJ1000 110 1020 4500 3 - 5
WLJ1200 132 1220 4500 4 - 6
WLJ1400 160 1420 4500 5 .5 -8


Our Pre-sale Service:

1.Offering comprehensive technical and business consultation services;
2.Proposing th e most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.

Our after-sales Service:

1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.


Application of fertilizer granulator machine


1) Agricultural Waste: straws, cottonseed meals, mushroom residues, bio-gas residues etc.
2)Industrial Waste: vinegar residues, sugar residues, lees etc.
3)Animal Manure or Sludge: chicken manure, cow manure, horse manure, drainage sludge, river sludge etc.
4) Household Garbage: kitchen waste, food waste, restaurant garbage etc.

5. Final Product of fertilizer granulator machine

5-8 T/H Fertilizer Granulator Machine , Chicken Manure Pellet Machine 0
