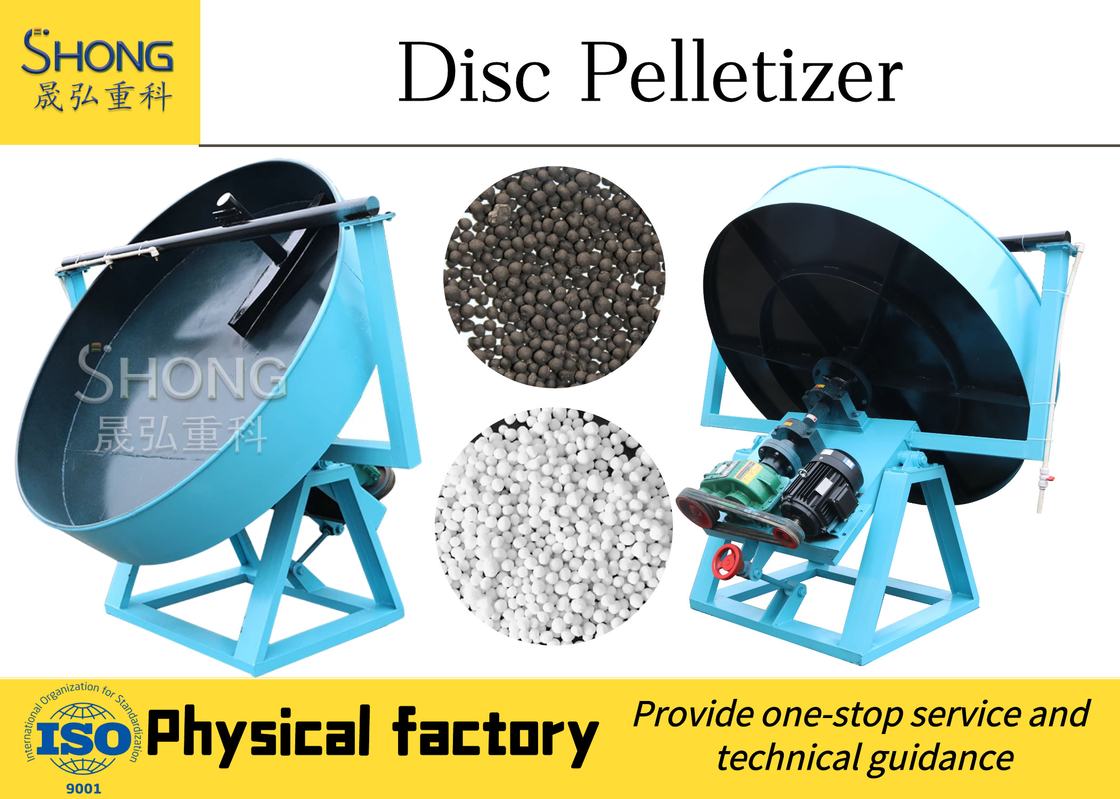

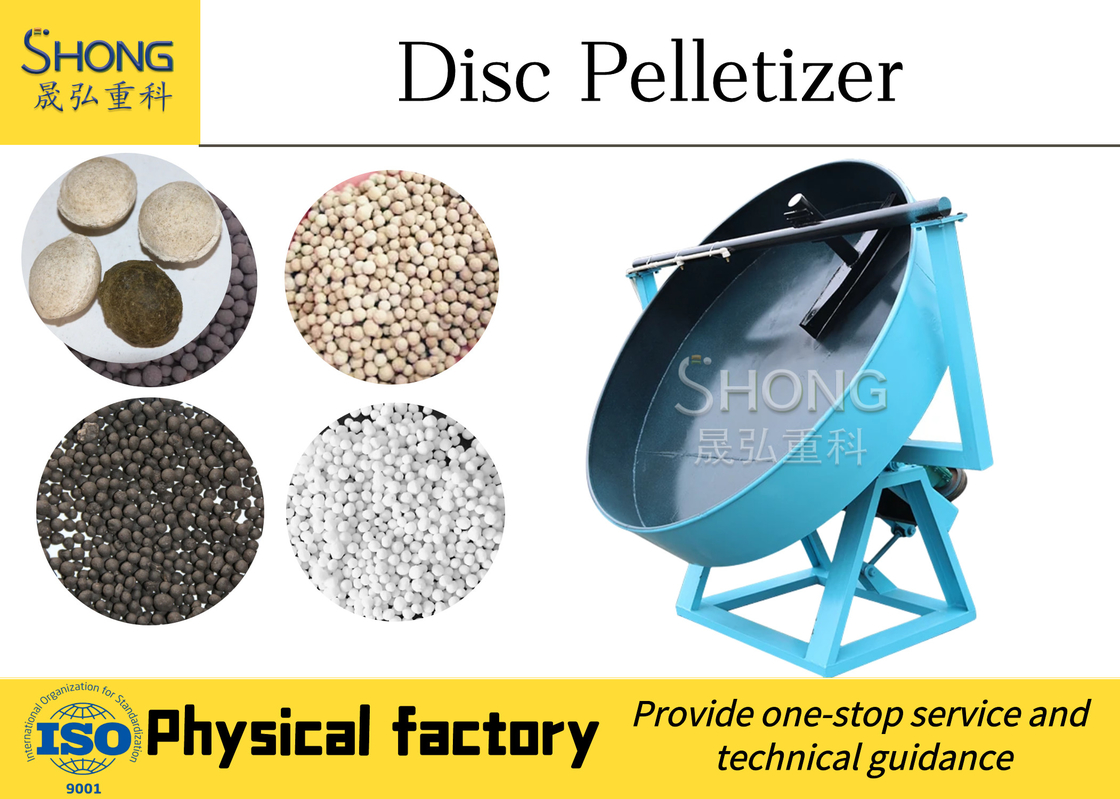

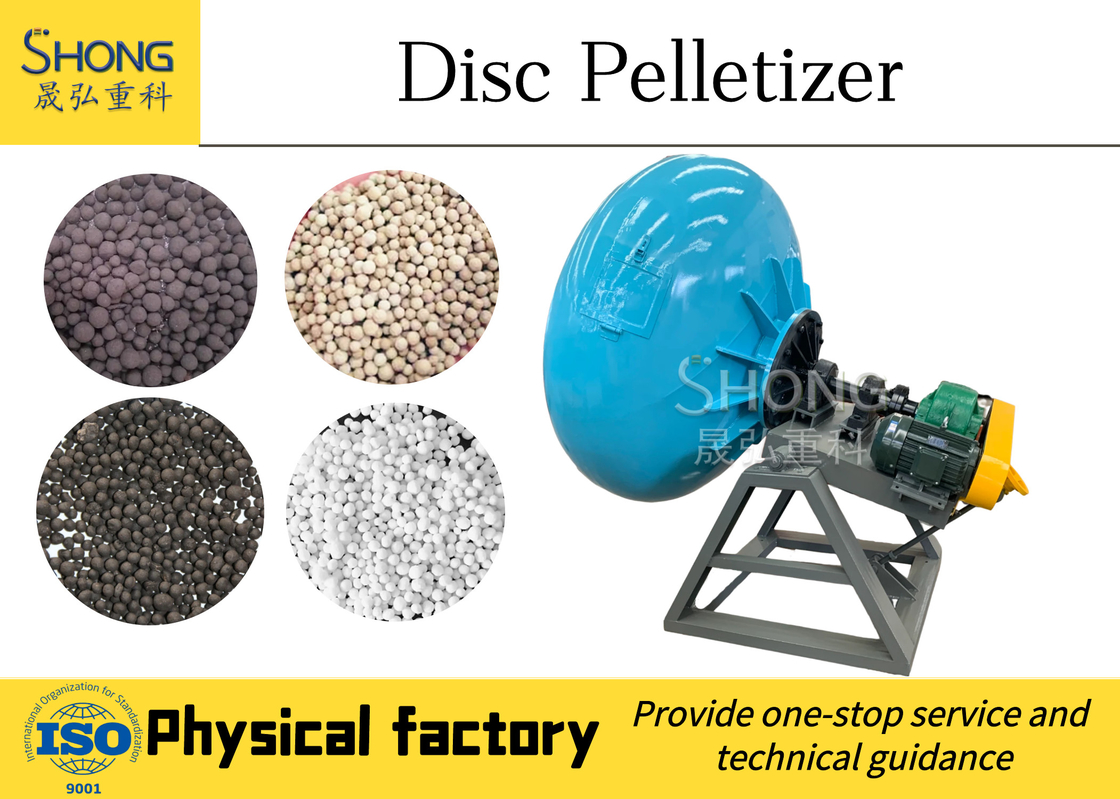

Compound Fertilizer Equipment , Organic Fertilizer Pan Disc Pelletizer For Sale
Instruction Of Organic Fertilizer Pellets Granulator Machine
1. Overall disc structure, granulation rate reaches above 93%
2. The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.
3. The reduction gears and motor using the flexible belt driving, smooth start, slowing impact, extend equipment service life.
4. The disc bottom adopts multiple steel plates which are firm, durable, not deforming.
5. The design of disc bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.
6. Granulator’s main gears adopt high temperature quenching technology, doubling the service life.
7. The granulator disc lining adopts the high strength glass steel which is antiseptic and durable.Good traditional organic fertilizer disc granulator machine.
8. The granulator is with the high uniform granulation, high granulation rate, long service life which is ideal equipment for majority of users.
Disc granulation machine could product
| Raw material classification |
Specific application |
| Inorganic fertilizer |
BB and compound fertilizer powder |
| Biologics |
Western medicine granules etc |
| Coal industry |
Carbon granule etc |
| Others |
Kinds of inorganic powder that you need manufacture granules |
Main technical parameters
| Model no. |
ZL10 |
ZL15 |
ZL18 |
ZL20 |
ZL25 |
ZL28 |
ZL30 |
ZL32 |
ZL36 |
ZL45 |
| Production(t/h) |
0.3-0.5 |
0.5-0.8 |
0.6-1.0 |
0.8-1.2 |
1.0-1.5 |
1.0-2.5 |
2.0-3.0 |
2.0-3.5 |
3.0-5.0 |
4.0-6.0 |
| Motor Power (kw) |
2.2 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
22 |
| Innerdiam(mm) |
1000 |
1500 |
1800 |
2000 |
2500 |
2800 |
3000 |
3200 |
3600 |
4500 |
| Side height(mm) |
250 |
300 |
300 |
350 |
350 |
400 |
450 |
500 |
550 |
600 |
| Volume(m³) |
0.4 |
1.1 |
1.4 |
1.8 |
2.5 |
3.3 |
3.9 |
4.3 |
5.5 |
6.5 |
| Rotation speed(r/min) |
2.2 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
22 |
Working Principle
The pan revolves at a certain angle with horizontal plane driven by the motor through reducer. The powder will ride along with the revolving pan underthe friction between the powder an dthe pan.on the other hand the powder will fall down under the function of its gravity. At the same time,the powder is to the pan dege because of the centrifugal force.The power material rolls in a certain trace under the function of these three forces. It gradually becomes th erequired size, then overflows by the pan dege.
Why choose us?
1. We are factory
All Henan Zhengzhou Mining Machinery Equipment Co., Ltd are produced by the professional technicians of our own factory, with best price and high quality. We look forward to cooperating with you.
2. About services
1) pre-sale services:
We offer you the profase plan, the technology process and the team design according to your special demands and the conditions of the job site.
2) sales services:
Send professional technicians to the workplace to guide the installation and adjustment, provide the training of the operation, meet the test together with you.
3) Service after sale:
Establish long-term friendship with you, we regularly receive your comments. In addition, we provide one-year warranty to ensure normal operation of your machine.
3. We would like to recommend a machine or production line suitable for you and we will send you a best offer.
