8-10t/h Bulk Blending Fertilizer Machines , NPK fertilizer production line

Minimum Order Quantity : 1 piece Price : can be negotiated
Packaging Details : Container or Plywood Box Delivery Time : 10-15 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 200 Sets Per Month
Place of Origin: Zhegzhou, Henan Province China Brand Name: Tianci or OEM
Certification: ISO,BV, SGS, Model Number: BB series

Detail Information

Capacity: 8-10 T/H Service: Long Term
Application: BB Fertilizer Production Line Dimension(L*W*H): Demand
Voltage: 380v Speed: 13 R/min
Material: Carbon Steel Color: Demand
High Light:

fertilizer manufacturing plant

,

fertilizer production plant

Product Description

8-10t/h Bulk Blending Fertilizer Machines , NPK fertilizer production line



Introduction of BB Fertilizer Production Line



Blending fertilizer equipment combinated automatic matching, mixing and blending, and automatic packaging in one to reduce elevating repeatly for the mixing of raw materials , the design is reasonable and easy to operate, reduce equipment investment. Advanced technology, high automation, low energy consumption (0.3 kiloton electricity consumption), can be a good reduction in labor.
The use of stainless steel materials and imported electrical equipment to ensure the equipment's service life and operating stability.


Product Process of BB Fertilizer Production Line

PLC control system of computer --> Automatic proportional batching raw materials --> Lifting by slope scraper --> Mixing by roller --> Mixed materials disposed into storage silos of weighing machine --> Quantitative packaging (10-50kg/bag) --> Conveying and sewing --> Finished product pelletizing storage



Batching Process: Stock bin is mainly used for stock powder and pellet materials, such as, flour, starch, feed, food, chemical industry, light industry, building materials industries. Have many kinds of stock bin, such as two output stock in, truck stock bin, stock bin with PVC and so on.

The belt feeder adopts H beam as the main frame, using steel tank as a leg, high strength and high stiffness, good stability.On both sides of main frame and leg, use belt against deviation switch.In order to prevent running deviation, driven drum adopts chevron rubber surface which has the faction of preventing off tracking. Unique skirt hem tape can prevent the material to the overflow, and on the other hand, it can prevent the material accumulating at the head and tail, making the weighing reach its top condition.



Mixing Process: Industrial Belt Conveyor System is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force.The Belt Conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long.They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.In many situation, it Is a very important component of nonstandard machinery.

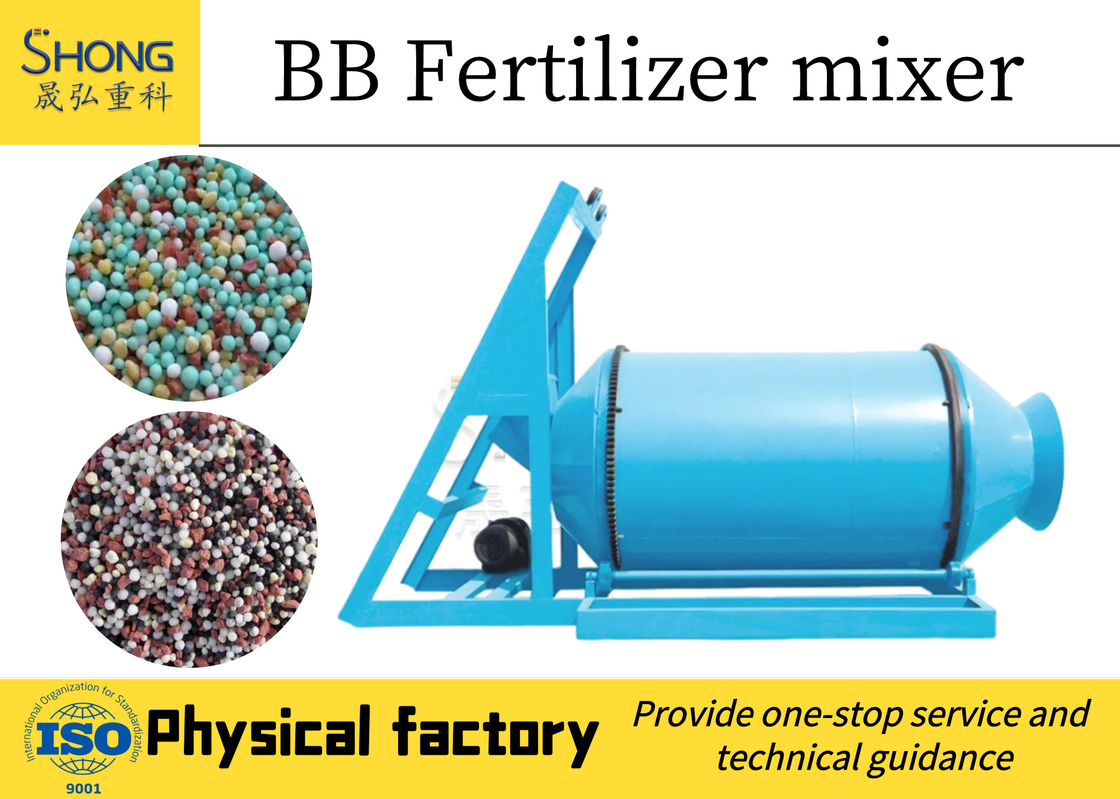

It can mix different fertilizers more evenly in a short time and achieve continuous work with high efficiency.this kind of mixer works more stable and keep longer lifttime.



Packaging process: Choose high precision weighing controller, good reliability.
Overall good, small footprint, flexible installation;Feeding methods of powder or pellet type of equipment is the spiral feeding. Fast and slow feeding are controlled by controller and the speed can set at random;sealing cyclical system, prevented from flying, improved working environment protected the health of staff.



Main equipments for BB Fertilizer Production Line



No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Mixing process Mixer Mix evenly
3 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer into bags



Application Range of BB Fertilizer Production Line

This batch type mixing packaging production line is mainly for BB fertilizer, Compound Fertilizer, Formulated Fertilizer by soil testing, drip irrigation fertilizer, chemical product, feed and other industries.



The Advantages of BB Fertilizer Production Line


1, BB fertilizer can reach more than 50% through reasonable matching of nutrient concentration. At the same time, BB fertilizer can add trace elements, pesticides, herbicides, etc., can achieve the same application of medicine and fertilizer to achieve the effect of saving time and labor.
2, BB fertilizer can be used as base fertilizer and top dressing for crops by adjusting formulas and raw materials. It is no longer dedicated fertilizer.
3, BB fertilizer has no chemical reaction in the production process, and it also reduces the production cost of fertilizer while meeting energy conservation and environmental protection.
