Place of Origin:
Zhegzhou, Henan Province China
Brand Name:
Shenghong
Certification:
SGS, ISO, BV
Model Number:
DZJ Series
NPK Compound Fertilizer Production Line With Double Roller Extrusion Machine
Introduction of NPK Fertilizer Production Line
NPK Compound fertilizer production line is widely applied to produce compound fertilizer and the capacity ranges from 5000-200,000 tons/year. It can granulate NPK, NP, ANP, DAP, MAP, CAN, SSP and other materials into compound fertilizer particles in one processing line.
Working Process Of NPK Compound Fertilizer Making Production Line
NPK Compound fertilizer production line usually includes 7 processes, batching, grinding, mixing, granulating, screening, coating and packaging. Batching, mixing, granulating and screening processes are necessary. Other processes are optional based on different capacity.
It adopts the design solution of extrusion sliding model,the raw materials pass through double roller,after that,enter into scattering room, come out as granulation, a sieving was mounted at the bottom of the machine, which is customized according to client’s requirement, last, sieve out the granules which is qualified, the rest of materials return to mixer and be re-granulated.
Raw Material For NPK Compound Fertilizer Making Production Line
Potassic fertilizers : potassium sulfate, potassium chloride,plant ash etc.
Nitrogen fertilizers : ammonium chloride, ammonium sulfate, ammonium sulphate etc.
Phosphate fertilizer : superphosphate, triple superphosphate, calcium magnesium phosphate
Main Equipments Of NPK Compound Fertilizer Making Production Line
| No. | Processes | Machines | Function of machines |
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine | Feed mixed powder into granulator evenly |
| Granulator | Make mixed powder into fertilizer granules | ||
| 5 | Screening process | Screener | Screen out required size from fertilizer granules |
| 6 | Coating process | Coating machine | Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 7 | Packaging process | Air compressor | Generate power to packaging machine |
| Packaging machine | Package fertilizer granules into bags |

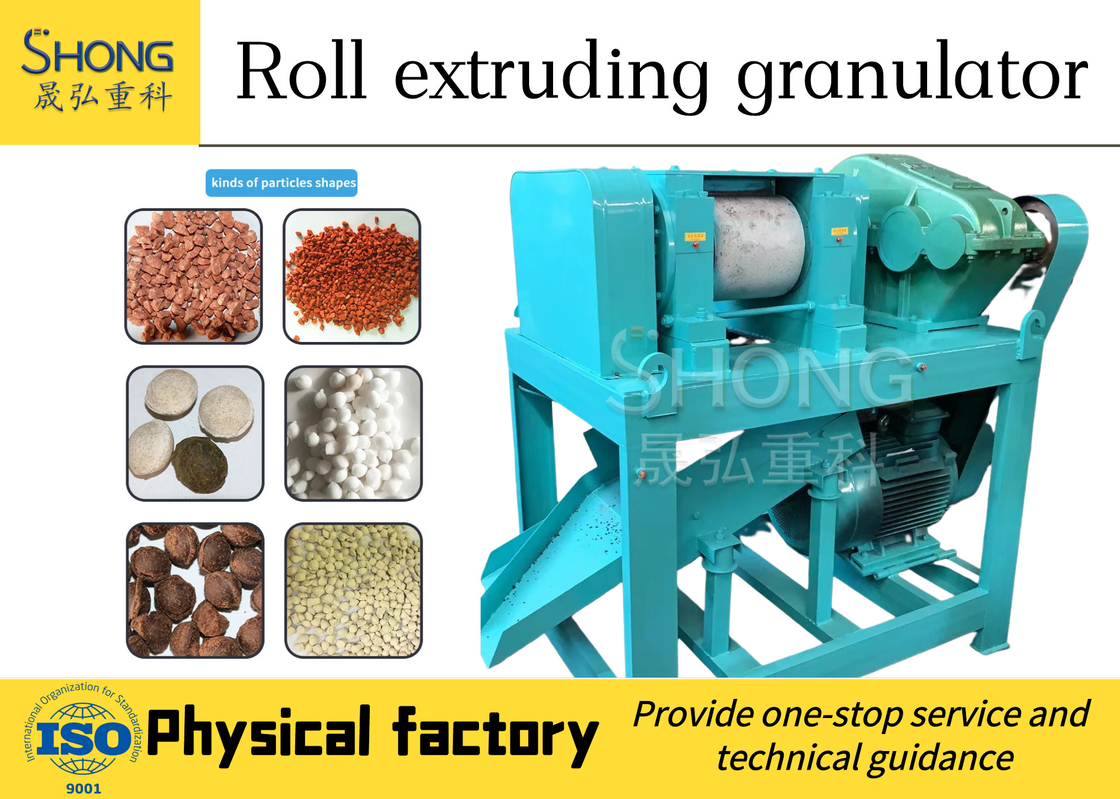

The instruction of the roller extrusion granulator
1. No drying technology, normal temperature granulating, once forming.
2. Low investment, quick profit, good economic returns, etc.
3. Combine granulating,forming,screening into one machine,making beautiful appearance
granules, easy operation and low energy consumption, etc.
4. Especially, DZJ-5. not only has the above features, but also upgrades its rack.The bearing
frame body is made of high quality and anticorrosive cast materials, so that it become more
stable and extends the roller’s service life.
Features of NPK Fertilizer Production Line
1, Simple machine structure
2, Easy operation and maintenance
3, Low power consumption
4, Once forming,no drying process,normal temperature granulating
5, Long service life
