Corrosion Resistance NPK Fertilizer Manufacturing Plant 10 -12 Tons Per Hour Capacity

China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

Corrosion Resistance NPK Fertilizer Manufacturing Plant 10 -12 Tons Per Hour Capacity

Corrosion Resistance NPK Fertilizer Manufacturing Plant 10 -12 Tons Per Hour Capacity
Corrosion Resistance NPK Fertilizer Manufacturing Plant 10 -12 Tons Per Hour Capacity
video play

Large Image :  Corrosion Resistance NPK Fertilizer Manufacturing Plant 10 -12 Tons Per Hour Capacity

Product Details:
Place of Origin: Zhegzhou, Henan Province China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: ZG series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets Per Month
Detailed Product Description
Granules Shapes: Ball Shape Capacity: 10-12 Tons Per Hour
Service: Long Term Usage: Making Fertilizer Granules
Raw Material: NPK,Urea, Ammonium Nitrate, Etc. Power(W): 220V 380V Or Demand
Installation: Engineer Guided Function: Making NPK Compound Fertilizer
High Light:

fertilizer manufacturing plant

,

compound fertilizer production line

NPK Fertilizer Production Line , Compound Fertilizer Production Line



Introduction For Compound Fertilizer Production Line

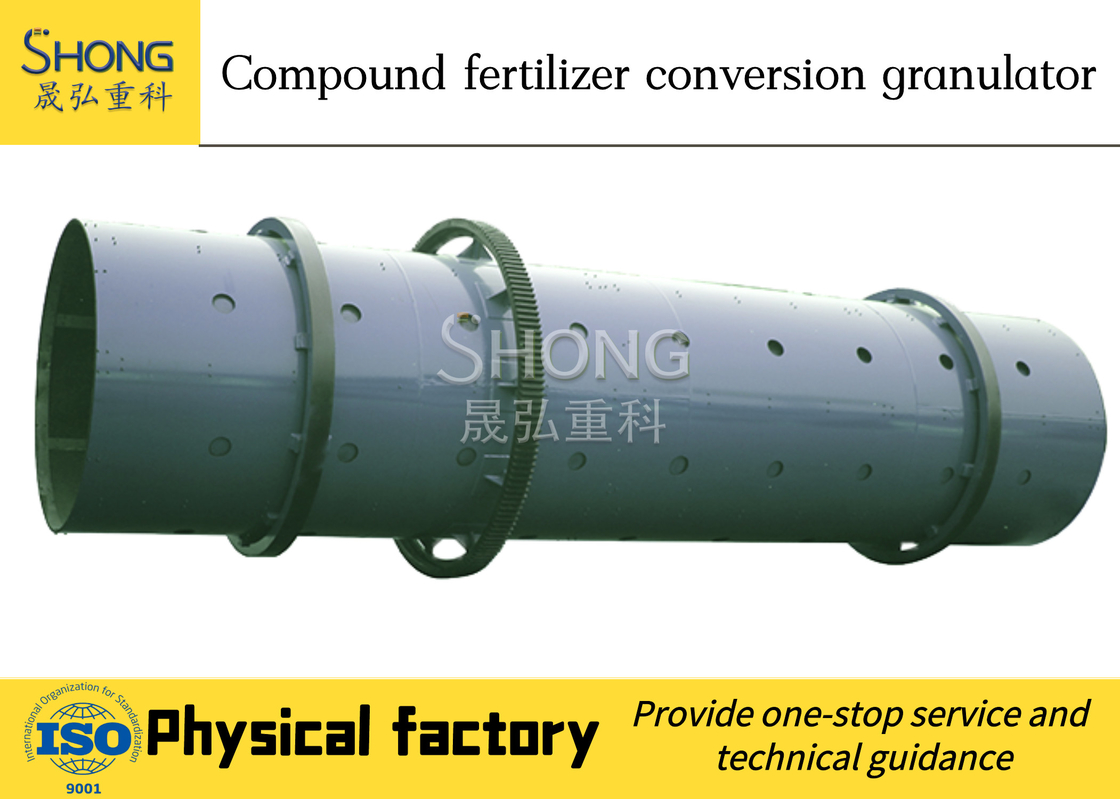

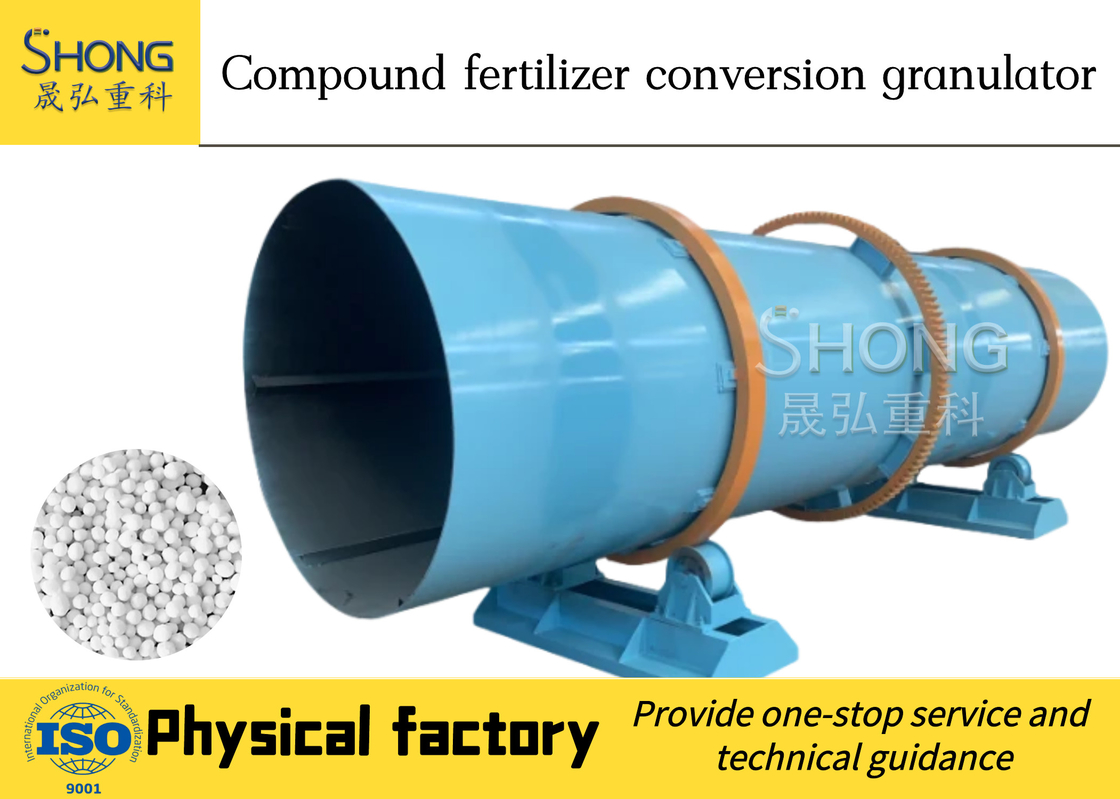

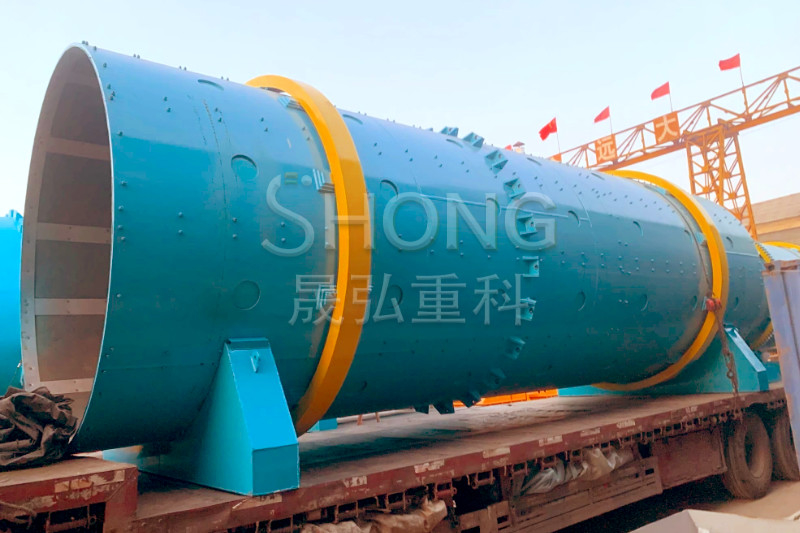

(1) Compound Organic Fertilizer Making Machine is the key equipment in compound fertilizer industry.

(2) It is suitable for hot and cold granulation and high, medium and low concentrations of mass production of compound fertilizer.

(3) The shell of the machine uses special rubber slab lining or acidresistant stainless lining board

which realizes auto scar removal and de-tumor instead of traditional drawknife equipment

(4) High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.



Description For Compound Fertilizer Production Line



1, We provide single machine, such as material crusher,material mixer,fertilizer dryer, fertilizer cooling machine and so on. We can also provide the whole line of compound fertilizer pellets production line.

2, Chemical compound fertilizer material is many kinds of chemical single fertilizer.

3, Chemical compound fertilizer pellets produciton line includes the organic raw material crushing, mixing, granulating,drying,cooling,packing.



Raw Material For Compound Fertilizer Production Line



Compound fertilizer is the fertilizer containing two or all three of the three basic plant nutrients—Nitrogen, Phosphorus, and Potassium, as well as microelements, such as B, Mn, Cu, Zn, and Mo. The raw material can be powder or bulk, mostly are as below:



Nitrogen Phosphorus Potassium
Calcium nitrate urea Single superphosphate Kainit
Ammonium bicarbonate Ammonium chloride Rock phosphate Potassium chloride
Nitrate of soda Ammonium sulphate nitrate Dicalcium phosphate Potassium sulphate
Ammonium sulphate Ammonium nitrate Triple superphosphate Potassium nitrate



Flow Chart For Compound Fertilizer Production Line



Compound fertilizer production line usually includes 9 processes, batching, grinding, mixing, granulating, drying, cooling, screening, coating and packaging. Batching, mixing, granulating, drying, and screening processes are necessary. Other processes are optional based on different capacity.



Main Equipments For Compound Fertilizer Production Line



No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags



Features For Compound Fertilizer Production Line



1. The shell of the machine uses special rubber slab lining or acidresistant stainless lining board

which realizes auto scar removal and de-tumor instead of traditional drawknife equipment

2. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.

1. The ball granulator uses the new processes of extrusion granulation, polishing and shaping ball

2. The ball shaping machine takes the template hole diameter to control the granule size, change the template according to the granule size.

3. The granule is even, smooth, round with high strength and good liquidity.

4. The forming rate of the organic fertilizer is above 95%.

5. The ball shaping machine takes the unique 3-in-1 machine to finish the whole process of drying with low temperature, cooling and screening in one time.

6. The equipment is with the low investment and operating cost. The survival rate of the microbial flora is larger than 90%.

7. The shell of the machine uses special rubber slab lining or acidresistant stainless lining board

which realizes auto scar removal and de-tumor instead of traditional drawknife equipment

8. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.
