Payment & Shipping Terms:
|Raw Material Of Fertilizer:
|Fish Waste, Chicken Waste, Cow Waste
|Moisture Of Material:
|Raw Material Of Machine:
|Organic Fertilizer Granulator
Compost Organic Fertilizer Granulator,
37kw Organic Fertilizer Granulator,
Fish Waste Fertilizer Granulator
Animal Manure Compost Organic Fertilizer Granulator With New Design
Working Principle of Organic Fertilizer Granulator:
YSL series organic fertilizer granulator machine integrates Rotating centrifugal, friction binding, polishing into one process, absolutely resolve high invest, complex process, repetitive process etc traditional granulation problem, now high efficiency, save energy, low consumption, no noise, no dust .we reach by elaborative and it is our national initiative product, which reaches international advanced level.
The organic fertilizer granulator, using the high-speed rotary mechanical stirring force and the resulting aerodynamic force, makes fine powder be in continuous mixing, granulation, spheroidization and dense process in the machine, so as to achieve the purpose of granulation. Particle shape is spherical. Spherical degree is ≥ 0.7.Particle size is generally between 0.3-3 mm. Granulation rate is ≥ 90%. The size of the particle diameter can be adjusted by the amount of mixing material and spindle speed. Under normal conditions, the lower the amount of mixing materials are add and the higher speed , the smaller the particles are, and vice versa. The finer the basic particles of the fine powder material, the higher the sphericality of the particles and the better ball quality. The qualified rate of the machine is as high as 80-90%, which is suitable for many different formulations. The ball rate is less than 15%, and the uniformity of particle size can be adopted according to user's requirement.
Application of organic fertilizer granulator:
Organic fertilizer granulator machine is widely used in animal feeding, brew, sugaring, papermaking, medicine, tobacco and other industry granulation process, which can produce round shape organic fertilizer, compound fertilizer, bio-organic fertilizer, now is the most ideal equipment to make organic fertilizer granules.
1.New organic fertilizer granulator is horizontal type with sealing cylinder, its inner structure is a lot of twisting teeth on the high speak strong shaft, which can drip the powder fertilizer into different direction to the cylinder continuously and rotating into small fine round granules
2.It is wet continuous push rod granulation. It is used for granulation for kinds of powder meal matter, like mineral powder, for example, bentonite, clay, bauxite, coal powder, and other powder like sludge, fly ash, burning ash, etc.
3.It can be used for organic fertilizer granulation. Especially for the middle and large scale productivity, the small capacity begins 8t/h, normally it can reach 15-20t/h on site.
4.Small round beautiful granules or particles, diameter 0.3-5mm, the size of granules can be adjustable, similar with the drum granulation and wet granulation.
5.Easy operation and long service life, just daily lubrication maintenance. Zero residues in the drum and clean working compared to the drum granulation machine.
6.Input moisture is controlled within 20%-40%, output moisture is keep like so, can be equipped with the drying machine for further process or just let it be in hot area.
Product Details of organic fertilizer granulator
1. Organic fertilizer granulator machine is especially suitable for granulation of light powder materials.
2. high-speed rotary mechanical mixing force and the resulting aerodynamic force
3. granulation does not need to add binder.
4. The qualified granulation rate is as high as 80-90%.

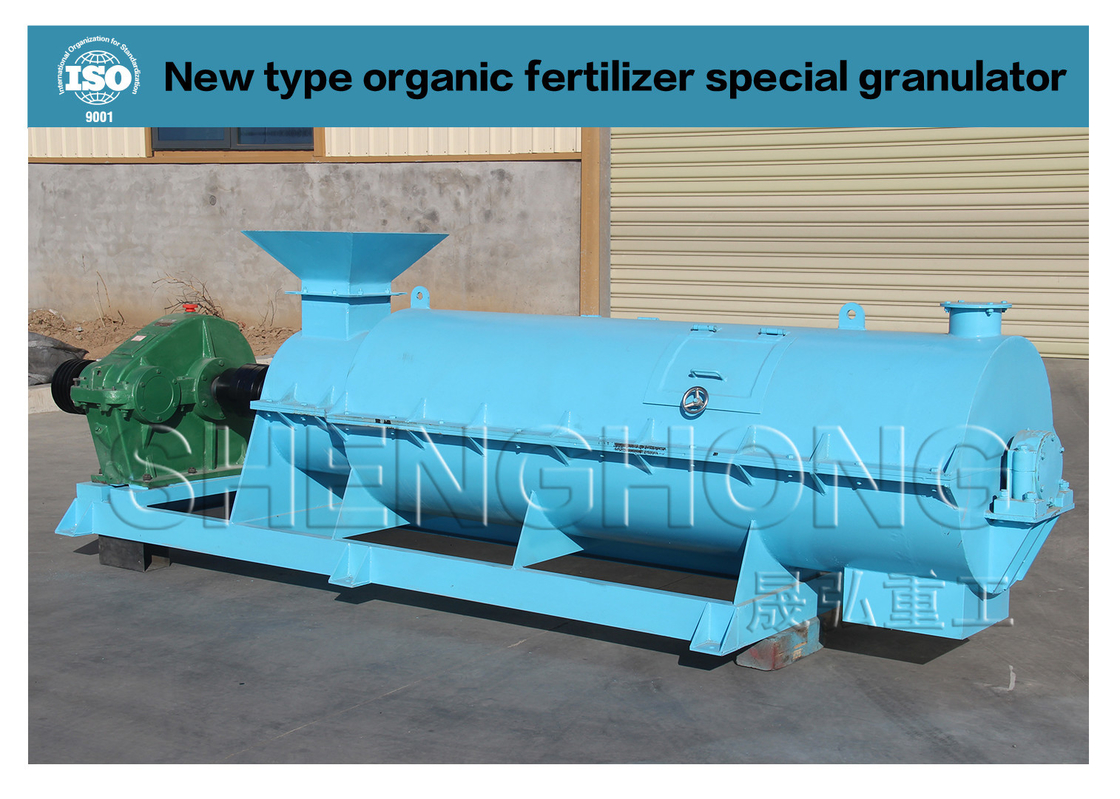

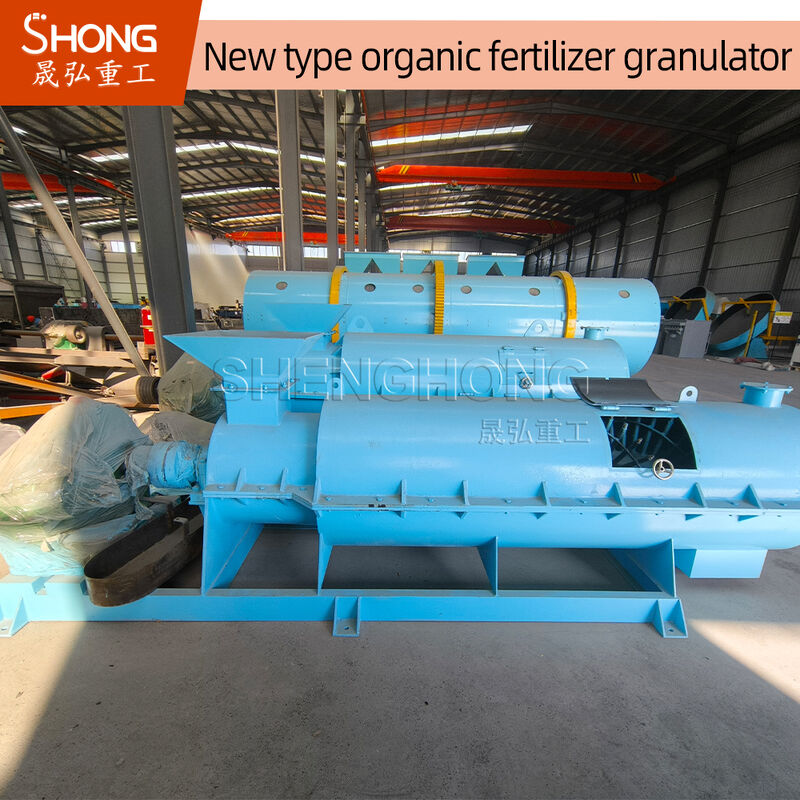

Picture of organic fertilizer granulator
