12t/H 10mm Organic Fertilizer Granulator Machine

The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

12t/H 10mm Organic Fertilizer Granulator Machine

12t/H 10mm Organic Fertilizer Granulator Machine
12t/H 10mm Organic Fertilizer Granulator Machine
video play

Large Image :  12t/H 10mm Organic Fertilizer Granulator Machine

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: YSL2-100/180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: customer demand, usually in container
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 120 sets per month
Detailed Product Description
Raw Material Of Fertilizer: Animal Waste/Agricultural Waste Moisture Of Material: 20%-40%
Particle Size: 1-10mm Raw Material Of Machine: 1 Year
Voltage: 380V, 50HZ Condition: New
Installation: Guidance Of Engineer Power: 80kw
High Light:

Organic Fertilizer Granulator Machine


10mm Fertilizer Granulator Machine


12t/H Fertilizer Granulator Machine

Organic Fertilizer Granulator Machine For Making Organic Fertilizer Granules


Organic Fertilizer Granulator Introduction:

New Type Organic Fertilizer Granulator is manufactured by the latest technology in the field of organic fertilizer production. lt is used to granulate all kinds of organic raw materials after fermentation process. Different from the traditional ways of making organic fertilizer, raw materials don't need to be dried or crushed, which makes the whole producing process more efficient and energy-saving. The final organic fertilizer granules are spherical and highly qualified, which makes the one-time production of uniformly spherical fertilizer granules come true. Its production rate can reach as high as 1-2t/h, so it is considered as the most effective and eco-friendly way of organic fertilizer production at present.

New Type Organic Fertilizer Granulator is agricultural machinery research institute use years compound fertilizer processing equipment design, production experience developed in the latest technology products, which has obtained the country practical patent. It used to all kinds of organic matter after fermentation for granulation, break through the conventional organic prilling, before granulation need not to dry and crush the raw materials, it can direct burdening to work out cylindrical grain.

organic fertilizer making machine has wide series, including the compost turner, mixing and crusher, granulating machine, screening machine and polishing machine, final packing machine and delivering parts; Here we mainly talked the organic fertilizer granulating machinery.


Organic Fertilizer Granulator Features:

1. With the advantages of high rotation speeds, mixing, granulation and concentration of raw materials are possible in same machine.

2. Forms homogeneous and spherical granules.

3. Allows 100% organic matter content and thus provides pure organic granulation.

4. Without the need for binder addition, it allows the organic matter to grow over each other with the help of a certain driving force.

5. Creates high strength granules. Granules can be sieved after the granulation stage. Drying can be achieved in most cases by utilizing the ambient temperature.

6. After fermentation, the organic matter can be directly granulated without drying, and the moisture content can be 20%-40%.

7. User-friendly and fully automated.

8. Has a speed control unit.

9. It can be used for many years with its minimum maintenance need and wear-resistant structure.


Organic Fertilizer Granulator Working Principle:

New type organic fertilizer granulator use high speed rotating mechanical shearing force and the resulting air power, make the continuous implementation of the fine powder material in the machine mixing, granulating process, spheroidizing, dense, etc. so as to achieve the goal of the granulation. The shape is spherical, the spherical degree acuity 0.7, usually particle size in the 0.3 to 3 mm, granulating rate is 90% or higher. The size of the particle diameter can be adjusted through the spindle speed and quantity of the material mixing appropriate, often mix amount lower, the speed higher, the particle will be smaller, and vice versa.

Has specificity of the fermentation organic fertilizer granulator of poultry and animal feces manure and organic raw materials, heap retting fertilizer, green manure, hoi fat class, cake fertilizer, peat, and we three wastes, microorganisms, such as urban living garbage. Particle are irregular spheres. The machine qualified granulating rate is as high as more than 80 - 90%, to adapt to a variety of different formula, organic fertilizer compressive strength higher than that of the disc and drum, big ball rate below 15%, particle size uniformity can according to user requirements by the native stepless speed adjustment function. This machine is most suitable for organic fertilizer granulation directly after fermentation, save drying process, reduce the manufacturing cost.


Organic fertilizer Granulator Parameter:

Product name Organic fertilizer granulator
Model YSL2-100/180
Throughput 8-12 tons per hour
Granules dia 1-10mm
Power 80kw

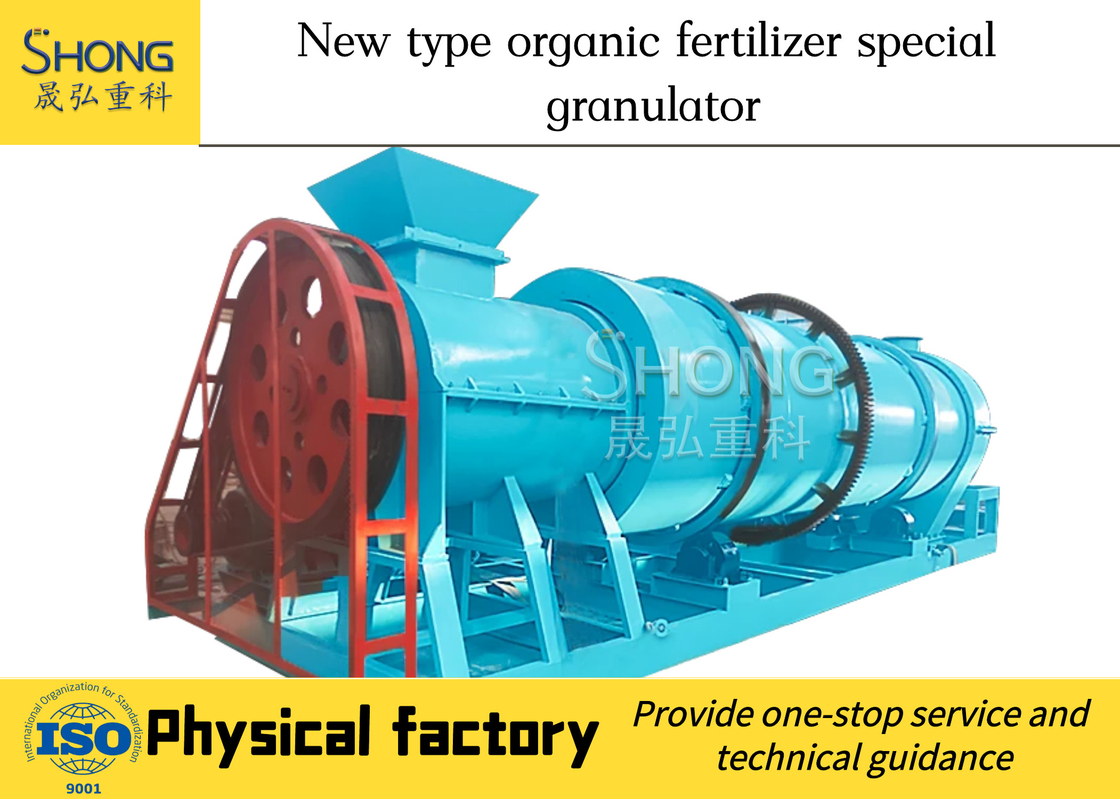

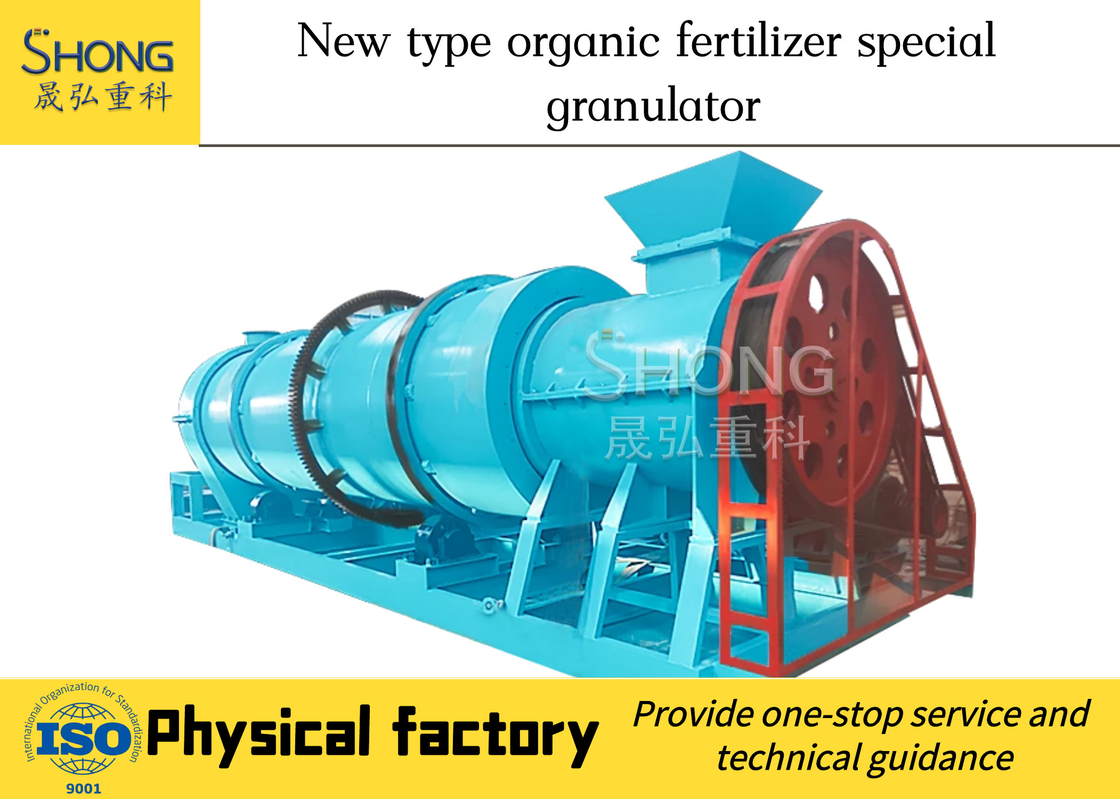

Organic fertilizer granulator Picture

12t/H 10mm Organic Fertilizer Granulator Machine 012t/H 10mm Organic Fertilizer Granulator Machine 1
