Place of Origin:
Zhengzhou, China
Brand Name:
Shenghong
Certification:
CE,BV, SGS, ISO
Model Number:
DZJ-I-1.0, DZJ-II-1.0
Compound Fertilizer Granulator Roller Press Pellet Machine For Fertilizer
Main use of compound fertilizer granulator
The main purpose of the counter compound fertilizer granulator produced by Gat Heavy Industry: filling particles, pigments, detergents, catalysts, barium carbonate, fertilizers, silica, inorganic salts, chloroisocyanuric acid, bleaching powder, pesticides , oxides, etc., as well as industrial recycling dust materials: such as iron, dust, lead, zinc, aluminum dust, converter dust, dust, grinding and other dust. Material is forced compression molding by mechanical pressure, without adding any wetting agent, product purity Guaranteed. Compound fertilizer granulator has a short process flow, low energy consumption and large output. The direct granulation of the dry powder does not require a subsequent drying process, which is more conducive to the connection and transformation of the existing production process. High particle strength, increased bulk specific gravity is more significant than other granulation methods.
Working Process of compound fertilizer granulator
The double roller compound fertilizer granulator machine is the representative of extrusion granulator. Dry materials are compressed into hard & dense blocks at a pressure, which is the Extruding Process. Block materials are crushed, screened and granulated later, which is the Granulating Process. The functions of extrusion are to squeeze the air between particles out, and to make the distance between particles near enough to give rise to interaction forces. The particle hardness of roller compaction granulation granules is formed mainly due to attraction between the molecules. Our double roller press machine is continuous extruding granulation of positive-displacement.
Application of compound fertilizer granulator
The double roller compound fertilizer granulator machine is used in 30,000 t/y compound fertilizer production line & other products manufacturing, such as capsule filling particles, pigments, detergents, catalysts, fertilizer, inorganic salts, calcium hypochlorite, pesticides, oxides, etc., industrial dust recovery materials: such as foundry dust, lead, zinc, aluminum dust, converter dust, grinding dust, etc.
Parameter of compound fertilizer granulator
| Model | DZJ-I-1.0 | DZJ-II-1.0 |
| Capacity | 1-2 t/h | 1-2 t/h |
| Power | 15kw | 15kw |
| Roller size |
150*220mm |
150*220mm |
| Dimension | 1420*650*1310 | 1450*650*1310 |
| Feeding size | <=0.5mm | <=0.5mm |

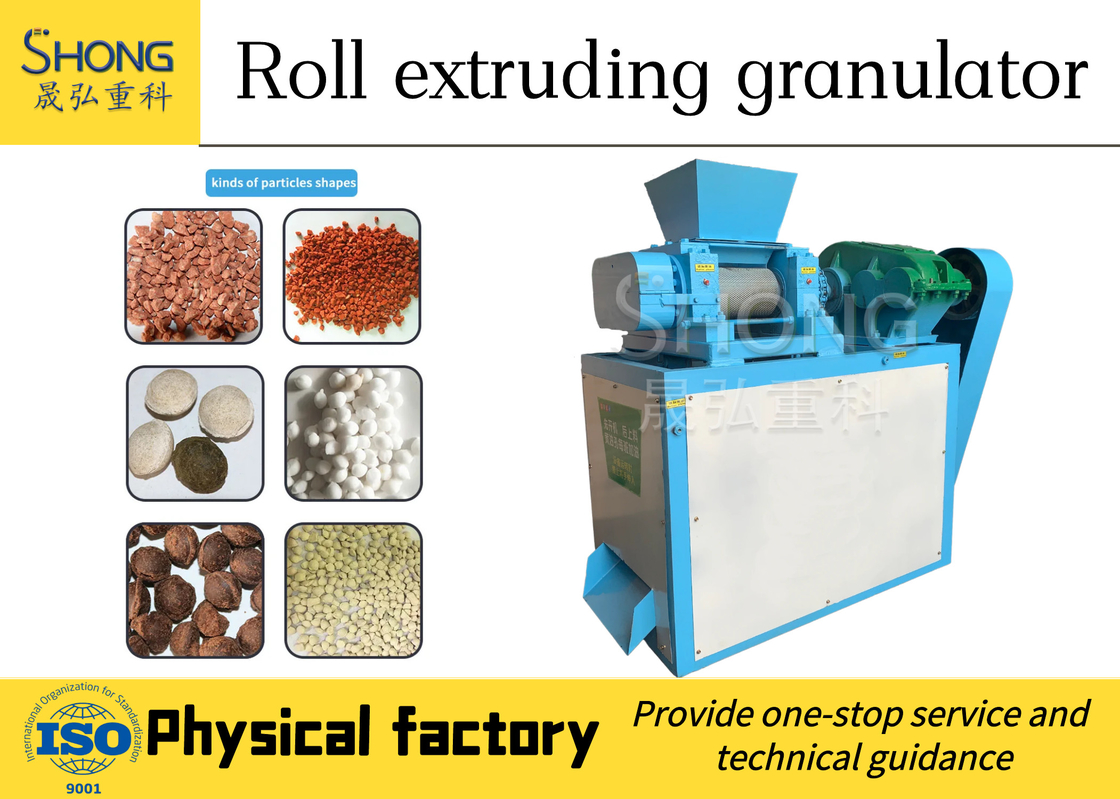

Picture of compound fertilizer granulator
