DZJ NPK Double Roller Press Compound Fertilizer Granulator pellet machine

DZJ NPK Double Roller Press Compound Fertilizer Granulator pellet machine
DZJ NPK Double Roller Press Compound Fertilizer Granulator pellet machine
video play

Large Image :  DZJ NPK Double Roller Press Compound Fertilizer Granulator pellet machine

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: DZJ-I-3.0, DZJ-II-3.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Customer demand, usually in container
Delivery Time: 10-12 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 80 sets per month
Detailed Product Description
Raw Material Of Machine: Carbon Steel After-sales Service: Engineer Available To Oversea
Speed: Adjustable Diameter: 2.5-20mm
Power: 22kw Voltage: 380V, 50HZ
Condition: New Showroom: Thailand
High Light:

fertilizer blending equipment

,

fertilizer blending machine

DZJ NPK Double Roller Press Compound Fertilizer Granulator Pellet Machine



Introduction of compound fertilizer granulator

Compound fertilizer granulator is used in the production of compound fertilizer. Most of them adopt the new technology of double roll granulation. The equipment investment of the double roller granulator is reduced by more than 30%. there is no loss of material and physical properties in the production process. the new technology of roller granulation with the mechanical properties of the equipment. The double roller granulator has successfully developed and put into the market Field
At present, the new generation of roller granulation technology, fertilizer granulation machine is the equipment investment, high cost defects. Therefore, he has been engaged in chemical fertilizer equipment production process for many years to complete the new technology of compound fertilizer granulation; the drum granulator is a defect of low mechanical performance, large investment and high cost.



1. The compound fertilizer granulator belongs to dry granulation. It is not necessary to adjust the dryness and humidity of the material during the granulation process, and there is no need to increase the drying equipment.
2. Compound fertilizer granulators can be used to process granules containing heat-sensitive materials.
3. Because it is dry granulation, no waste water or waste gas will be emitted during the production process.
4. The roll granulator has simple process, easy automatic control, and high production efficiency.
5. The flexibility of the roller extrusion granulator is good, and the fertilizer production plan can be unaffected at any time.

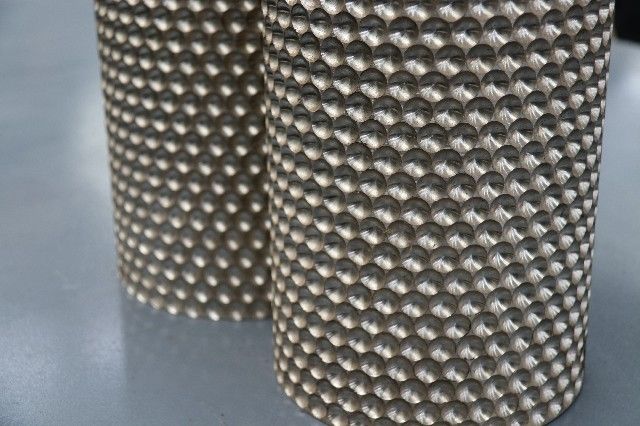

6, the uniformity of the particle size of the roller extrusion granulation is a significant advantage, because the ball socket size of the roller is the same.



Less investment, quick results, good economic benefits. The compound fertilizer granulator can produce fertilizer by normal temperature without no more drying technology, pellets formed only once extrusion.



Reliable operation and low cost. The machine’s power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.



The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.



The compound fertilizer granulator can be used for the granulation of earth, carbon ammonium and ammonium sulfate compound fertilizer, filling the domestic blank.



The feeding inlet is added mixing device to ensure uniform feeding with uniform speed.

The main frame is equipped with self cleaning device to prevent materials from sticking to the roller sheet.

The adjustment of roller gap adopts step-by-step variable gear adjustment to ensure that the clearance is well proportioned and the operation is convenient.

Adjustment roller sheet adopts adjusting spline inside the gear to ensure the pair is neat and not misplaced.



Model DZJ-I-3.0 DZJ-II-3.0
Capacity 2500-3500kg 2500-3500kg
Power 22kw 22kw
Voltage 380V/50Hz 380V/50Hz
Speed  Adjustable Adjustable

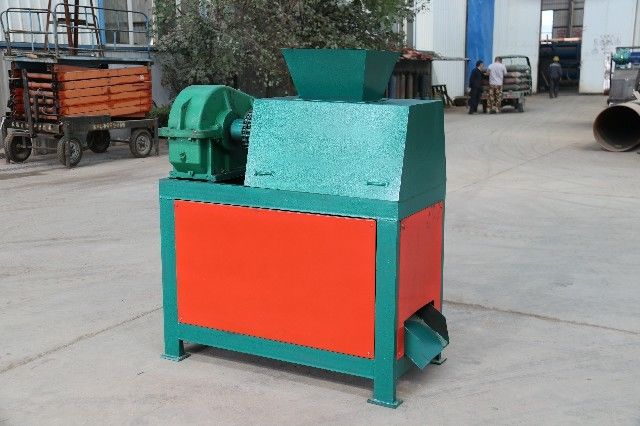

Picture of compound fertilizer granulator

DZJ NPK Double Roller Press Compound Fertilizer Granulator pellet machine 0
