Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type

China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

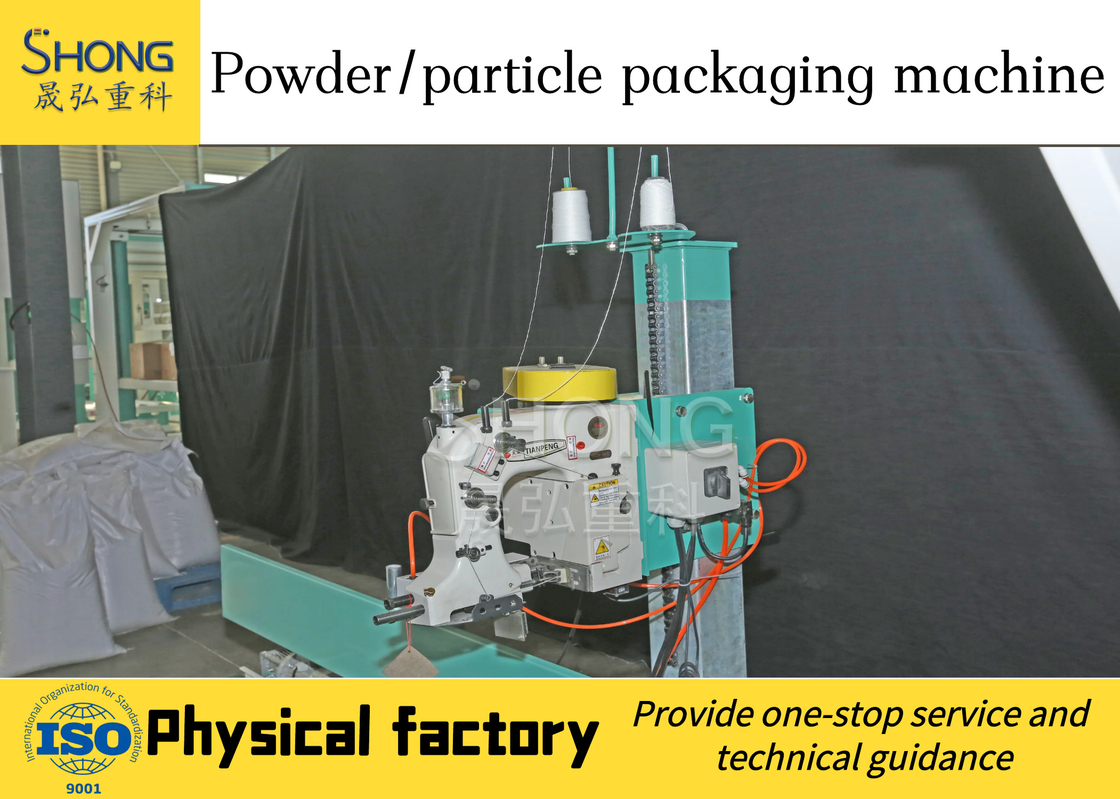

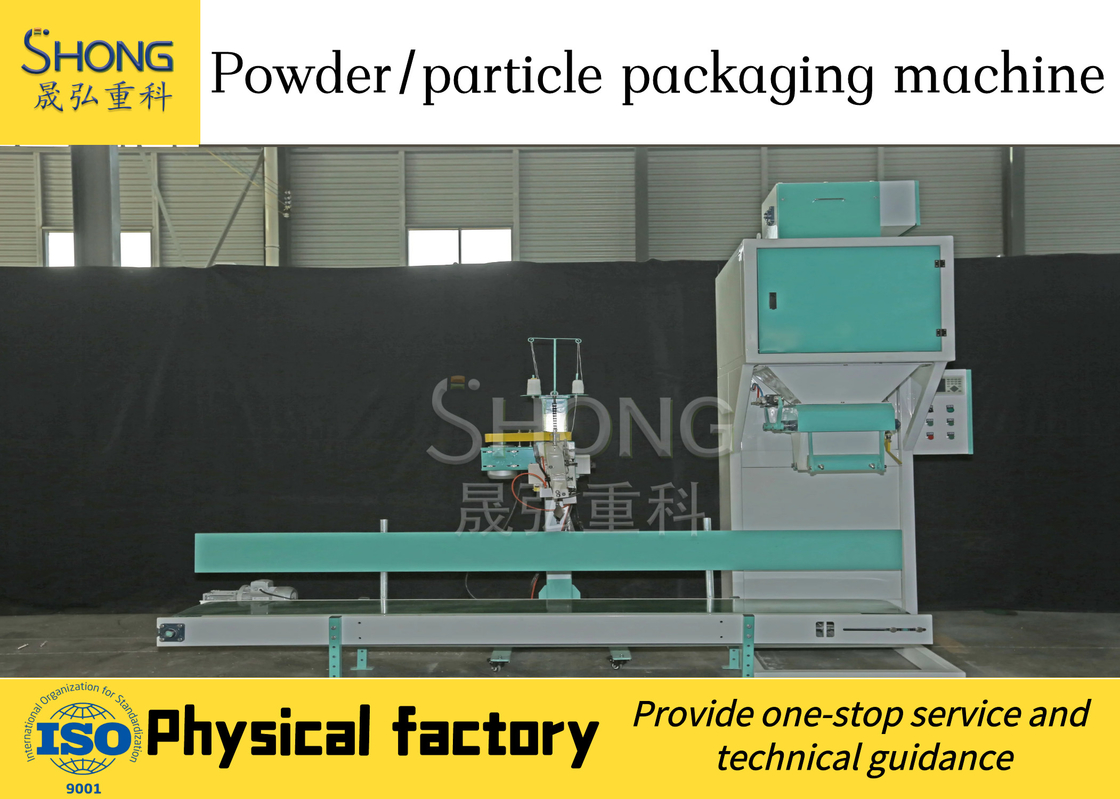

Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type

Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type
Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type
video play

Large Image :  Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type

Product Details:
Place of Origin: Zhengzhou city, China
Brand Name: Shenghong
Certification: BV, ISO, SGS
Model Number: DCS-25F-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Can be negotiated
Packaging Details: Wooden packaging or container: 4500*2500*350000mm
Delivery Time: 8-10 days
Payment Terms: L/C, T/T, Western Union,, D/A, D/P
Supply Ability: 30 sets per month
Detailed Product Description
Raw Material: Carbon Steel Color: Gray
Condition: New Weighing Speed: 200-3000 Bag/h
Weighting Range: 10-25 Kg/bag Warranty: 1 Year
Machine Net Weight: 650kg Distance Of Conveyor Transmission: 2m
High Light:

fertilizer bagging machine

,

fertilizer packing machine

Organic Fertilizer Machine Packaging Machine , 6000-10000 Bag Per Day



Feature Of Fertilizer Packaging Machine



1. Sensor can make direct measurement and packing quantity is more accurate.

2:  Microcomputer control LCD (or touch screen) display, simple operation, more reliable usage.

3: Double vibration feeding, high efficiency higher precision.

4: All stainless steel structure in line with the GMP certification.

5: Light induction feeding, heat sealing (or sewing sealing).

6. Designed according to the national standard GMP, up to hygiene standard of foodstuff.

7. The parts which contact with the filling are made of 304 stainless steel, suit for Anti-corrosion chemical products packing.

8. Adopts PLC-touch screen control system, with error correction, deviation alarm and other functions

9. Adopt the new type weighing system in packing, with high speed and high precision measurement instrument, strong function



Raw Material Of Fertilizer Packaging Machine



Animal waste slaughterhouse waste, fish market waste, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc.
Industrial waste wine lees waste, vinegar waste, manioc waste, sugar waste, etc.
Home waste food waste, bones, the roots and leaves of vegetables, etc.
Mineral humic acid, bentonite, dolomite, etc.



Introduction Of Fertilizer Packaging Machine



1. Imported PLC and color touch screen,,it can complete the whole procedure of metering,filling,bagging,exhausting,counting automatically.

2. Separate pneumatic control and power control,noise is low,and the circuit is more stable.

3. English and Chinese screen display,it is simple to operate.

4. The function of PLC computer system is more stable, and it’s more easy to adjust any parameters.

5. It can stock ten datas, and it’s simple to change the parameters.

6. Quiet work circumstance, low noise

7. Electronic scale direct measurement, loading is more accurate.
8. Microcomputer control. Using more reliable.



Technical Parameters of Fertilizer Packgaing Machine



Scale range 10-50KG
Out Dimension 2300*900*30000 mm
Precision 0.20%
Weight 400kg
Packing speed 500-600 pag/h
Hopper’s Dimension (Diameter *Height ) 700*1000mm
Electrical Source : 220-380v,50hz
Motor 0.37+0.37+0.37



Single weighing hopper Packing specification 100-5000g
Packing speed 200-600 bags
Machine power 200w
Double weighing hopper Packing specification 100-5000g
Packing speed 400-1200 bags
Machine power 400w



Application Of Fertilizer Pacaging Machine



1. Seeds, rice, fertilizer, fodder, additives, detergent powder, salt, chicken essence, sugar and so on.

2. Feeding type: screw type, rotating type

3. Quantitative packing for Chinese herbal medicine pieces, coarse cereals, nuts.



Double Vibration Feeding Organic Fertilizer Bagging Machine 6000 -10000 Bag / Day Type 0
