Nearly Round Shape Fertilizer Granulator Machines For NPK Fertilizer

Nearly Round Shape Fertilizer Granulator Machines For NPK Fertilizer

fertilizer granulation equipment

fertilizer pellet machine

Place of Origin:

Zhengzhou City, China

Brand Name:

Shenghong

Certification:

BV ISO SGS

Model Number:

YSL serious

Contact Us
Request A Quote
Product Details
Model:
DZJ1.0-3.0
Material Of Machines:
Carbon Steel
Shape Of Fertilizer:
Nearly Ball Shape
Moisture Of Raw Material:
3-8%
Drying After Granulator:
No Need
Voltage:
380V
Raw Materials:
NPK Or Some Organic Fertilizer
Granulation Type:
Dry Type
Highlight:

fertilizer granulation equipment

,

fertilizer pellet machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Container or Wooden Packaging
Delivery Time
10-12 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 sets per month
Product Description

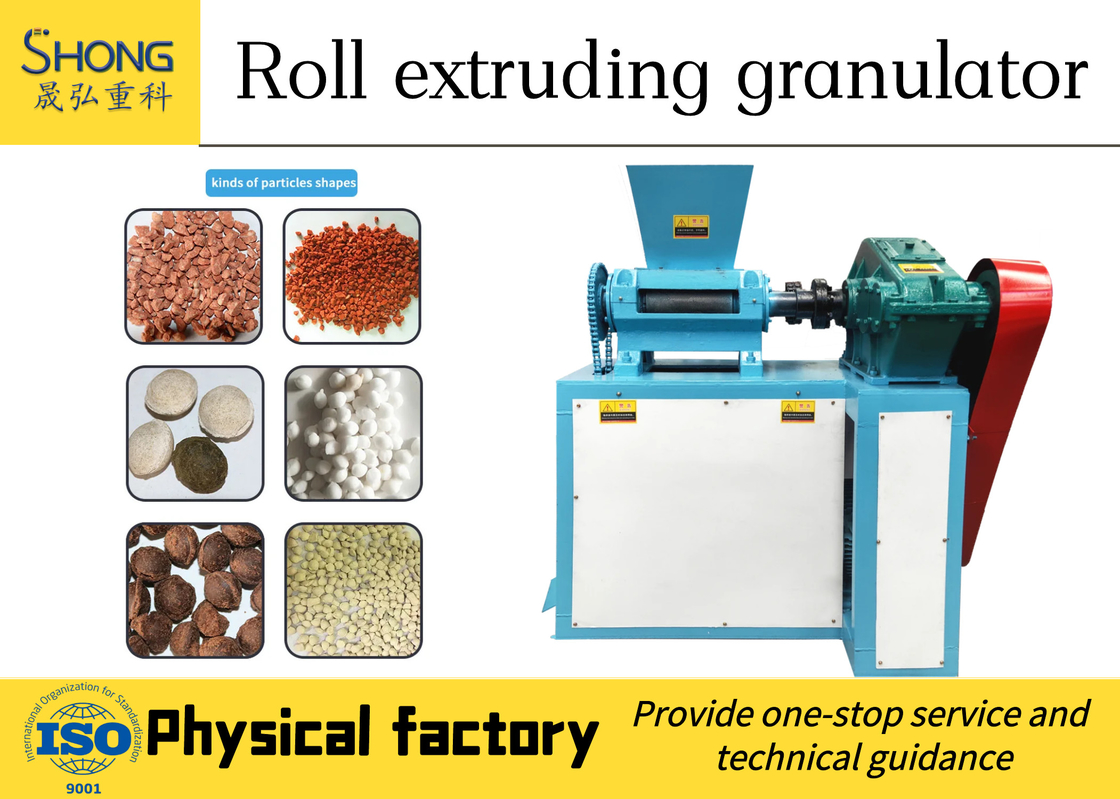

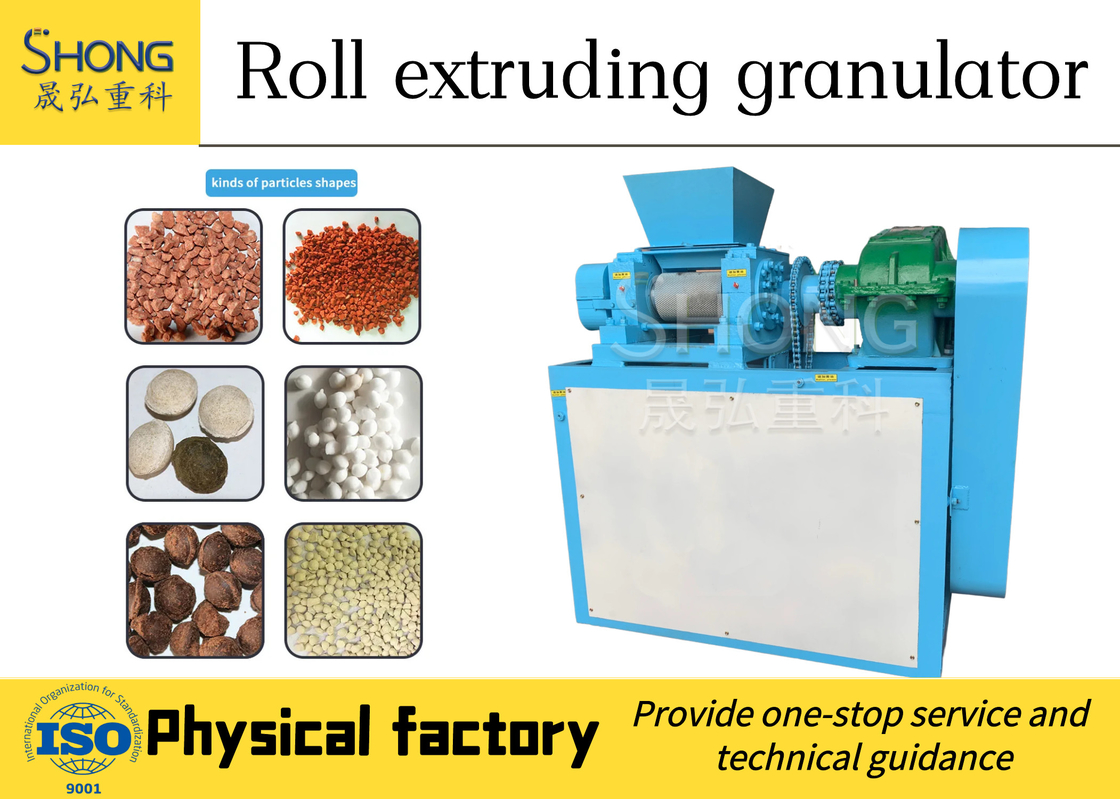

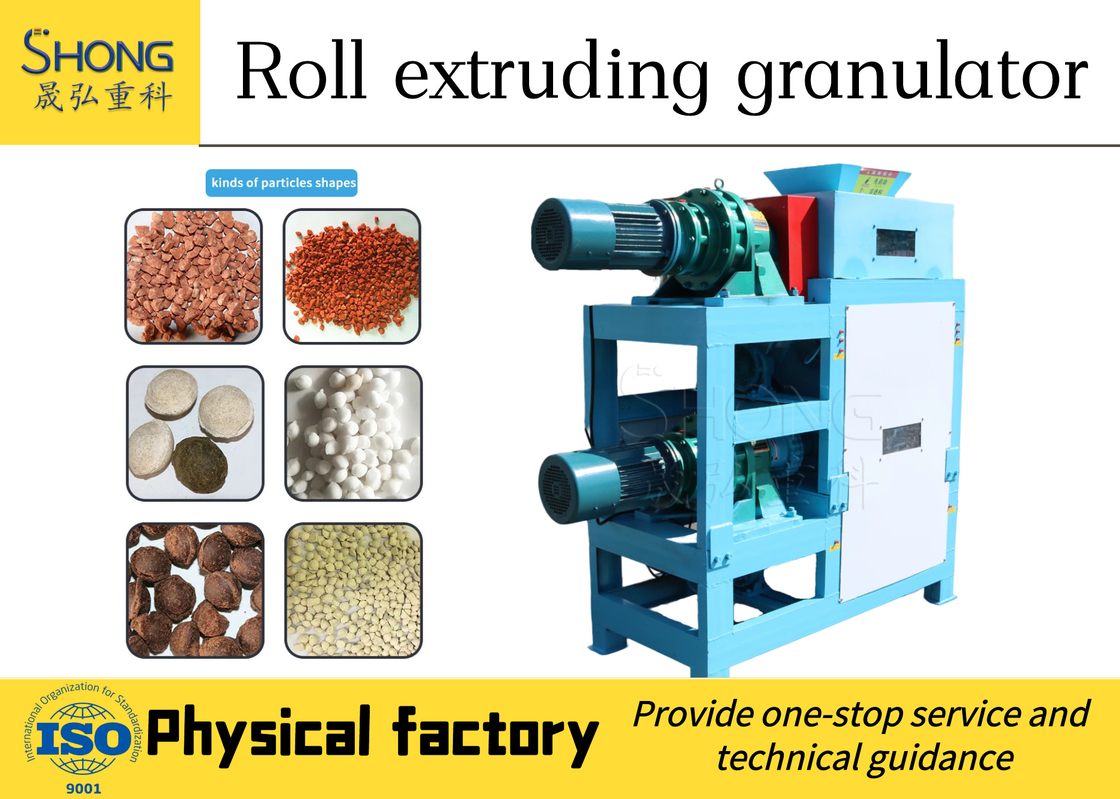

Reviwe of Double Roller Press Granulator



Description

It is widely used in compost fertilizer, chemical fertilizer, inorganic feritlizer, npk fertilizer, compound fertilizer granules making.


The fertilizer pellet equipment is the key equipment in producing fertilizer. Its quality decides the appearance and quality of the fertilizer. So, it is better for choosing the appropriate granulator for you.



Feature of Double Roller Press Granulator



1. It could produce most kinds of contents fertilizers, like low, medium, high contents NPK fertilizer, Organic fertilizer and other fertilizers;

2. It could produce Organic fertilizer, Inorganic fertilizer, NPK fertilizer and other most kinds of pelletized fertilizers, and the granules shaping is better;

3. The structure is sample, the performance is stable, the producing capacity is in large quantity;

4. Production technology mature, easy to operate and maintenance, it could run stably for a long time!

Technical Parameters of organic fertilizer equipment/ fertilizer processing equipment

Nearly Round Shape Fertilizer Granulator Machines For NPK Fertilizer 0

Advantages of Double Roller Press Granulator



1.No drying technology, normal temperature granulating, once forming.


2.Low investment, quick profit, good economic returns, etc.


3.Combine granulating, forming, screening into one machine, making beautiful appearance granules, easy operation and low energy consumption, etc.


4.The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.


5.Especially, DZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller's service life.


6.The Power Transmission part adopts dual-input transfer mode, not only to improve the power input ratio, and also to ensure the transmission gear lubrication and sealing performance.



Model no. DZJ-I-1.0 DZJ-I-2.0 DZJ-I-3.0 DZJ-I-4.0 DZJ-II-1.0 DZJ-II-2.0 DZJ-II-3.0
Production(t/h) 1-1.5 1.5-2.5 2.5-3.5 3.5-4.5 1-2 1.5-2.5 2.5-3.5
Power (kw) 15kw 18.5kw 30kw 45kw 15kw 18.5kw 22kw
Pressure roller diameter(mm) 150×220 150×300 186*30 0 300*300 150×220 150×300 186*300
Feeding size (mm) ≤0.5mm ≤0.5mm ≤0.5mm ≤0.5mm ≤0.5mm ≤0.5mm ≤0.5mm
Finished product diameter (mm) 2.8-10 2.5-10 2.5-20 2.5-30 2.5-10 2.5-20 2.5-20
Material moisture 2%-5% 2%-5% 2%-5% 2%-5% 2%-5% 2%-5% 2%-5%




Our Pre-sale Service:
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.

Services:
Installation, start-up, training, emergency assistance, field support, spare parts, routine and preventative maintenance



Technology Innovation and Design
1.Process and flowchart Design
2.Material Test
3.Formula



Nearly Round Shape Fertilizer Granulator Machines For NPK Fertilizer 1
