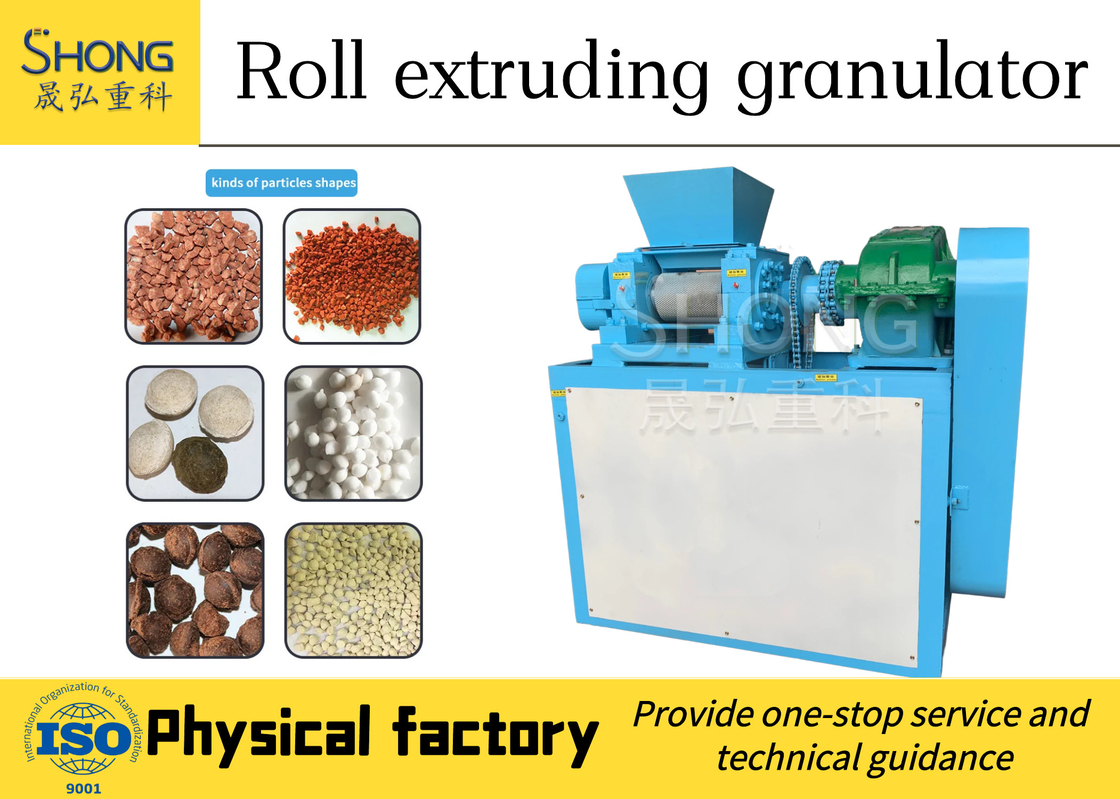

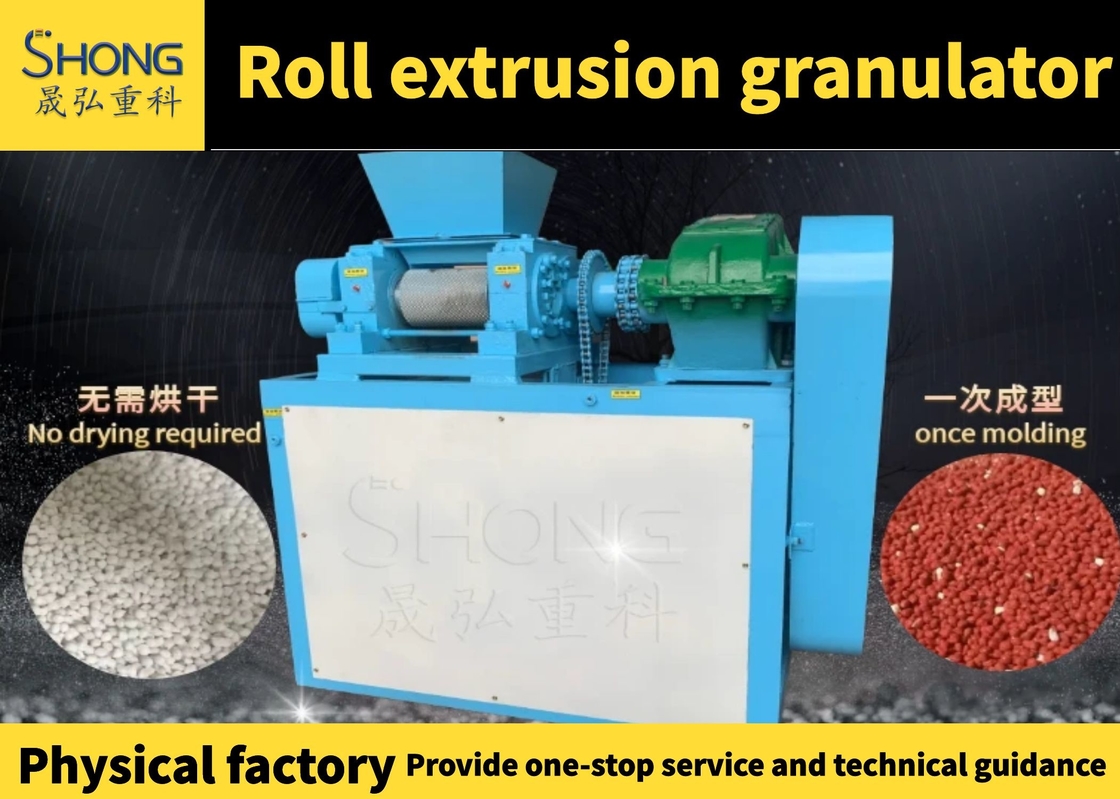

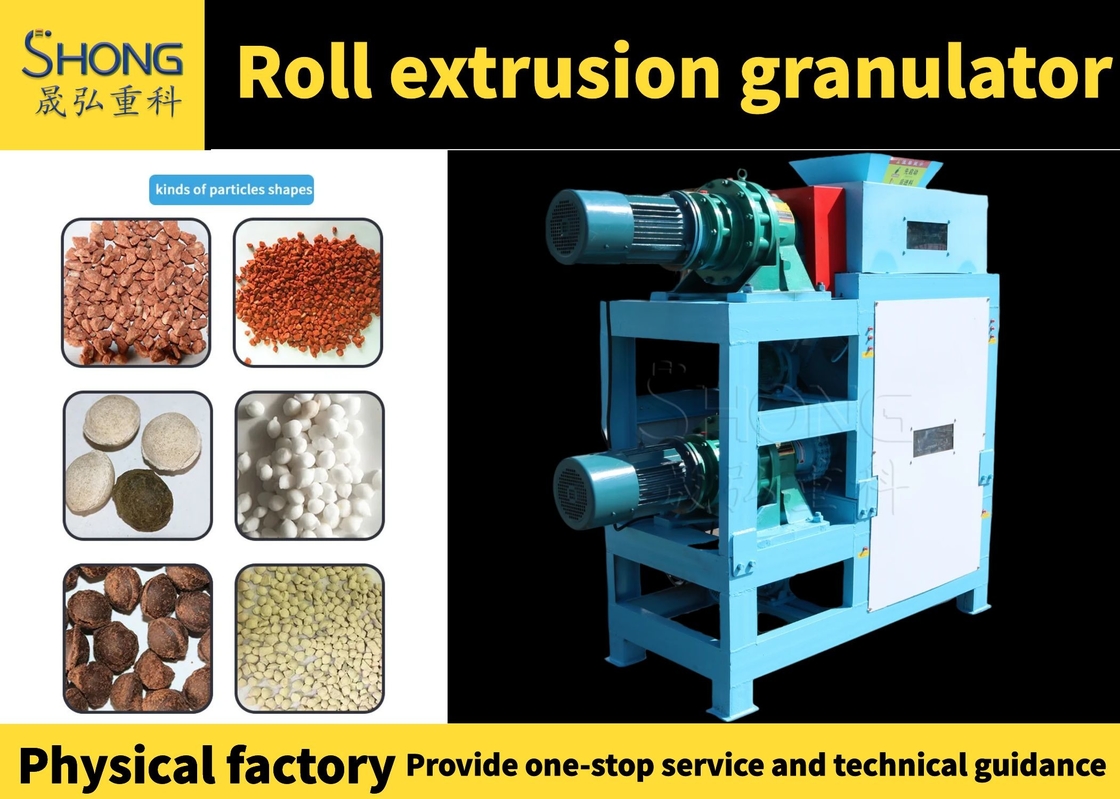

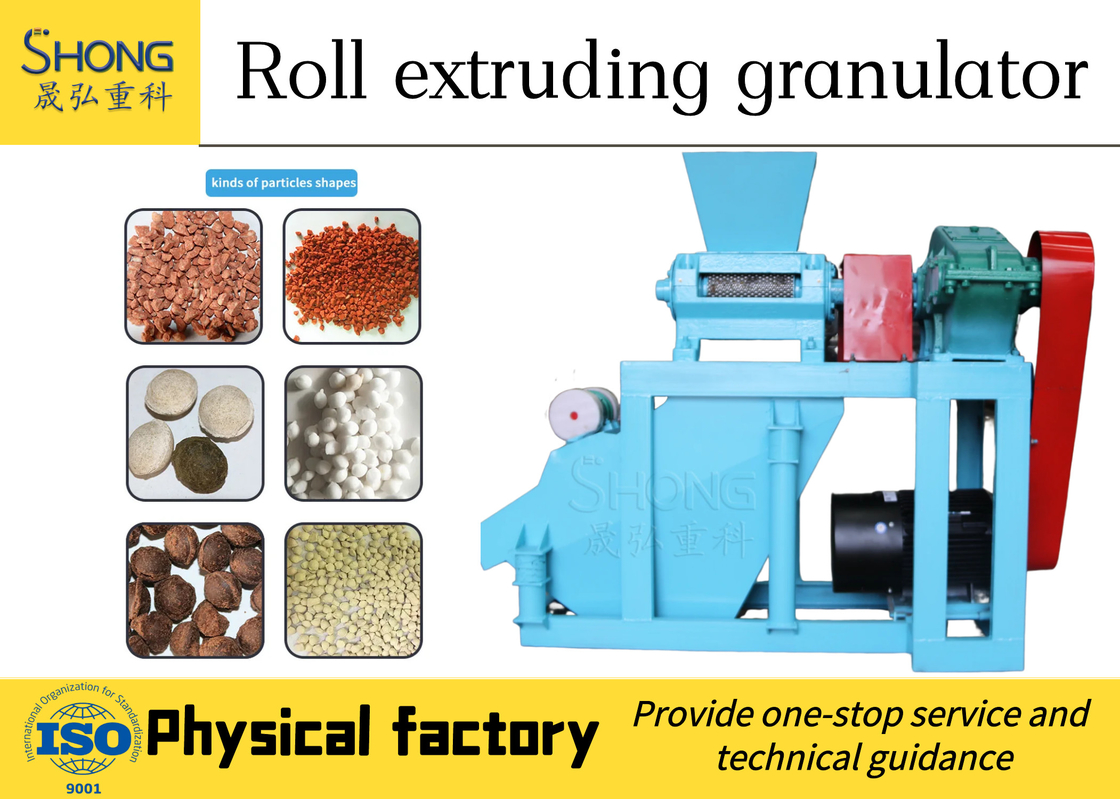

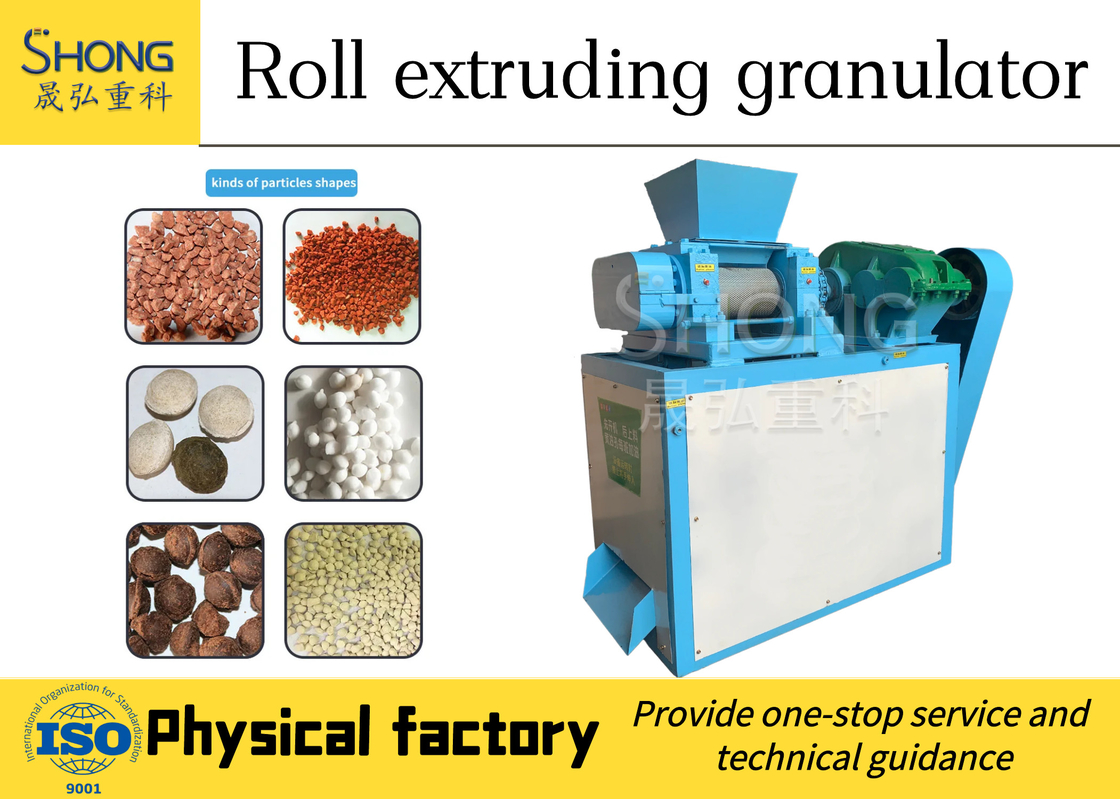

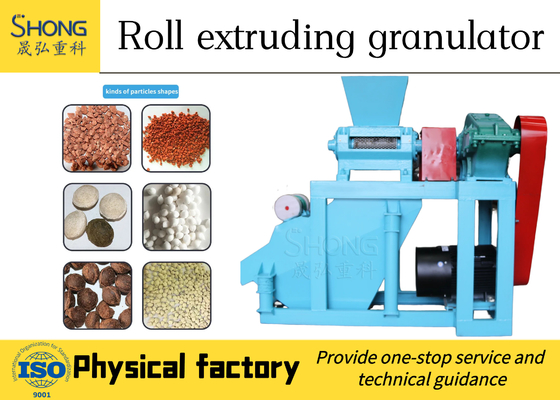

Feature of Double Roller Press Granulator
1. It could produce most kinds of contents fertilizers, like low, medium, high contents NPK fertilizer, Organic fertilizer and other fertilizers;
2. It could produce Organic fertilizer, Inorganic fertilizer, NPK fertilizer and other most kinds of pelletized fertilizers, and the granules shaping is better;
3. The structure is sample, the performance is stable, the producing capacity is in large quantity;
4. Production technology mature, easy to operate and maintenance, it could run stably for a long time!
Technical Parameters of organic fertilizer equipment/ fertilizer processing equipment.
Reviwe of Double Roller Press Granulator
Description
It is widely used in compost fertilizer, chemical fertilizer, inorganic feritlizer, npk fertilizer, compound fertilizer granules making.
The fertilizer pellet equipment is the key equipment in producing fertilizer. Its quality decides the appearance and quality of the fertilizer. So, it is better for choosing the appropriate granulator for you.
Advantages of Double Roller Press Granulator
1.The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.
2.Especially, DZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller's service life.
3.The Power Transmission part adopts dual-input transfer mode, not only to improve the power input ratio, and also to ensure the transmission gear lubrication and sealing performance.
4.The machine has compact structure, good stability, good sealing, low noise, easy operation and maintenance, etc. The new machine has won the users praise after coming into the market.
5.Wide adaptability for raw materials, such as fertilizer, feed, chemical industry, and especially good adaptability for rare earth, metallurgy, coal, biologics environmental protection. To some extent, it fills the gap and leading the domestic advanced level. On the other hand, it is also the promotion of environmental projects.
| Model no. |
DZJ-I-1.0 |
DZJ-I-2.0 |
DZJ-I-3.0 |
DZJ-I-4.0 |
DZJ-II-1.0 |
DZJ-II-2.0 |
DZJ-II-3.0 |
| Production(t/h) |
1-1.5 |
1.5-2.5 |
2.5-3.5 |
3.5-4.5 |
1-2 |
1.5-2.5 |
2.5-3.5 |
| Power (kw) |
15kw |
18.5kw |
30kw |
45kw |
15kw |
18.5kw |
22kw |
| Pressure roller diameter(mm) |
150×220 |
150×300 |
186*30 0 |
300*300 |
150×220 |
150×300 |
186*300 |
| Feeding size (mm) |
≤0.5mm |
≤0.5mm |
≤0.5mm |
≤0.5mm |
≤0.5mm |
≤0.5mm |
≤0.5mm |
| Finished product diameter (mm) |
2.8-10 |
2.5-10 |
2.5-20 |
2.5-30 |
2.5-10 |
2.5-20 |
2.5-20 |
| Material moisture |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
Our Pre-sale Service:
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
Services:
Installation, start-up, training, emergency assistance, field support, spare parts, routine and preventative maintenance
Technology Innovation and Design

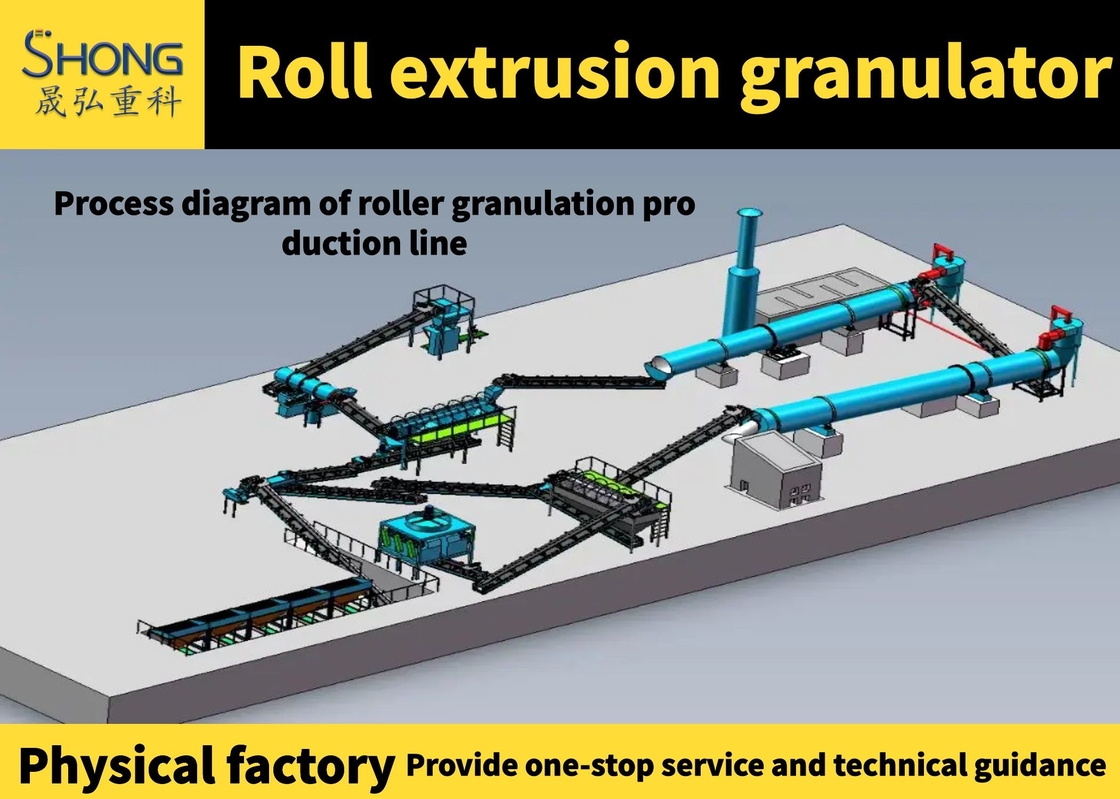

1.Process and flowchart Design
2.Material Test
3.Formula
