Product Details:
Payment & Shipping Terms:
|
| Model: | DZJ Series | Raw Material Of Machines: | Carbon Steel |
|---|---|---|---|
| Usage: | Making Fertilizer Granules | Voltage: | 380V |
| Raw Material Of Fertilizer: | NPK | Feeding Size: | <0.5mm |
| Moisture Before And After Granulator: | 3-8% | Condition: | New |
| High Light: | fertilizer granulation equipment,fertilizer pellet machine |
||

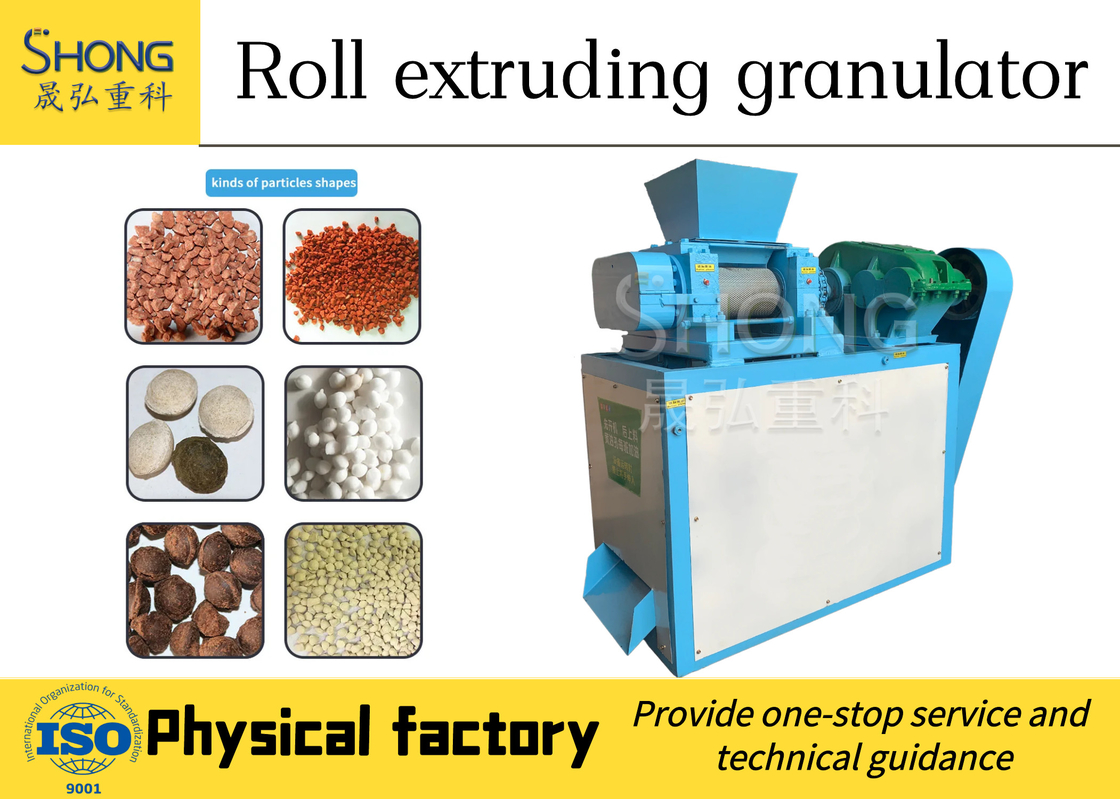

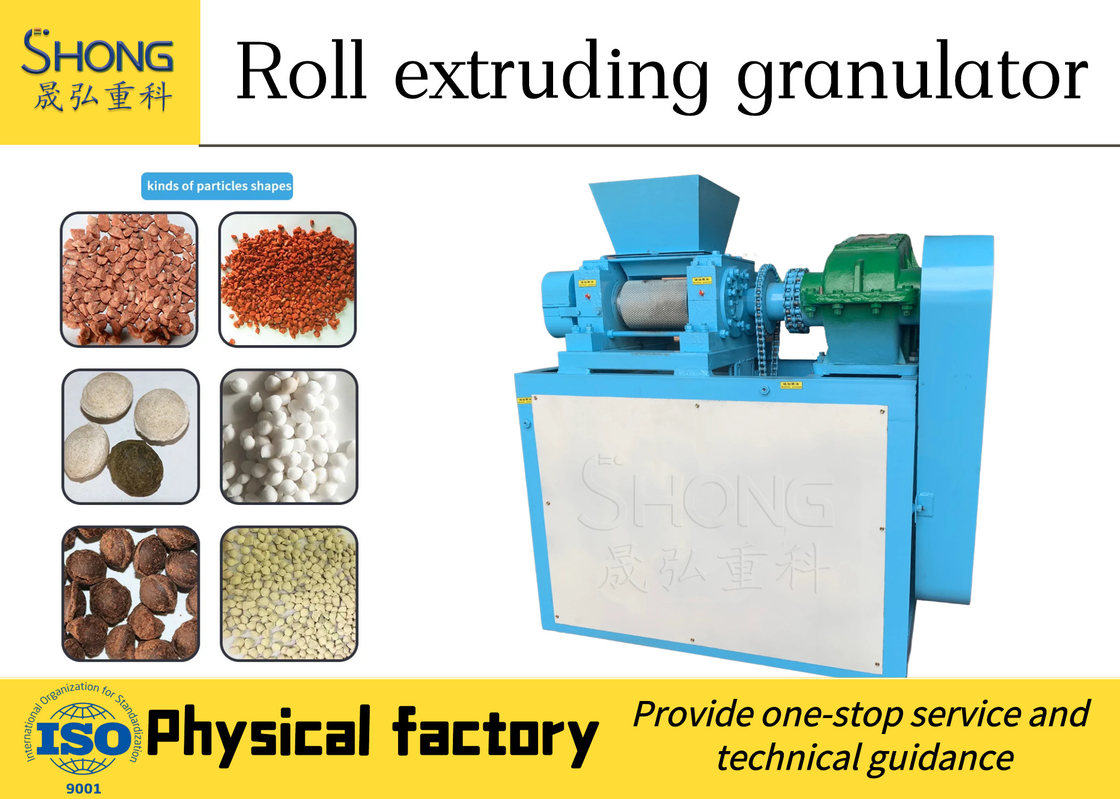

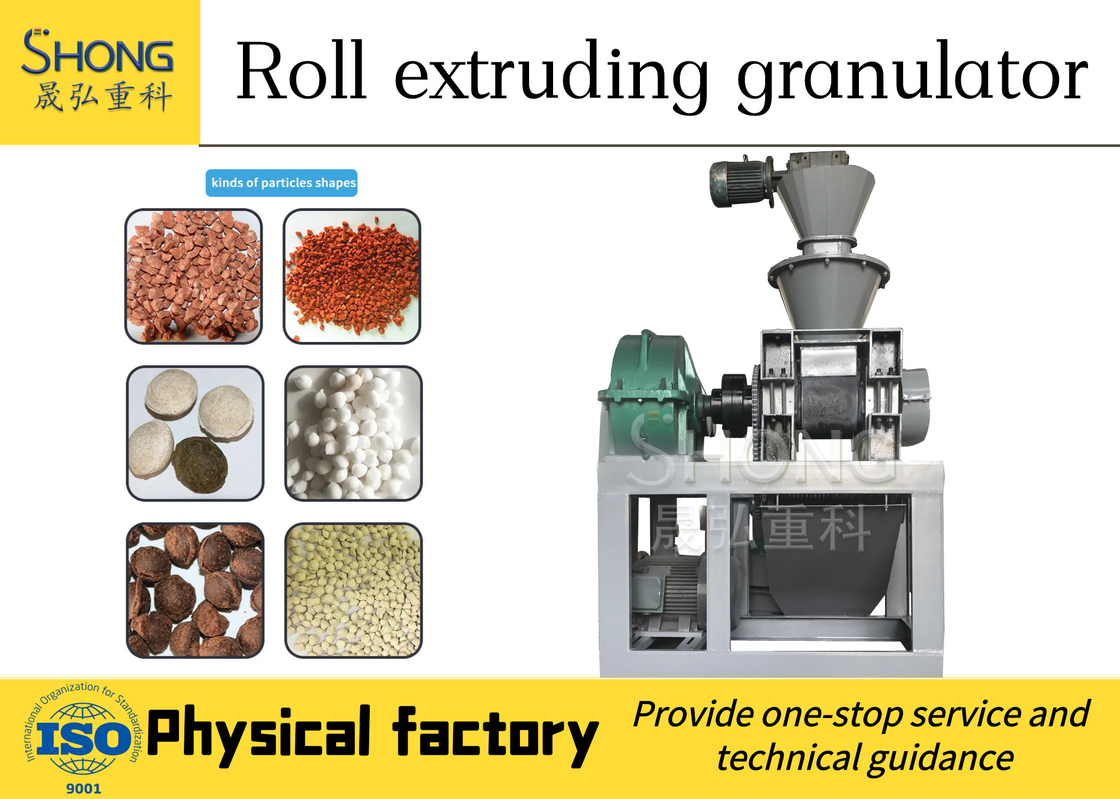

NPK Fertilizer Granulator Machine for Nearlly Ball Shape Granules
The feature of the roller extrusion granulator
our company on the frame were also upgraded, the bearing frame selection of high- quality corrosion casting parts of the whole, which has the characteristics of better stability and can greatly improve the rolling bearing and shaft of the service life. The transmission part adopts the double input transmission mode, which not only improves the input power ratio, but also ensures the lubrication and sealing performance of the transmission gear. The machine has the advantages of compact structure, good stability, good sealing performance, low noise, convenient operation and maintenance.
The instruction of the roller extrusion granulator
1.The Power Transmission part adopts dual-input transfer mode, not only to improve the power input ratio, and also to ensure the transmission gear lubrication and sealing performance.
2.The machine has compact structure, good stability, good sealing, low noise, easy operation and maintenance, etc. The new machine has won the users praise after coming into the market.
3.Especially, DZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller's service life.
4.The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.
The advantage of the roller extrusion granulator
1.Low investment, quick profit, good economic returns, etc.
2.No drying technology, normal temperature granulating, once forming
3.Combine granulating, forming, screening into one machine, making beautiful appearance granules, easy operation and low energy consumption, etc.
4.The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.
5.Especially, DZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller's service life.
Specifications of the roller extrusion granulator
|
Model |
DZJ~I 1.0 |
DZJ~I 2.0 |
DZJ~I 3.0 |
DZJ~I 4.0 |
DZJ~II 1.0 |
DZJ~II 2.0 |
|
Product capacity(t/h) |
1~1.5 |
1.5~2.5 |
2.5~3.5 |
3.5~4.5 |
1~2 |
1.5~2.5 |
|
Power |
15KW |
18.5KW |
30KW |
45KW |
15KW |
18.5KW |
|
Pressure roller Spececification |
Φ150×22O |
Φ150×30O |
Φ186×30O |
Φ300×30O |
Φ150×22O |
Φ150×30O |
|
Feed size |
≤0.5mm |
≤0.5m |
≤ 0.5mm |
≤ 0.5mm |
≤0.5mm |
≤0.5mm |
|
Finished product Spec |
Φ2.5~Φ10 |
Φ2.5~Φ10 |
Φ2.5~Φ20 |
Φ2.5~Φ30 |
Φ2.5~Φ10 |
Φ2.5~Φ20 |
|
Speed reducer Model |
ZQH350 |
ZQH400 |
ZQH400 |
ZQH500 |
dedicated |
dedicated |
|
Material moisture content |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
