Product Details:
Payment & Shipping Terms:
|
| Raw Material Of Machines: | Carbon Steel | Mode: | ZG Series |
|---|---|---|---|
| Technology Support: | Engineer Oversea Service | Granules Shape: | Ball Shape |
| Size Of Fertilizer Granules: | 2-6mm | Dryer After Granulator: | Need |
| Voltage: | 380V | Granulating Type: | Wet Type |
| Highlight: | fertilizer granulation equipment,fertilizer pellet machine |
||

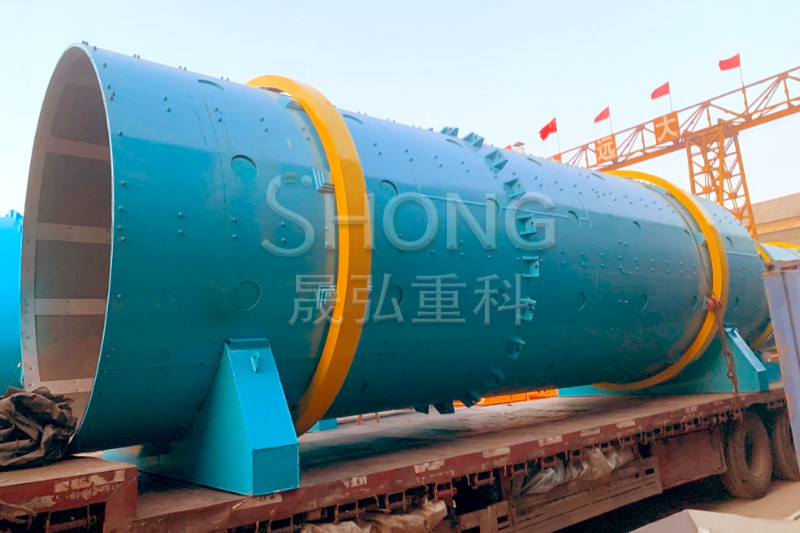

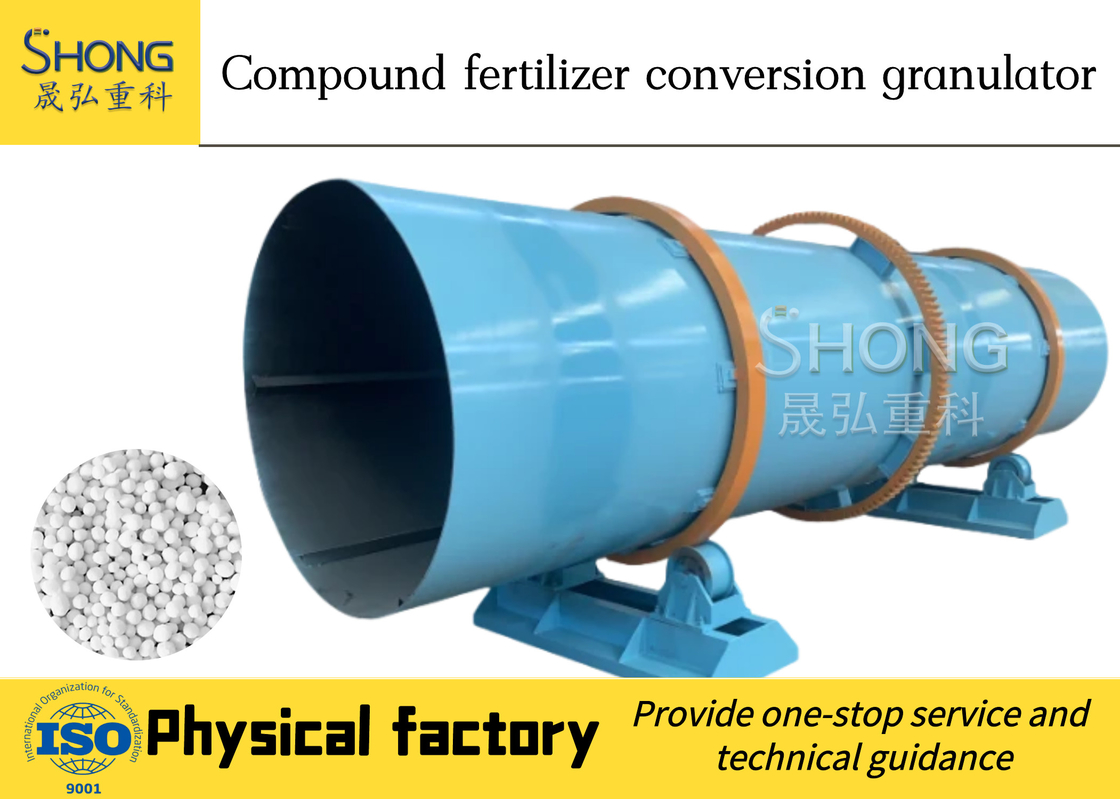

Fertilizer Granulator Machine Carbon Steel With Drum Type For Large Output
Introduction of Fertilizer Granulator Machine
The series of drum granulator its working principle is: the main motor drive belt and pulley, through the reducer drive to the drive shaft, through the installation of the open shaft on the gear and fixed on the body of the large gear teeth And work together. The material is fed from the feed end through the inside of the cylinder. Through the role of the internal structure of the cylinder, made of particles, and finally out through the outlet. As the material continues to enter, granulator of the continuous rotation, in order to achieve mass production.
Application of Fertilizer Granulator Machine
Typical applications of a rotary drum granulator include, but are not limited to the following:
Agglomeration involving chemical reactions where the feed component(s) consist of reactive liquids or gases
The liquid and/or gas can be added into the bed of material to get a complete reaction and contain or reduce any emissions that may be generated
Many inorganic fertilizers are produced in this manner conversion of fine mineral ores into easy to handle agglomerates or balls for further processing. Iron ore, copper ore, and gold ore are a few examples.
Granulation where the only feed or the majority of the feed is a liquid or melt such as urea granulation
Coating of finished products by spraying a liquid onto the bed of material
Mixing drums that can mix multiple solids and/or liquids.
Specialty applications like a combination granulation-cooling drum.
Fertilizer Granulator Machine Advantages:
The cylinder body adopts special stainless steel or rubber plate lining structure. It can remove scar and peel burl automatically It has the advantages of high intensity of granule, high production, erosion proof, abrasion proof, low energy consumption, long service life, convenient operation and maintenance etc.
|
Inorganic fertilizer |
BB and compound fertilizer powder |
|
Biologics |
Western medicine granules etc |
|
Coal industry |
Carbon granule etc |
|
Others |
Kinds of inorganic powder that you need manufacture granules |
Technical Parameters for Fertilizer Granulator Machine
|
Model |
Barrel |
Power |
Prod Capacity |
Overall dimensions L× W ×H |
weight |
|||
|
Inclination |
Internal diameter |
length |
Rotation speed |
|||||
|
0 |
m |
m |
r/min |
kw |
t/h |
m |
t |
|
|
ZG1.2×4 |
2-2.5 |
1.2 |
4 |
17 |
5.5 |
1-3 |
4.6×2.2×2.0 |
2.7 |
|
ZG1.4×5 |
2-2.5 |
1.4 |
5 |
14 |
7.5 |
3-5 |
4.8×2.8×2.3 |
8.5 |
|
ZG1.6×6 |
2-2.5 |
1.6 |
6 |
11.5 |
11 |
5-8 |
7.0×3.2×3.1 |
12.0 |
|
ZG1.8×7 |
2-2.5 |
1.8 |
7 |
11.5 |
15 |
8-10 |
8.3×3.5×3.3 |
18.5 |
|
ZG2.0×8 |
2-2.5 |
2.0 |
8 |
11 |
18.5 |
10-15 |
9.1×3.6×3.5 |
22.0 |
|
ZG2.2×8 |
2-2.5 |
2.2 |
8 |
10.5 |
22 |
15-20 |
9.5×4.4×3.9 |
28.0 |
