Place of Origin:
Zhengzhou China
Brand Name:
Shenghong
Certification:
BV ISO SGS
Model Number:
YSL-100
Drum granulator; organic fertilizer granulation equipment

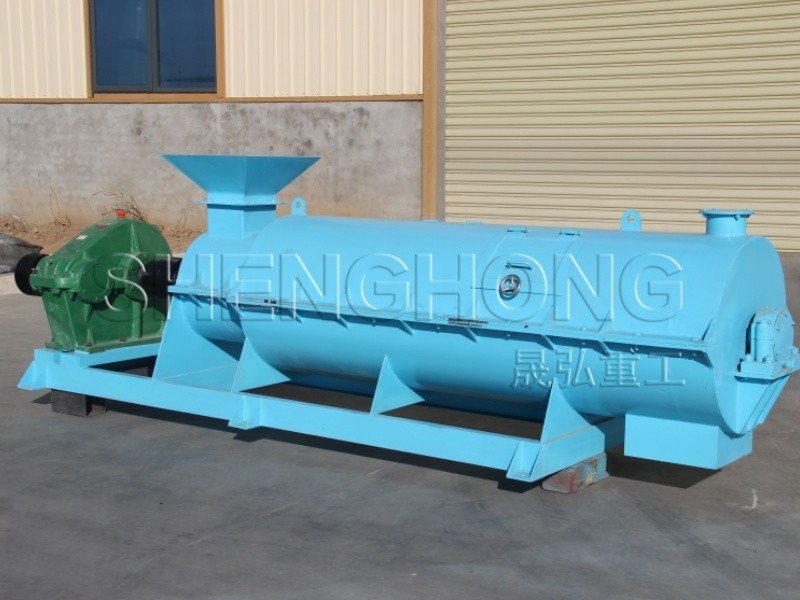

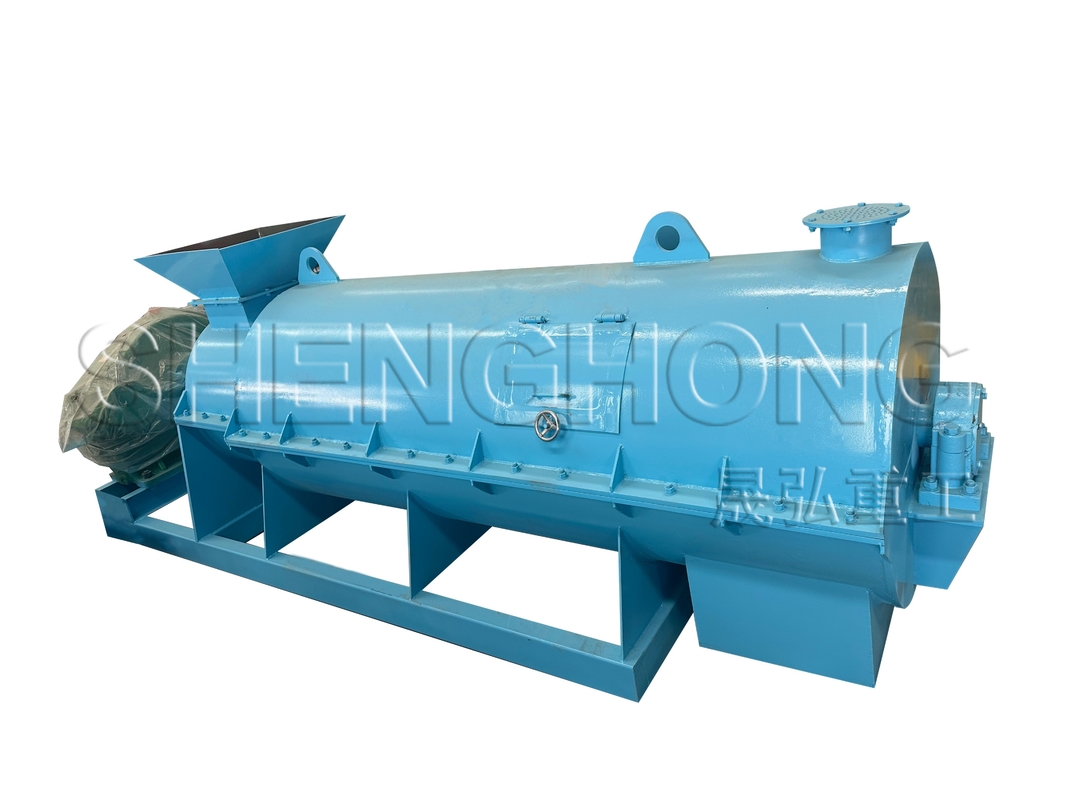

Product introduction of organic fertilizer granulation machine
Tianci Heavy Industry new type organic fertilizer granulator making machine is a patented product research and developed by our company and the Agricultural Machinery Research Institute. This Top sale new type organic fertilizer granulator making machine can not only granulate a variety of organic matter, but also is especially able to granulate the coarse fiber material that difficult to be granulated by conventional equipment, such as crop straw, wine dregs, mushroom residue, drug residue, animal manure and so on, all these can be granulated after fermentation.
Working principle of organic fertilizer granulation machine

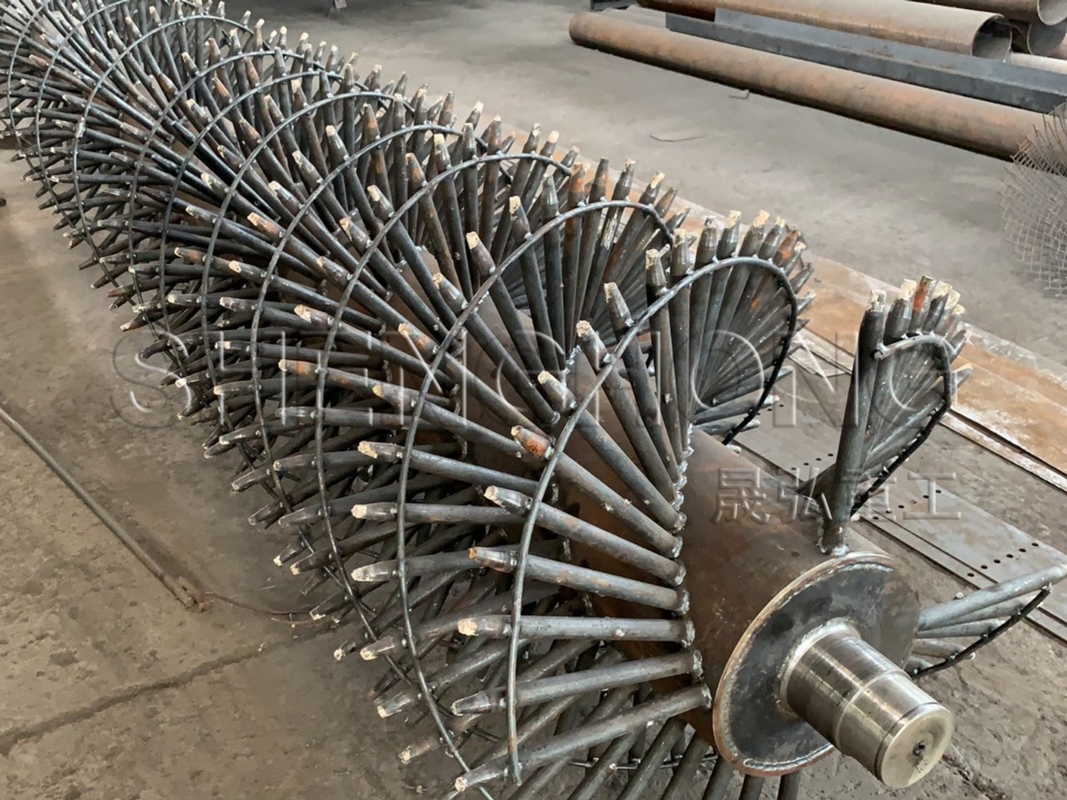

Using high speed rotating mechanical shearing force and the resulting air power, making continuous implementation of the fine powder material in the machine mixing, granulating, density and other processes, which achieves the goal of the granulation. The shape of particles is spherical; the spherical degree is 0.7 or higher; the particle size is generally between 0.3 and 3 mm; granulating rate is 90% or higher; the size of particle diameter can be adjusted according to the mixture quantity and spindle speed; generally, the lower the mixing volume, the higher the rotational speed, the smaller the particle.
Diamater of organic fertilizer granulator making machine
Installation Angle | 2º-2.5º |
2º-2.5º | 2º-2.5º | 2º-2.5º | 2º-2.5º |
Capacity | 1-1.5T/H |
1.5-2.5T/H | 2-4T/H | 4-6T/H | 6-8T/H |
Total Power | 37KW |
55KW | 75KW | 90KW | 110KW |
Moisture of feeding material | 20%-40% |
20%-40% | 20%-40% | 20%-40% | 20%-40% |
Size of feeding material | 50mesh | 50mesh | 50mesh | 50mesh | 50mesh |
Dimension | 4.1*1.6*1.15m | 4.25*1.85*1.3m | 4.7*2.35*1.6m | 4.9*2.55*1.8m |
5.5*2.8*2m |
Features of Organic Fertilizer Granulator

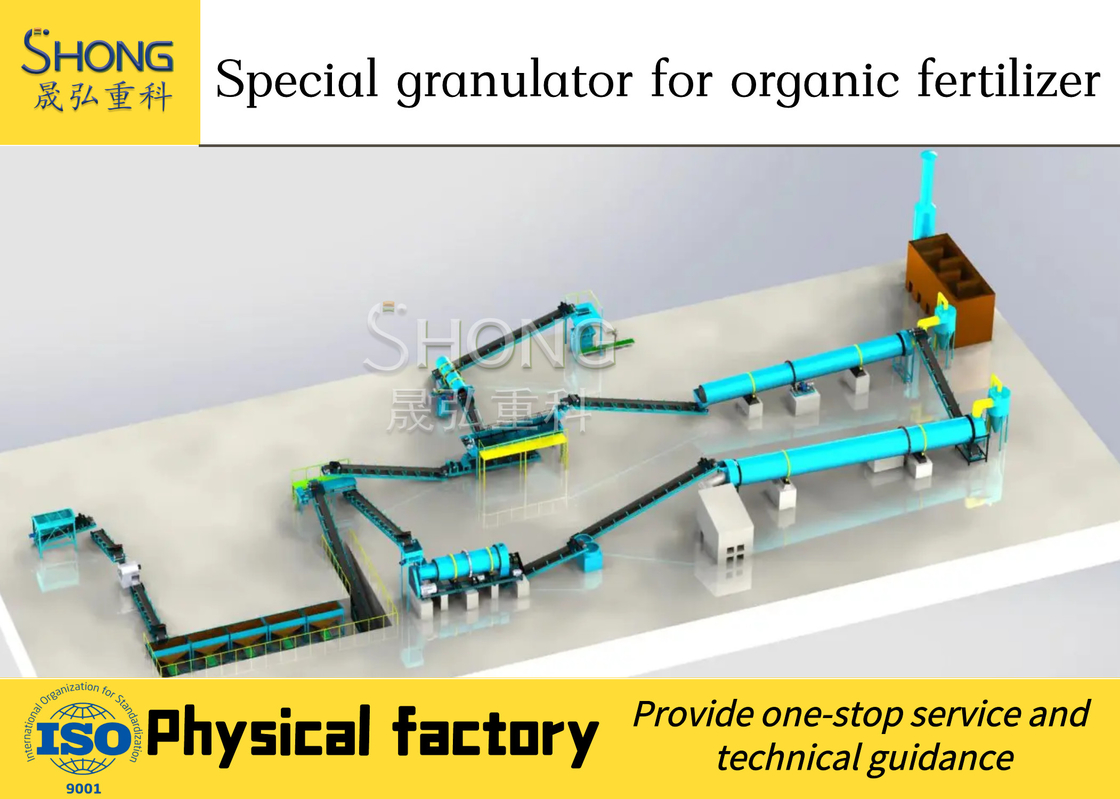

1. Equipped with advanced fertilizer manufacturing technique, this fertilizer production line can finish fertilizer granulation in one process.
2. Adopts advanced rotary drum granulator, granulating ratio is up to 70%, high intensity of granules.
3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.
4. Wide adaptability of raw materials, suitable for compound fertilizer, pharmaceuticals, chemicals, fodder and so on.
5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.
6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.
7. Adjustable capacity according to customers’ requirements.
Pre-sale Service of Top sale new type organic fertilizer granulator making machine:
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
5. Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service of Top sale new type organic fertilizer granulator making machine:
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7. Providing technical exchanging.
