Semi Automatic Compound Fertilizer Production Line / 5-20t/H Fertilizer Production Plant

Product Details:
Place of Origin: Zhegzhou, Henan Province China
Brand Name: Tianci
Certification: ISO,BV, SGS,
Model Number: BB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets Per Day

Detail Information

Raw Material: Chemical Powder/DAP/Map/Urea/Mop, Etc. Volatge: Customized
Warranty: 12 Months Service: Engineer Available Service Overseas
Product Name: Fertilizer Mixing Bb Chemical Granular Fertilizer Production Line After-sales Service Provided: Engineers Available To Service Machinery Overseas
Dimension(l*w*h): Customized Usage: BB Fertilizer Blending Machine
Installation: Under Engineer Guide Type: Mixing Fertilizer Granules
High Light:

fertilizer manufacturing plant


fertilizer production plant

Product Description

5-20t/h semi-automatic Bulk blending fertilizer production line


Introduction of BB Fertilizer Production Line

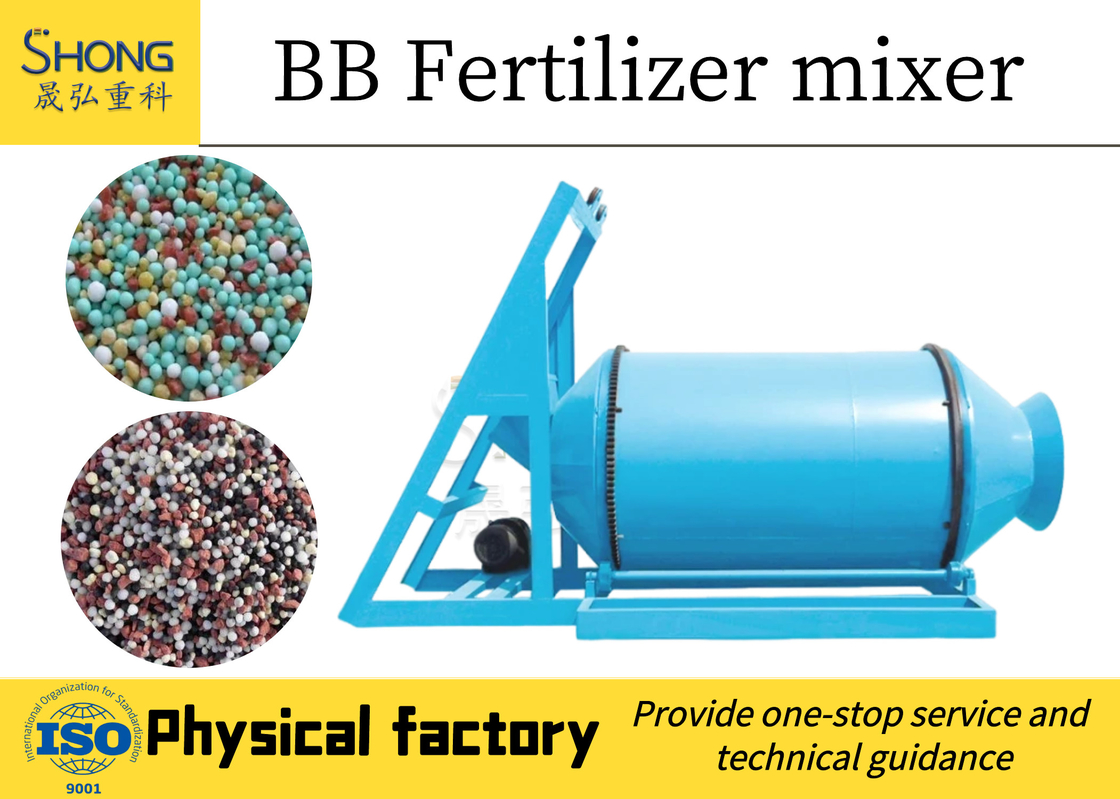

BB fertilizer mixer overcomes the mixtures chromatography and distributaries phenomena caused by different proportion of raw materials and particle size, thus improving the accuracy of the dosing. It also solves the influence on system caused by material properties, mechanical vibration, air pressure, voltage fluctuation cold weather etc. It has the characteristics of high precision, high speed, long life, etc., which is the ideal choice in BB fertilizer (mixed)producer.

Product Process of BB Fertilizer Production Line


BB fertilizer automatic batching, mixing, packaging production line equipment, scope of application: applicable to multiple base fertilizer and nitrogen, phosphorus and potassium fertilizer by physical method, dry mixing, made from multiple fertilizer, fertilizer unit of mixed fertilizer (BB) fertilizer, integrating ingredients, mixing, quantitative packaging, can be in accordance with the formula autocomplete 3 -- 6 kinds of material preparation; According to different crops, soil conditions in different areas, modified formula, it can produce different BB fertilizer products.


BB fertilizer production line is designed on compound dertilizer plant and fertilizer dealer needs.

BB fertilizer use positive inversion of main equipment operation, within the screw mechanism through special and unique three dimensional structure of the material mixing and output equipment package with a low price, small footprint, large output, mixing evenly and so on.


Main equipments for BB Fertilizer Production Line


No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Mixing process Mixer Mix evenly
3 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer into bags


Features of BB Fertilizer Production Line


(1) automatic. Production line consists of automatic batching system, mixing system, quantitative packaging system of three parts, computer control, automatic production. Greatly reduce the staff, reduces the labor intensity.

(2) high precision. Ingredients for the computer control system, electronic weighing, strictly control the ratio. After all sorts of different ingredients, electronic quantitative packaging error is less than one over one thousand.

(3) production. The production line design output per hour 8 t ~ 30 t, there are three kinds of specifications to choose from. This fully solve the BB fertilizer due to strong seasonal concentration to the contradiction.

(4) the new technology.

Why Choose Our BB Fertilizer Production Line?


A. Blending fertilizer is the best physicochemical product with balanced fertilization, with flexible formulation and strong pertinence. Soil testing and fertilization can increase fertilizer utilization, reduce fertilizer cost and reduce environmental impact.

B. The technology is simple, the investment is few, and it is easy to popularize.

Semi Automatic Compound Fertilizer Production Line / 5-20t/H Fertilizer Production Plant 0
