Product Details:
Payment & Shipping Terms:
|
Product Name: | Dry Chemical Mineral Powder Double Roller Press Fertilizer Granulator Machine Price | Weight: | 1000kg |
---|---|---|---|
Dimension: | 1630*830*1640mm | Power: | 18.5kw |
Feeding Size: | <=0.5mm | Capacity: | 1.5-2.5t/h |
High Light: | Dry Chemical Fertilizer Granulator Machine,2.5t/H Fertilizer Granulator Machine,Double Roller Extrusion Fertilizer Granulator |

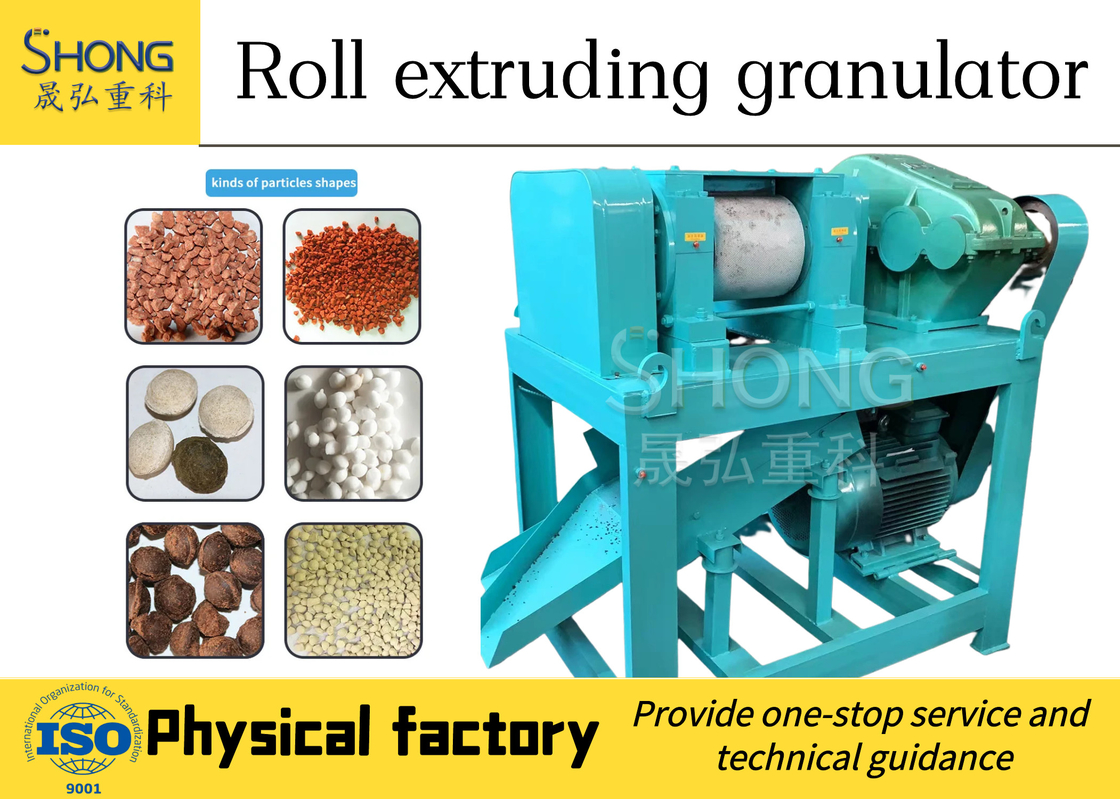

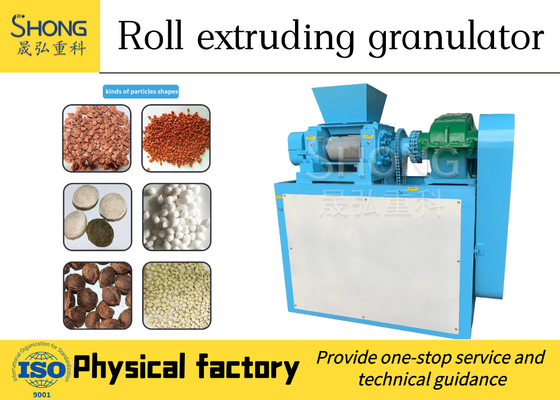

Dry Chemical Mineral Powder Double Roller Press Fertilizer Granulator Machine Price
Product description
Double roller extrusion fertilizer granulator machine is the key equipment for compound fertilizer granulation. It has the advantages of advanced technology, reasonable design, compact structure, novelty and utility, low energy consumption. It can support the corresponding equipment, forming a small production line to achieve a certain capacity of continuous, mechanized production.
Features
No drying technology, normal temperature granulating, once forming.
Low investment, quick profit, good economic returns, etc.
Combine granulating, forming, screening into one machine, making beautiful appearance granules, easy operation and low energy consumption, etc.
The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.
Especially, DZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller's service life.
The Power Transmission part adoptsdual-input transfer mode, not only to improve the power input ratio, and also to ensure the transmission gear lubrication and sealing performance.
The fertilizer granulator machine has compact structure, good stability, good sealing, low noise,easy operation and maintenance, etc. The new machine has won the users praise after coming into the market.
Wide adaptability for raw materials, such as fertilizer, feed, chemical industry, and especially good adaptability for rare earth, metallurgy, coal, biologics environmental protection. To some extent, it fills the gap and leading the domestic advanced level. On the other hand, it is also the promotion of environmental projects.
Working principle
Fertilizer granulator machine adopts the design solution of extrusion sliding model,the raw materials pass through double roller,after that,enter into scattering room, come out as granulation, a sieving was mounted at the bottom of the machine, which is customized according to client's requirement, last, sieve out the granules which is qualified, the rest of materials return to mixer and be re-granulated.
Model | DZJ-I-1.0 | DZJ-I-2.0 | DZJ-I-3.0 | DZJ-II-1.0 | DZJ-II-2.0 | DZJ-II-3.0 |
Capacity(t/h) | 1-1.5 | 1.5-2.5 | 2.5-3.5 | 1-2 | 1.5-2.5 | 2.5-3.5 |
Power(kw) | 15kw | 18.5kw | 22kw | 15kw | 18.5kw | 22kw |
Roller size(mm) | 150*220 | 150*300 | 186*300 | 150*220 | 150*300 | 186*300 |
Feeding size | <=0.5mm | <=0.5mm | <=0.5mm | <=0.5mm | <=0.5mm | <=0.5mm |
Finished product | 2.5-10mm | 2.5-10mm | 2.5-20m | 2.5-10mm | 2.5-20mm | 2.5-20mm |
Material moisture | 2%-5% | 2%-5% | 2%-5% | 2%-5% | 2%-5% | 2%-5% |
