Place of Origin:
Henan, China
Brand Name:
Shenghong
Certification:
CE/ISO9001/BV
Model Number:
1.6*6m

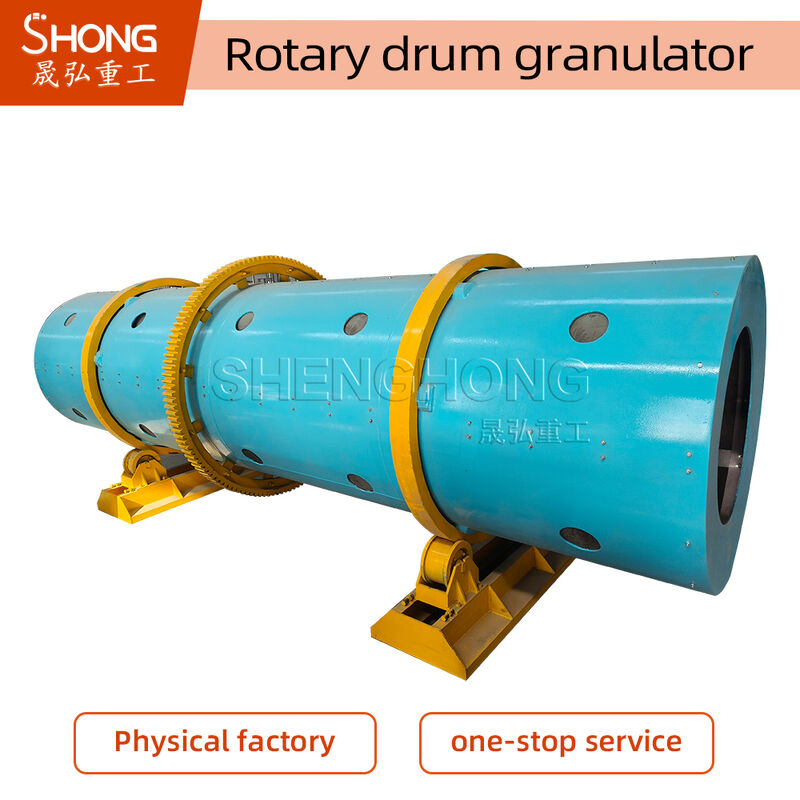

Ammonium Sulfate Rotary Drum Ball Compound Fertilizer Granaulator Machine Price
Product description
Rotary drum granulator is a molding machine that can make material into a particular shape. It is one of the key equipment of the compound fertilizer industry, which suitable for cold or hot granulation and mass production for high and low concentration compound fertilizer.
We adopts special rubber liner or acid-resistant stainless steel liner into the rotary drum, and achieve the functions of automatic scars and tumor removal, so that you can cancel the traditional scraper device. This machine has so many characteristics such as high balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, convenient operation and maintenance and so on.
Features:
1, The balling rate is more than 90%, with small amount of return material, small size of feed back and can be re-granulation;
2, By steam heating, it can improve the temperature of material, so that the water is low after ball forming, thus improve the drying efficiency;
3, With rubber engineering plastics for lining, raw materials is not easy to stick, and play a role in anti-corrosion and insulation;
4,Large capacity, low power consumption and maintenance costs.
Advantages
1. It is suitable for hot and cold granulation and high, medium and low concentrations of mass production of compound fertilizer.
2. The shell of the machine uses special rubber slab lining or acid-resistant stainless lining board which realizes auto scar removal and de-tumor instead of traditional drawknife equipment
3. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance, etc.
Parameter
Model | Inner dia | Length | Speed | Power | Capacity | Dimension |
ZG1.2*4 | 1.2m | 4m | 17r/min | 5.5kw | 1-3t/h | 4.6*2.2*2.0m |
ZG1.4*5 | 1.4m | 5m | 14r/min | 7.5kw | 3-5t/h | 4.8*2.8*2.3m |
ZG1.6*6 | 1.6m | 6m | 11.5r/min | 11kw | 5-8t/h | 7.0*3.2*3.1m |
ZG2.0*8 | 2.0m | 8m | 11r/min | 18.5kw | 10-15t/h | 9.1*3.6*3.5m |
ZG2.2*8 | 2.2m | 8m | 10.5r/min | 10.5kw | 15-20t/h | 9.5*4.4*3.9m |
