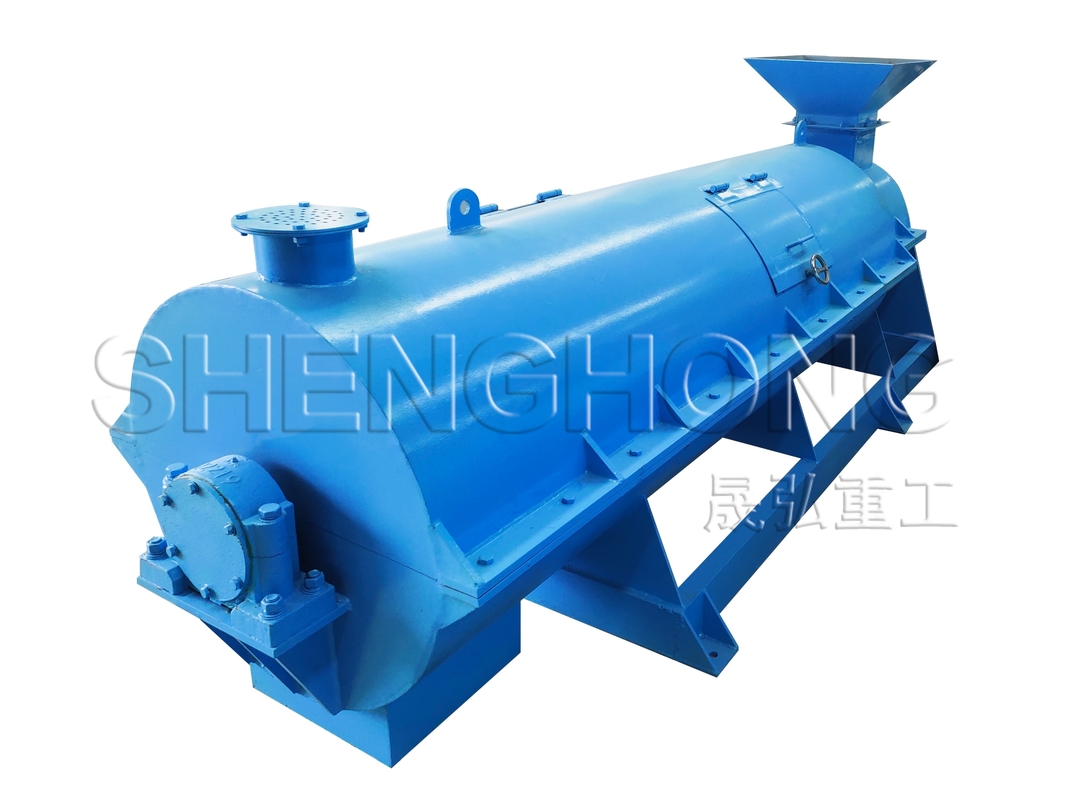

Compost Organic Fertilizer Granulation Equipment With Stir Teeth

Compost Organic Fertilizer Granulation Equipment With Stir Teeth
Compost Organic Fertilizer Granulation Equipment With Stir Teeth Compost Organic Fertilizer Granulation Equipment With Stir Teeth Compost Organic Fertilizer Granulation Equipment With Stir Teeth

Large Image :  Compost Organic Fertilizer Granulation Equipment With Stir Teeth

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: BV ISO SGS
Model Number: YSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Package or Container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs per day
Detailed Product Description
Application: Organic Fertilizer Granulator Machine Usage: Making Fertilizer Granules
Granules Shapes: Ball/cylinder Shape Brand Name: Tianci
Warranty: 12 Months Material: Carbon Steel Or Stainless Steel
Raw Material Moisture: 20%-40% Votlage: 380V
Feed Material: 50Mesh
Highlight:

380V Fertilizer Granulator Machine

,

Stir Teeth Fertilizer Granulation Equipment

,

50 Mesh Feed Fertilizer Granulation Equipment

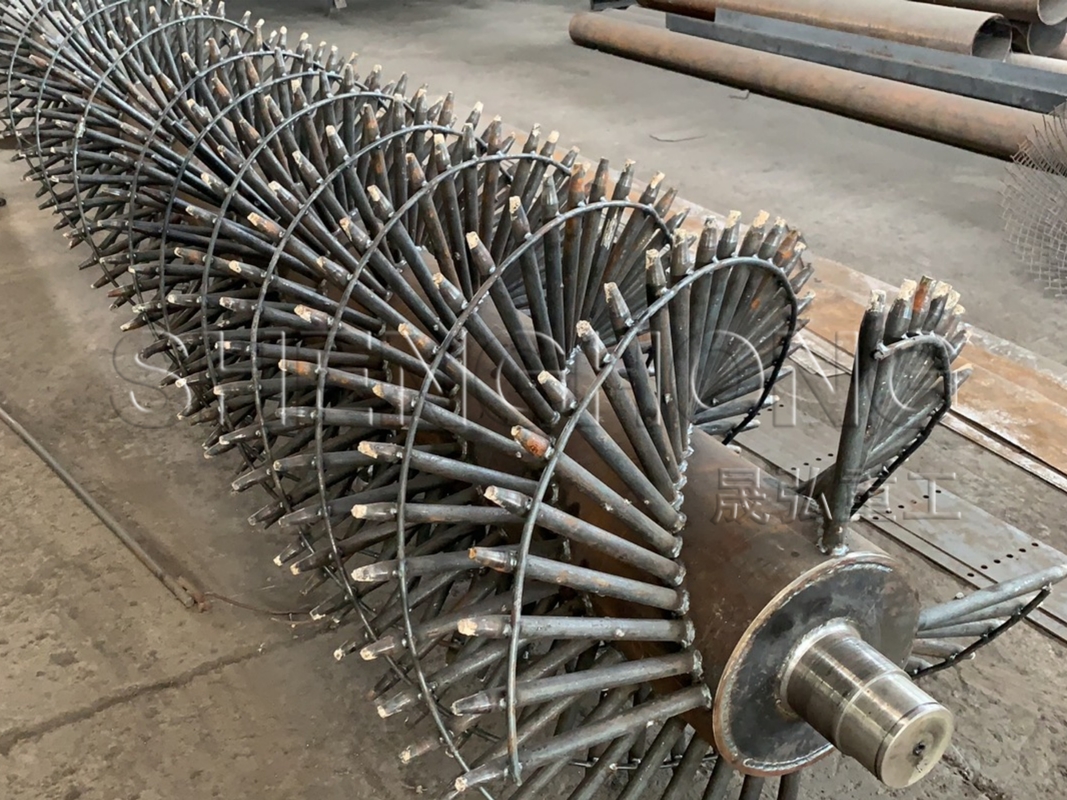

Stir Teeth Compost Fertilizer Granulator Machine For Organic Fertililzer

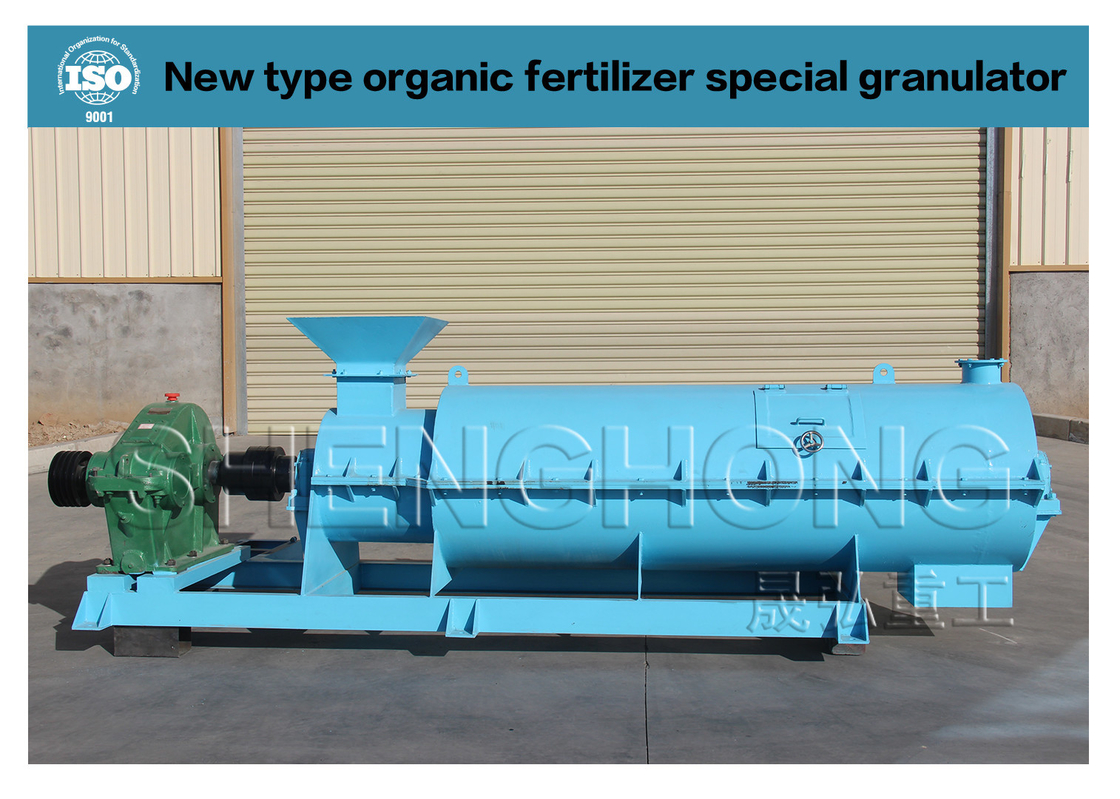

Brief Introdcution of fertilizer granulator machine
The special fertilizer granulator machine is the latest technological product developed by the Agricultural Machinery Research Institute using years of experience in the design and production of compound fertilizer processing equipment, and has obtained national practical patents. It is used for the granulation of various organic substances after fermentation, breaking through the conventional organic granulation. There is no need to dry and crush the raw materials before granulation, and it can be directly mixed into cylindrical granules, which can save a lot of energy.


Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc
















Main technical parameters


ModelMSJZ-60MSJZ-80MSJZ-100MSJZ-120MSJZ-150
Power37KW55KW75KW90KW110KW
Capacity1-1.5 T/H1.5-2.5 T/H2-4 T/H4-6 T/H6-8 T/H
Dimension4100*1600*1150mm4250*1850*1300mm4700*2350*1600mm4900*2550*18005500*2800*2000
Installation Angle2°-2.5°2°-2.5°2°-2.5°2°-2.5°2°-2.5°
Feedstock Moisture Content20%-40%20%-40%20%-40%20%-40%20%-40%
FeedstockMaterials Size50mesh50mesh50mesh50mesh50mesh


Features of organic fertilizer granulator:

(1)The product granule is round ball.
(2) The organic content can be high to 100%, make pure organic granulate.
(3) Organic material particles can grow up under a certain force, no need to add binder when granulating.
(4) Product granule is massy, it can sieve directly after granulation to reduce the energy consumption of drying
(5) After fermentation organics don't need to dry, moisture of the raw material can be in 20%-40%

Our advantages:

1. The main products: the composite organic fertilizer granulator, mixer,  screening machine, dryer, crusher, weighing packaging machines.
2. The Ministry of Agriculture designated production enterprises
3. We occupy 80% market share in China of composite and bio-organic fertilizer manufacturing.
4.Processional R & D team
5. Strict quality control system
6. We offer competitive prices, reliable quality products and fast delivery times.
7. exported to more than 30 countries in Africa, South America, the Middle East, Central America and other regions, such as India, South Korea, Australia and so on.


Our Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing th e most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.

Compost Organic Fertilizer Granulation Equipment With Stir Teeth 0Compost Organic Fertilizer Granulation Equipment With Stir Teeth 1
