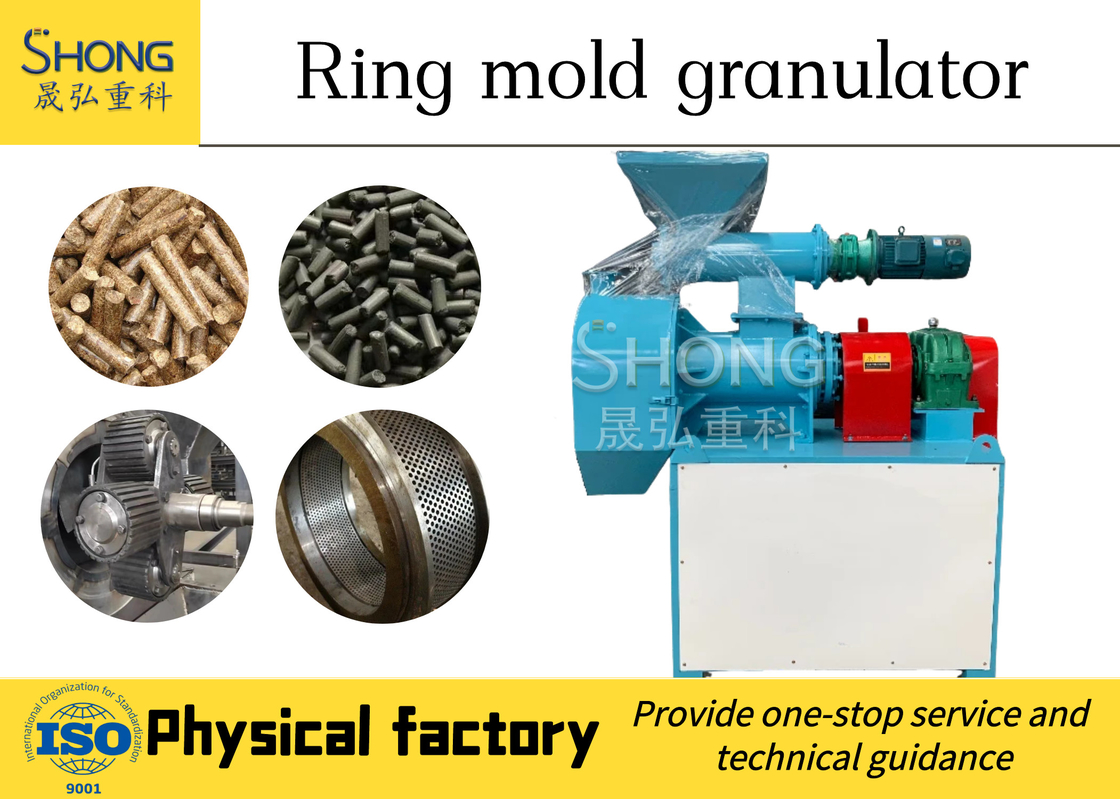

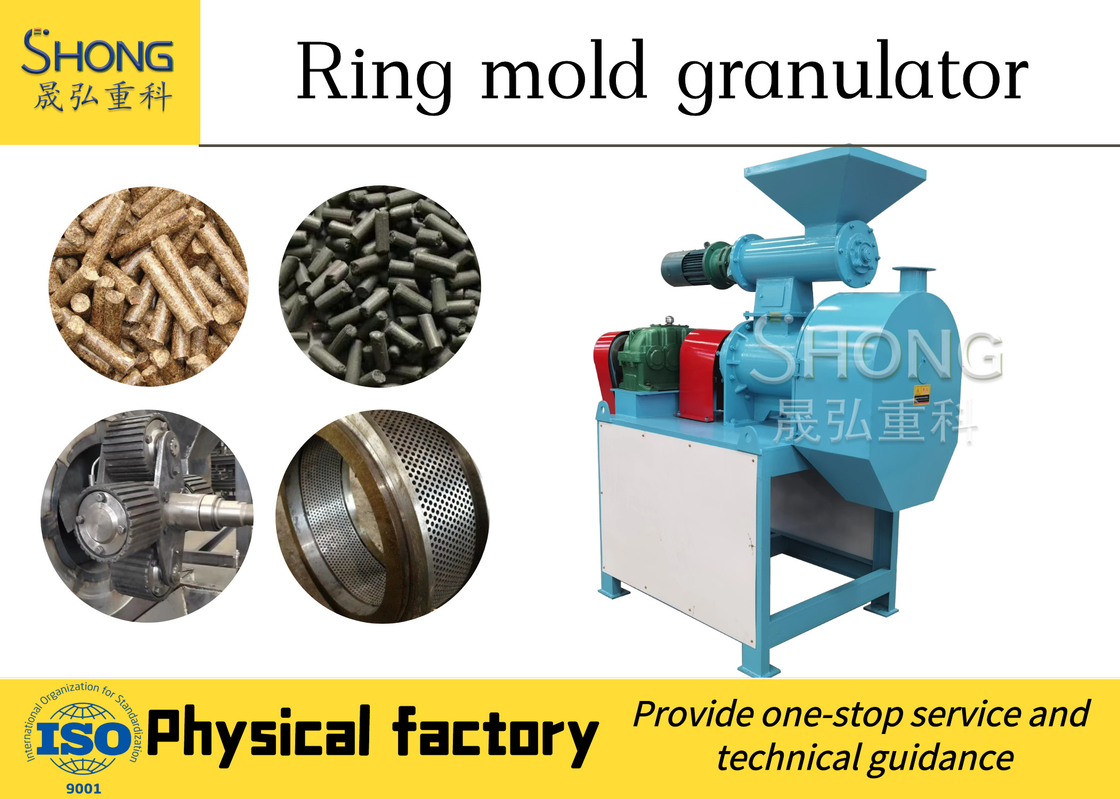

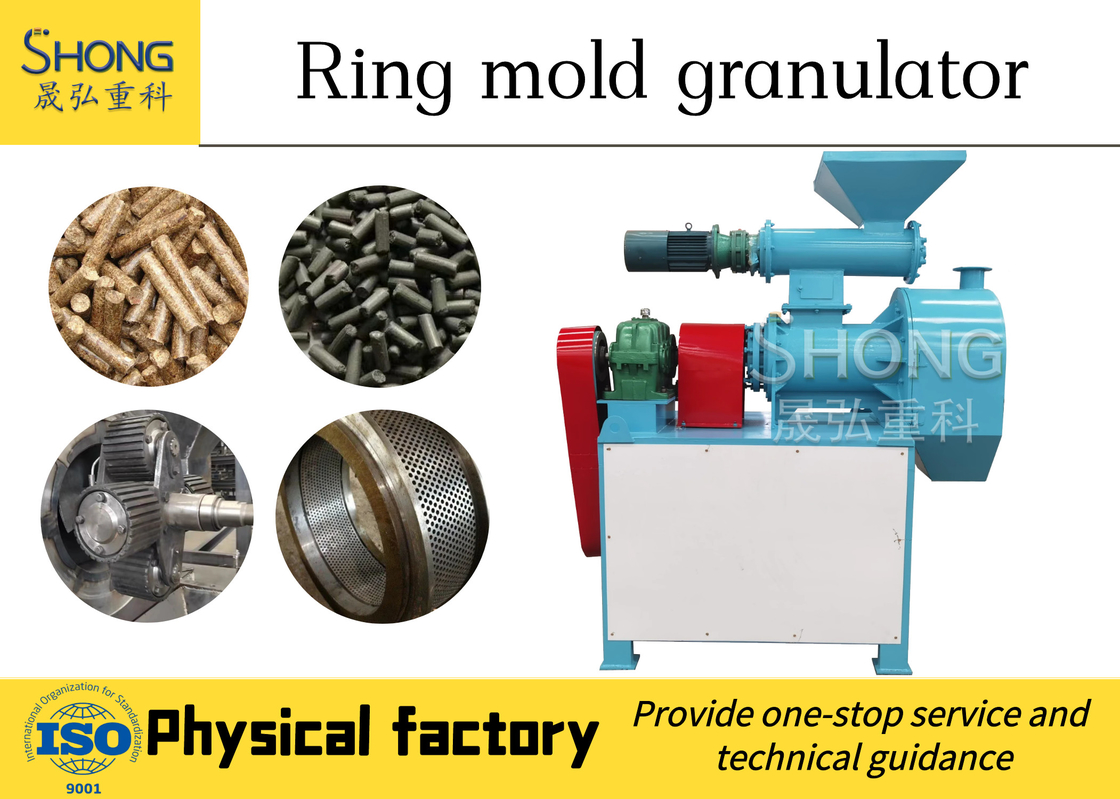

Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator machine

Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator machine
Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator machine
video play

Large Image :  Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator machine

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: CE, ISO9001
Model Number: KP-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Wooden case, 20GP, 40GP, 40HQ
Delivery Time: with 5 days
Payment Terms: L/C, T/T
Supply Ability: 50 piece per month
Detailed Product Description
Product Mane: Organic Fertilizer Pellet Machine Power: 18.5kw
Capacity: 1000-5000kg Voltage: 380V/415V/600V
Weight: 320kg Raw Material: Organic Powder
High Light:

18.5kw Soybean Feed Pellet Machine

,

380V Flat Die Granulator

,

400kg/H Flat Die Granulator

Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator Machine



Introduction:

The dual-mold granulator is one of the main (biological) organic fertilizer production equipment currently produced by our company. It is a fertilizer manufactured by our scientific and technical personnel on the basis of advanced domestic and foreign granular machines with many years of production experience. Machinery, the machine has excellent technology, simple operation, and has designed a variety of models with different models. It is an ideal processing machine for fertilizer processing units.

This machine integrates a three-in-one feeder mixer and a granulator; it also mixes the materials for a second time while evenly feeding. The feeder is equipped with a speed regulator to adjust the feed volume according to the dry humidity of the material during production. , So that the host will not get stuck or do useless work. The main machine integrates ring die and flat die, which is equivalent to the work of two pelletizers.



Parameter:

Model
KP-450
KP-650
KP-850
Capacity
1-4 (t/h)
4-8 (t/h)
8-13(t/h)
Pellet rise in the temperature (℃)
Max 30
Max 30
Max 30
Power
30+2.2 (kw)
55+4 (kw)
55+4(kw)
Pellet rate
Min 95%
Min 95%
Min 95%



Working principle:

The dual-mold granulator adopts spiral, two-way roller pressing, and dual-mold granulation technology to enable the organic materials to obtain continuous and strong roller pressing and shearing in the granulation area, and promote the physical granulation pressure between the powder and granular materials to be significantly strengthened. The granulation efficiency is 1-3 times higher than that of the conventional extrusion granulator, and the power consumption is reduced by more than 60%.

The double mold granulator is mainly used for (biological) organic fertilizer, compound fertilizer and pellet processing in the aquaculture processing industry.



Feature:

1. The machine is mainly used for (biological) organic fertilizer, compound fertilizer and aquaculture processing industry granule processing;
2. The surface of the machined granular material is smooth, moderate in hardness, and has a low temperature rise during processing and it can keep the nutrient components inside the raw material well. This machine combines the three-in-one of a feeder mixer and a granulator; when the material is evenly fed, the material is also stirred for a second time. The feeder is equipped with a governor, and the material is adjusted to the dry humidity in the production so that the host will not be stuck or useless. The main machine is equipped with a ring mold and a flat mold, which is equivalent to the work of two pelletizers.
3. Uniform particle composition, neat shape, particle size of the pore size can be divided into: Φ5, Φ6, Φ7, Φ8 and so on. Users can choose according to production needs when ordering;
4. Because of the low moisture content of the pellets, it can be easily stored in the water and can remain in the water for a
longer period of time, greatly improving the utilization of the material.
5. Granulator mold, stirring and conveying blades are quenched and tempered stainless steel; pressure roller casting and manganese addition and conditioning, to achieve anti-corrosion and wear resistance. This will increase production and reduce equipment losses.

Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator machine 0
